● 4S 12V Discharge 30A Charge 15A lifepo4 bms, same port
● 4S 12V Discharge 60A Charge 30A lifepo4 bms, same port
● 4S 12V Discharge 100A Charge 50A lifepo4 bms, same port
● 8S 24V Discharge 30A Charge 15A lifepo4 bms, same port
● 8S 24V Discharge 60A Charge 30A lifepo4 bms, same port
● 8S 24V Discharge 100A Charge 50A lifepo4 bms, same port
● 12S 36V Discharge 30A Charge 15A lifepo4 bms, same port
● 12S 36V Discharge 60A Charge 30A lifepo4 bms, same port
● 12S 36V Discharge 100A Charge 50A lifepo4 bms, same port
● 16S 48V Discharge 30A Charge 15A lifepo4 bms, same port
● 16S 48V Discharge 60A Charge 30A lifepo4 bms, same port
● 16S 48V Discharge 100A Charge 50A lifepo4 bms, same port
included in the box
BMS x 1
balance wire x 1
Description
- Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
- Strong load ability, constant discharge current 30A 60A 100A, use high voltage resistance
- inner resistance power Mosfet. The heat sink will greatly help cooling.
- IC itself has power balancing function. The circuit is simple and reliable.
- Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won't affect the PCB and the battery
- Extreme low power consumption. The consumption of the whole device is less than 50uA.
- PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating

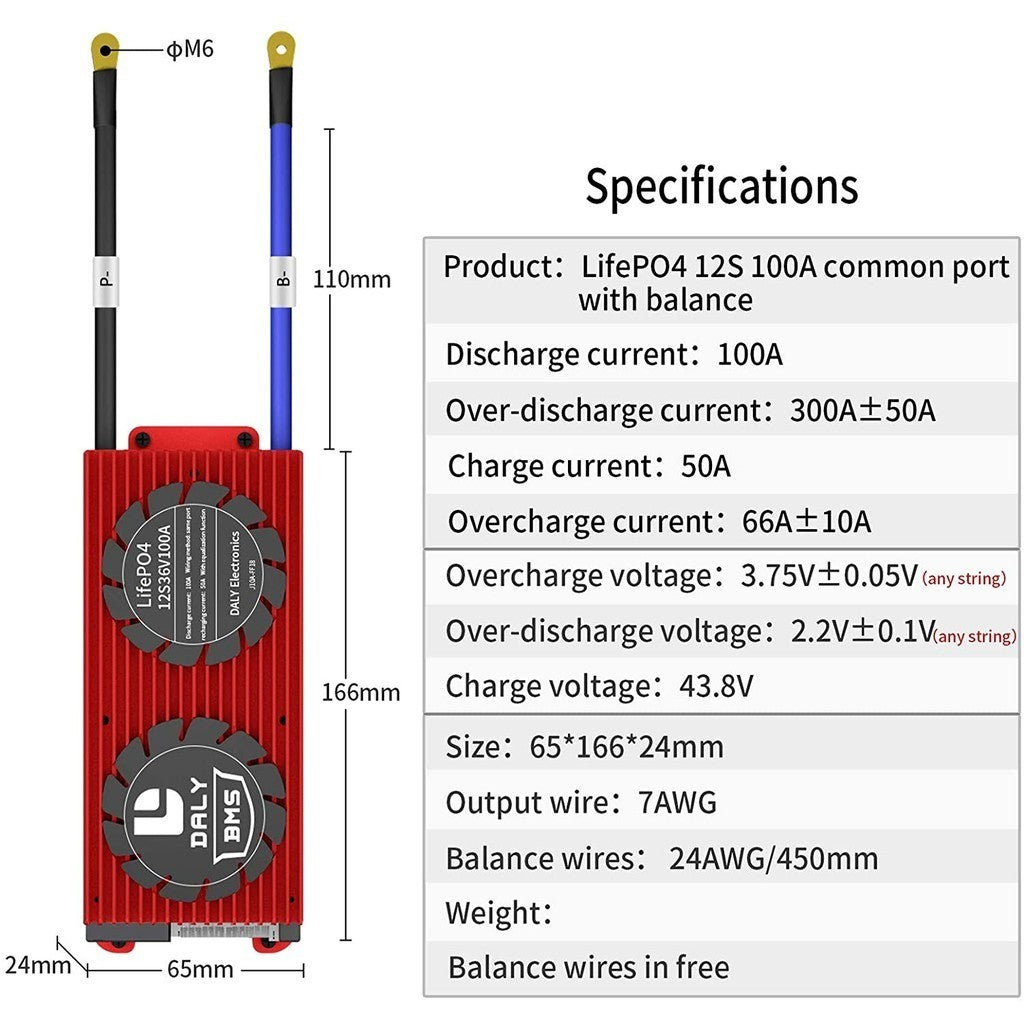

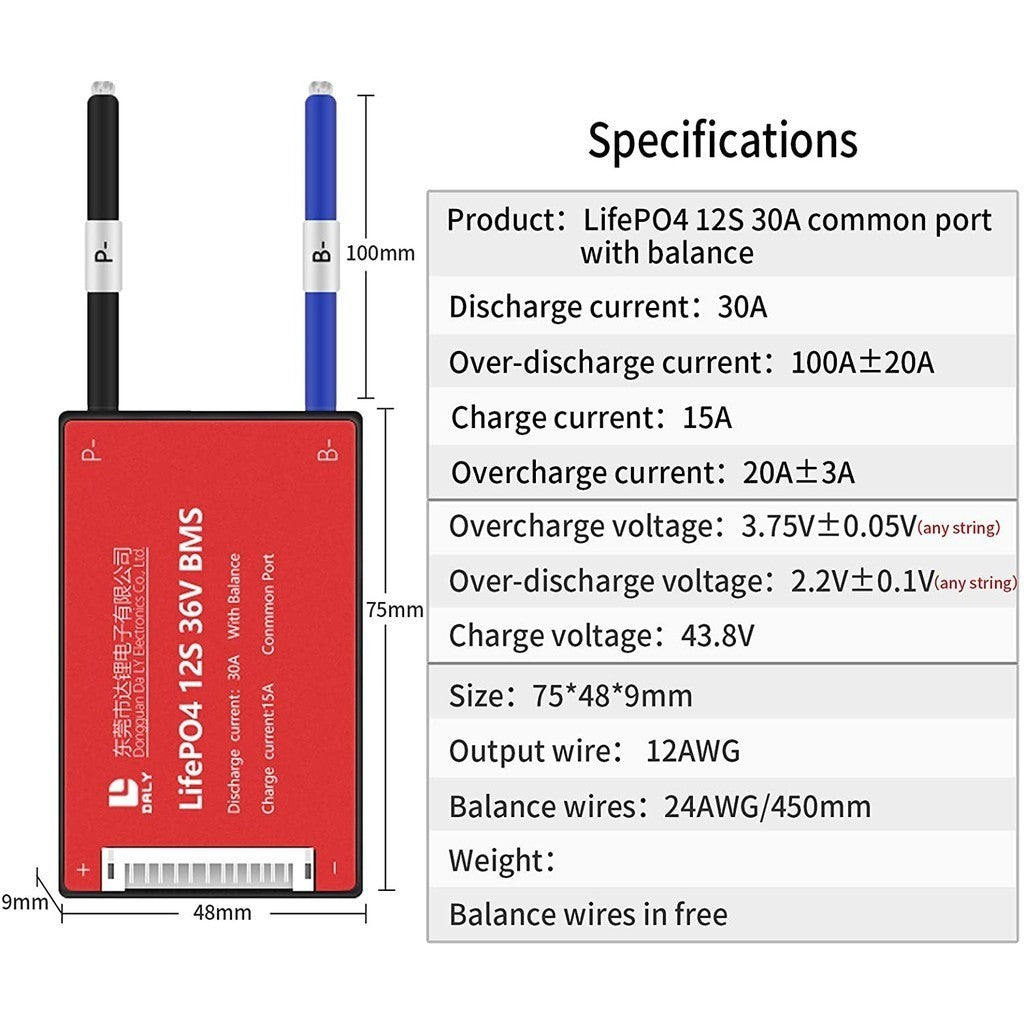

specification
● Over Charge Detection Voltage: 3.75±0.05V
● Over Charge Detection Delay Time: 0.5S
● Over Charge Release Voltage: 3.55±0.05V
● Cell balancing Detection Voltage: 3.5V
● Cell balancing Release Voltage: 3.5V
● Cell balancing Current: 30±5mA
● Over Discharge Detection Voltage: 2.2±0.05V
● Over Discharge Detection Delay Time: 0.5S
● Over Discharge Release Voltage: 2.7±0.05V
● Over Current Protection Condition: Disconnect the load
