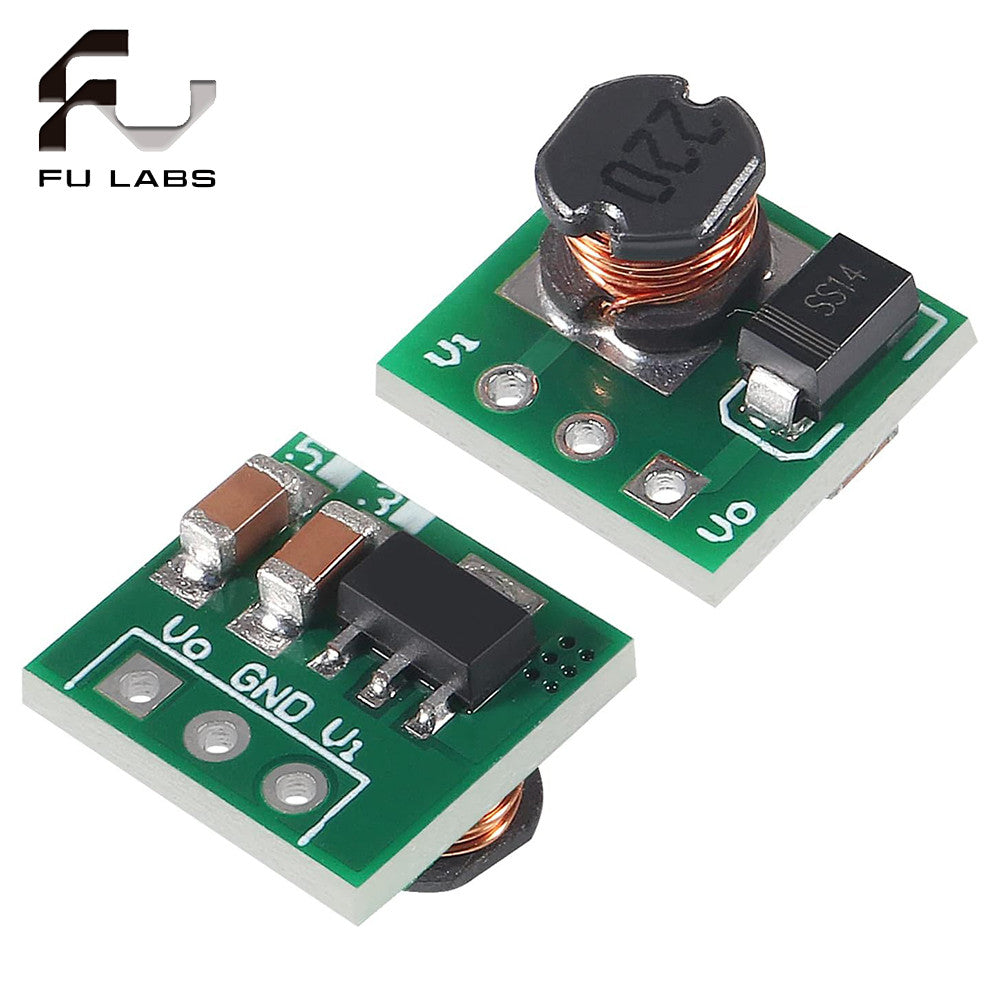

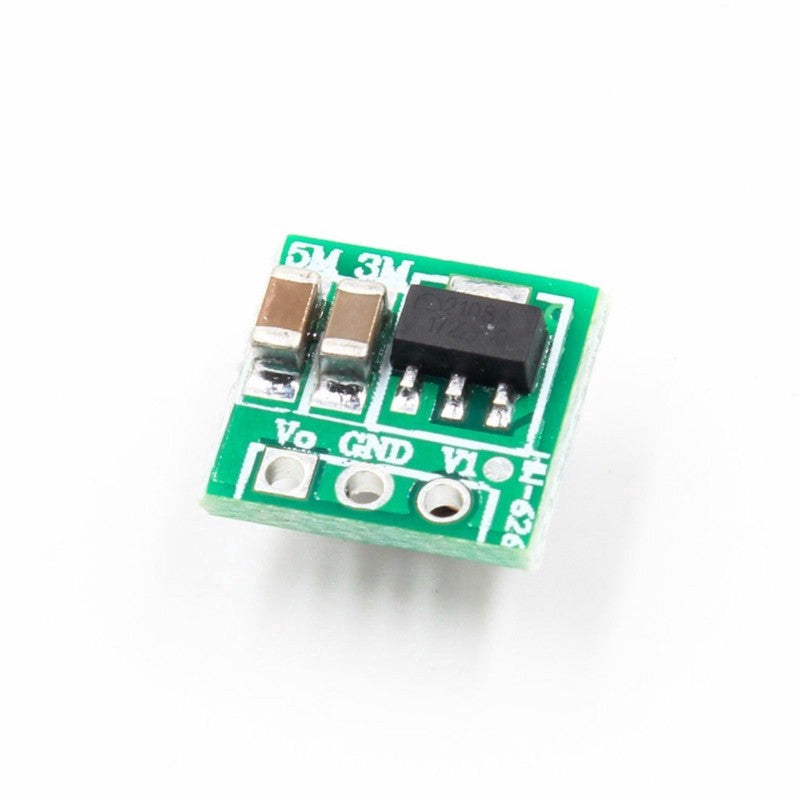

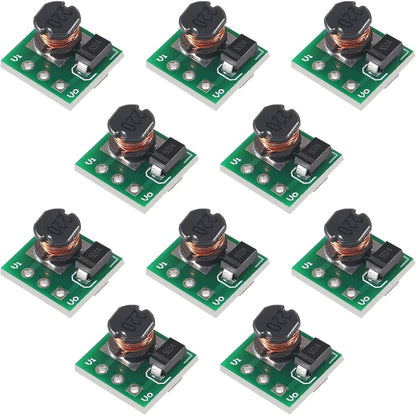

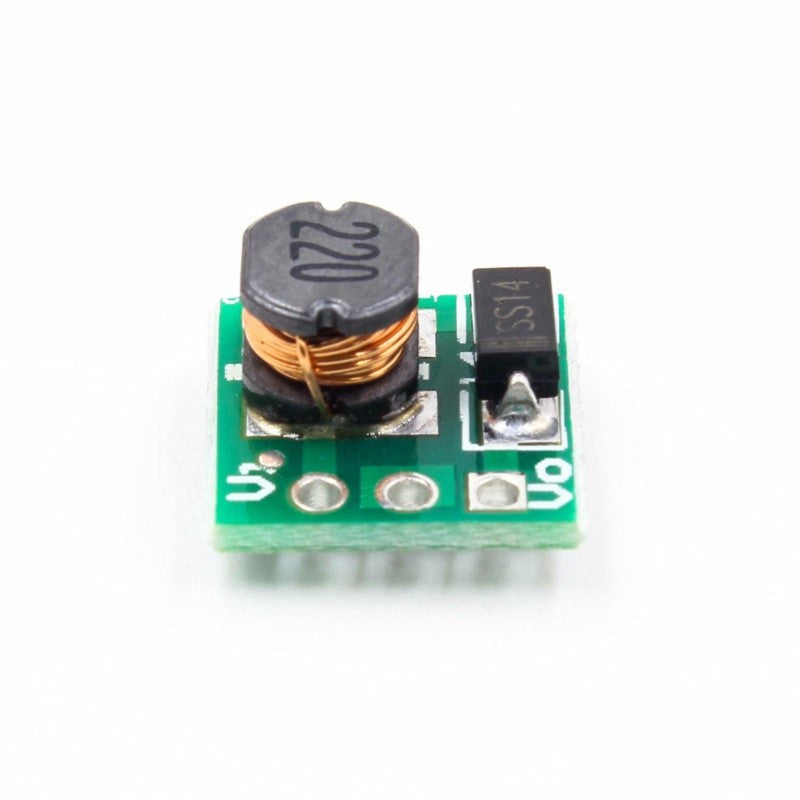

DC 0.9V-5V To 5V or DC 0.8V-3.3V To 3.3V DC-DC Step-Up Power Module Voltage Boost Converter Board

  DC 0.9V-5V To 5V or DC 0.8V-3.3V To 3.3V DC-DC Step-Up Power Module Voltage Boost Converter Board

3.3V output version:

1. Input voltage 0.8-3.3V; output voltage 3.3V

2. Maximum output current: 500 mA

3. Starting voltage 0.8V, output current 10MA

4. Input 1-1.5V, output 3.3V 50-110MA;

5. Input 1.5-2V, output 3.3V 110-160MA;

6. Input 2-3V, output 3.3V 160-400MA;

7. Pin Space:2.54mm

8. Size:11*10.5*7.5mm

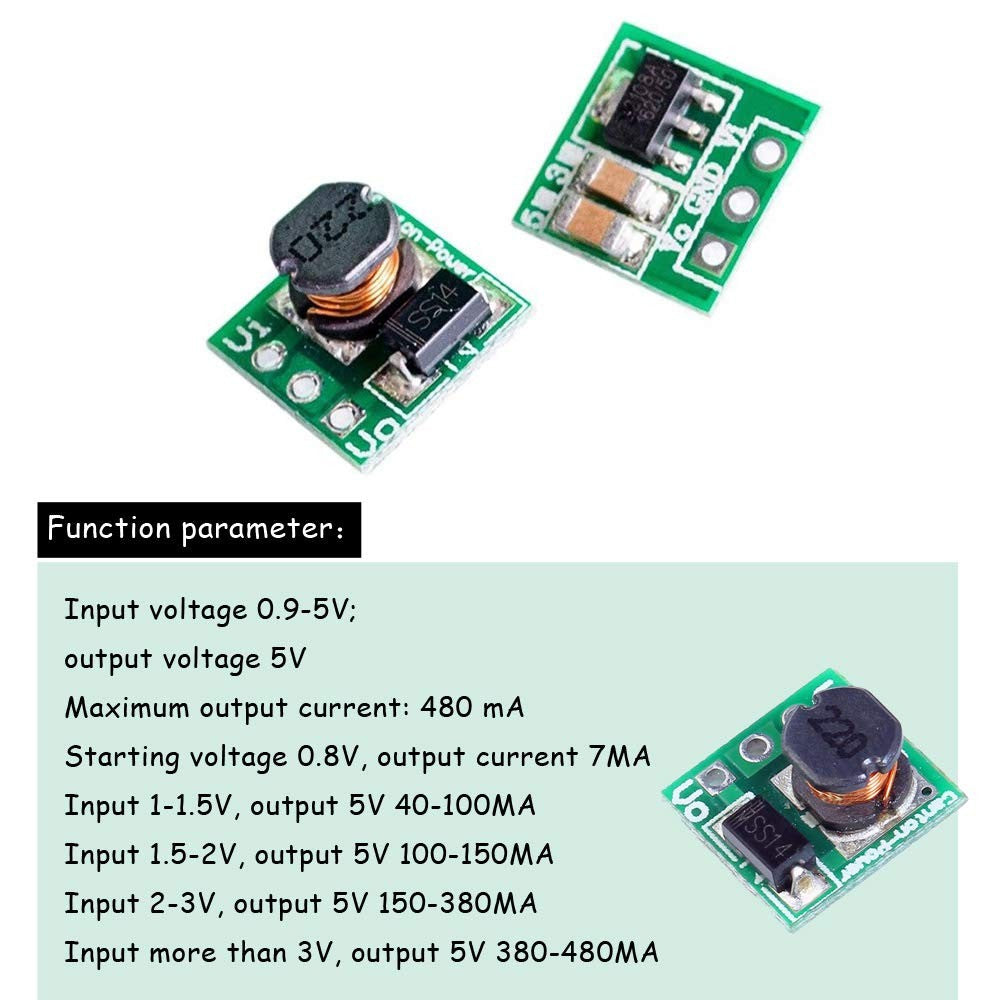

5V output version:

1.Input Voltage:0.9-5V;output voltage:5V

2.Maximum Output Current:480mA

3.Starting Up Voltage:0.8V;output current:7mA

4.Input Voltage:1-1.5V;output voltage 5V;current 40-100mA

5.Input Voltage:1.5-2V;output voltage 5V;current 100-150mA

6.Input Voltage:2-3V;output voltage 5V;current 150-380mA

7.Input Voltage:>3V;output voltage 5V;current 380-480mA

8.Operating Frequency:150KHz

9.Typical Conversion Efficiency:85%

10.Pin Space:2.54mm

11.Size:11*10.5*7.5mm
