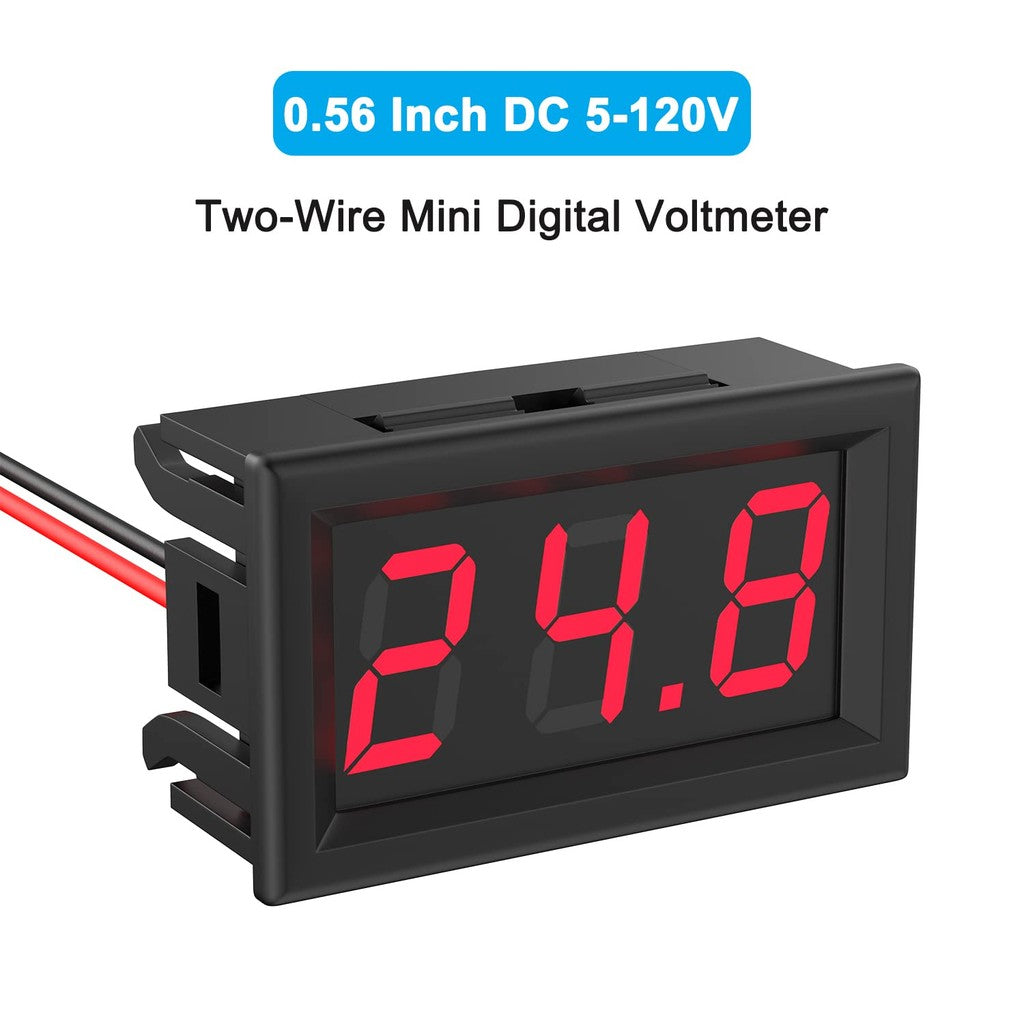

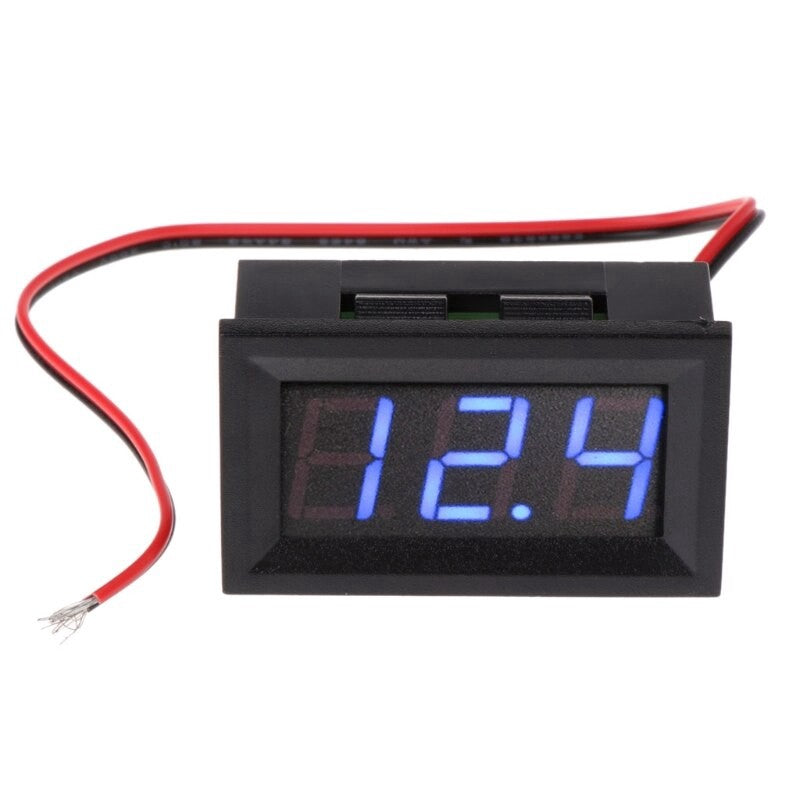

DC 5V-120V Digital Voltmeter Panel Gauge 2 Wires 0.56 inch LED Mini Voltage Meter Table Red Green Blue Display
Couldn't load pickup availability
DC 5V-120V Digital Voltmeter Panel Gauge 2 Wires 0.56 inch LED Mini Voltage Meter Table Red Green Blue Display
Features:
This voltmeter is suitable for almost all electric vehicles with high precision and stability.
High precision

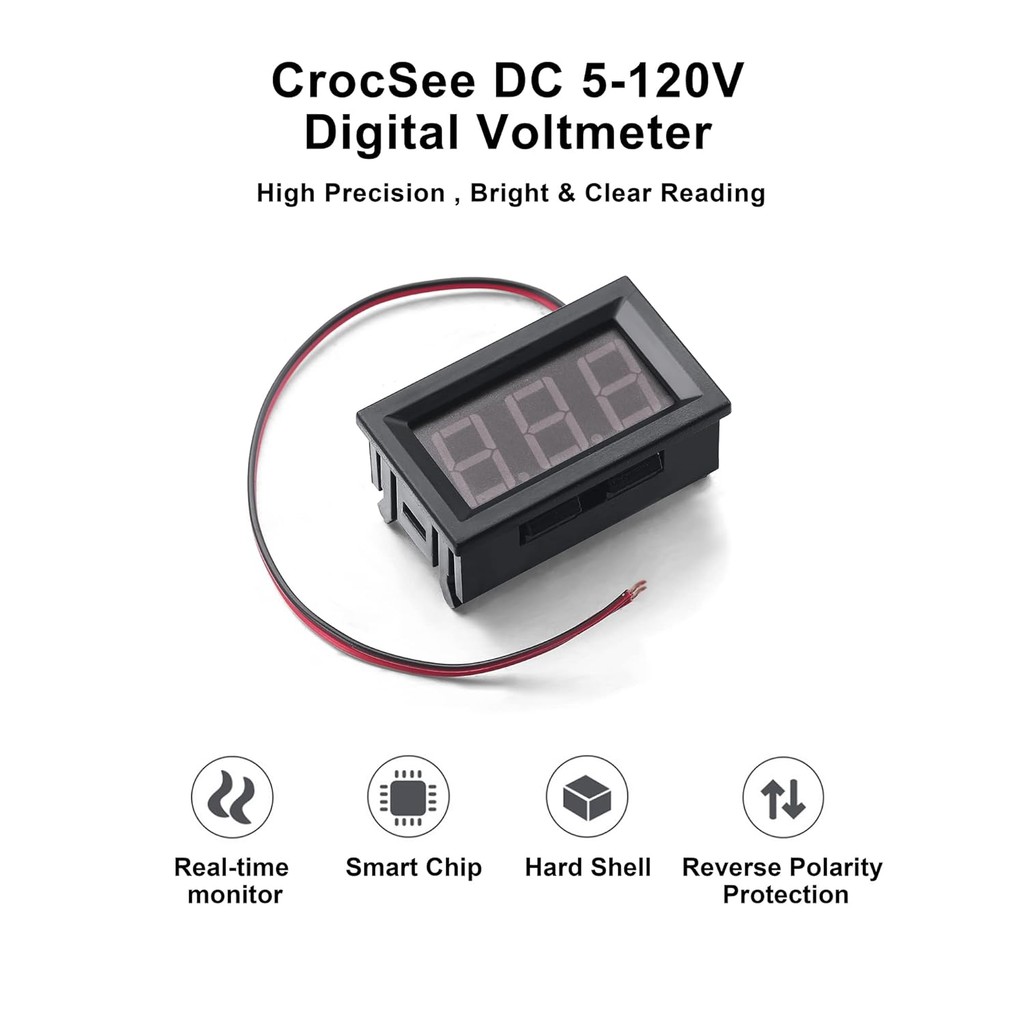

Reverse protection and then flameproof.

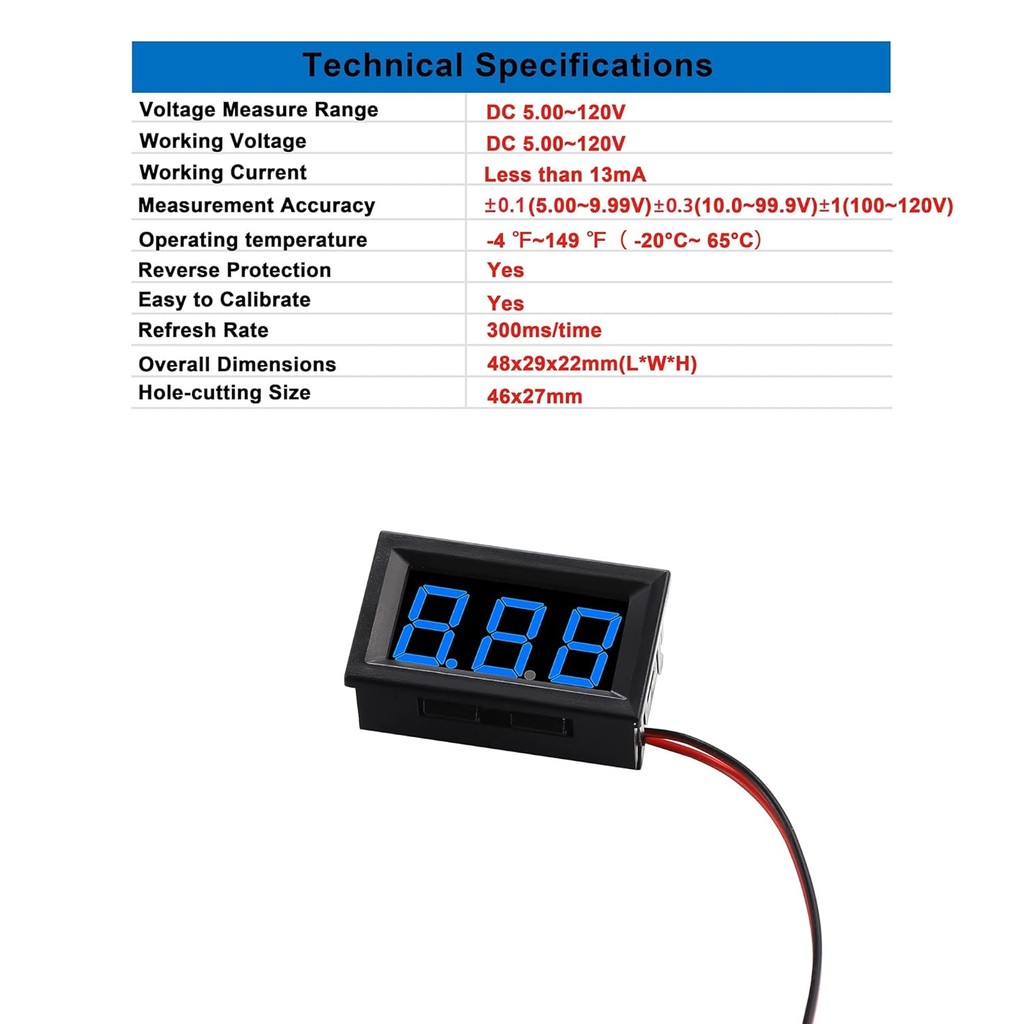

Technical Parameters:
Measuring range: red DC5-120.0V, green DC5-120.0V, blue DC5-120.0V

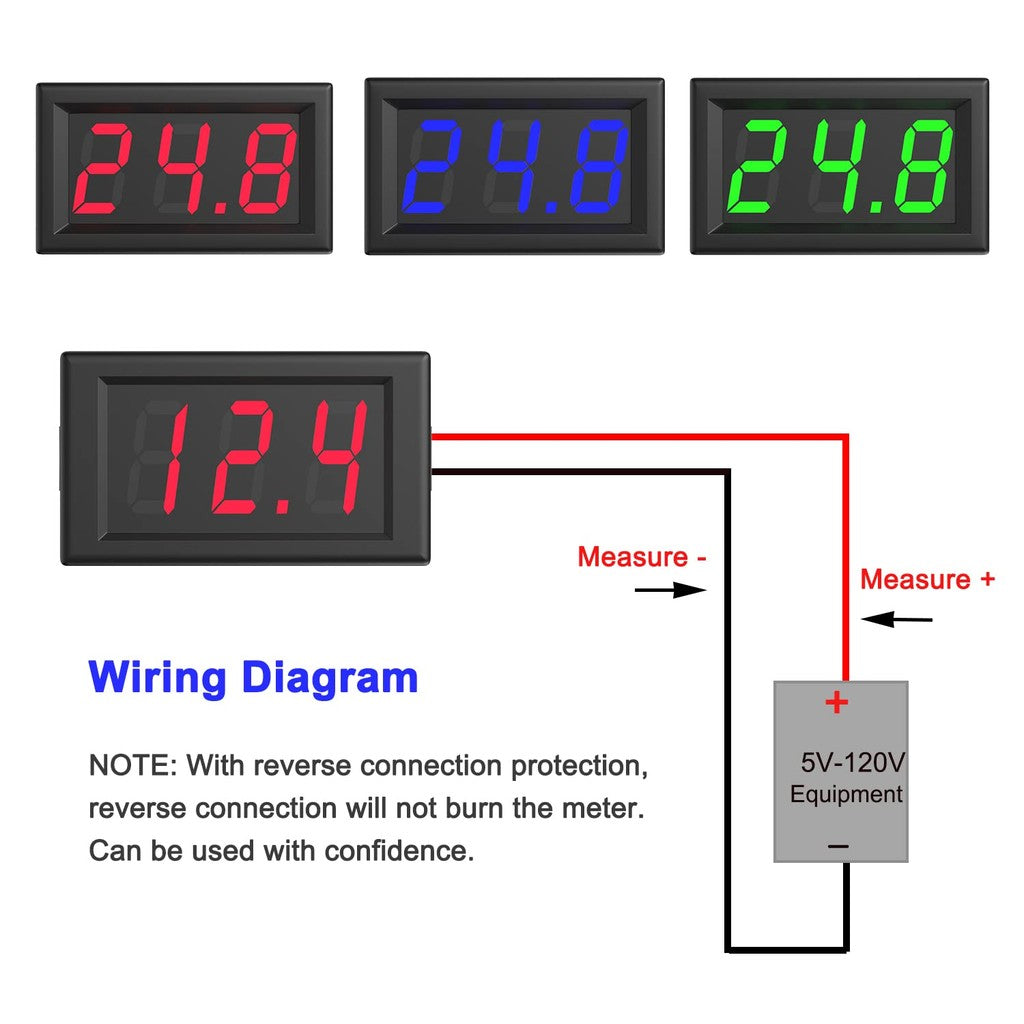

Power range: no additional power supply required, directly using the measured voltage as a power supply
Maximum input: DC132V.

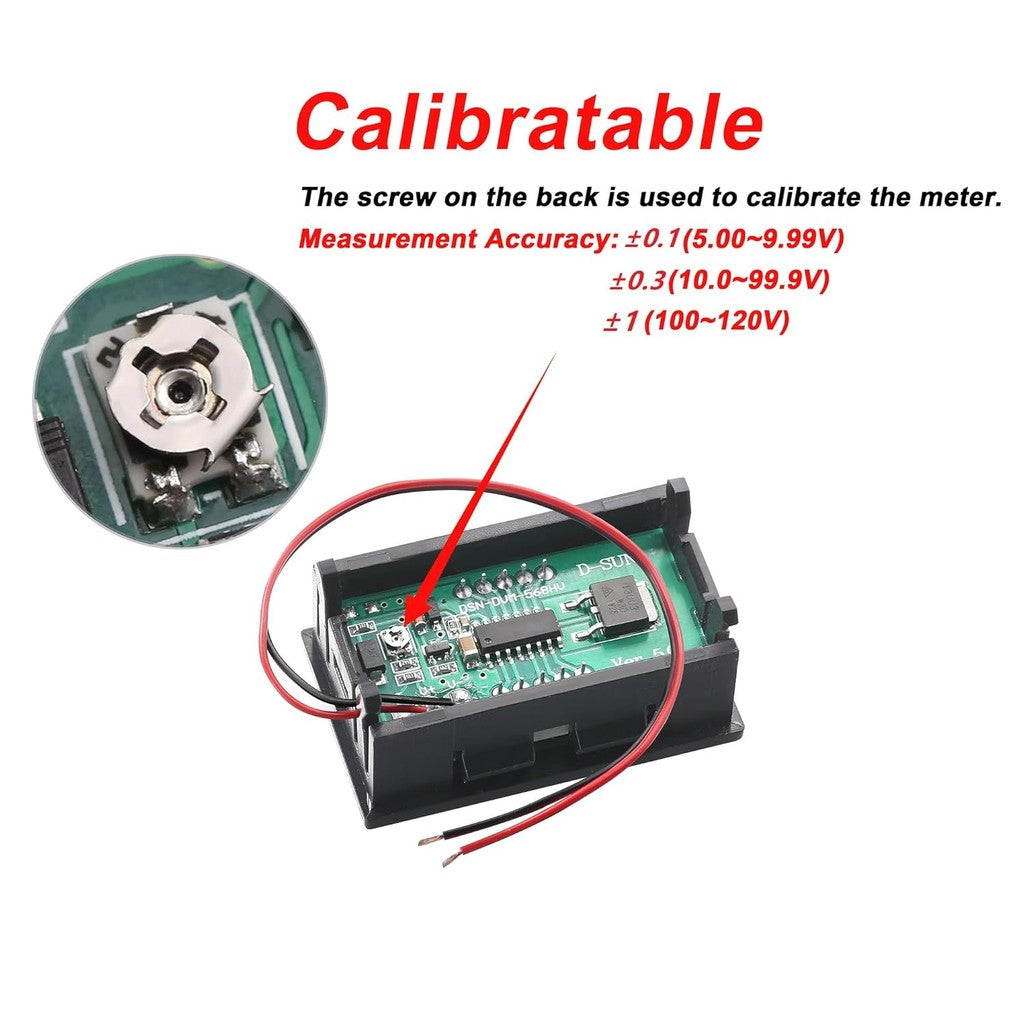

Tolerance: ±1%
Input impedance: > 100K Europe
Operating current red <23mA, green <18mA, blue <13mA
Refresh rate: about 300mS once
Display: three 0.56 inch LED digital tube

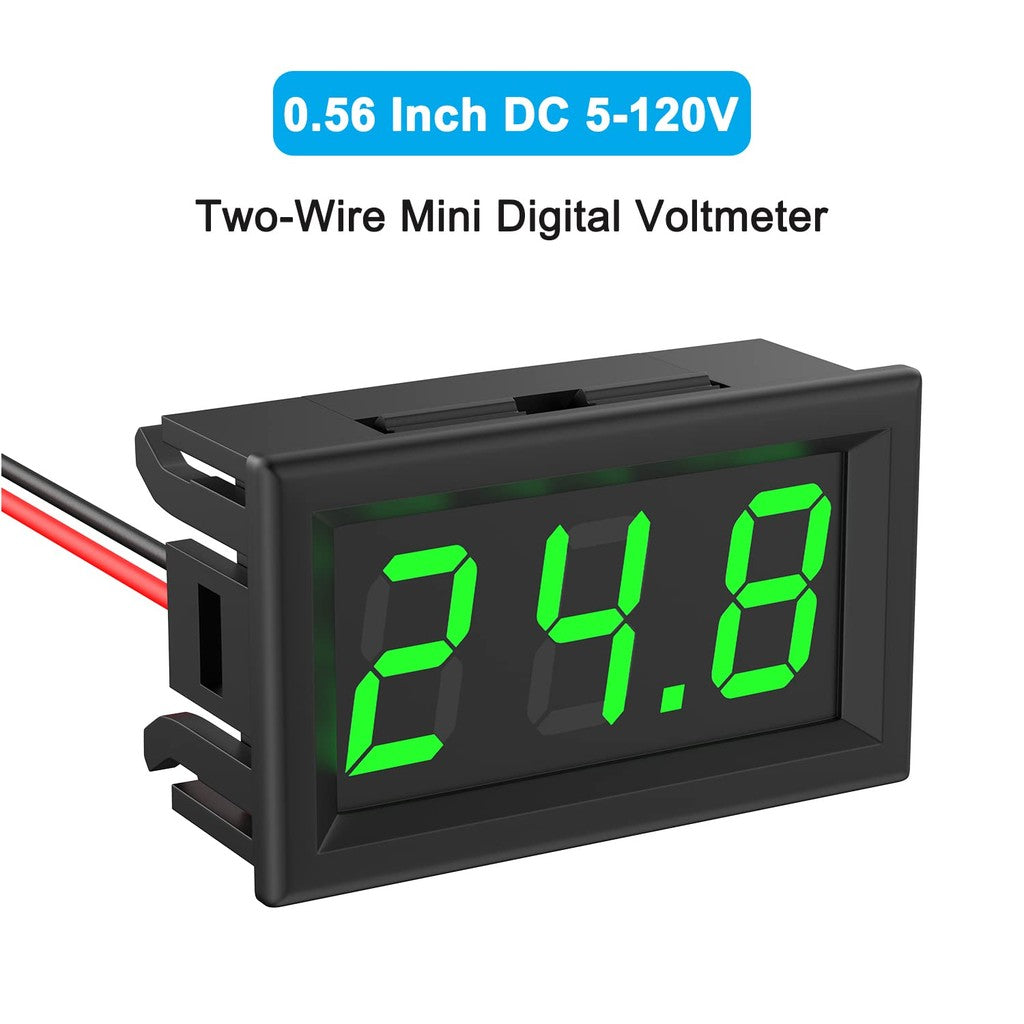

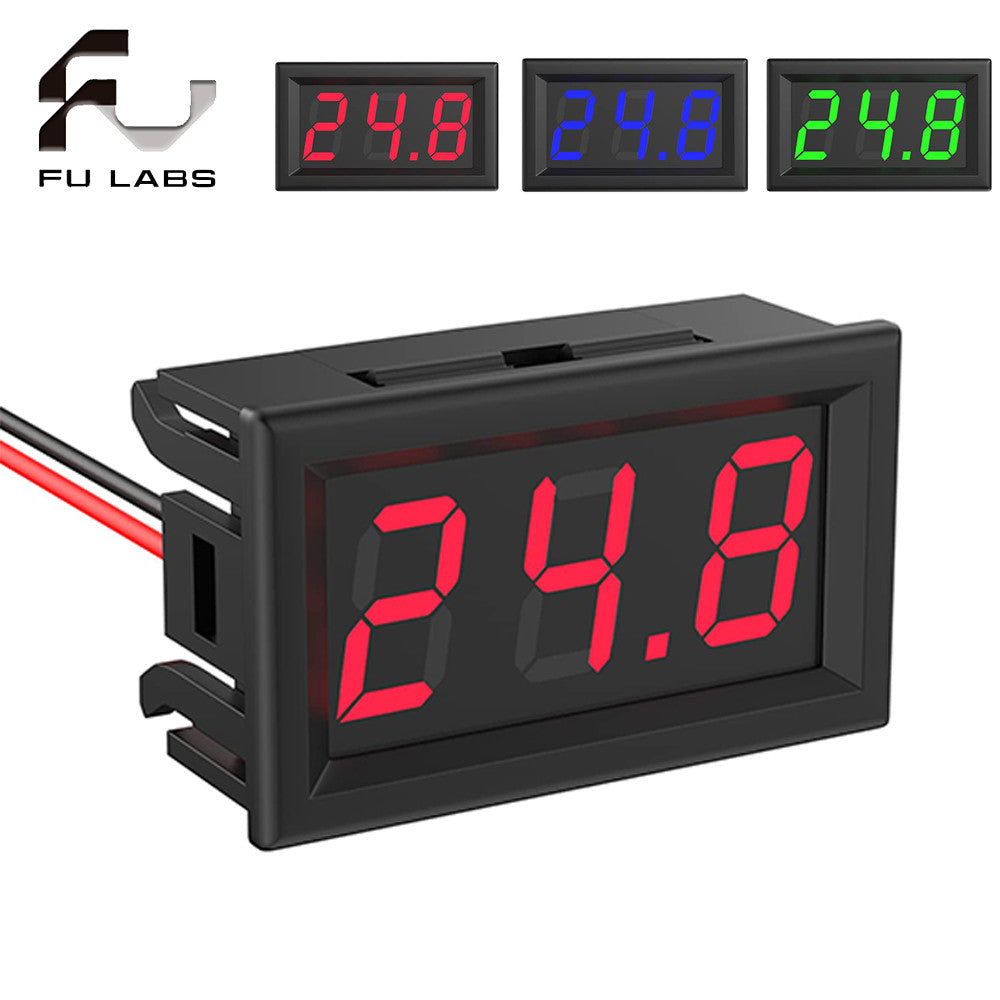

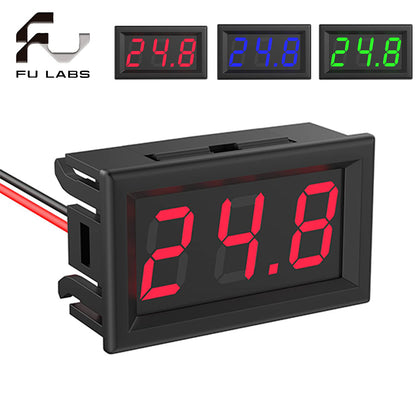

Display color: red, green, blue
Lead length: 20cm

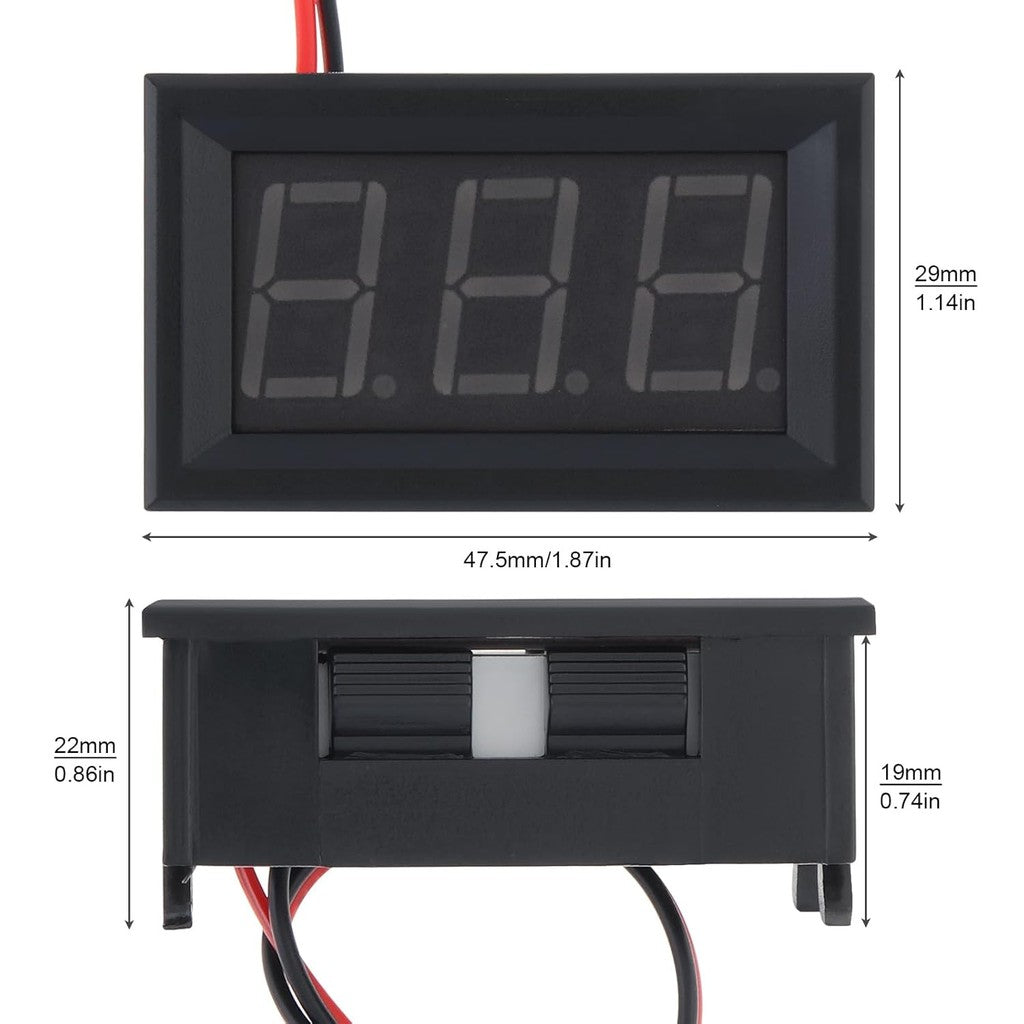

Dimensions: 48 x 29 x 22 mm (length X width x thickness)
Hole size: 46 x 27 mm
Net weight: 18g
Gross weight: 25g
Working temperature: -20 ° C ~ 65 ° C
Note: Input voltages above 132V may be permanently damaged!
