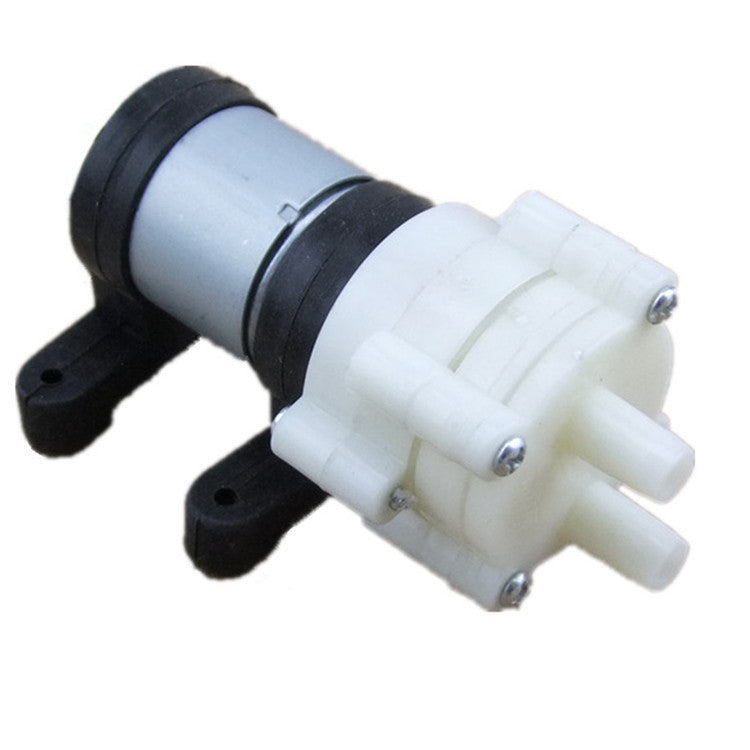

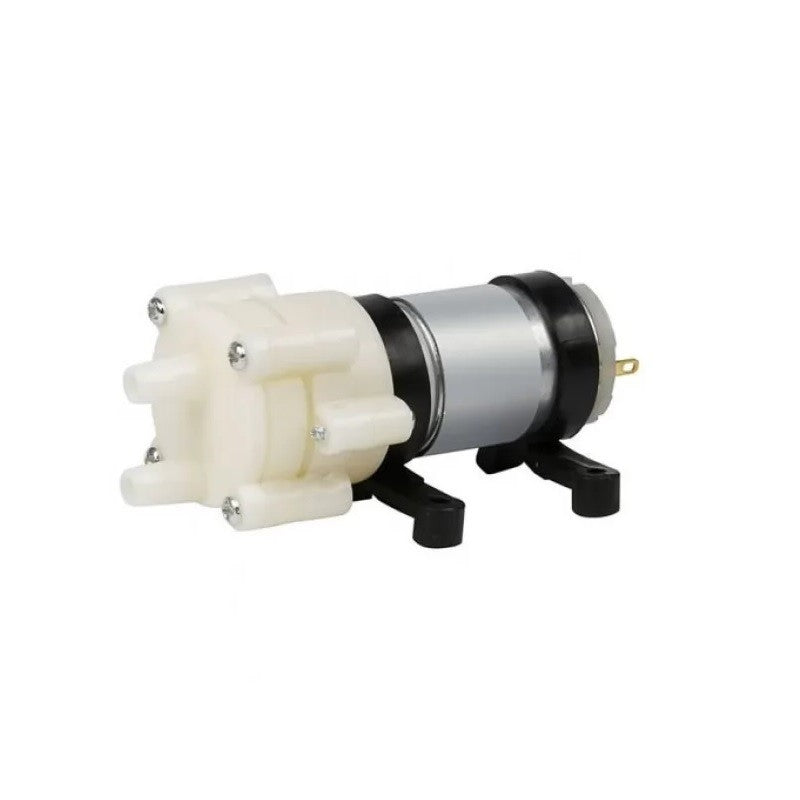

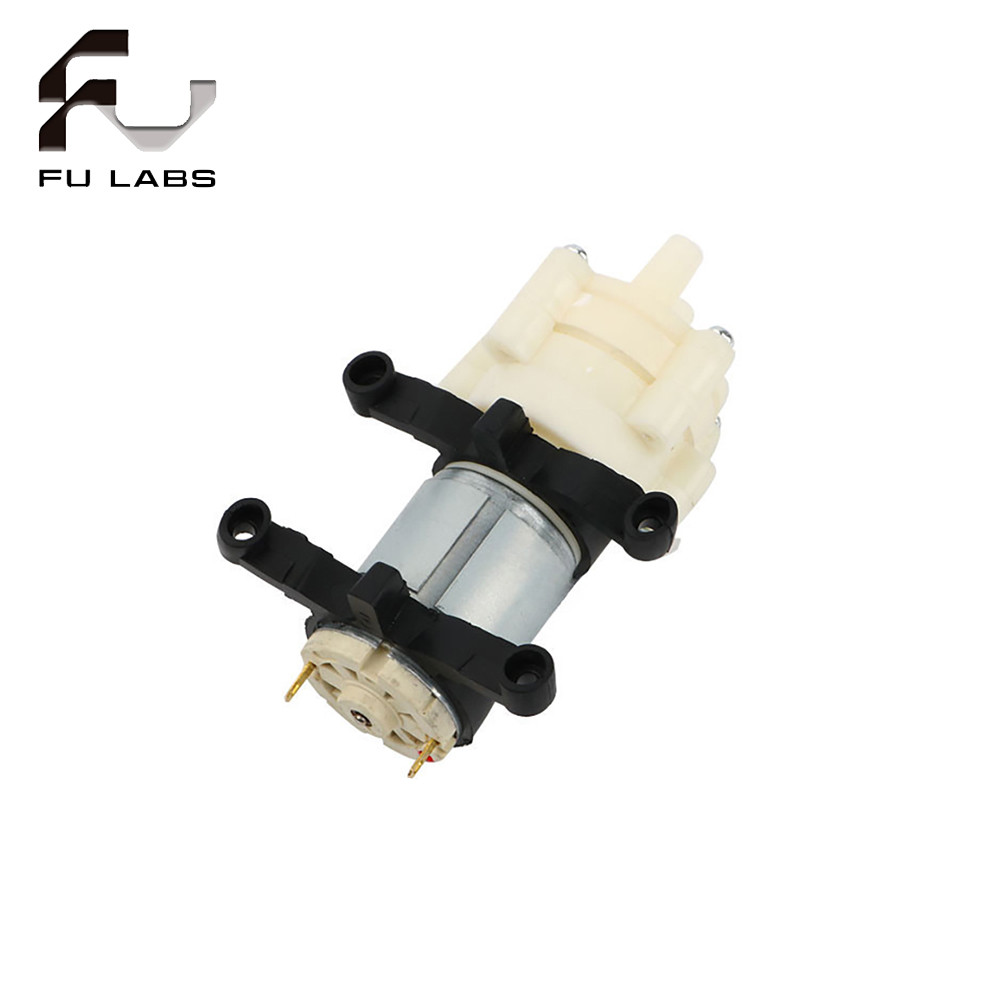

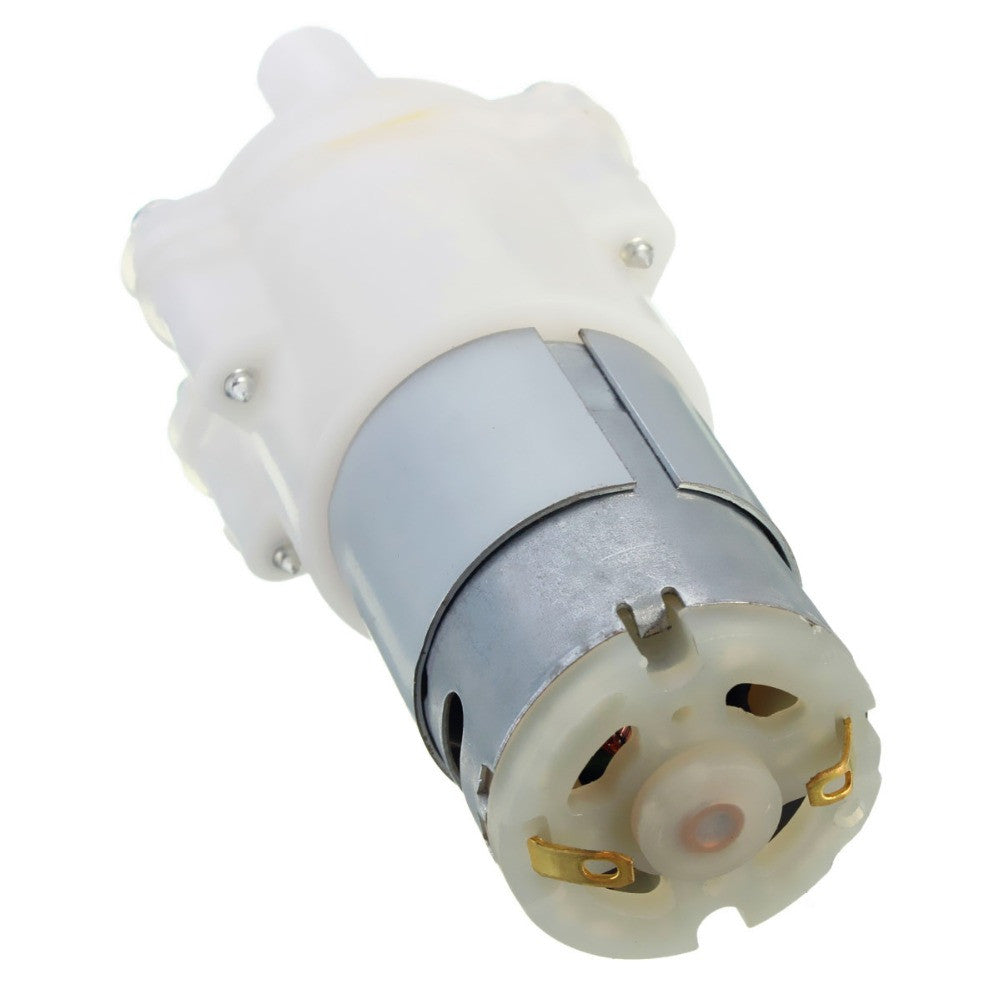

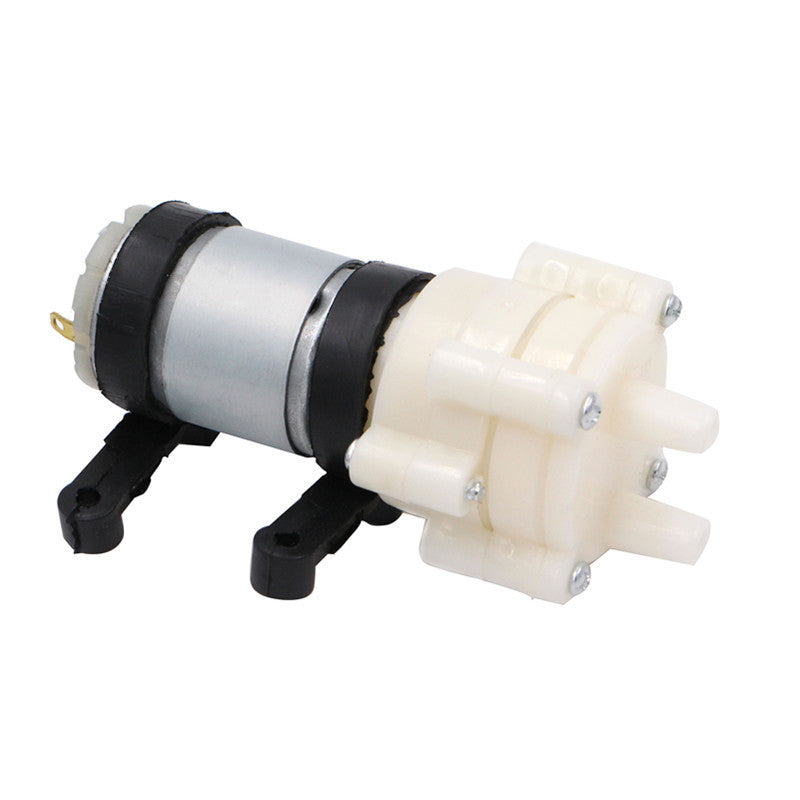

DC6-12V R385 Aquarium Fish Tank Round Water Air DC Diaphragm Pumps Accessorie

Parameter Specifications:

Electric Diaphragm Pump

● Motor Model: 385

● Voltage: DC/12V

● Current: <0.4A

● Power: 4.8W

● Flow Rate: 1.8±0.1L/min

● Head: 3M

● Continuous Working Time: 120H

● Technical Requirements (DC Diaphragm Pump):

Operating Conditions

● Suitable Water Temperature: 5℃-45℃

● Operating Ambient Temperature: 5℃-40℃

● Operating Inlet Pressure: 0.3Mpa

● Duty Cycle/Cooling Method: Daily working time not exceeding 8 hours/natural cooling.

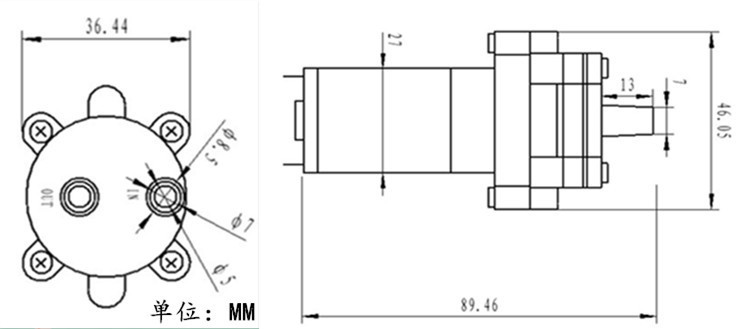

● Note: Dimensions are in mm; compression of vibration-damping rubber during installation should be controlled to 1-1.5mm.

● Inlet/Outlet Diameter: 7mm

● Electrical Strength: The power port and casing can withstand 500V/50Hz/1min without flashover or breakdown.

● Pressure and Flow Performance: 1.8±0.1L/min

● Current: <0.4A

● Constant Damp Heat Test: After being placed in an environment of 40±2℃ and 93%+3% relative humidity for 48 hours, the electrical performance still meets requirements after drying.
