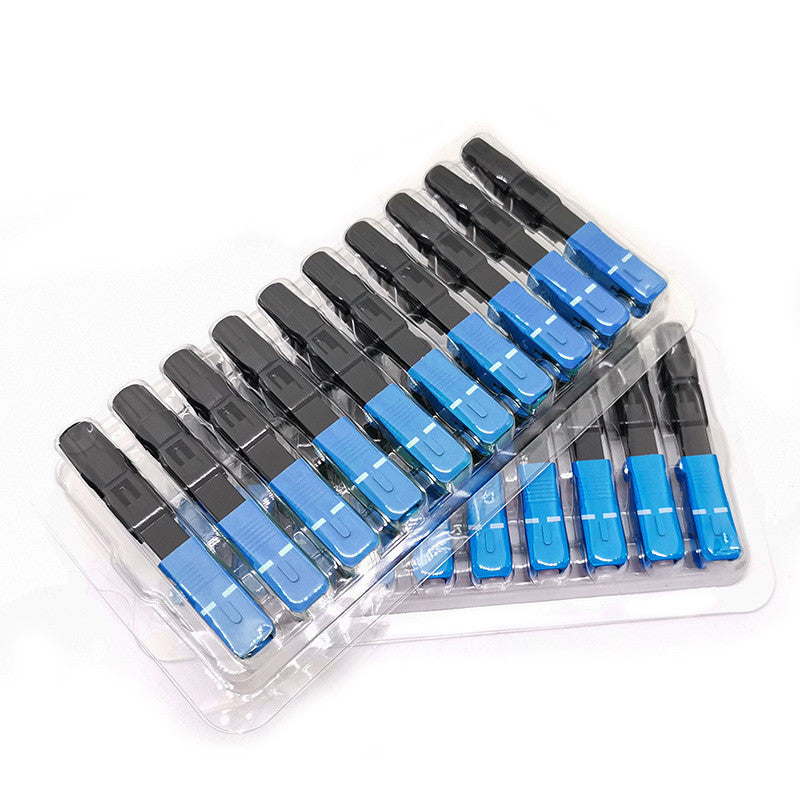

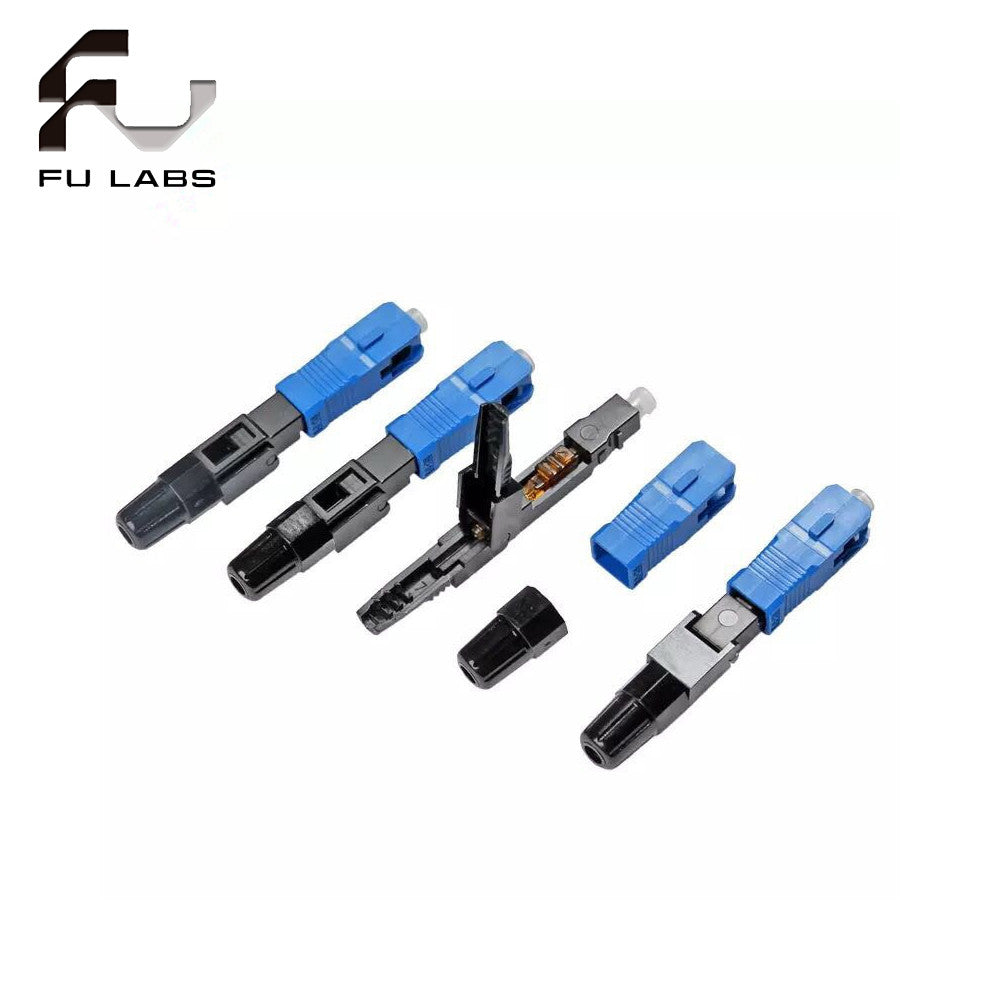

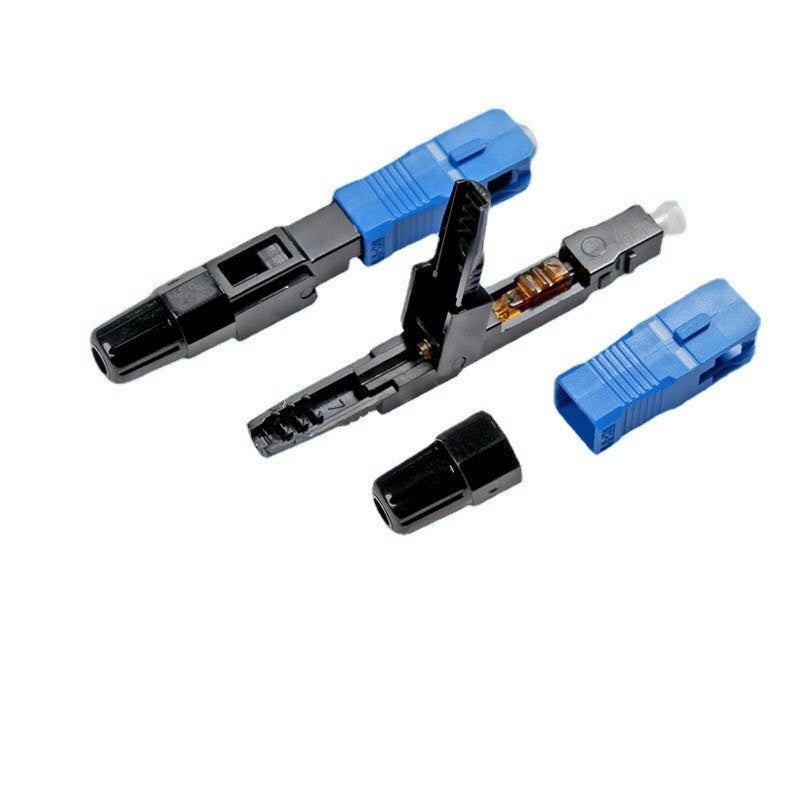

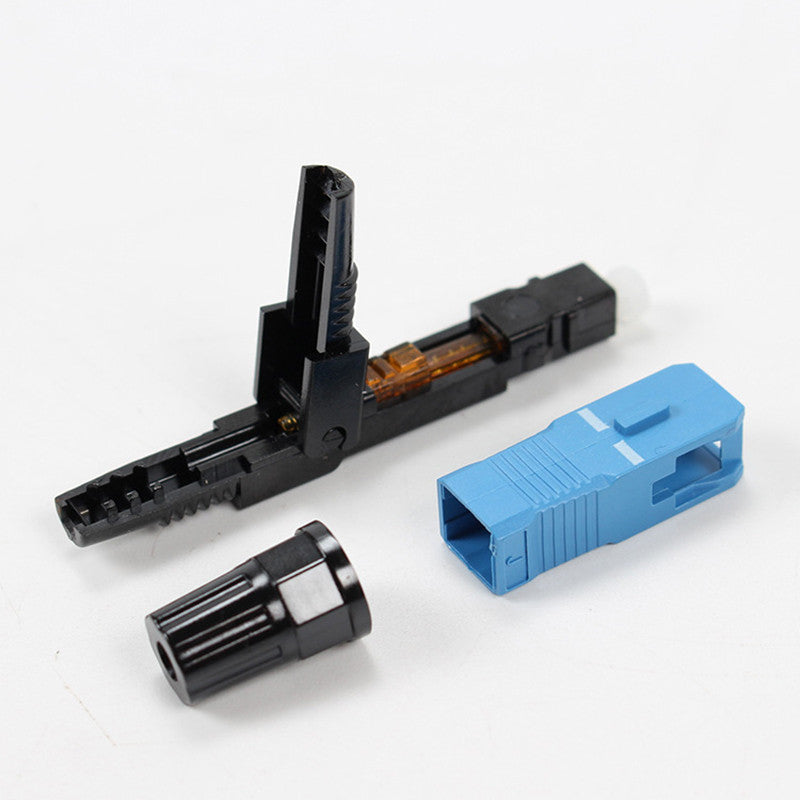

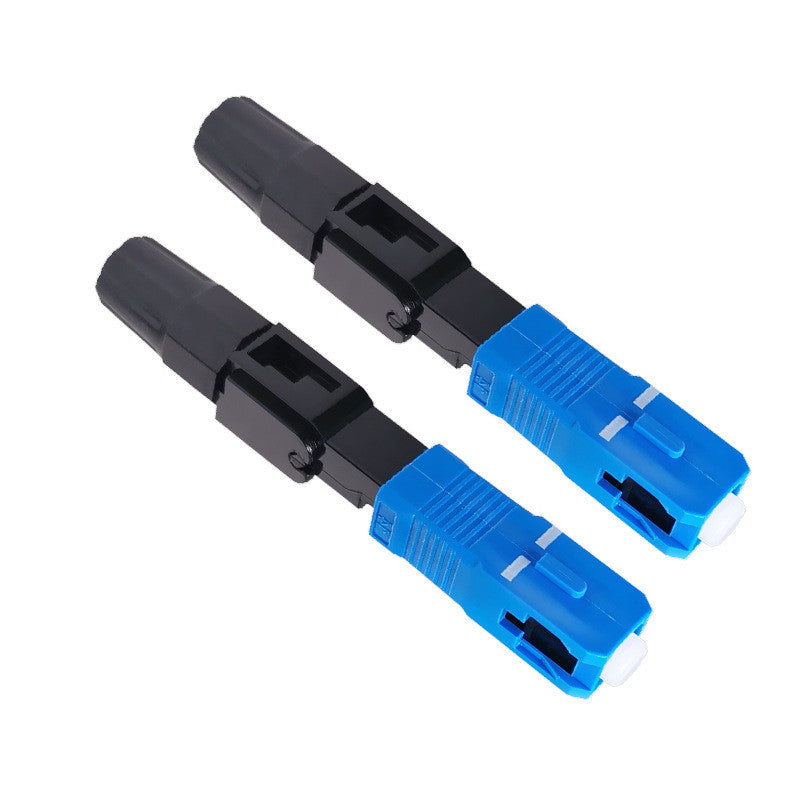

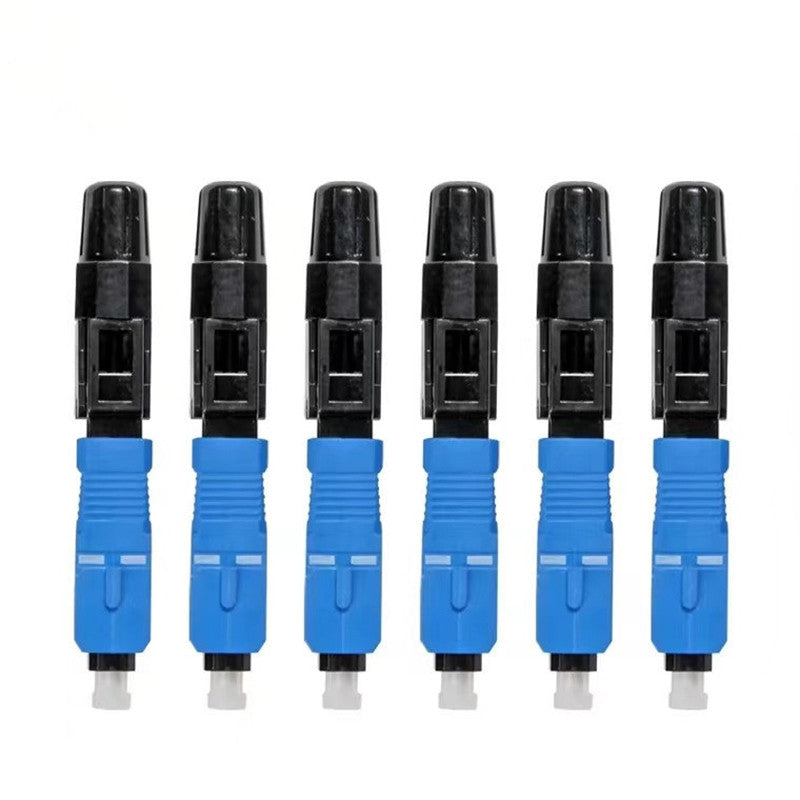

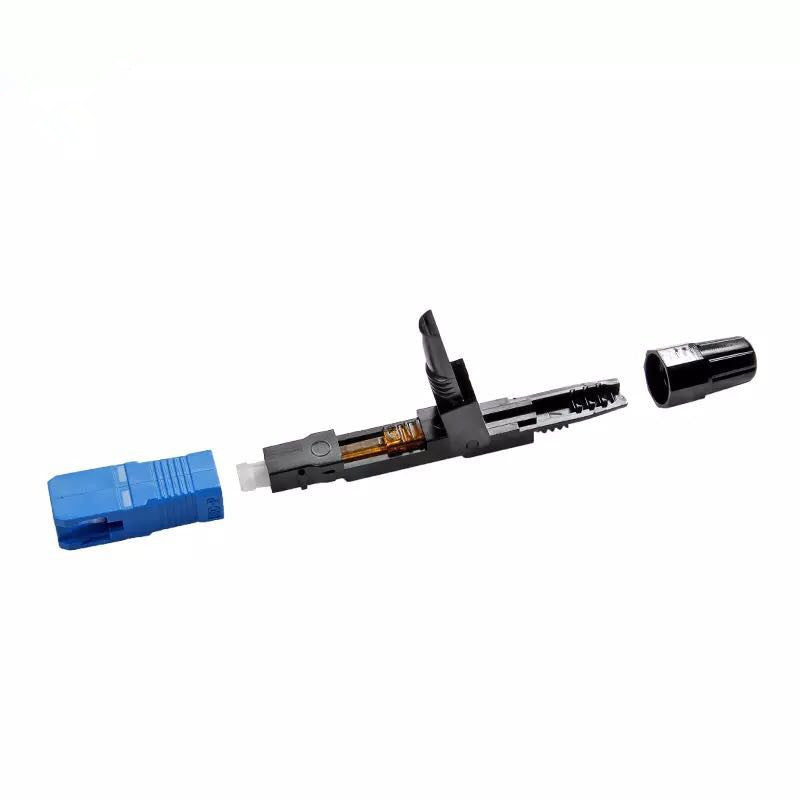

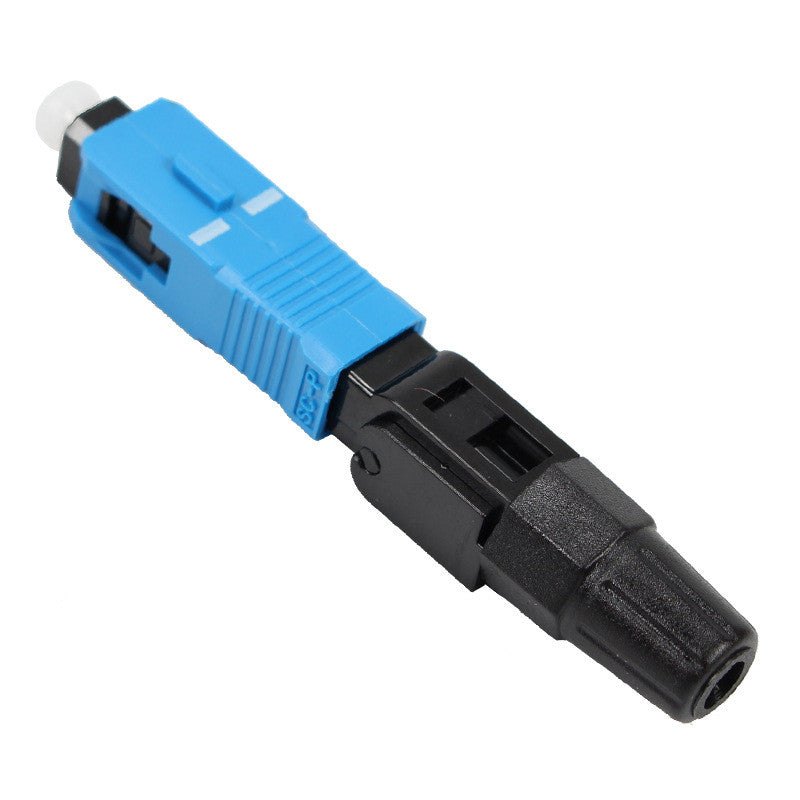

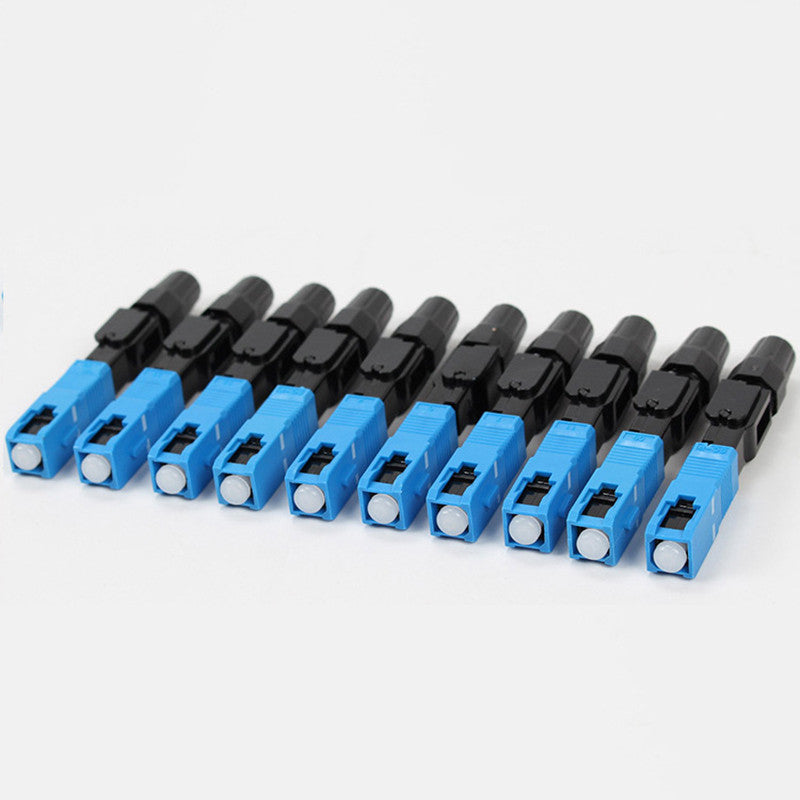

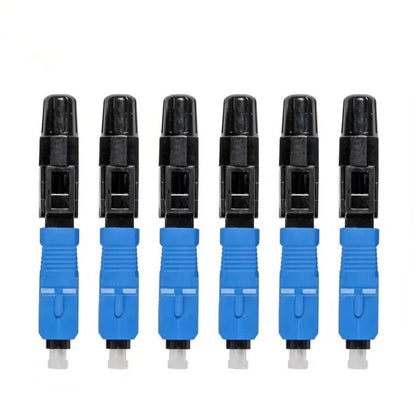

Fast Connector SC UPC Ftth Fiber Optic Fast Connector SC/UPC A type/Fiber Switch

      Fiber fast connector is the detachable quick connection between optical fiber and optical fiber devices, it is to put the two optical fiber end face up, so that the optical output of light energy can bigger limit coupled to the receiving optical fiber, and optical link due to the intervention and the effects on the system to a relatively small.

Product Parameters

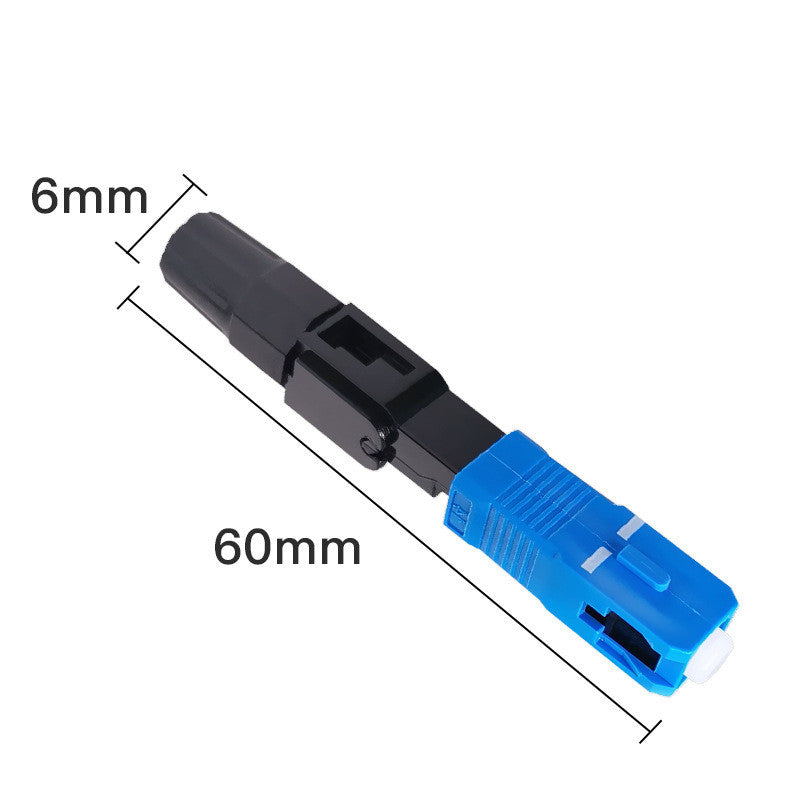

•Product Name: SC Optical Fiber Fast Connector

•Product Type: Pre-embedded / Single-mode

•Insertion Loss: Average Insertion Loss ≤0.5dB

•Return Loss: Average Return Loss ≥50dB

•Applicable Cables: 3.02.0mm Butterfly Optical Cable, Round 3.02.0 Single-core Cable and Other Cables

•Applicable Temperature: +85℃~-40℃, Relative Humidity 95%

•Other Mechanical Properties: Compliant in Reusability, Tensile Strength, Drop Test, Torsion, etc.

•Appearance Change Detection: No Deformation, Cracking, Loosening, Blistering, etc.

Features

Meet Telcordia gr-326-core standard.

Low insertion loss, high echo attenuation, high stability.

Good interchangeability.

Adopt standard metal parts.

Bayonet connection mode, high-density connection.

Ceramic core APC, UPC grinding.

Applications

Fast Connectors are used to open an FTTH fiber terminal.

The connection box, the cabinet, the end box and so on.

The recovery and maintenance of accidents such as broken fiber.

LAN, wan, data and video transmission.
