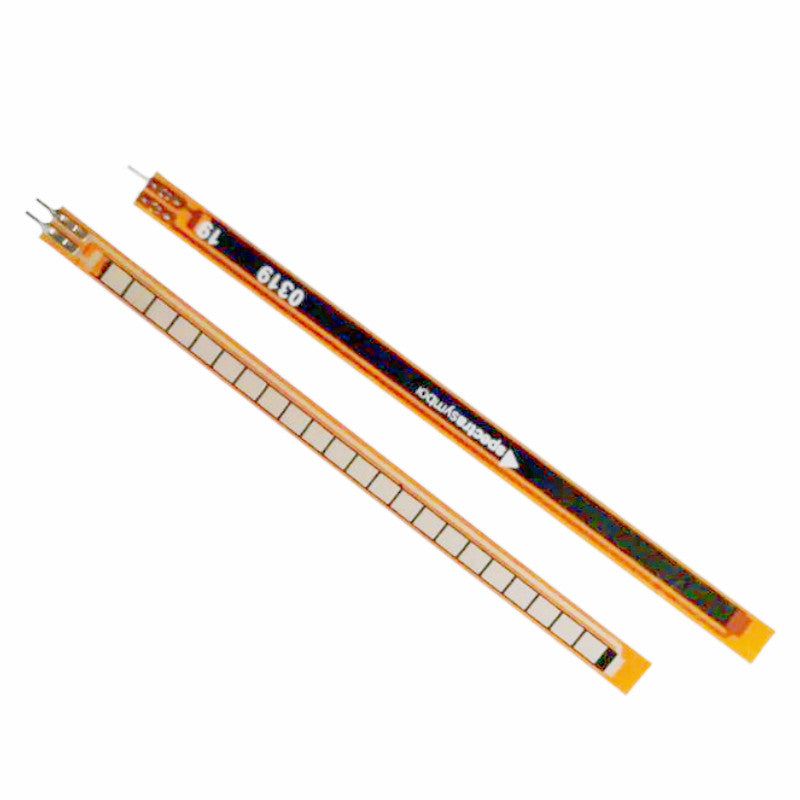

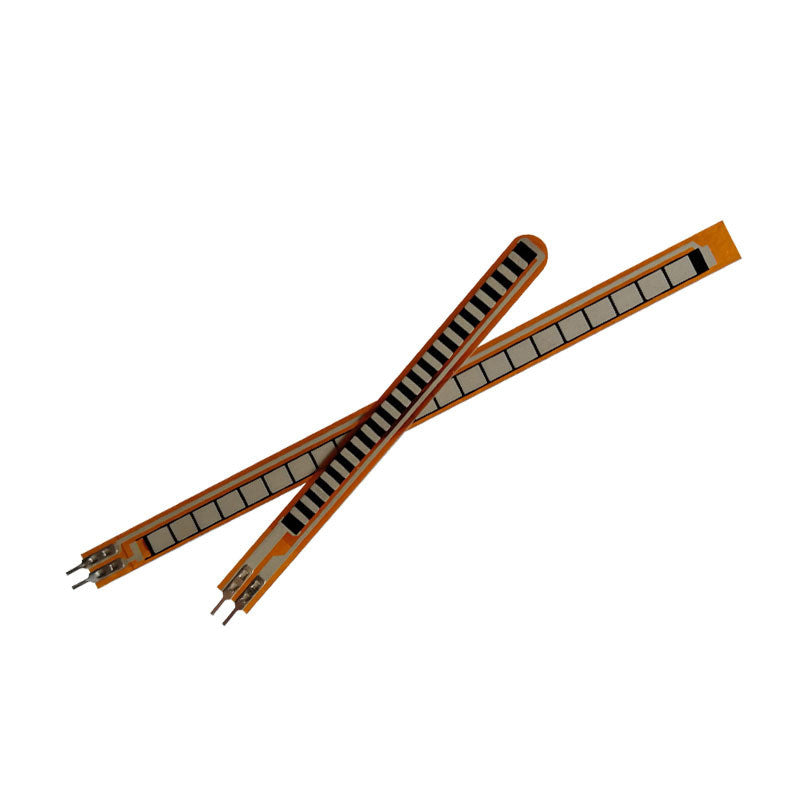

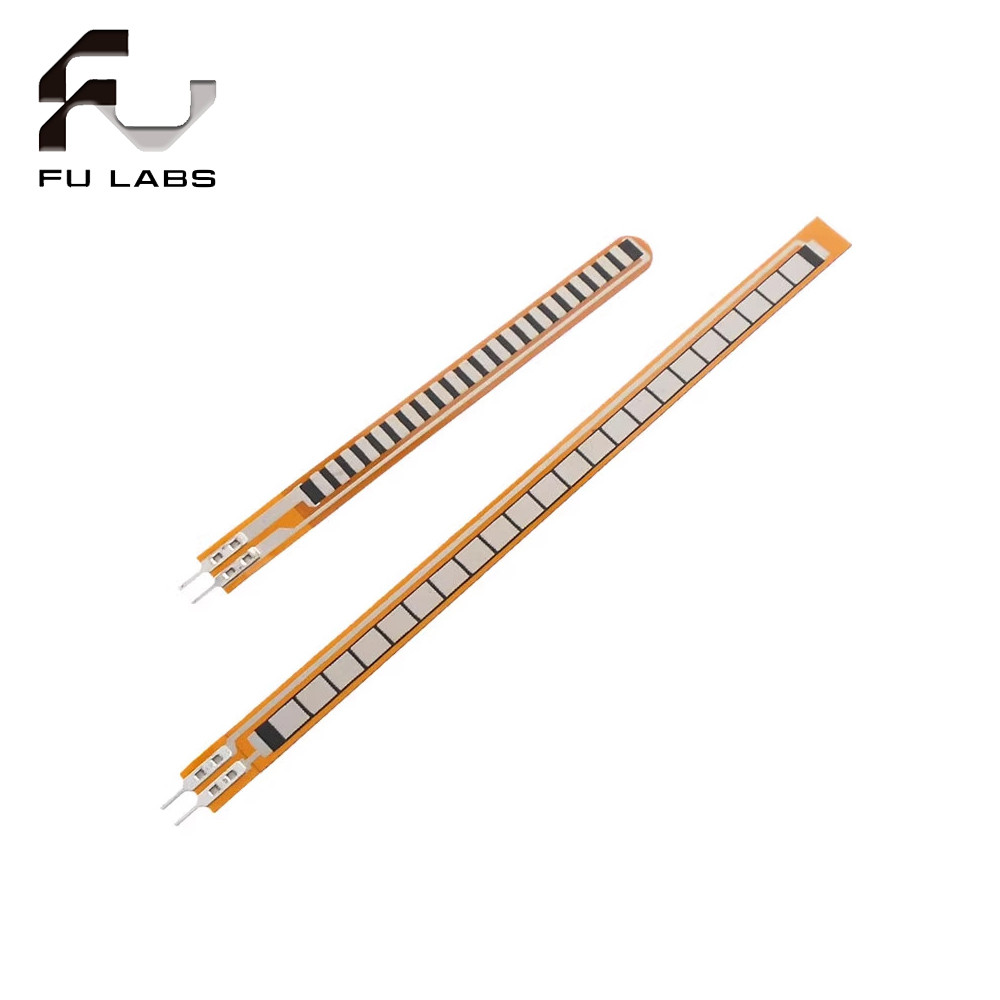

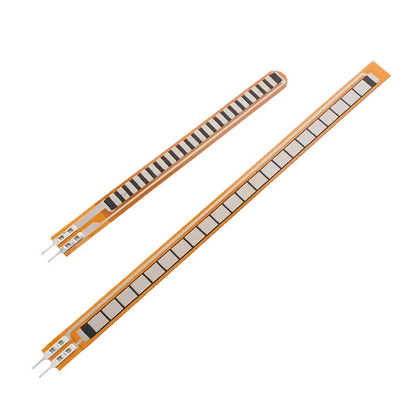

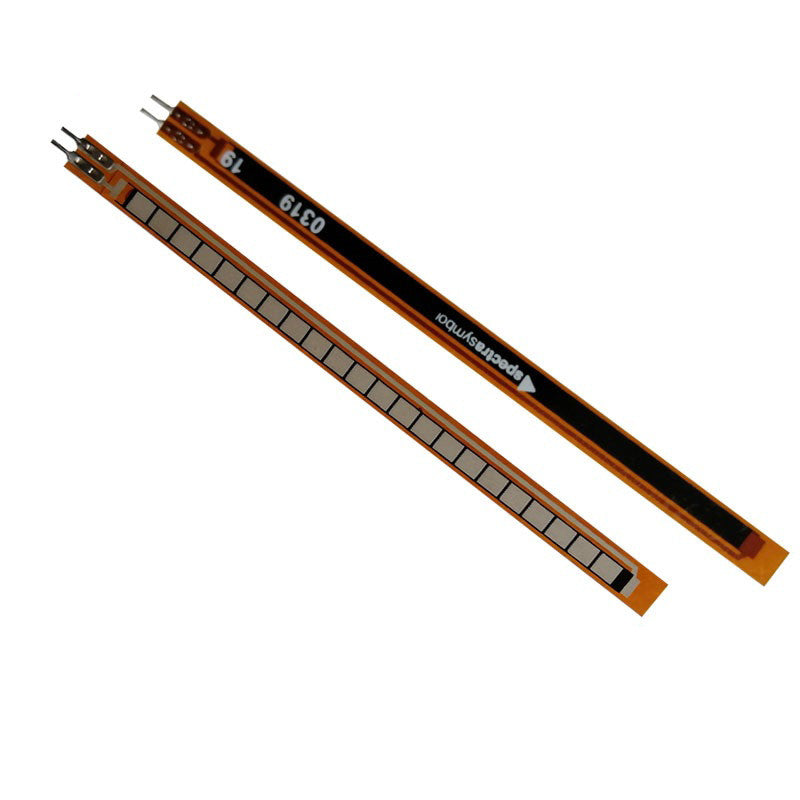

Flex2.2 flex4.5 Flex Sensor 2.2 inch Bend Flex Sensor for Robotic hand Electronic gloves 4.5 Flex Bend Pressure Sensor 2.2 inch / 4.5 inch

Technical Specifications

- Resistance in straight state: 25K ohms

- Resistance tolerance: ±30%

- Bending resistance change: 60K～110K ohms

- Rated power: 0.5W

- Peak power: 1W

- Bending life: >1 million times

- Operating temperature: -35°C ～ +80°C

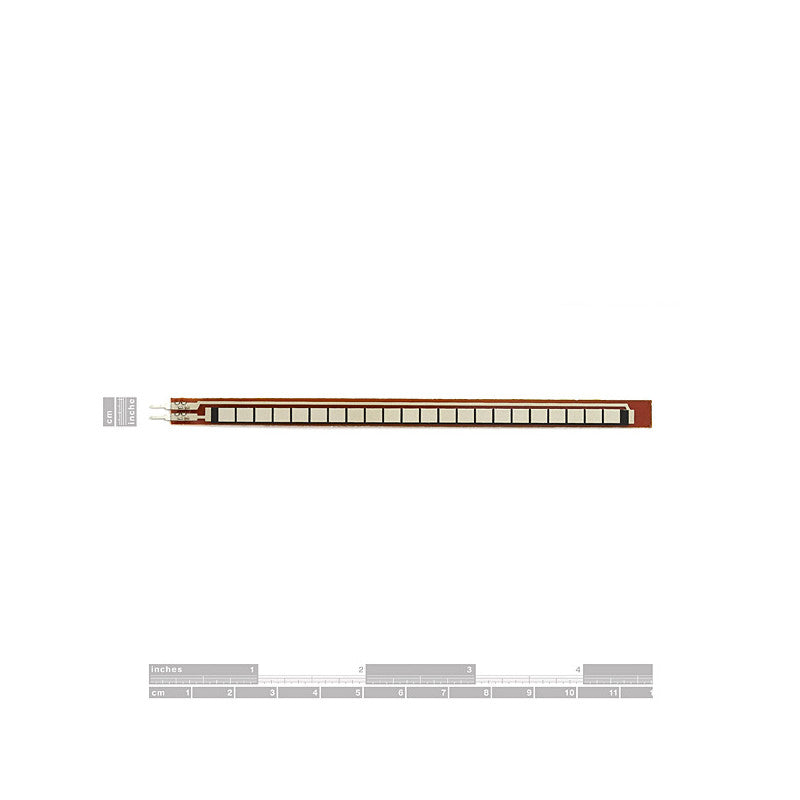

Length x width: 73.66x6.35mm

- Interface type: 2 - Pin metal pins (pitch 0.1")

Delivery List

2.2/4.5" flex sensor

Introduction

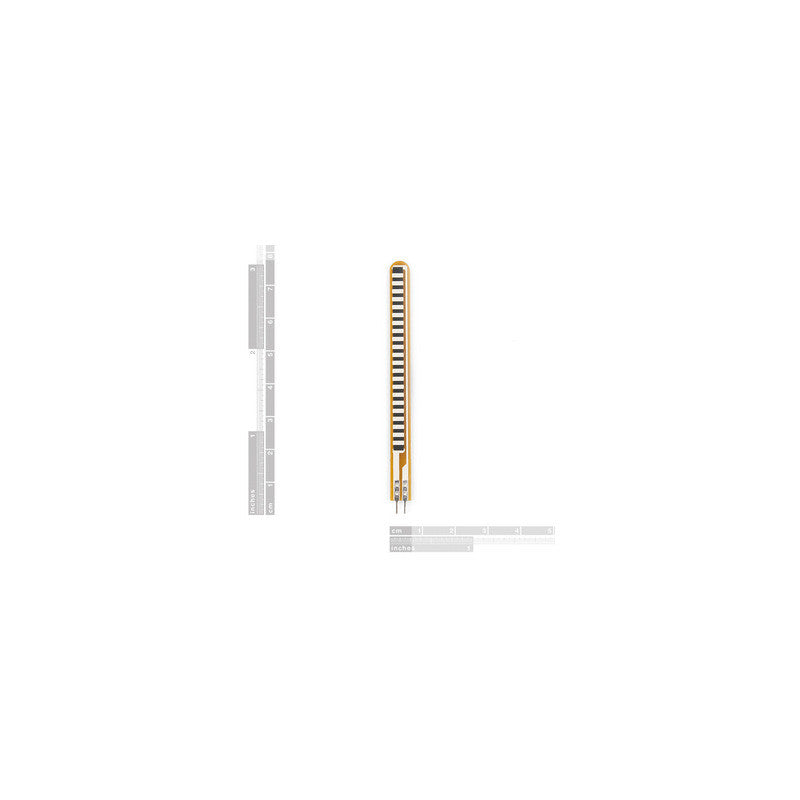

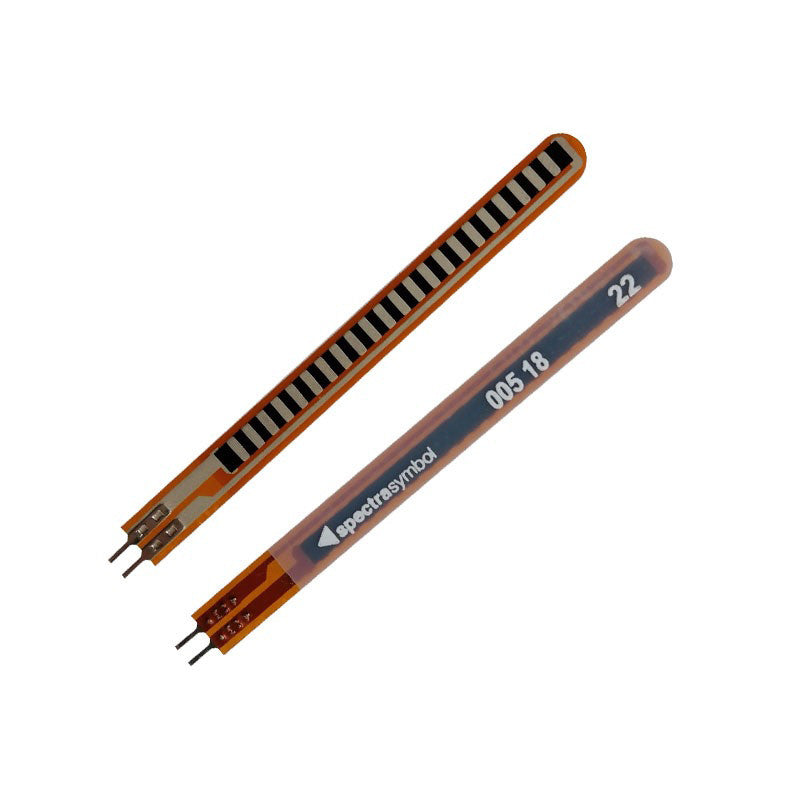

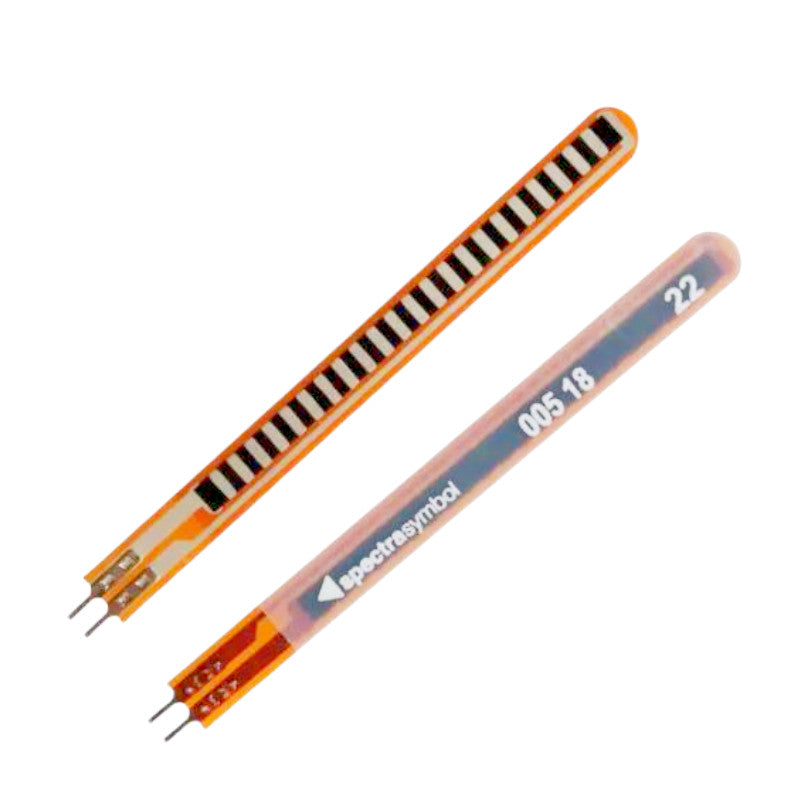

This is a 2.2" flex sensor. The degree of bending of the sensor can be converted into a change in resistance value; the greater the bending, the higher the resistance.

This sensor can be used to make a power glove. For details, see the application link.

Precautions: Bending direction: The side with text is the inner side during bending. Avoid bending the end pin part (i.e., the non - bending sensing part) during use, otherwise it is easy to cause damage.
