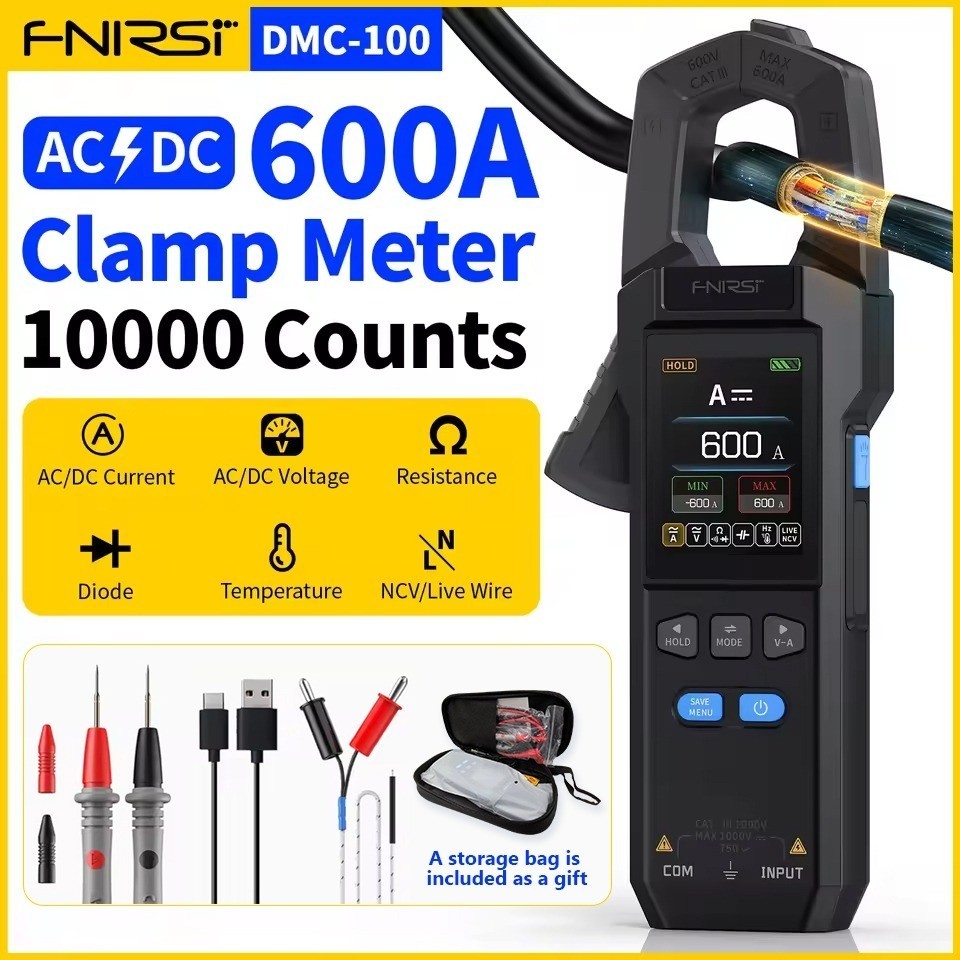

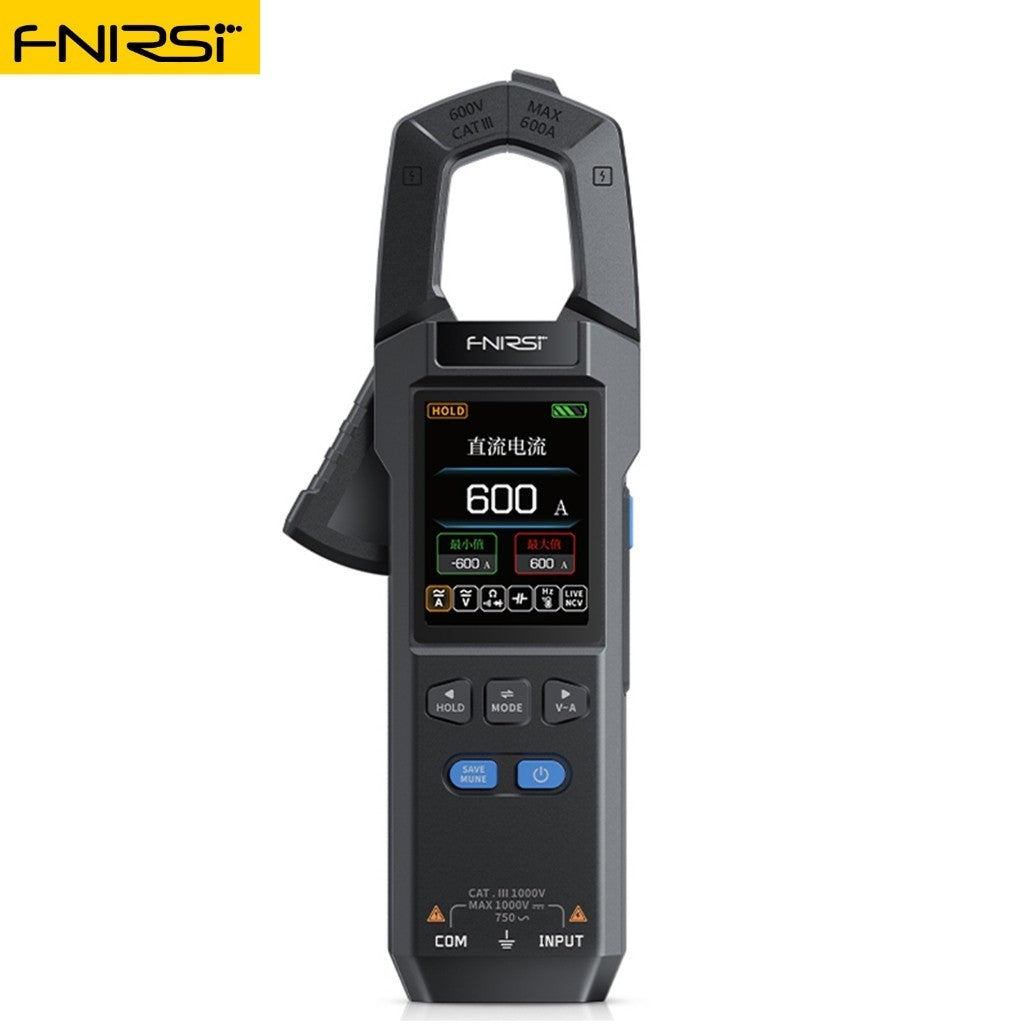

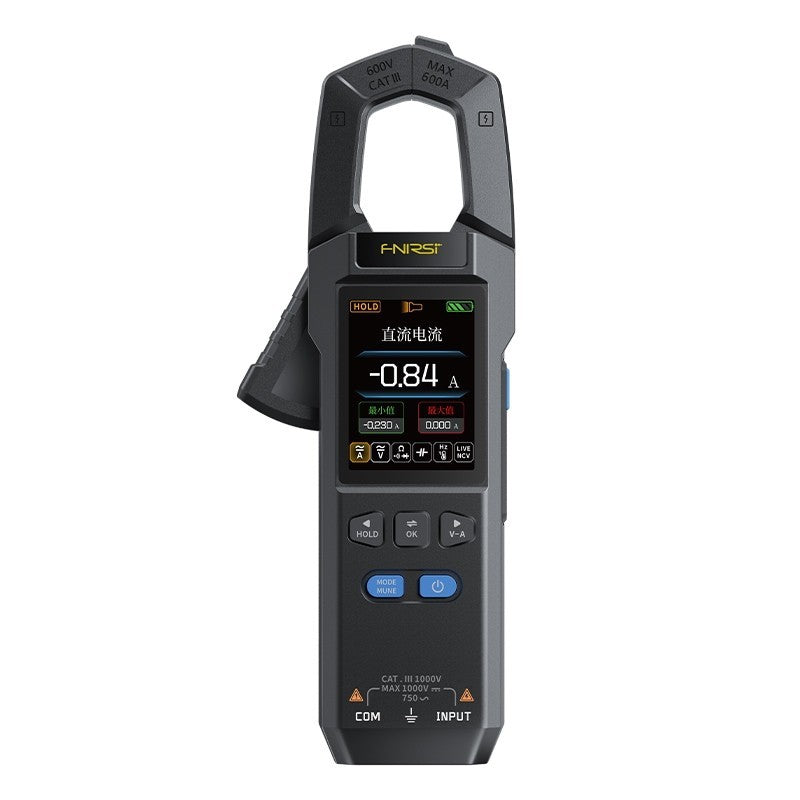

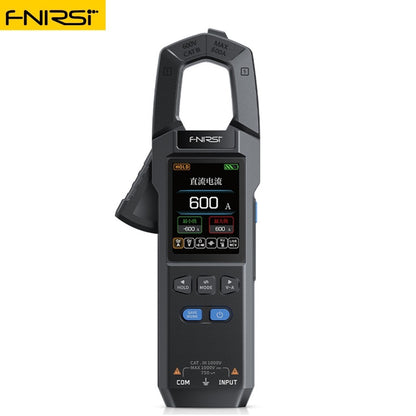

FNIRSI DMC-100 DC AC Current Clamp Meter 10000 Counts Digital Multimeter 600A Amperimetric Clamp Tester NCV Electrician Tools 22X11CM

    Product Description：

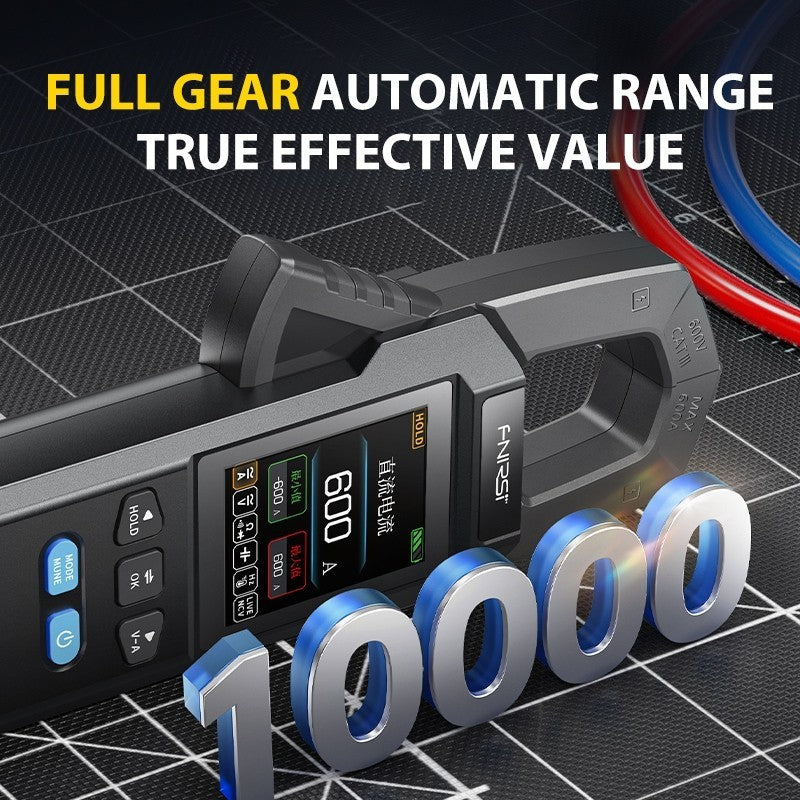

   FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle. Equipped with a 2.0-inch 240 * 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance. Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life. NCV non-contact power measurement, zero fire line identification, temperature -55 ~ 1300 ℃ wide range of measurement and other powerful features, supplemented by flashlight, screen backlight, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient. Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-round assistant!

   Product Parameters：

   Main Specifications of the Device

   Model：DMC-100 clamp multimeter

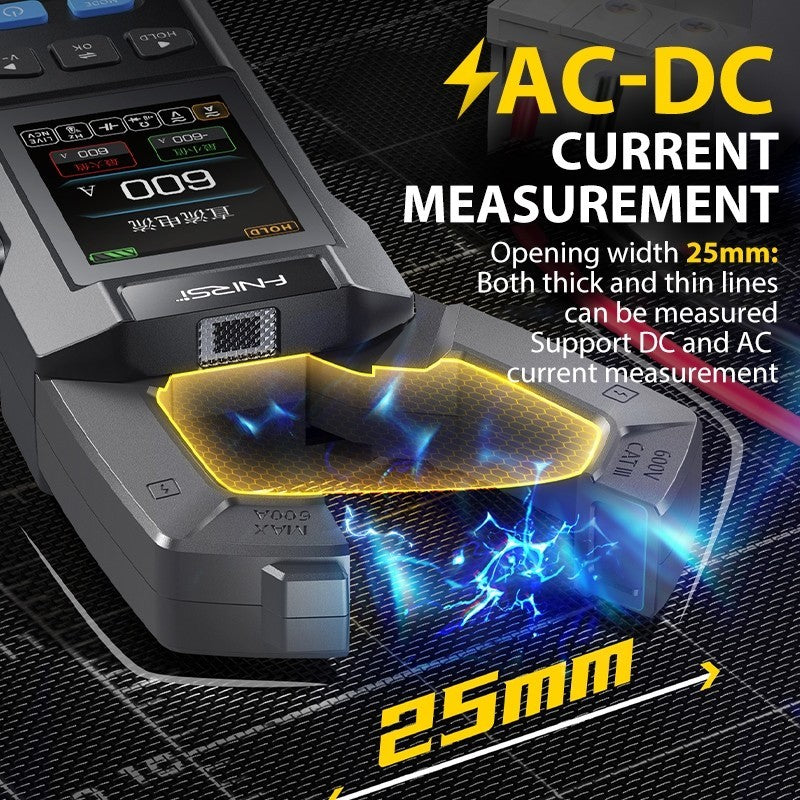

   Maximum size of jaws: 25mm

   Screen: 2.0'' TFT color screen

   Screen resolution：240*320 pixels

   Battery capacity: 3.7V, 1500mAh battery

   Charging specification: USBType-C, 5V/1A

   Product weight: 194g

   Product size: 193x74x32mm

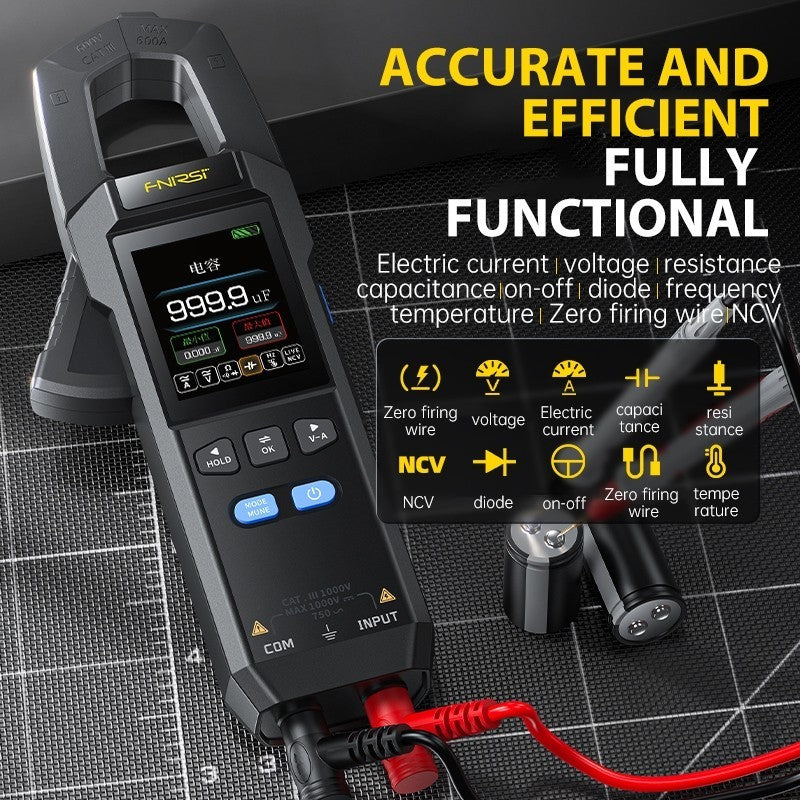

   Measurement parameters

   DC voltage: 9.999V/99.99V/999.9V

   AC voltage: 9.999V/99.99V/750.0V

   DC current/AC current: 99.99A/600.0A

   Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω

   Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF

   Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz

   Temperature: -55~1300℃/-67~2372℉

   Diode Measurement: √

   On-off test: √

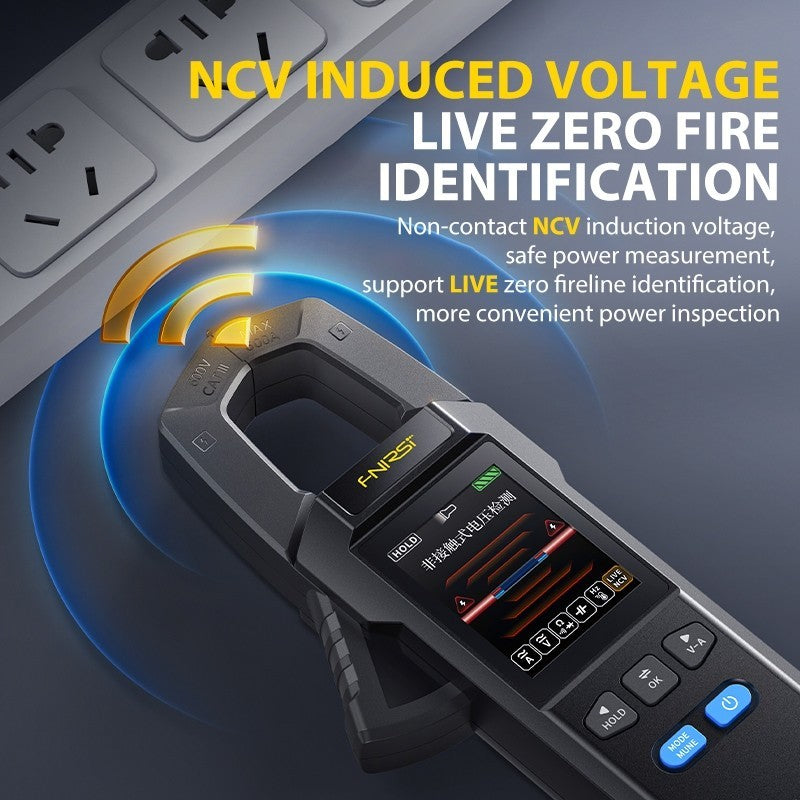

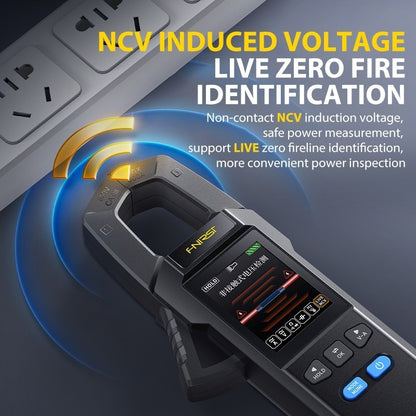

   Non-Contact Voltage Check (NCV): √

   Zero Fire Wire Check: √

   Other Functions

   Measuring Mode 1: general measurement

   Measuring Mode 2: waveform display

   Measuring Mode 3: power measurement

   Measurement gear: manual adjustment

   Torch: Support

   Data Zeroing: Support

   Maximum/Minimum Value: Support

   Waveform display: Support

   Power Calculation: Support

   Data Hold: Support

   Data Storage and Viewing: Up to 30 groups of data

   Language: Chinese/English

   Brightness Adjustment: 10-speed adjustment

   Temperature unit: ℃/℉

   Auto Power Off: OFF/5min/15min/30m

   Firmware Upgrade: Support

   Packing list：

   1 x DMC-100 Clamp Multimeter

   1 x Multimeter Pen

   1 x Temperature Probe

   1 x Packing box

   1 x Instruction Manual
