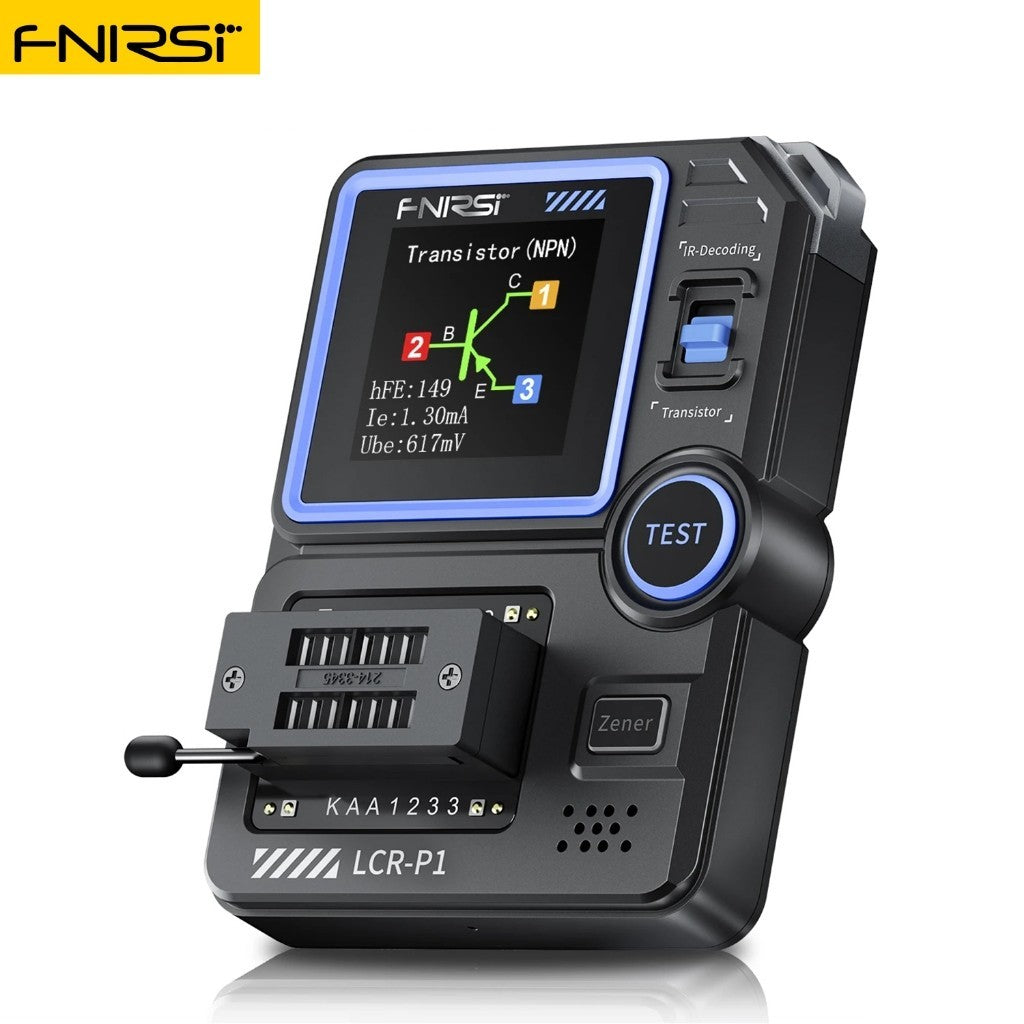

FNIRSI LCR-P1 Transistor Tester Diode Triode Capacitance Resistance Meter LCR ESR Meter NPN PNP MOSFET IR Multifunction Tester 9X7 CM

    Product Description：The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.

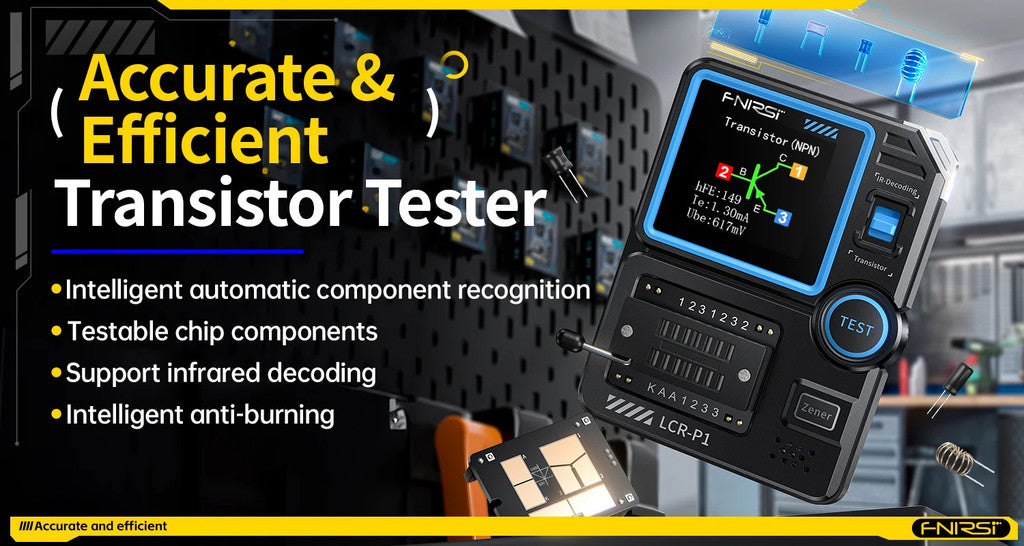

   Key Features:

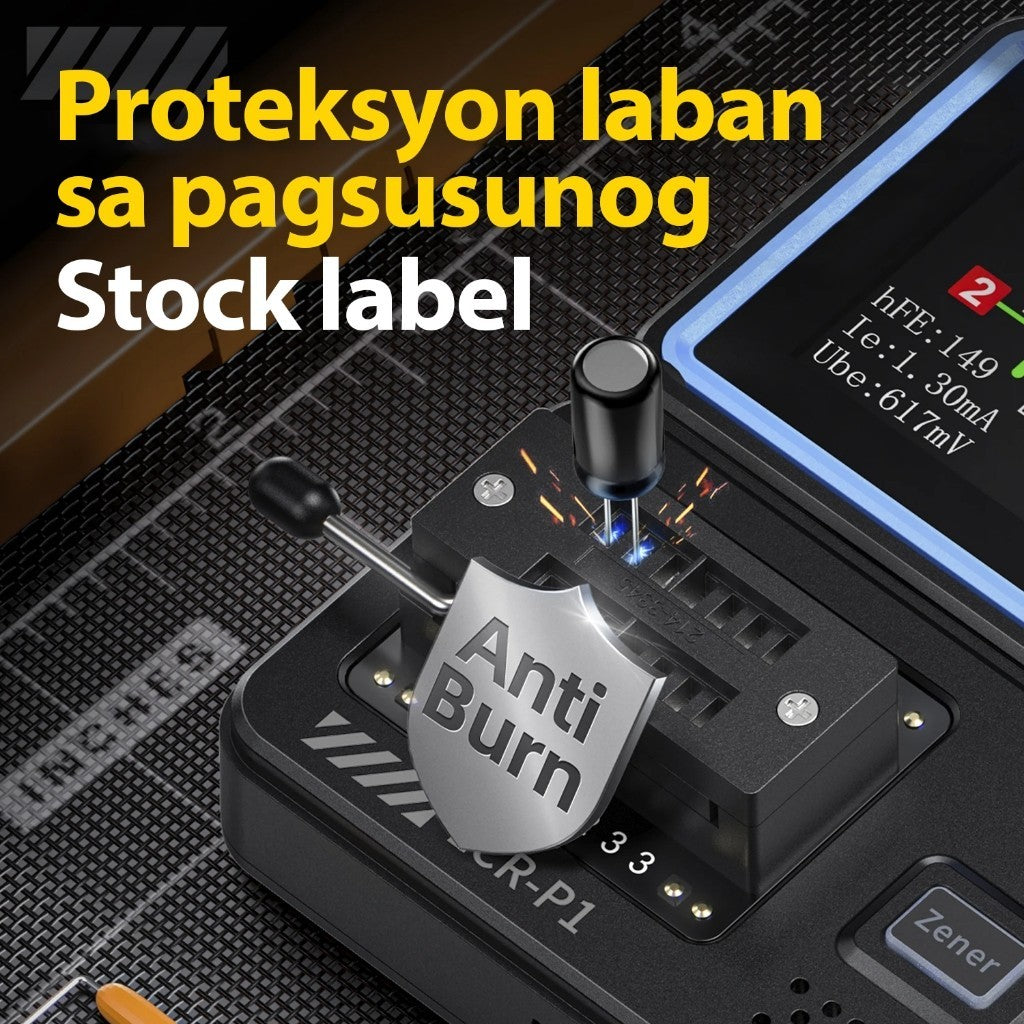

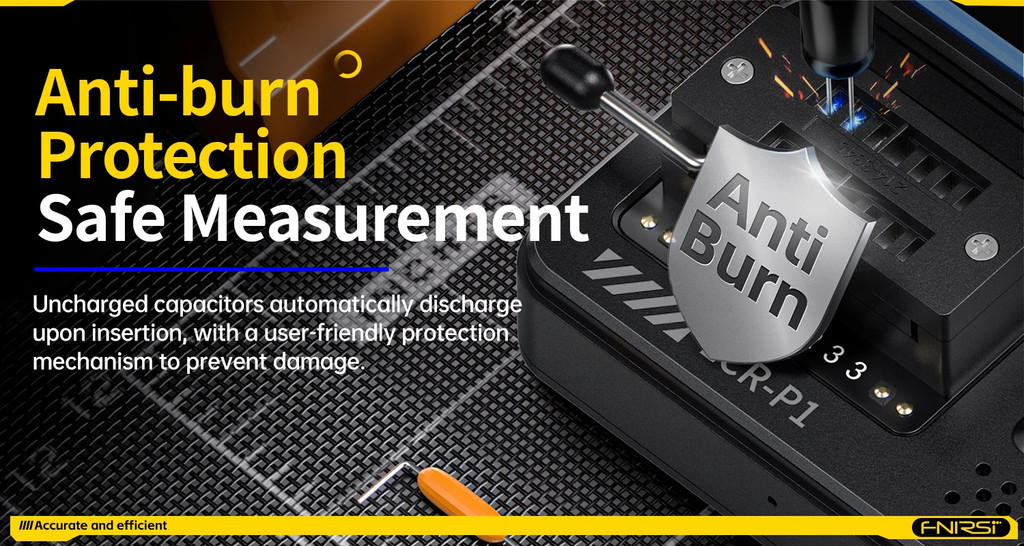

   1. Intelligent anti-burning design: Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage.

   2. Data export: Supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer.

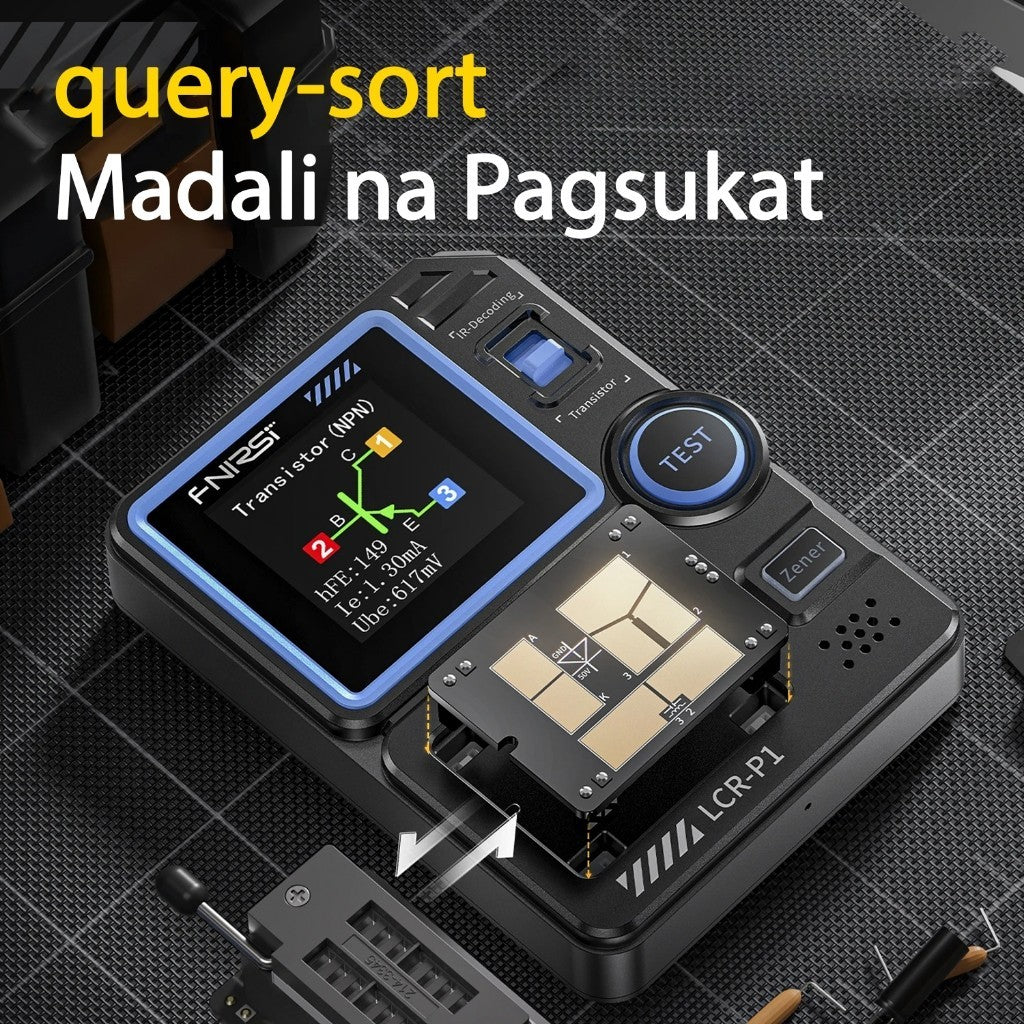

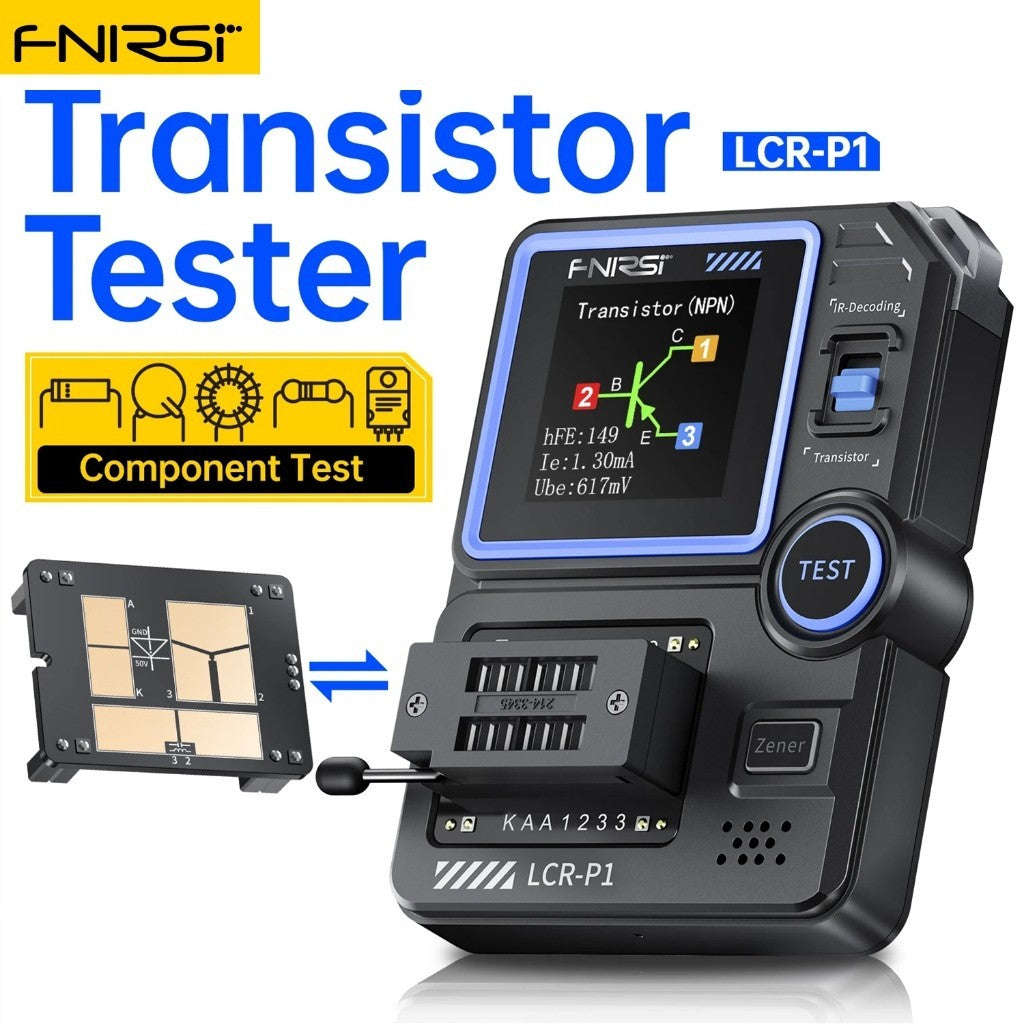

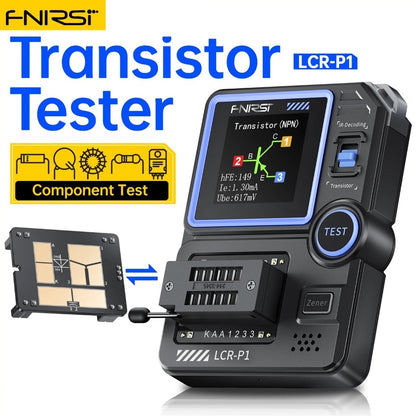

   3. Alternate Measuring Modes: Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency.

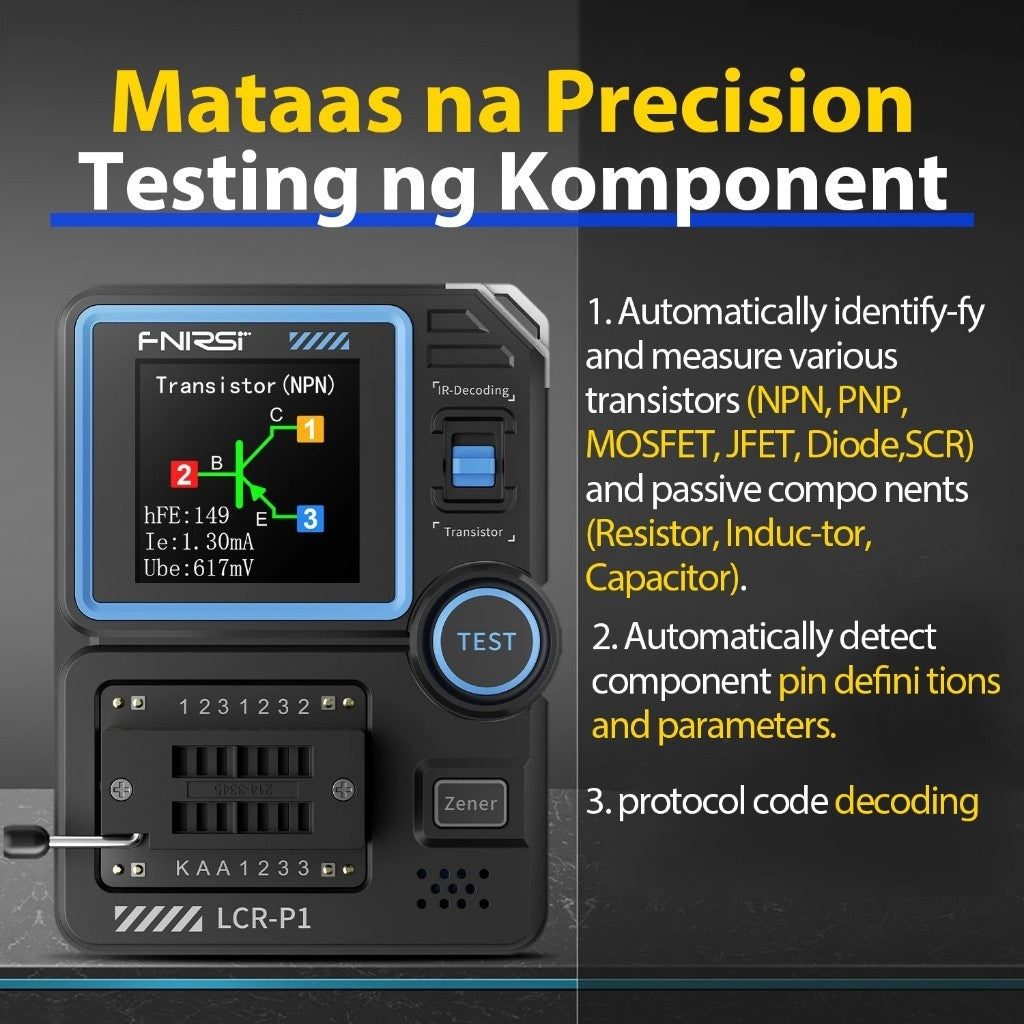

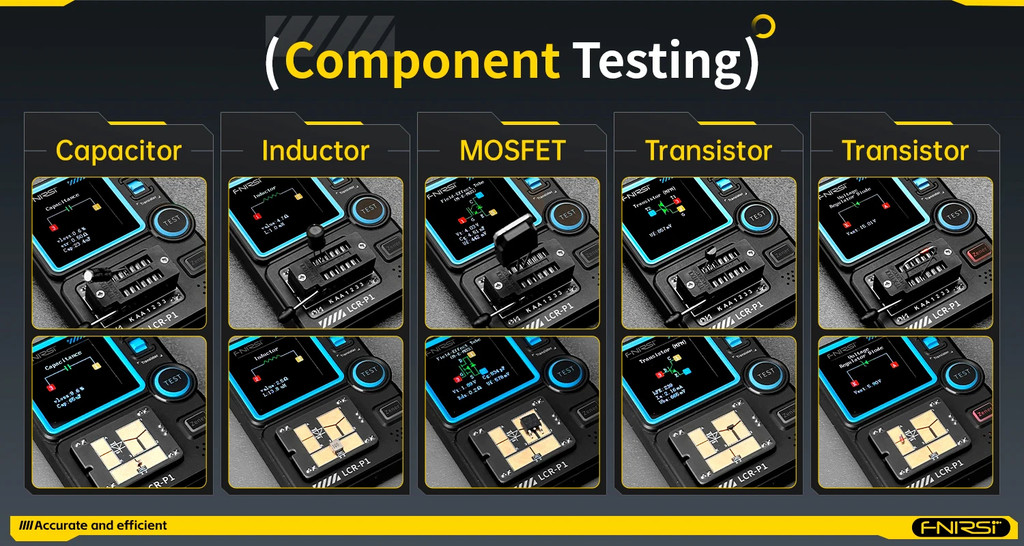

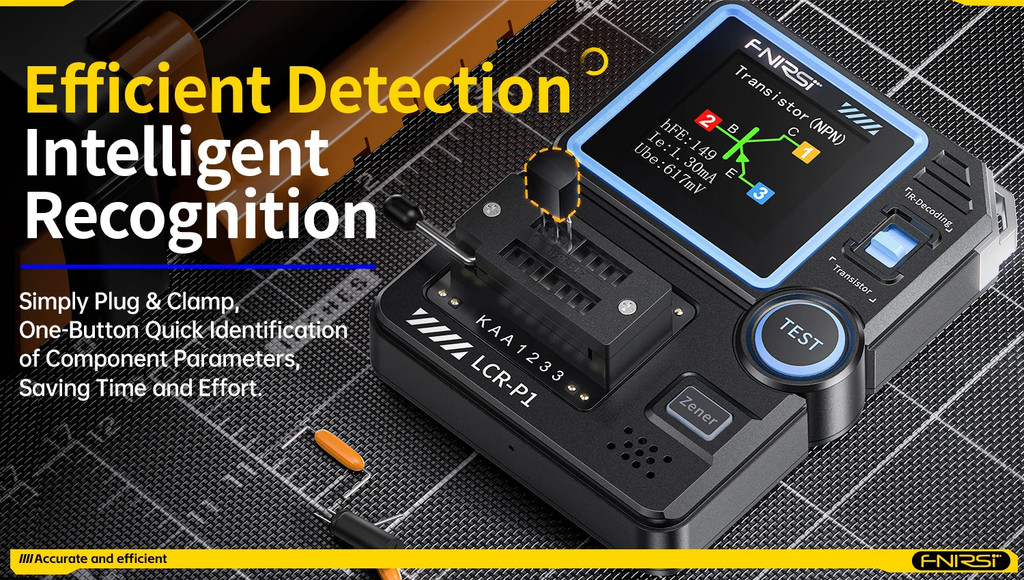

   4. Intelligent Recognition Components：Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort.

   5. Zener diode independent measurement: Independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement

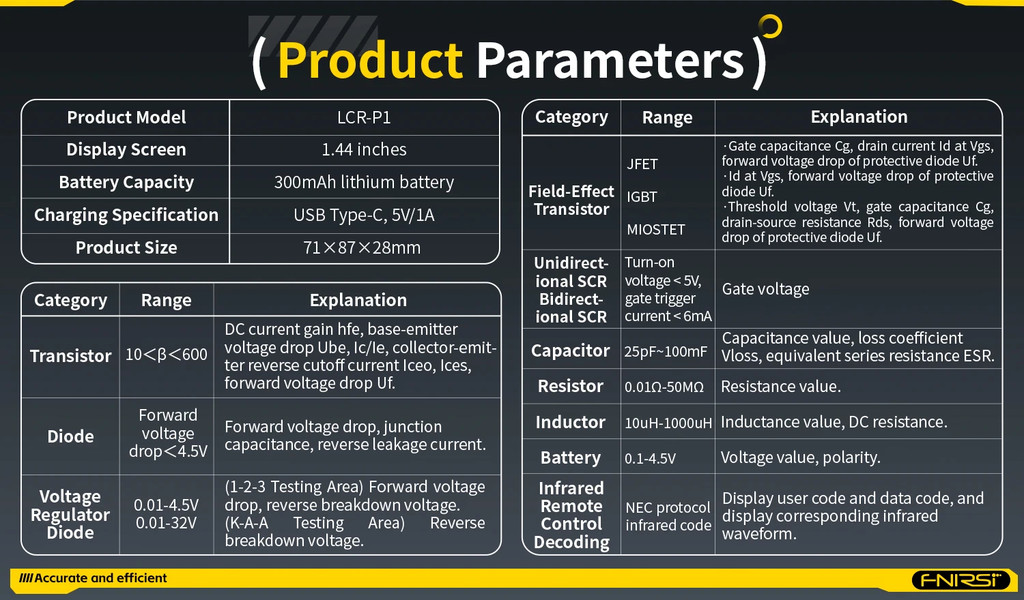

   Product Parameters：

   1．Product Model：LCR-P1

   2．Screen Display：1.44 Inch Color Screen

   3．Charging Specification: USB Type-C, 5V/1A

   4．Power supply: 300mAh lithium battery

   5．Operating Temperature：0~40℃

   6．Resistance: 0.01Ω-50MΩ

   7．Capacitance: 25pF~100mF

   8．Inductance: 10uH-1000uH

   9．Transistor: 10＜β＜600

   10．Diode: Forward voltage drop＜4.5V

   11．Voltage Regulator Diode: 0.01-4.5V, 0.01-32V

   12．Field-Effect Transistor: JFET, IGBT, MOSFET

   13．One-way/Bidirectional thyristor: Turn-on voltage < 5V, gate trigger current < 6mA

   14．Battery: 0.1-4.5V

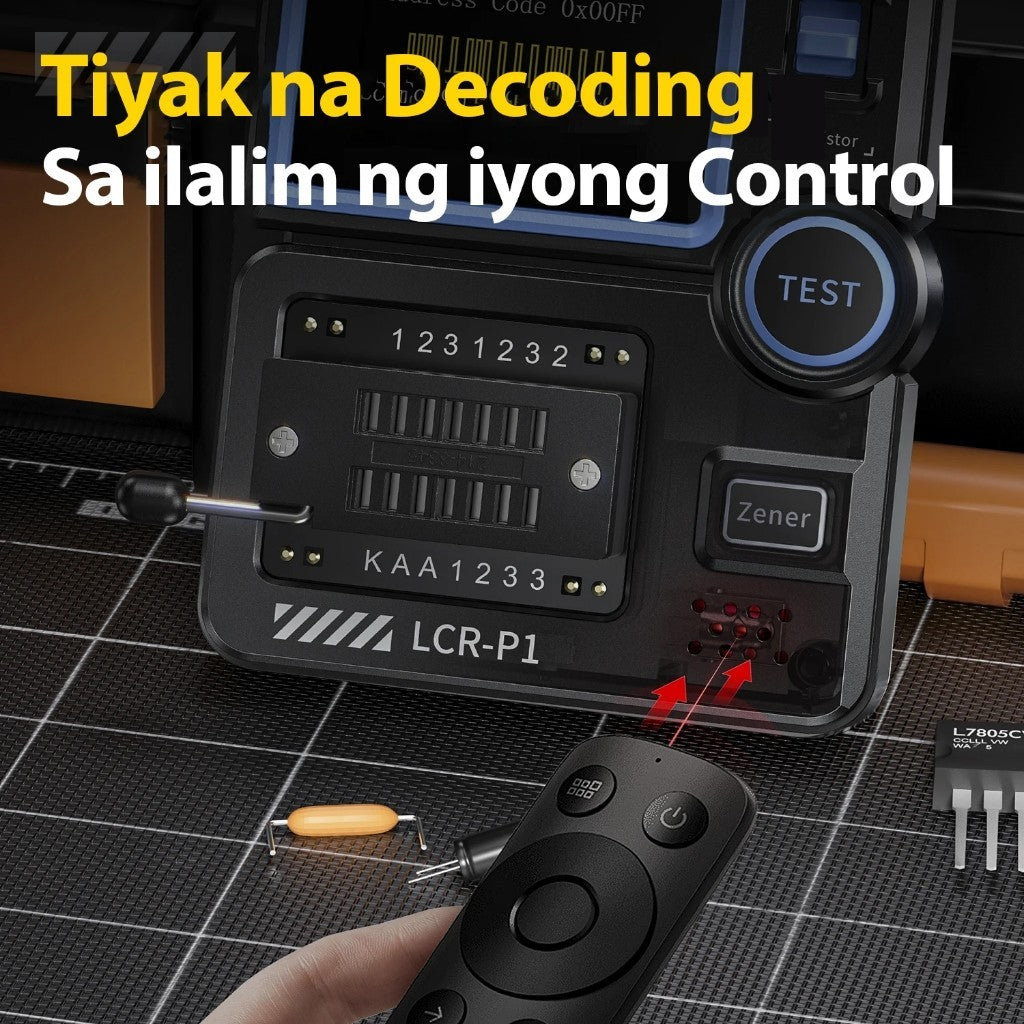

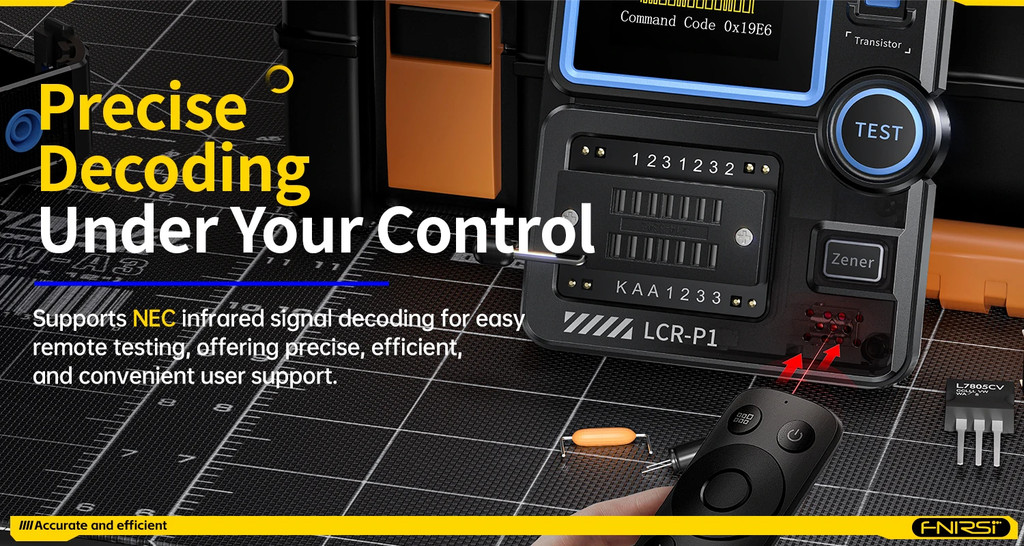

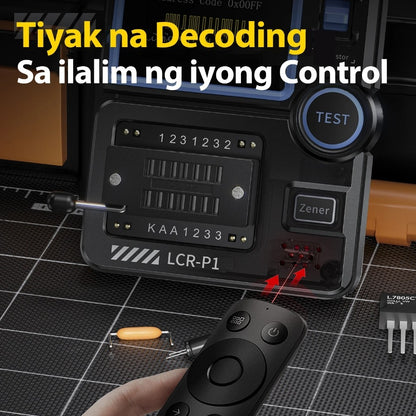

   15．IR remote decoding: NEC protocol infrared code

   16．Battery Capacity: 300mAh lithium battery

   17．Anti-burn protection: yes

   18．Data Export: supported

   19．Firmware upgrade: supported

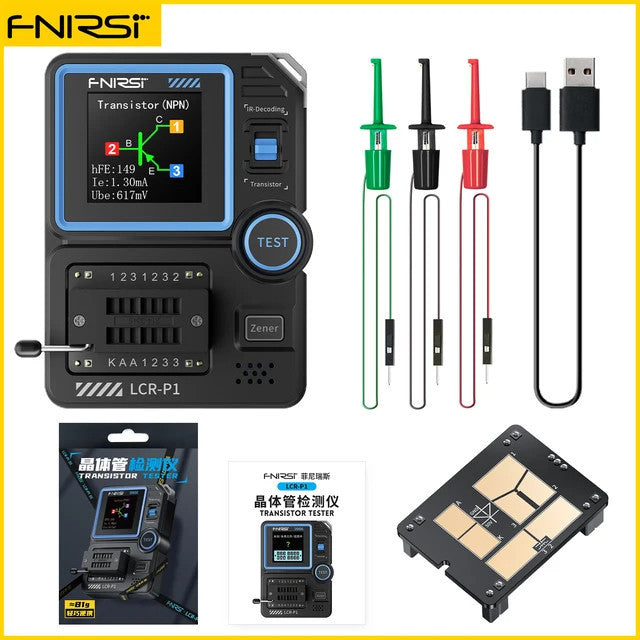

   Packing list：

   1. LCR-P1 host

   2. Replaceable test board

   3. USB data cable

   4. User manual

   5. Packing box

   6. Test hook*3
