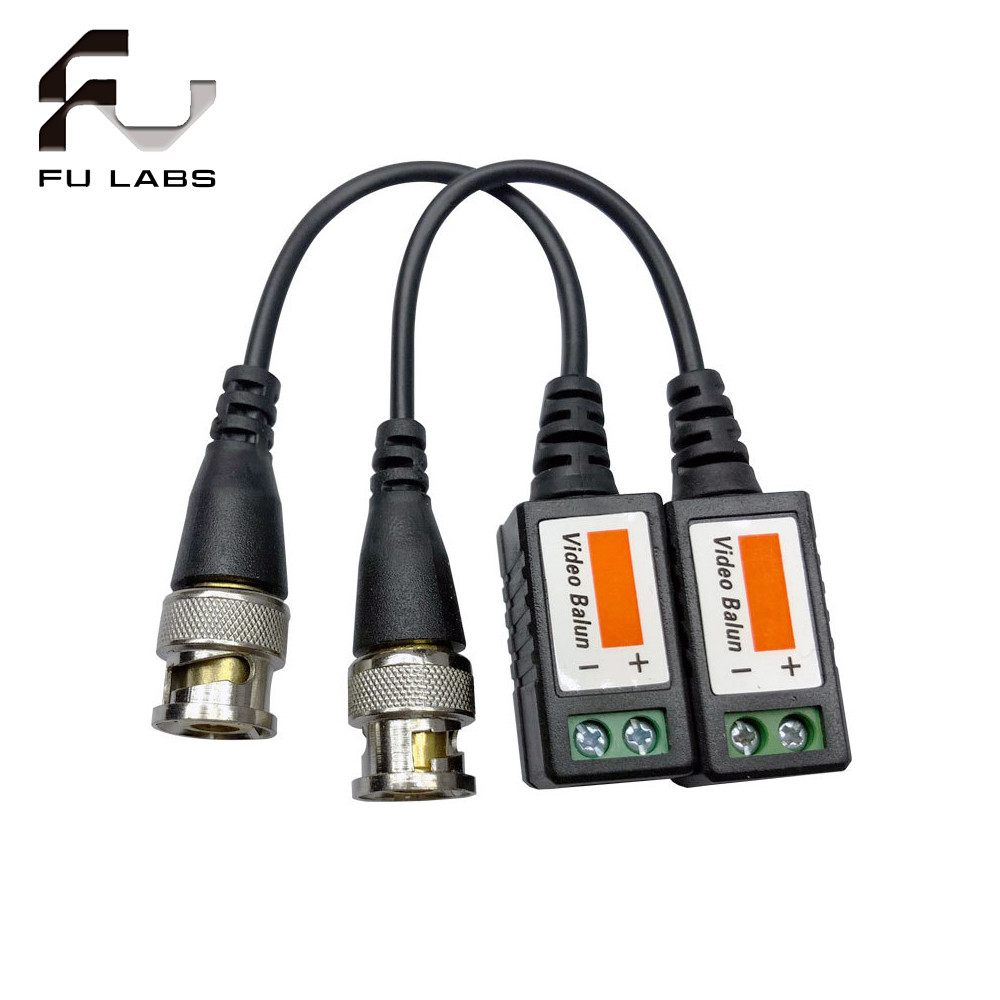

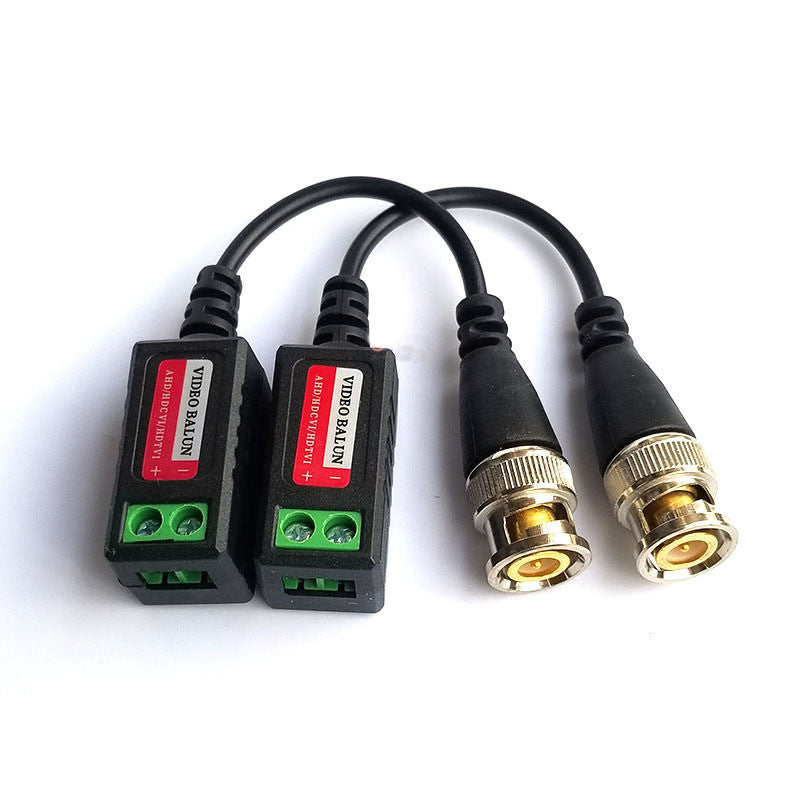

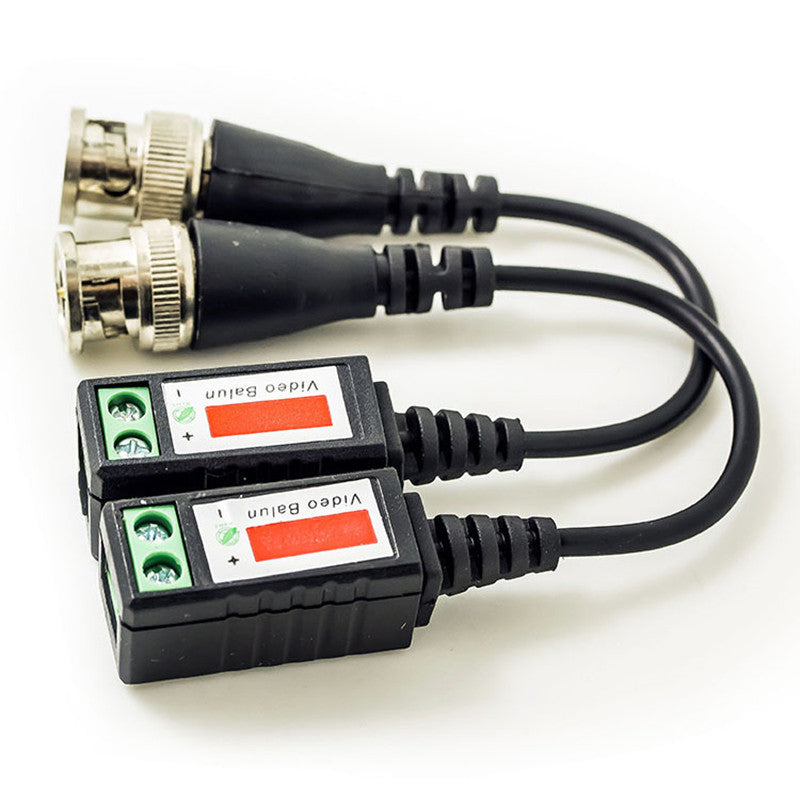

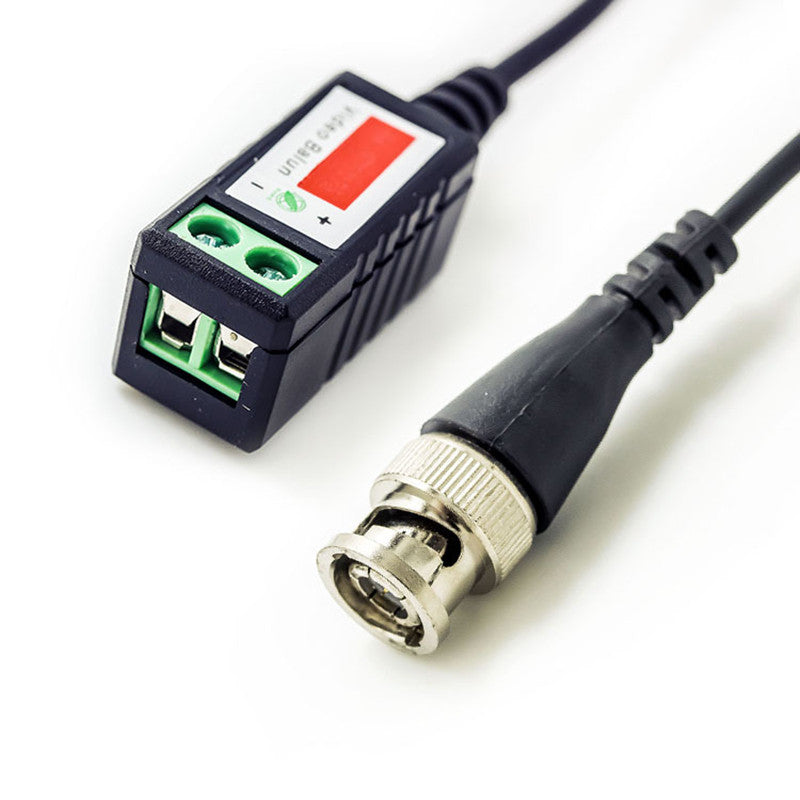

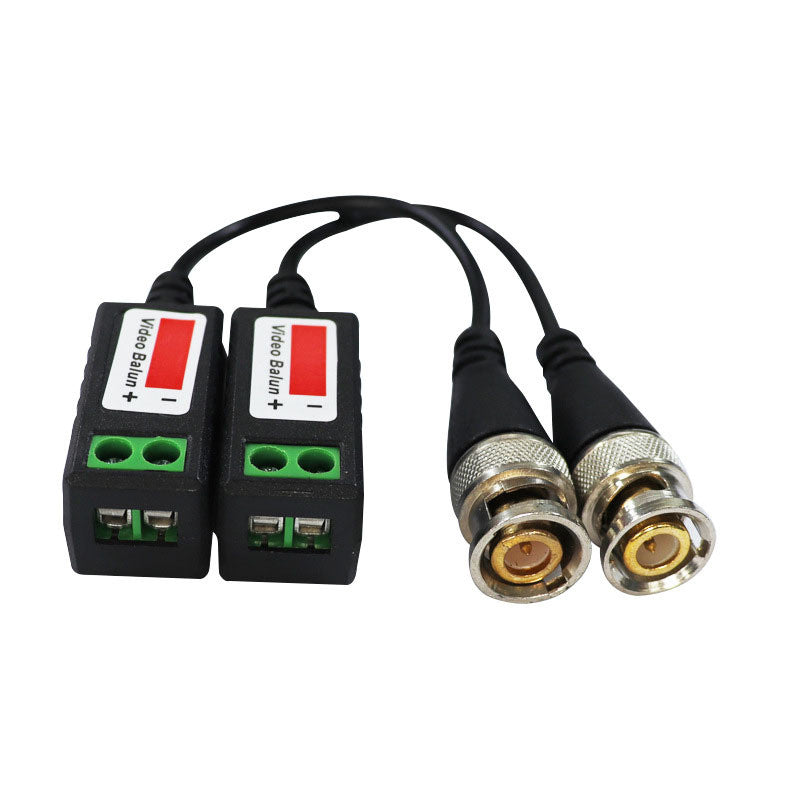

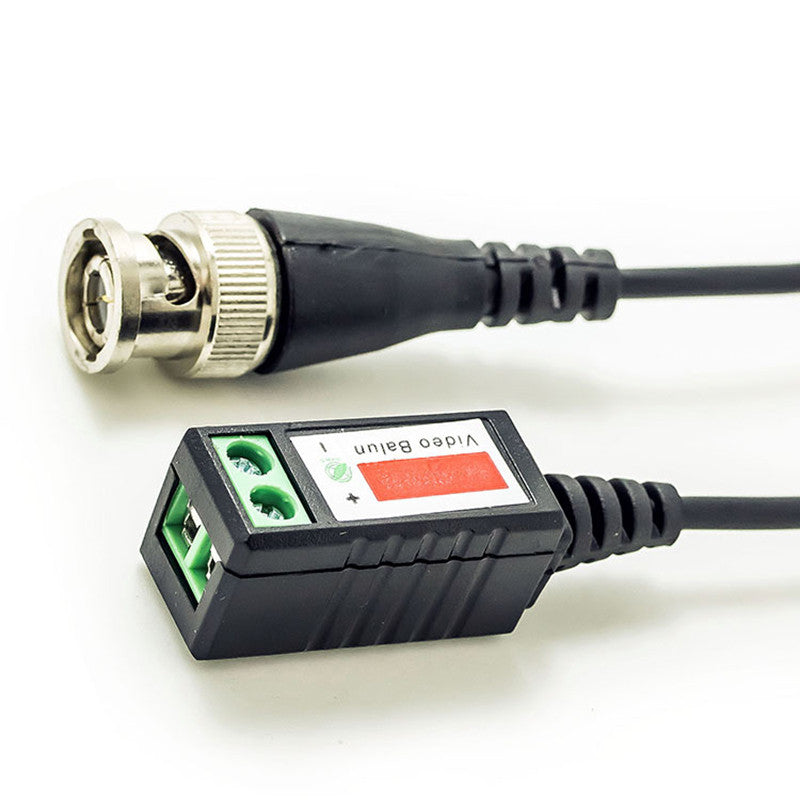

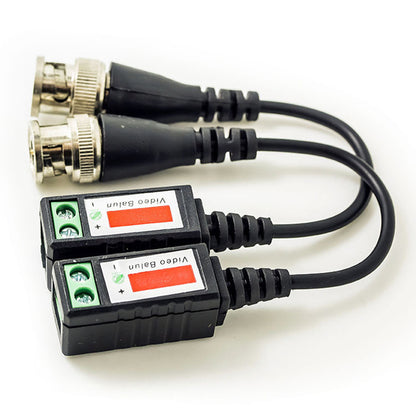

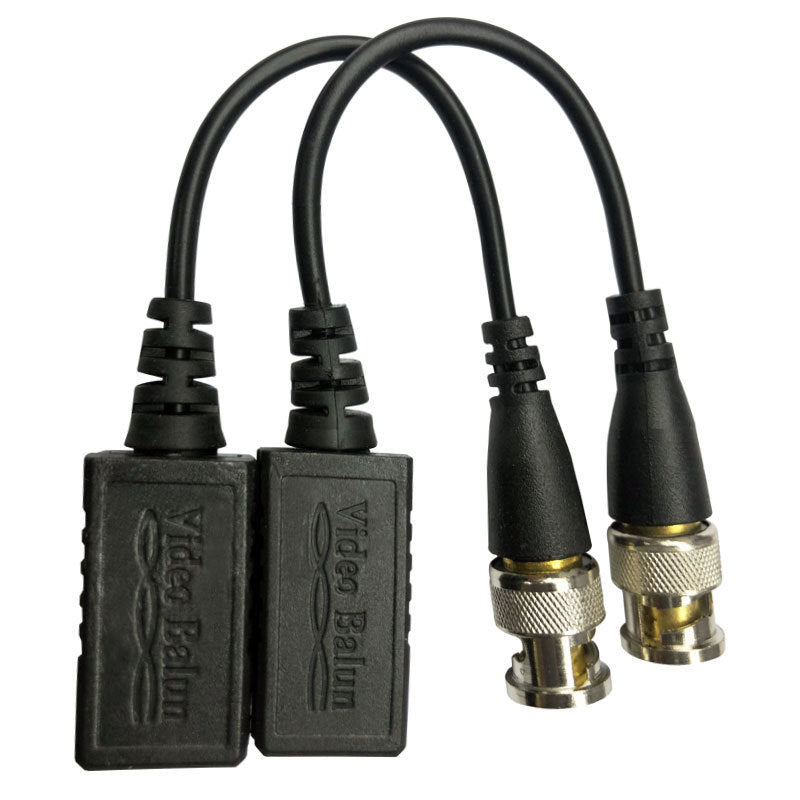

Fulabs 1 Pair 1080P AHD/HD-CVI/TVI/CVBS HD Video Balun Transmitter Cat5 Cat6 Video Balun

- Product Name : TVI/CVI/AHD/CVBS Video Balun

- Material : PVC

> Application:

● CCTV

● CATV

> Features:

● Single channel passive video balun

● Video transmission via UTP CAT5 cable

● 10-20%25 wire costs saved

● Full-motion CCTV video at distances up to 2000 ft

● Outstanding interference rejection and transient protection

● Male BNC allows connection directly to the camera or DVR

● No power required

● Save lots of Extra Cable Money

> Parameter:

● Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB

● Audio/data: NO

● Power: NO

● Impedance: Coax,male BNC

● Block or UTP RJ45

● Wire type: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal. DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)

● Control: NO

● UTP Port: Terminal Block

● Environment: Temperature:-10~+50 Humidity:0~95%

> Package List:

● 1 pair Video balun
