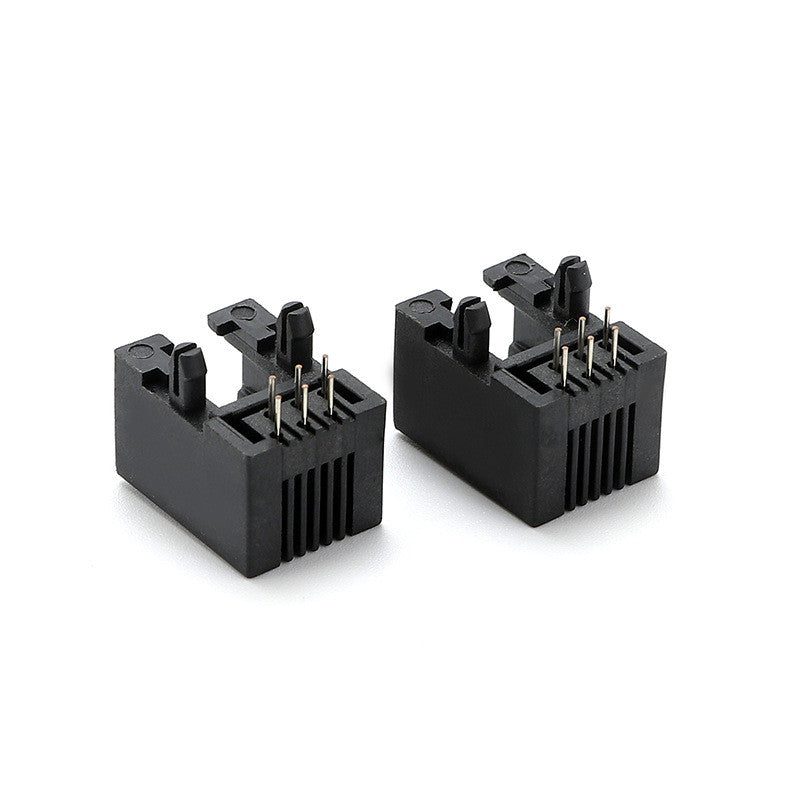

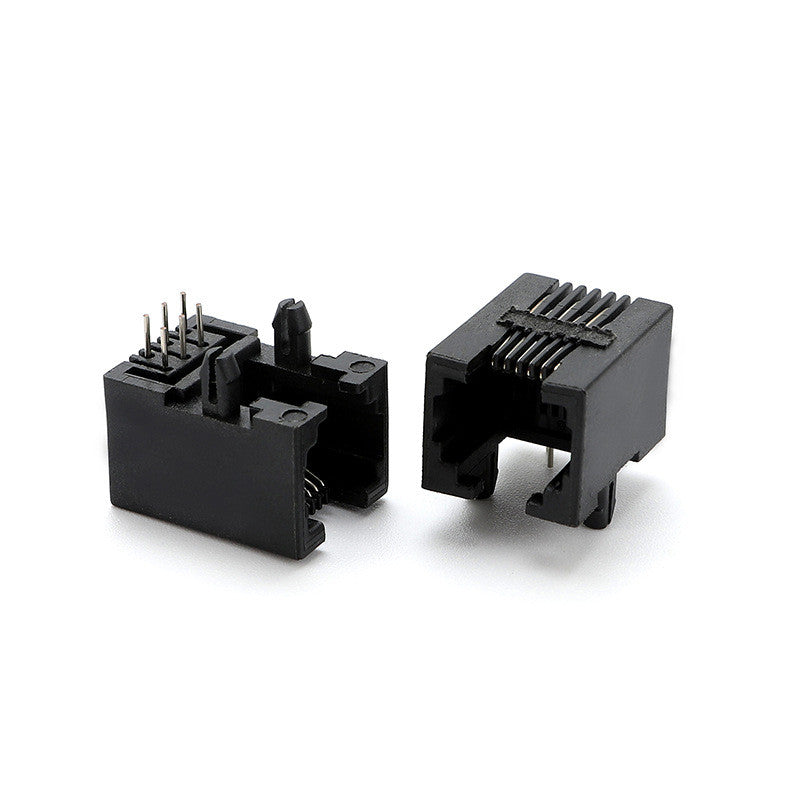

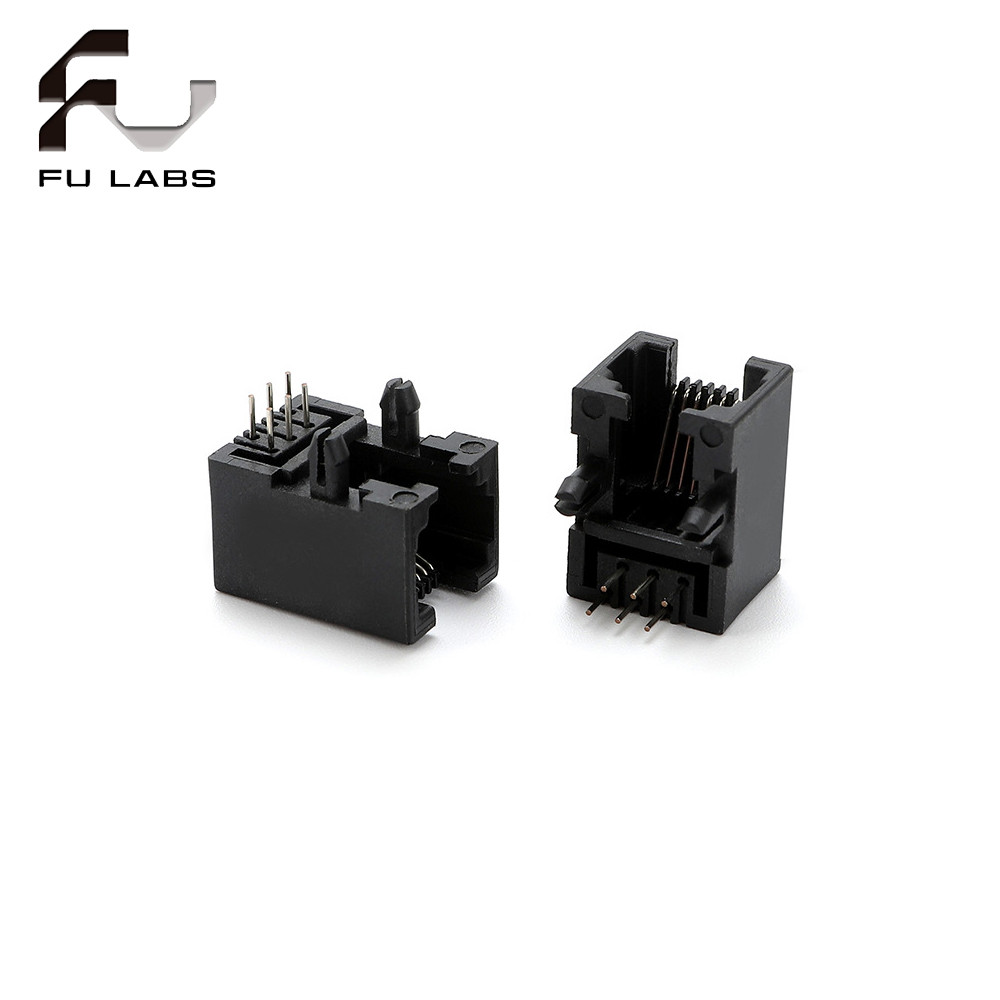

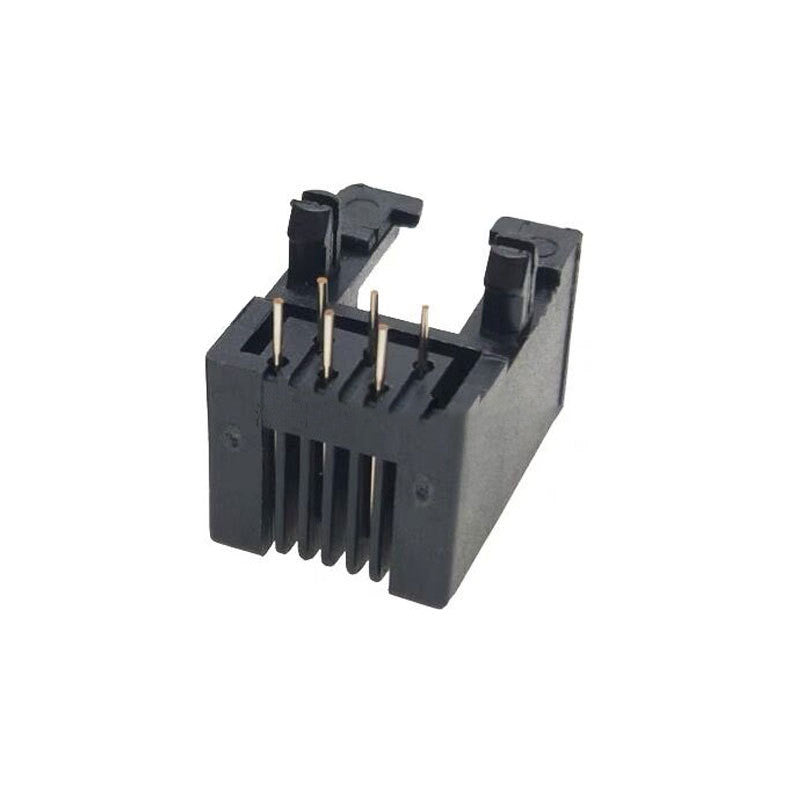

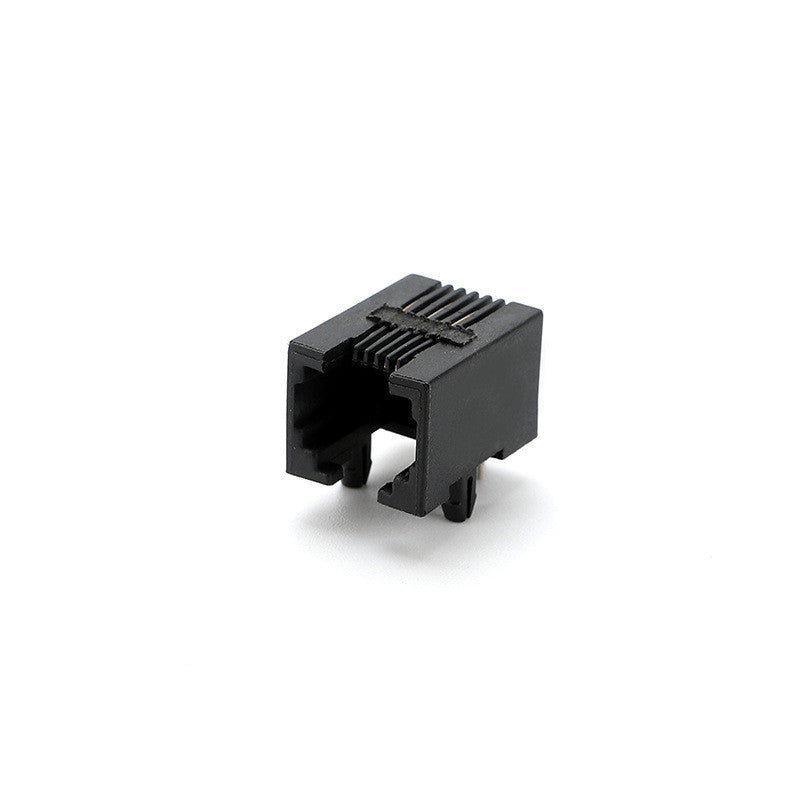

Fulabs 10pcs RJ11 Socket 95001 Black 6P6C RJ12 Telephone Socket 90 degrees

Product Description

I. Product Material Table

•Plastic Shell (Base & Inner Core) Material: High-temperature resistant material/PBT/PA46/PA66

•Contact PN Material: Phosphor bronze terminal (nickel-plated gold base)

•Shielding Shell Material: Copper alloy, nickel-plated surface (0.25mm thickness)

•Fire Rating: UL94V-0

II. Electrical Characteristics Table

•Rated Voltage: 125 VAC RMS

•Rated Current: 1.5 AMP

•Contact Resistance: 20mΩ MAX

•Insulation Resistance: 1000MΩ MIN @500 VDC

•Withstand Voltage: 1500V DC or 1000V AC RMS (@0.5Hz or 60Hz for one minute)

•Insertion/Extraction Force: 30N MAX

•Mating Strength: 50N FOR 60s±5s

•Reliability: At least 750 insertion and extraction cycles
