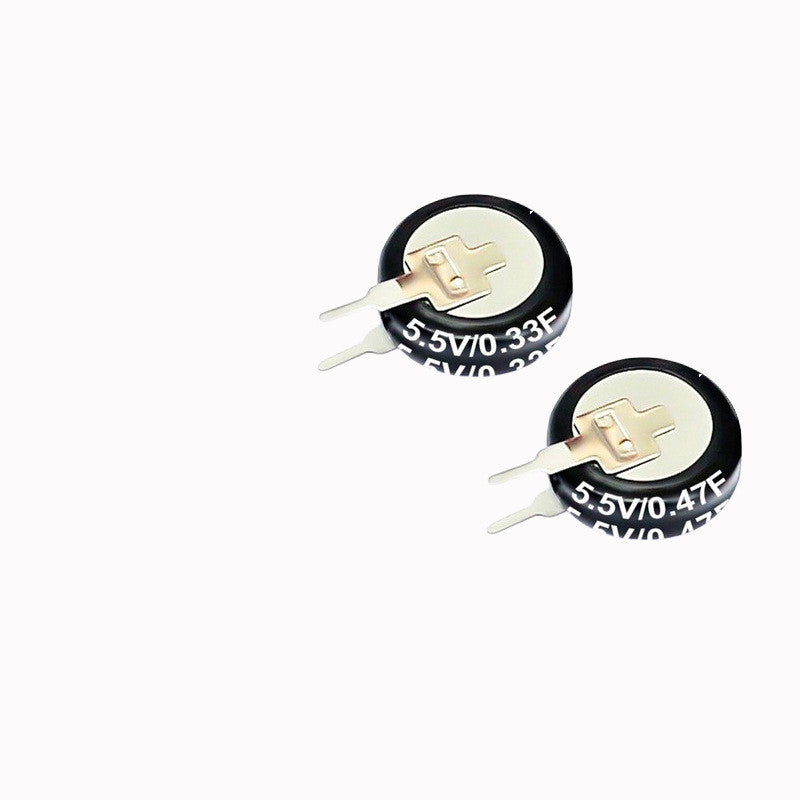

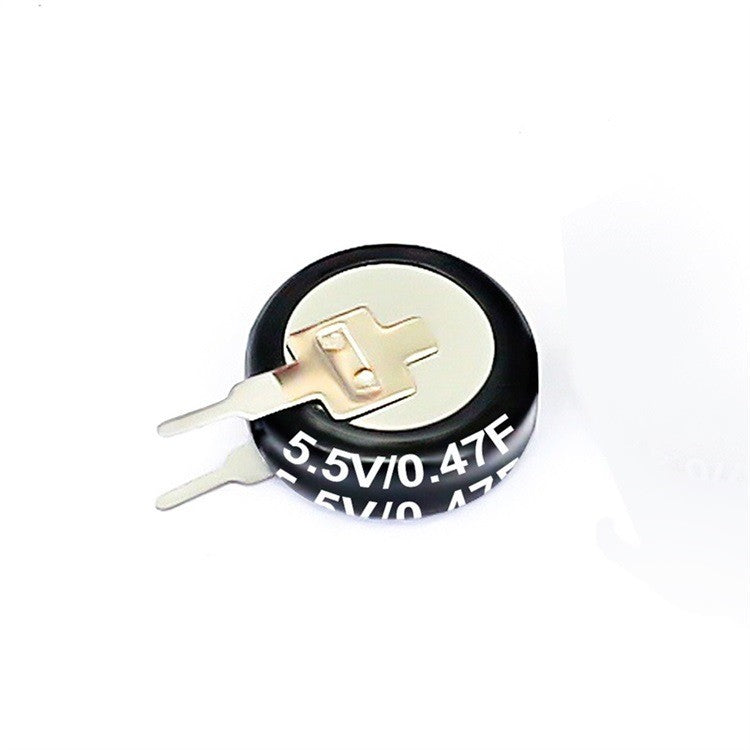

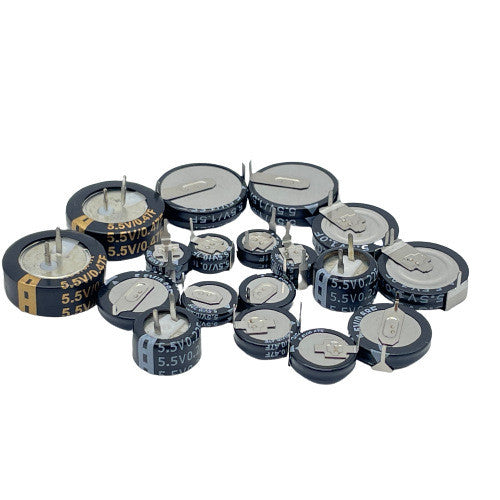

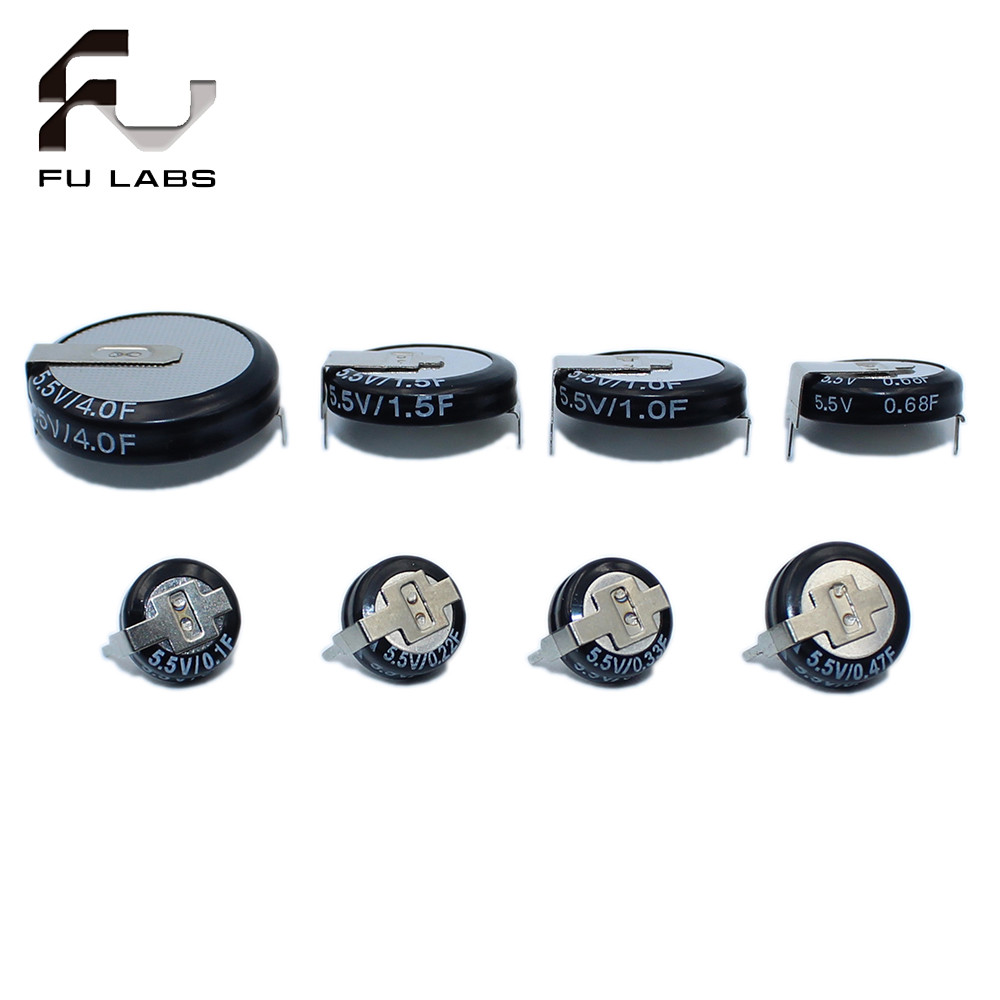

Fulabs 1PCS V type 5.5V Super capacitor 0.1F 0.22F 0.33F 0.47F 1F 1.5F 4.0F Button Farad capacitor

Product Information

   Main applications: CMOS power - down protection, digital cameras, hand - cranked rechargeable flashlights, smart three - meters, tax control machines NP3, micro DVD, VCD, environment - friendly flashlights, toys. Also applied in smart industrial control, meters, smart home appliance control modules, and widely used in electronic clocks, mobile phones, car audio, digital power amplifiers, toasters, solar calculators, solar lawn lights, highway indicator light chargers, PDAs and other fields.

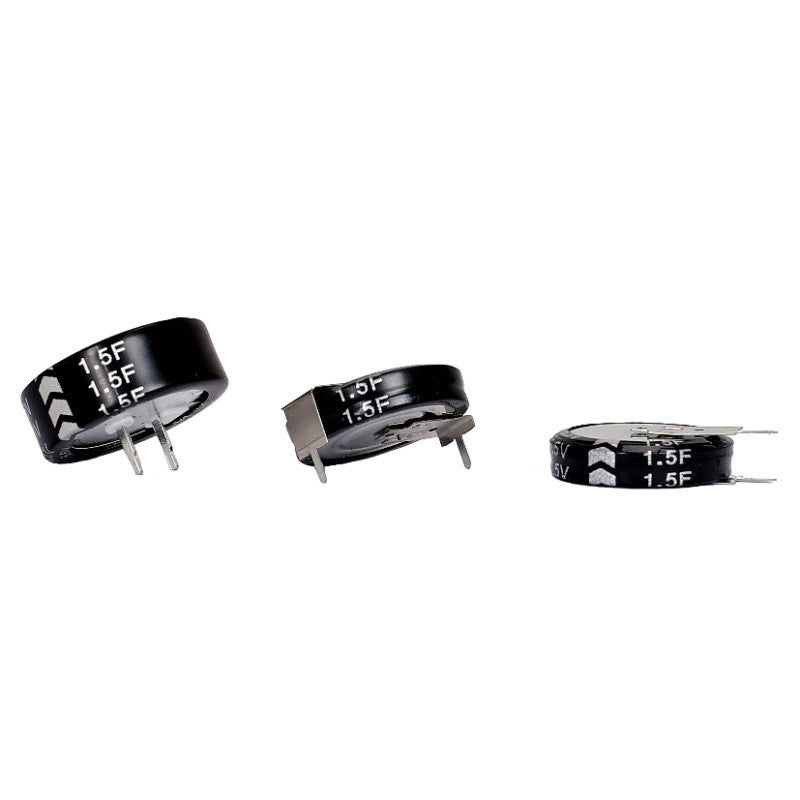

Positive and Negative Pole Identification

  The direction of the arrow points to the negative pole

Parameter Information

- Brand: No brand

- Series: Button Regular Series

- Performance Features: High capacity, low internal resistance, good consistency

- Typical Applications: RAM, consumer electronics, pitch control of wind turbine generators, military industry, smart grid, backup power supplies, toys, etc.

- Series Name: HESC Series

- Rated Voltage VR: 5.5V, 6.3V

- Operating Temperature: -40~70℃ (applicable to both voltage specifications)

- Capacity Range: For 5.5V specification: 0.1F - 4F; For 6.3V specification: 0.47F - 1F

- Capacity Deviation: -20%~+80% (applicable to both voltage specifications)

- Product Life: Under standard charge - discharge mode, after 200,000 charge - discharge cycles, |△C/C| ≤ 30%, ESR ≤ 4 times the initial value (25℃); After 1000h at +70℃±2 with rated voltage, |△C/C| ≤ 30%, ESR ≤ 4 times the specified value (applicable to both voltage specifications)
