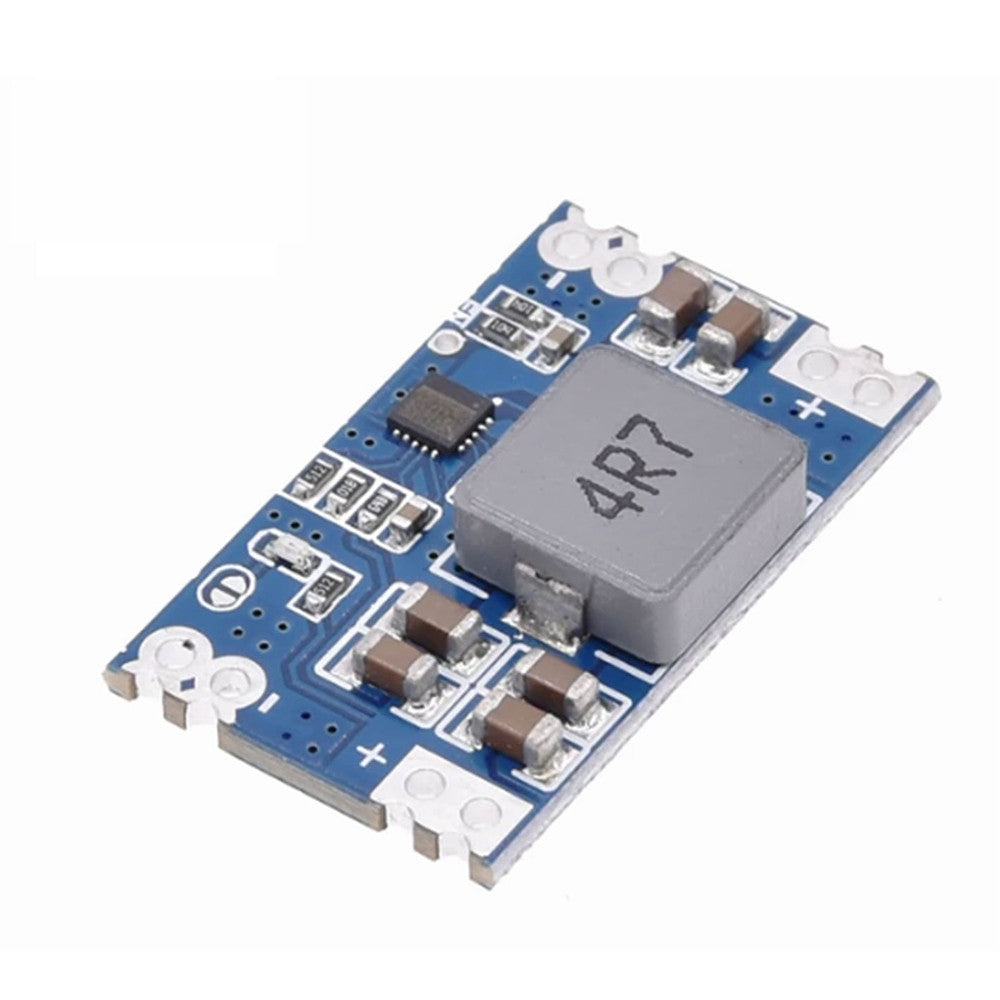

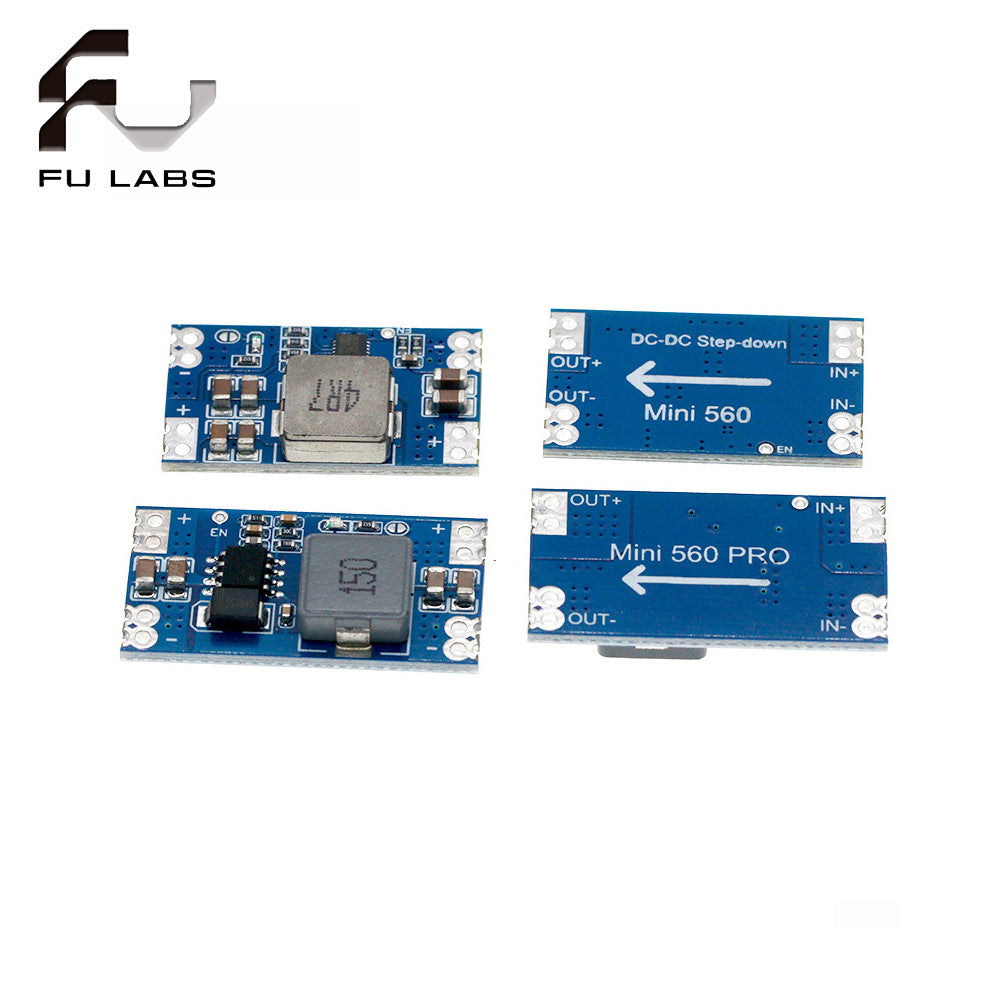

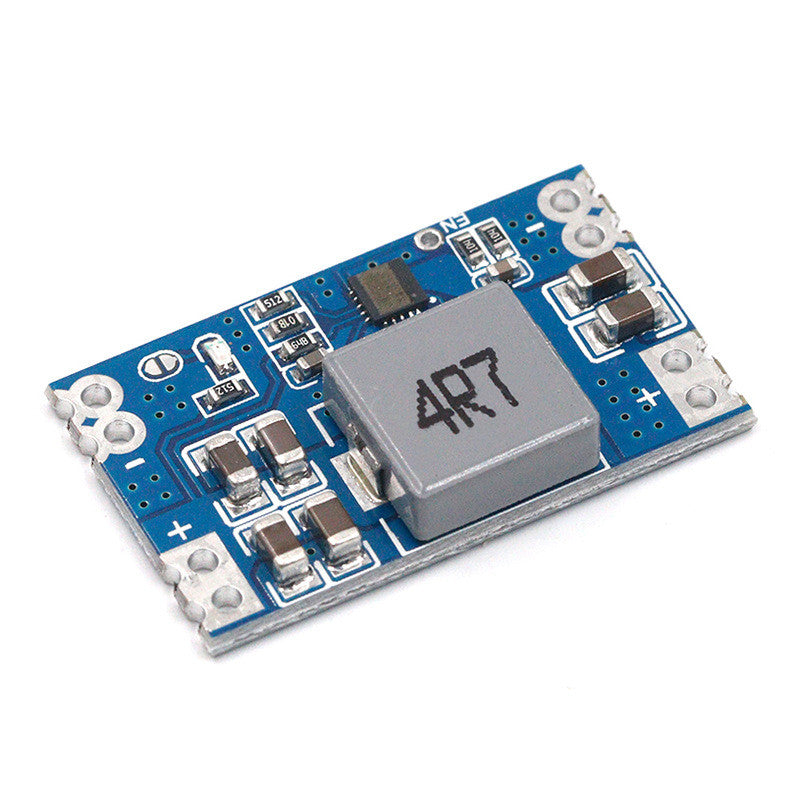

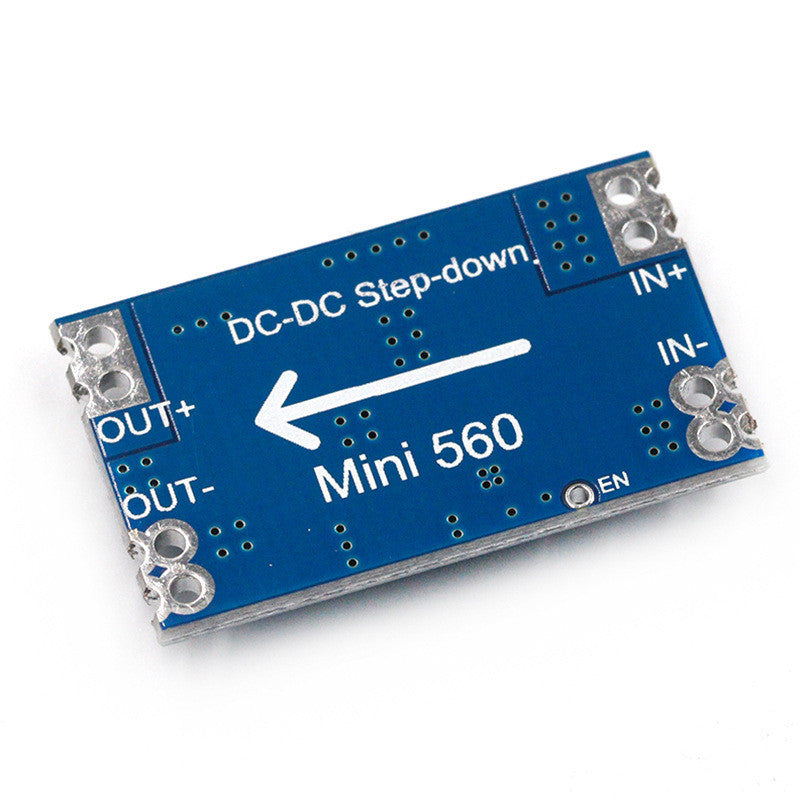

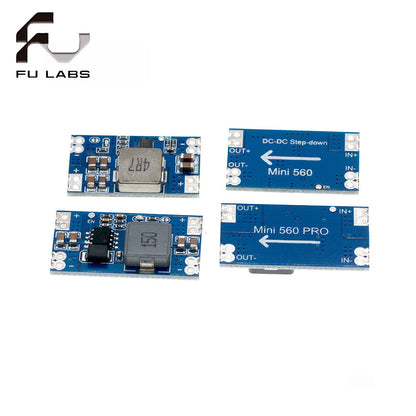

Fulabs Mini560 / Pro 5A High Efficiency Output 3.3V-12V Step Down DC-DC Converter Voltage Regulator Buck Stabilized Mini560 5A Power Supply Module

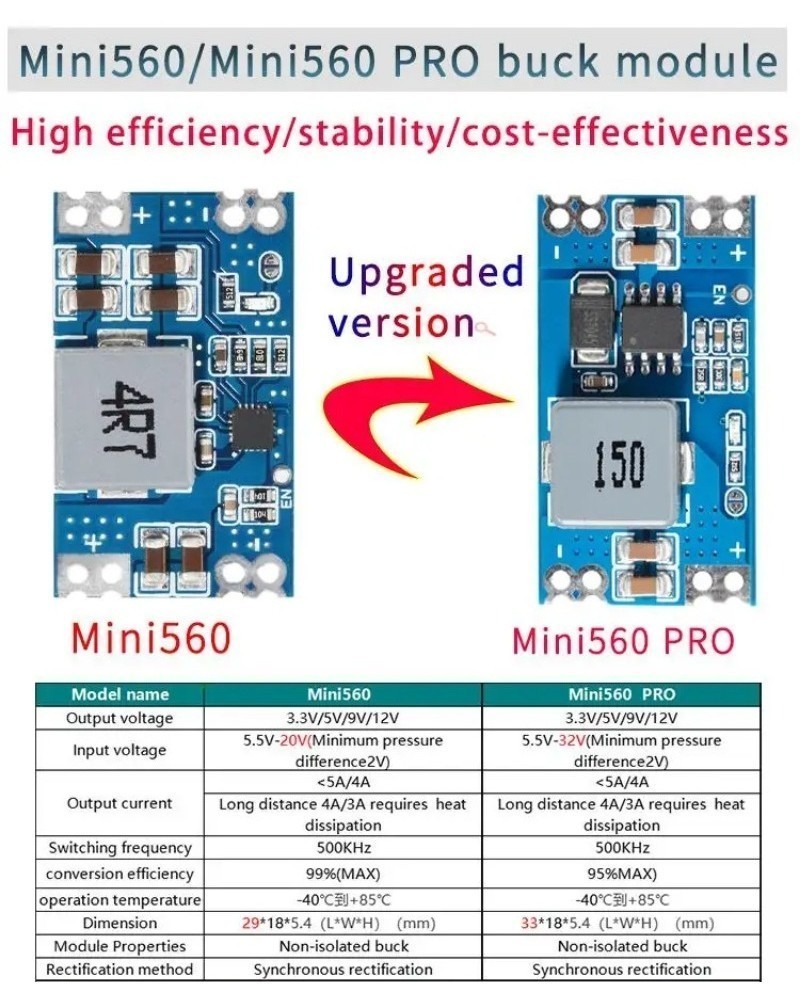

Product Parameters - Mini560 (Small - Volume DC - DC Synchronous Rectification Buck Step - Down Module)

Model Versions and Corresponding Parameters

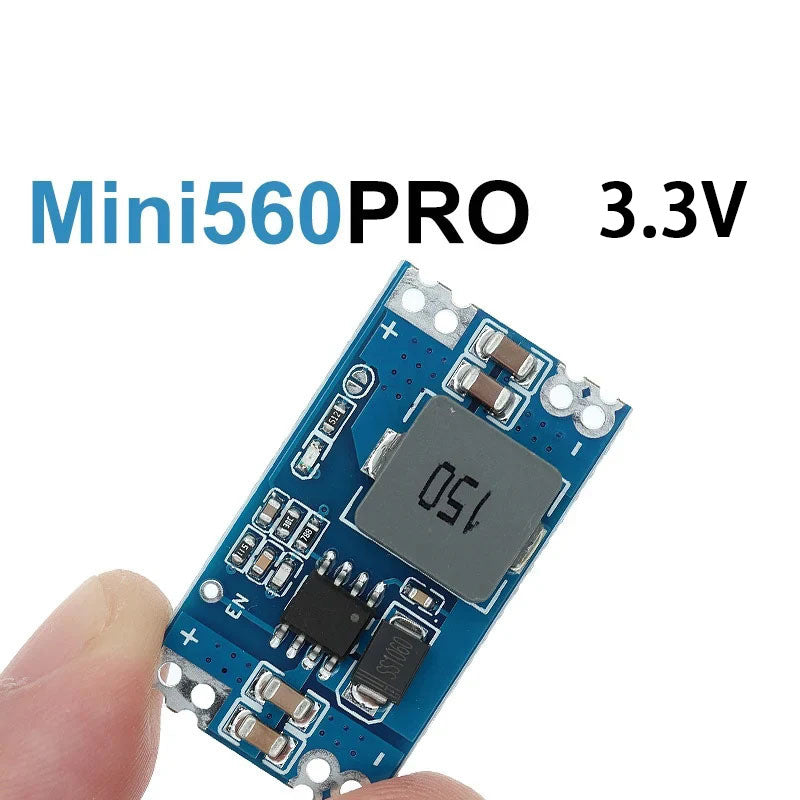

3.3V Version

● Output Voltage: 3.3V

● Input Voltage: 5V - 20V

● Output Current: < 5A (Additional heat dissipation required if continuously running over 4A)

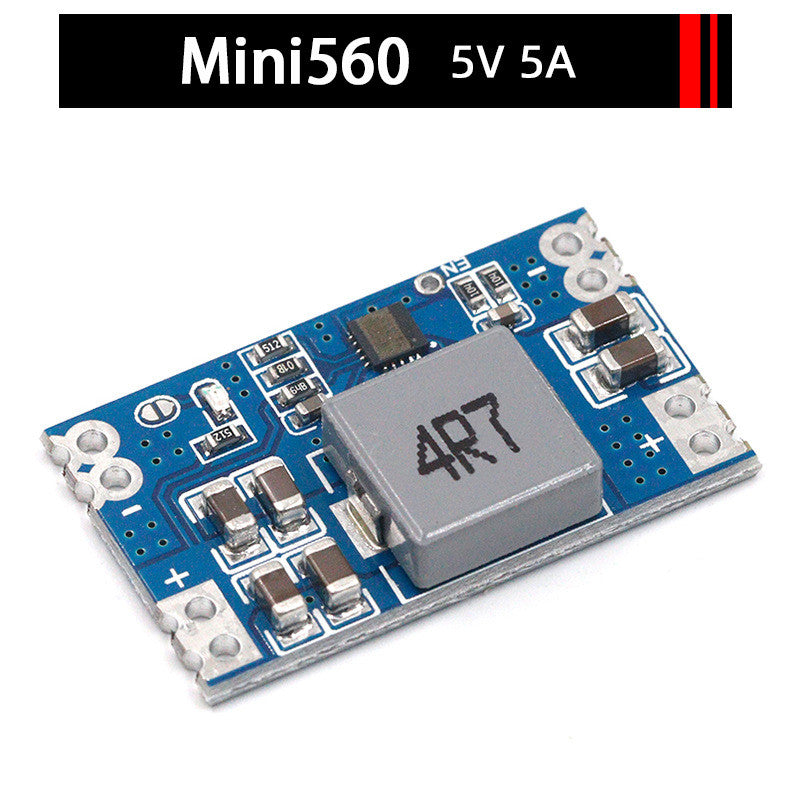

5V Version

● Output Voltage: 5V

● Input Voltage: 7V - 20V

● Output Current: < 5A (Additional heat dissipation required if continuously running over 4A)

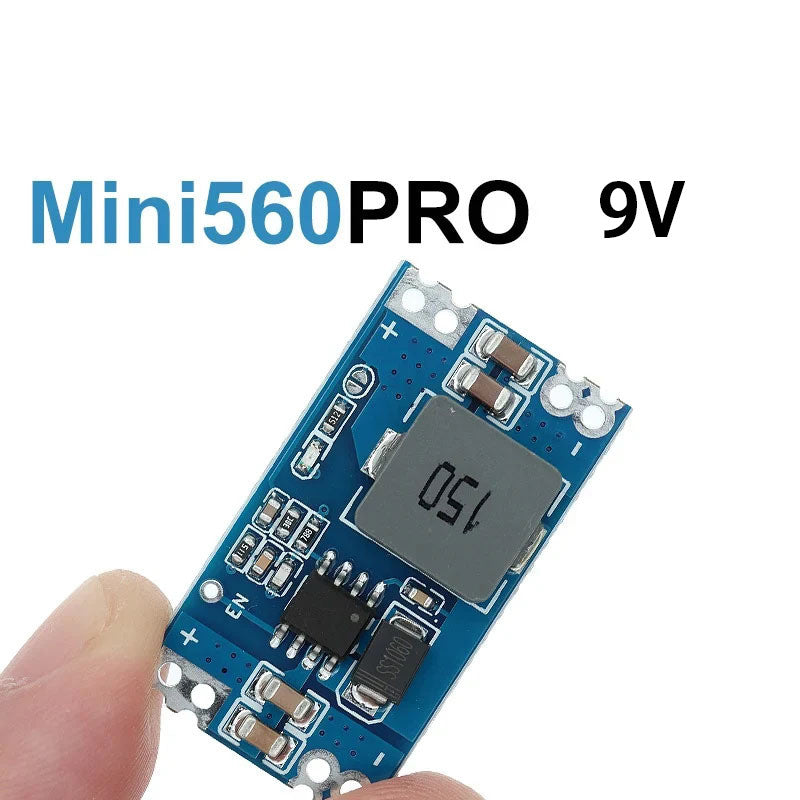

9V Version

● Output Voltage: 9V

● Input Voltage: 11V - 20V

● Output Current: < 4A (Additional heat dissipation required if continuously running over 3A)

12V Version

● Output Voltage: 12V

● Input Voltage: 14V - 20V

● Output Current: < 4A (Additional heat dissipation required if continuously running over 3A)

General Parameters

● Voltage Difference: > 1.7V (for 3.3V version); > 2V (for 5V, 9V, 12V versions)

● Switching Frequency: 500KHz

● Conversion Efficiency: 99% (maximum)

● Operating Temperature: - 40℃ to + 85℃

● Peripheral Dimensions: 29185.4 (lengthwidthheight, unit: mm)

● Module Nature: Non - isolated step - down

● Rectification Method: Synchronous rectification
