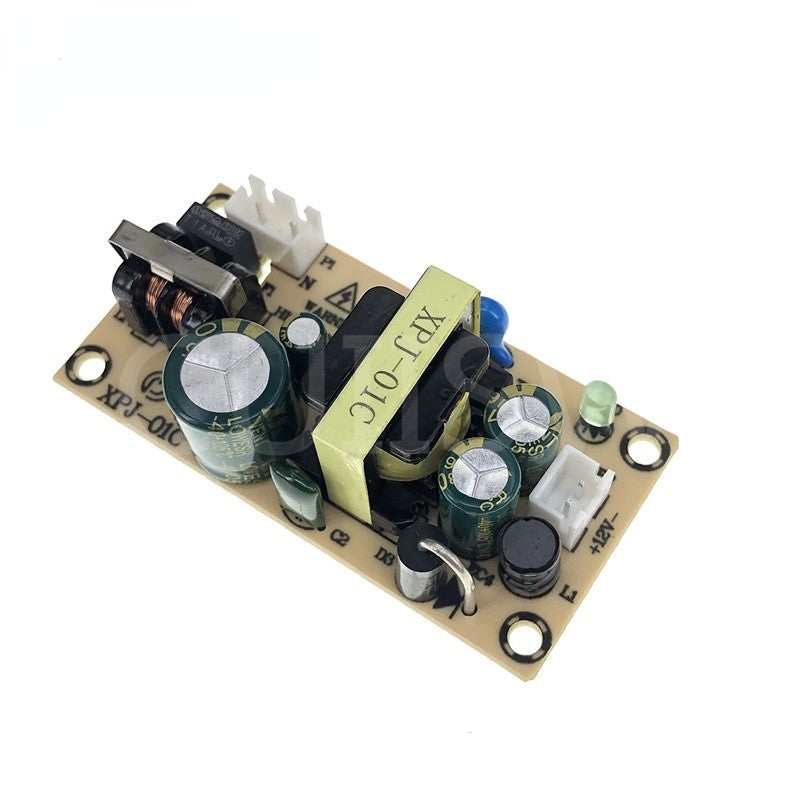

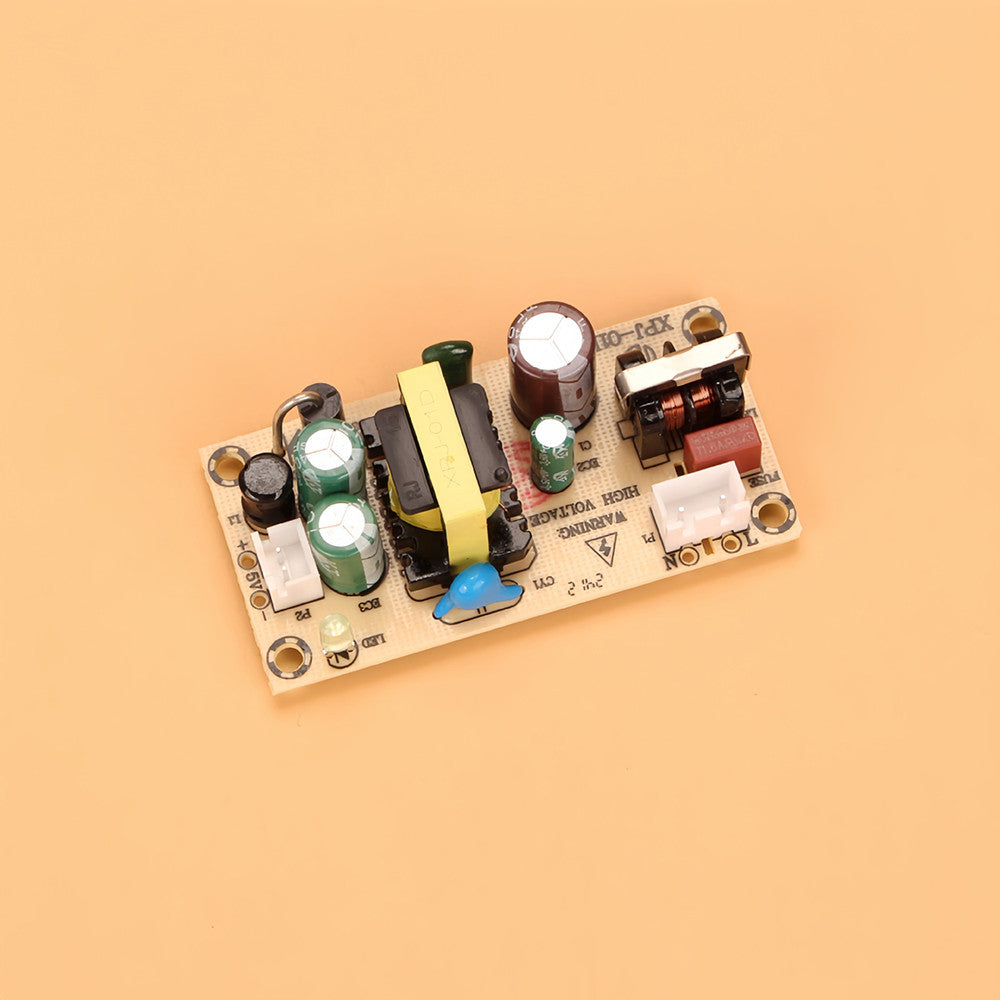

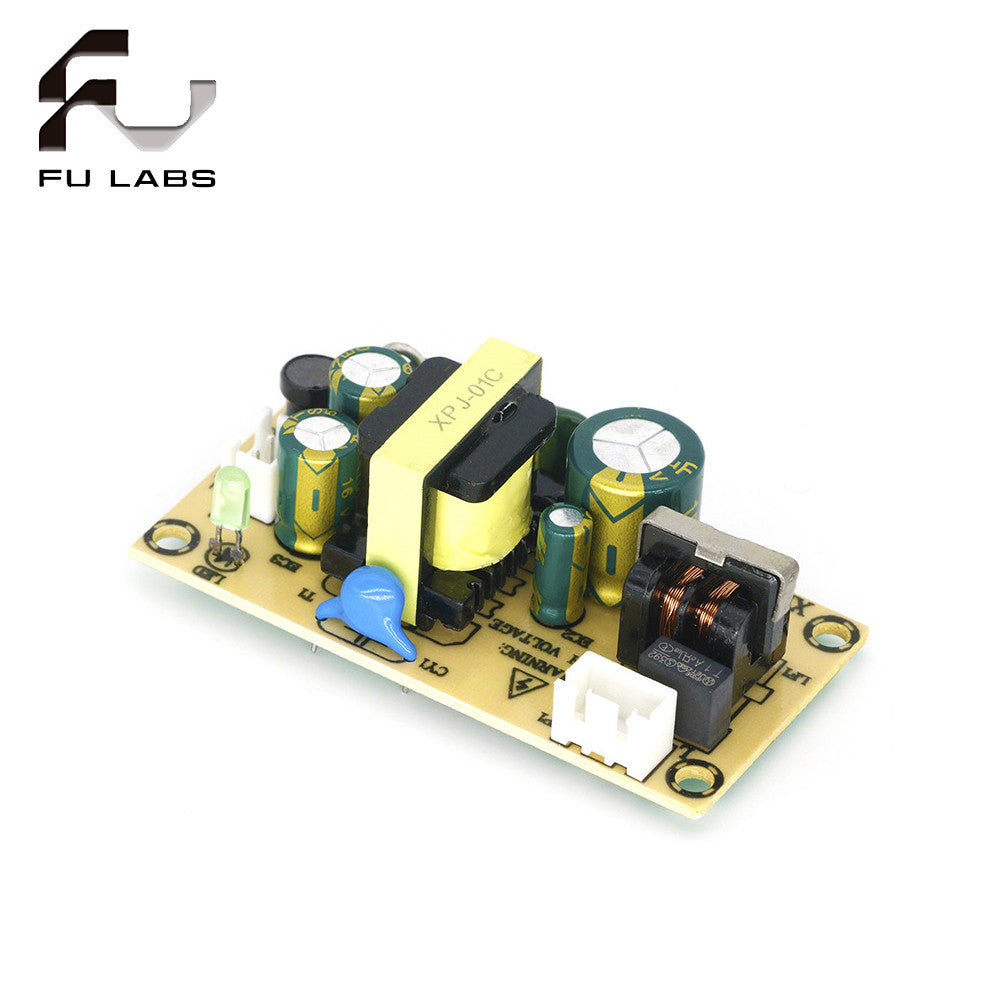

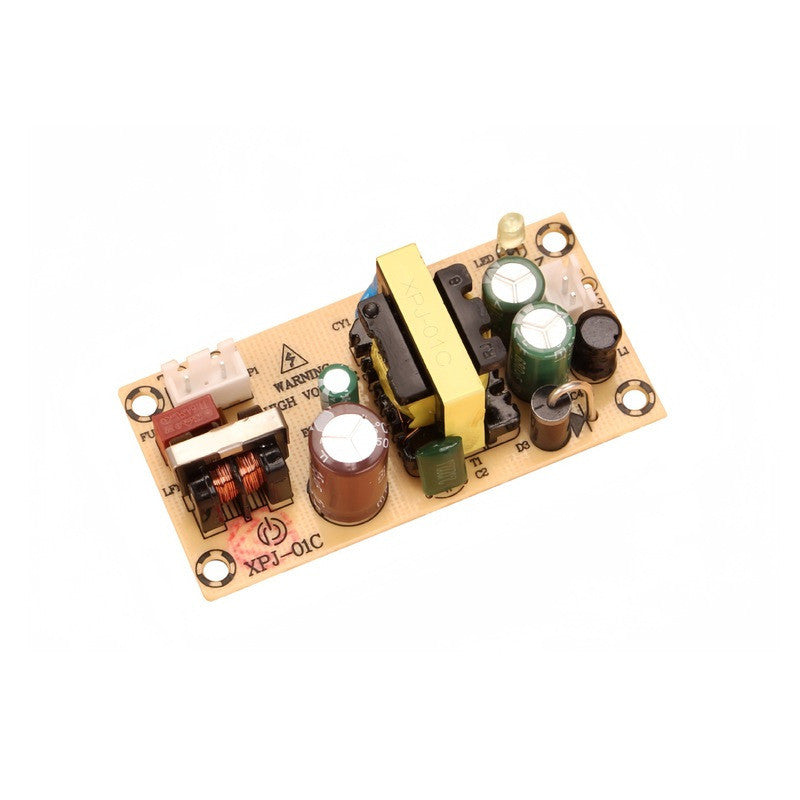

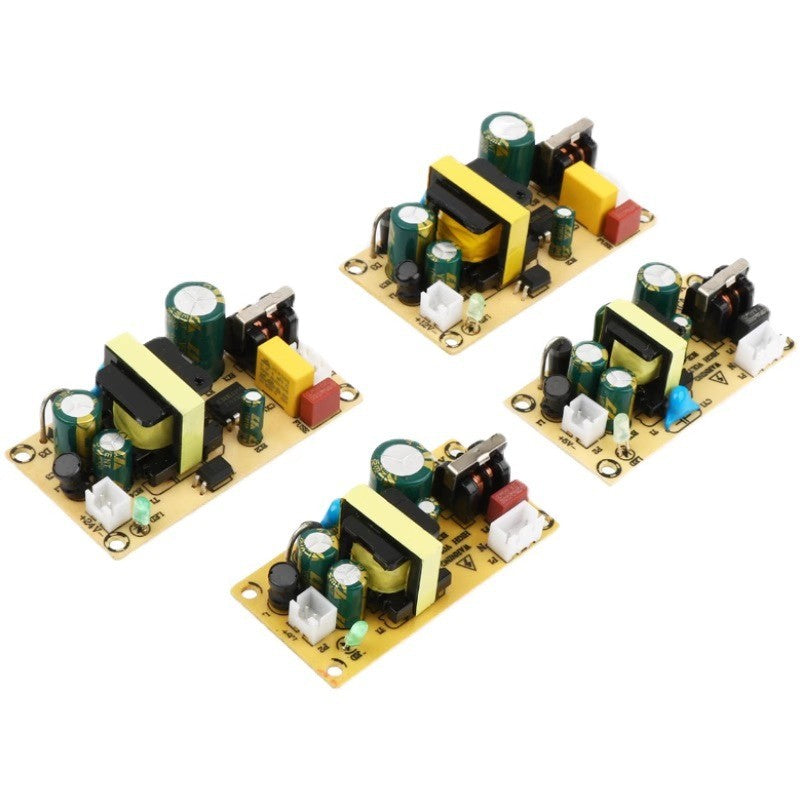

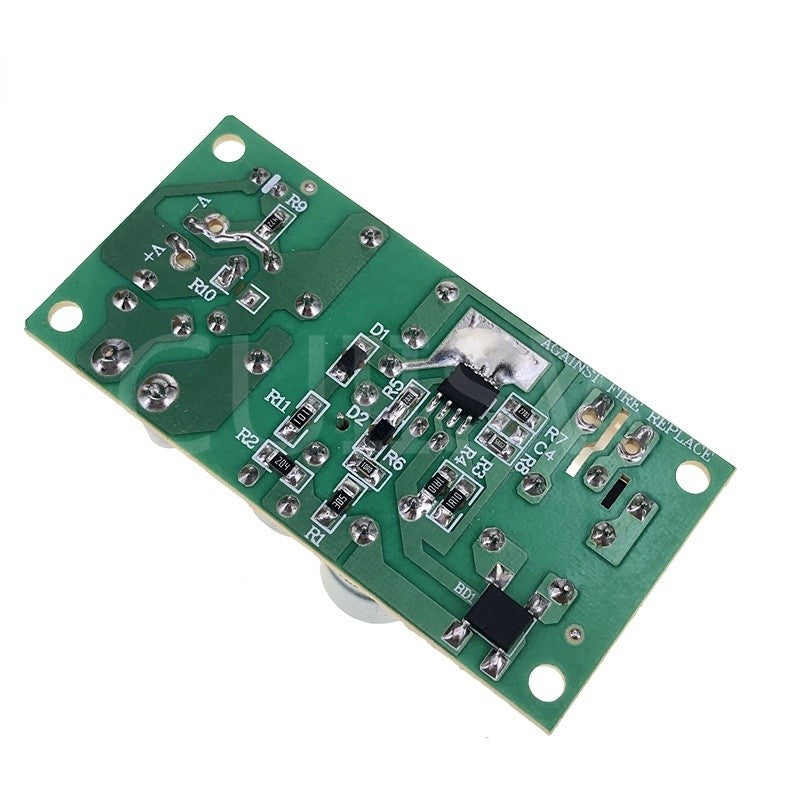

Fulabs Switching Power Supply Module Adapter Bare Circuit 100-265V AC 220V to 12V 5V 9V Board Regulator AC-DC 12V 1.5A 5V 2A

Power Module Description

Product Parameters

● Name: Power Module

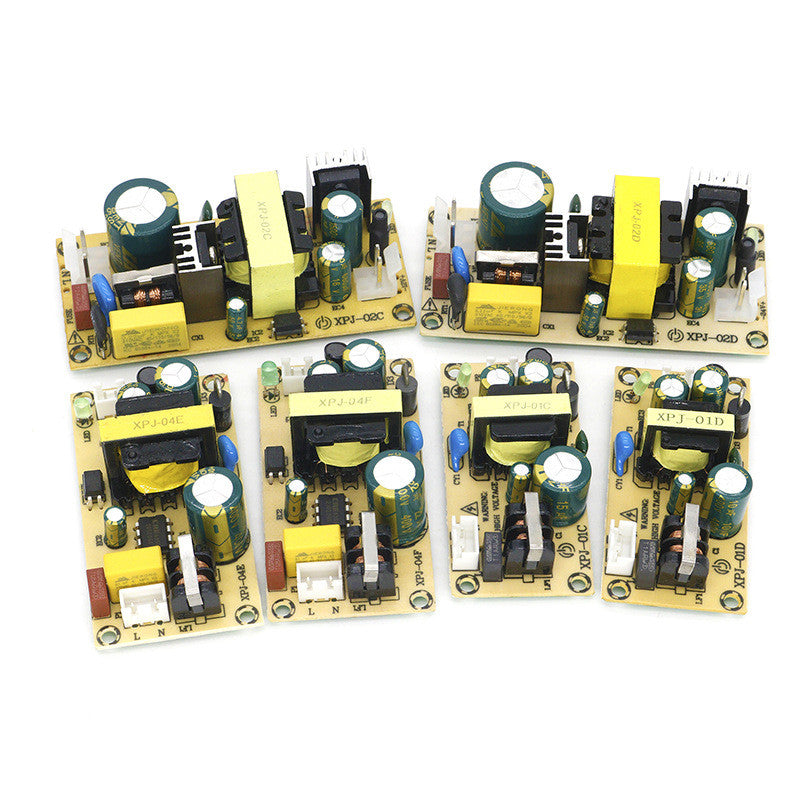

● Models: XPJ-01C, XPJ-01D, XPJ-01E, XPJ-01F

● Input: AC110-240V 50/60Hz

Output:

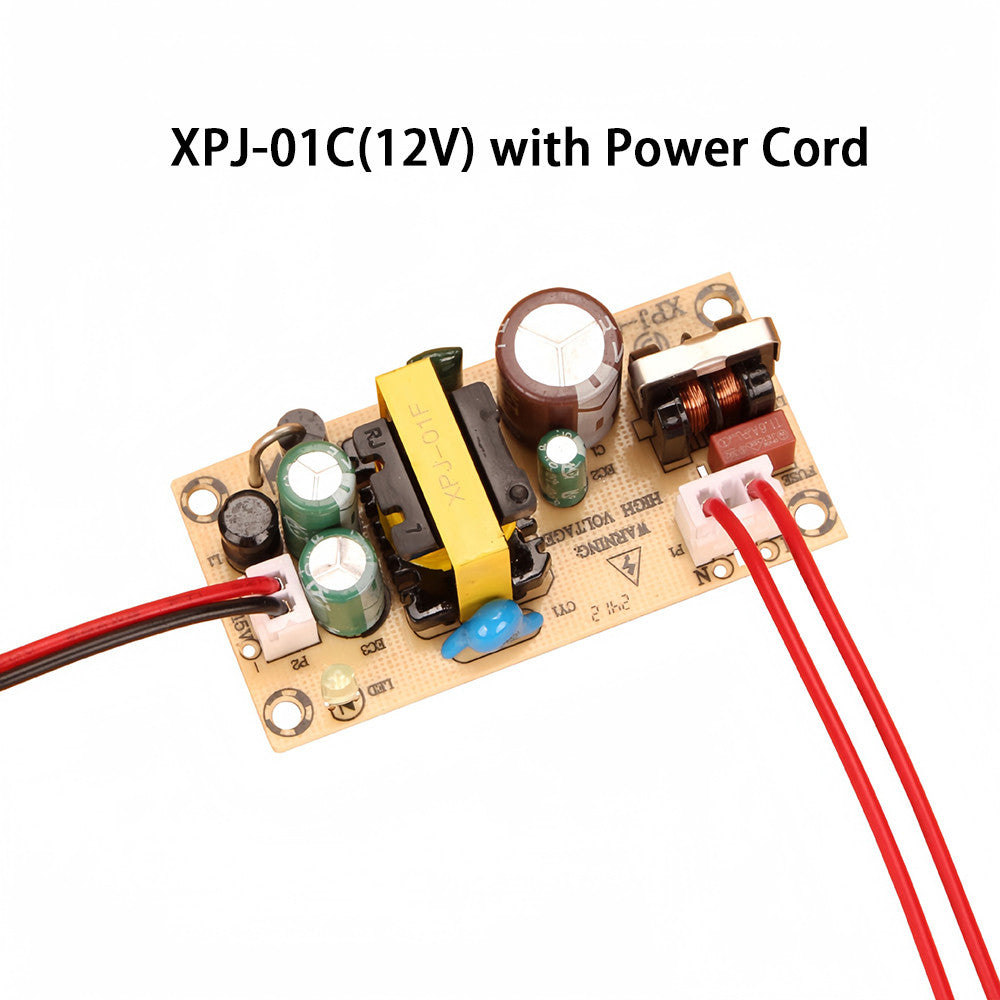

XPJ-01C (12V1.5A): 18W

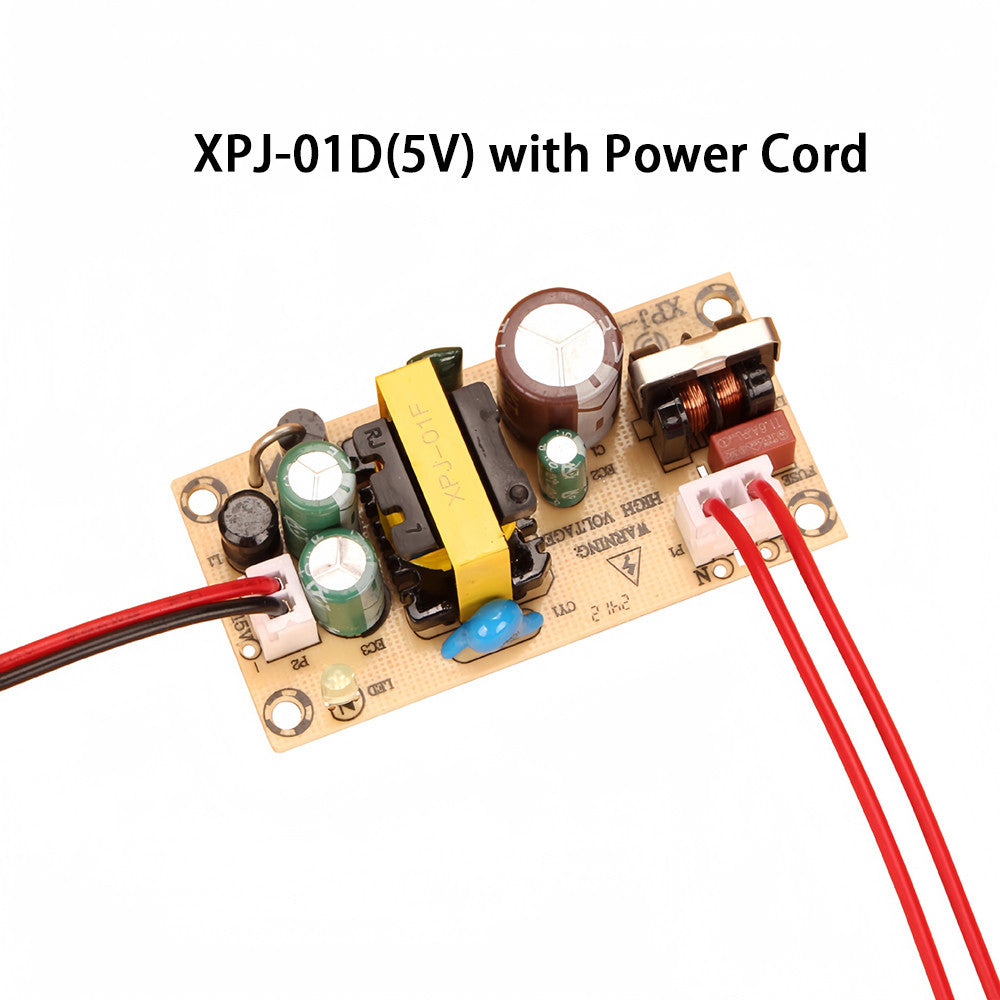

XPJ-01D (5V2A): 10W

XPJ-01E (9V1.5A): 13.5W

XPJ-01F (15V1.2A): 18W

● Interface: AC=XH2.54-3P2 Terminal Block, DC=XH2.54-2P Terminal Block

● Protection: Short - circuit, Over - current

● Volume: Length 6.46Width 3.26Height 2.3cm

● Weight: 0.03kg/unit

Precautions

The product is in constant voltage mode, meaning the voltage is stable while the current varies from 0 to the rated value.

Primary - side feedback (excluding components TL431 and optocoupler PC817 in the secondary - side feedback).

XPJ-01C (12V1.5A): Current limit 1.7A (maximum 1.7A, rated 0-1.5A).

XPJ-01D (5V2A): Current limit 2.2A (maximum 2.2A, rated 0-2A).

XPJ-01E (9V1.5A): Current limit 2.1A (maximum 2.1A, rated 0-1.5A).

XPJ-01F (15V1.2A): Current limit 1.4A (maximum 1.4A, rated 0-1.2A).

If used in scenarios like motors, fans, etc., which require instant current multiplication, confirm if the maximum current limit can meet the demand.

The power modules in this link are adapters, not chargers, and are not suitable for charging batteries.
