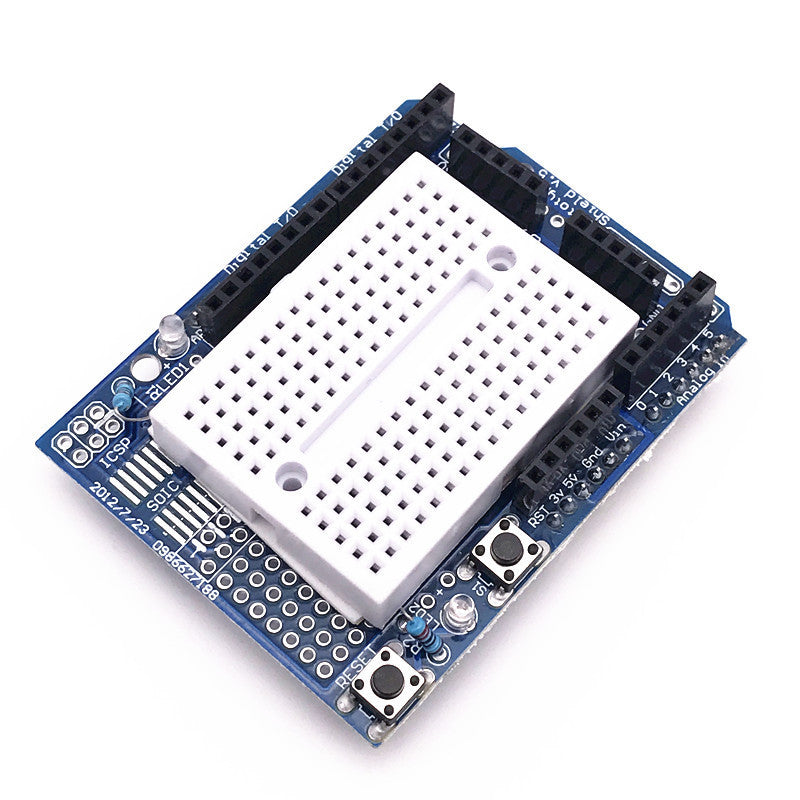

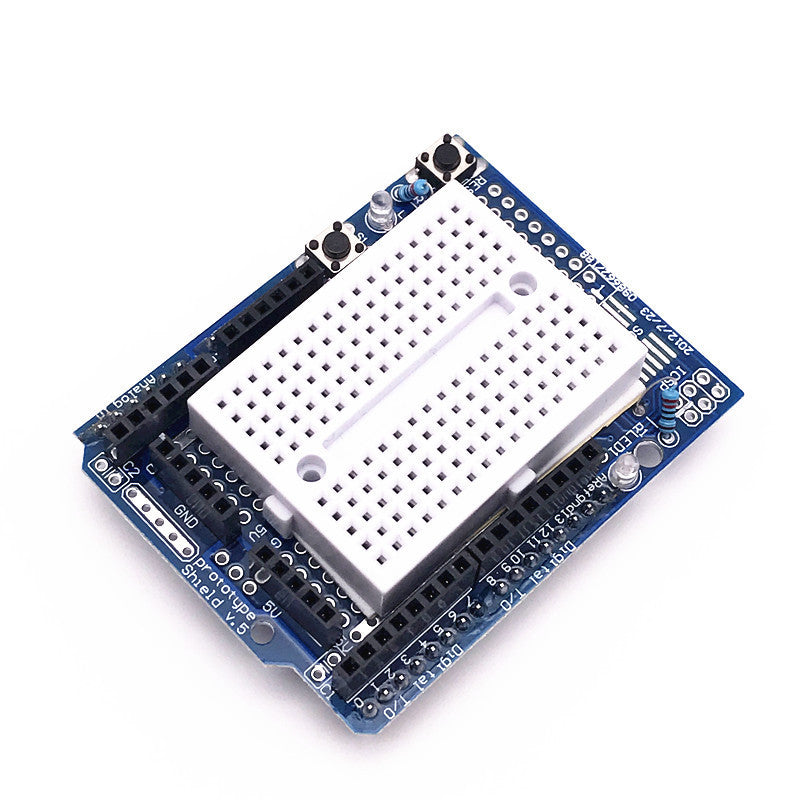

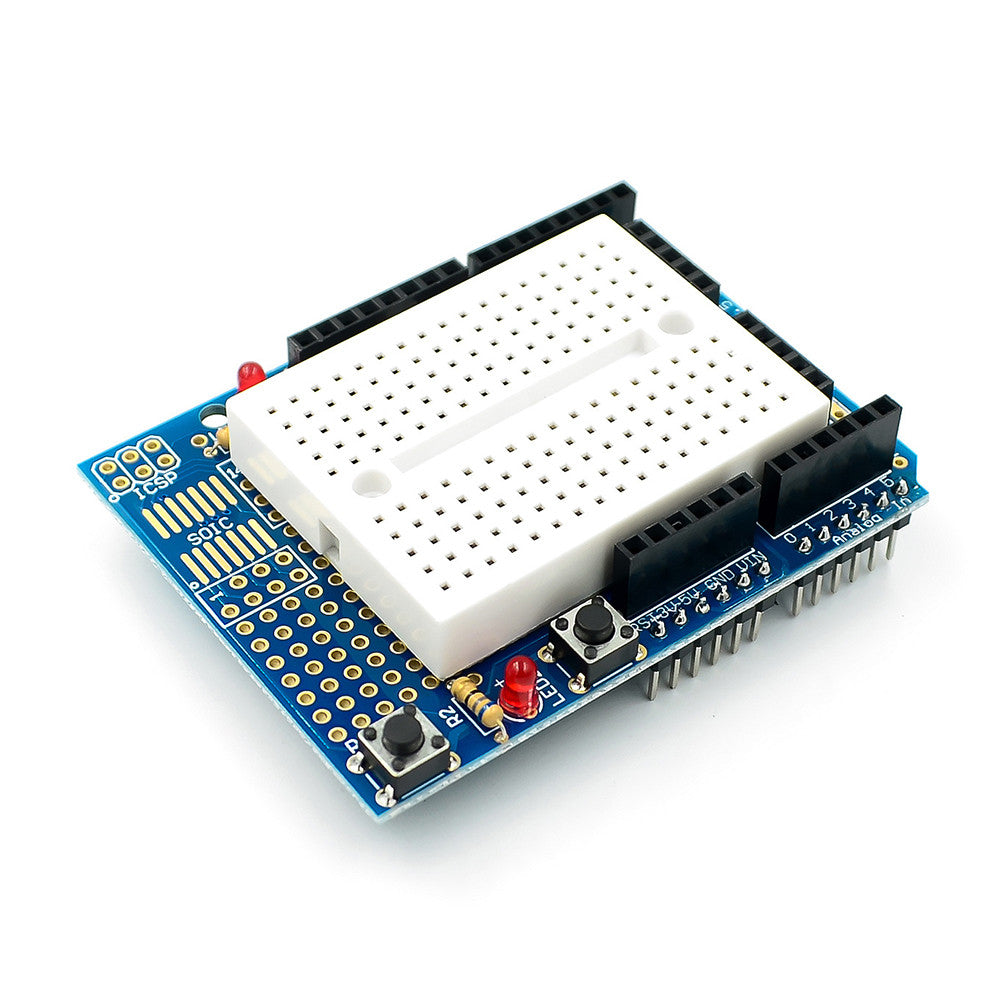

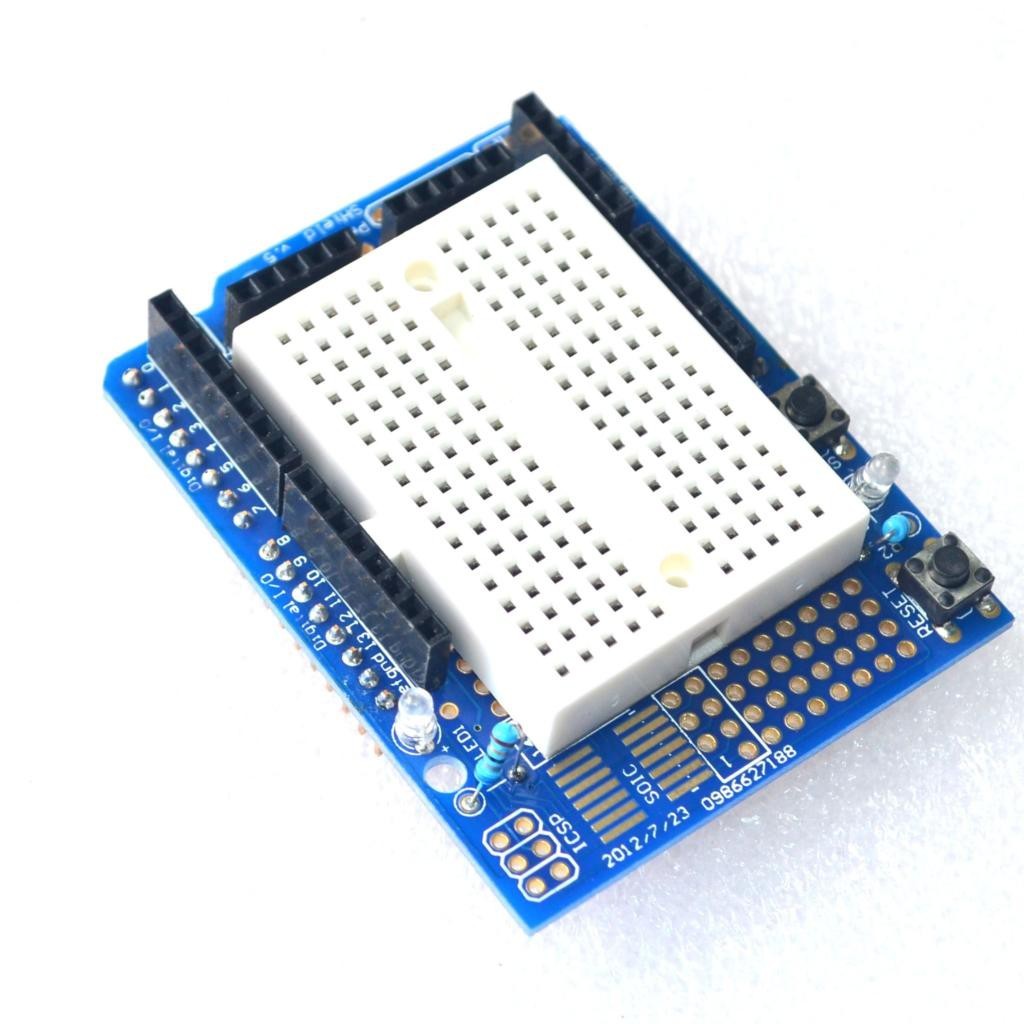

Fulabs UNO ProtoShield prototype expansion board with SYB-170 mini breadboard based For ARDUINO

Description of Arduino ProtoShield Robot Prototype Expansion Board

I. Product Parameters

● Name: Robot Prototype Expansion Board (PROTOShield)

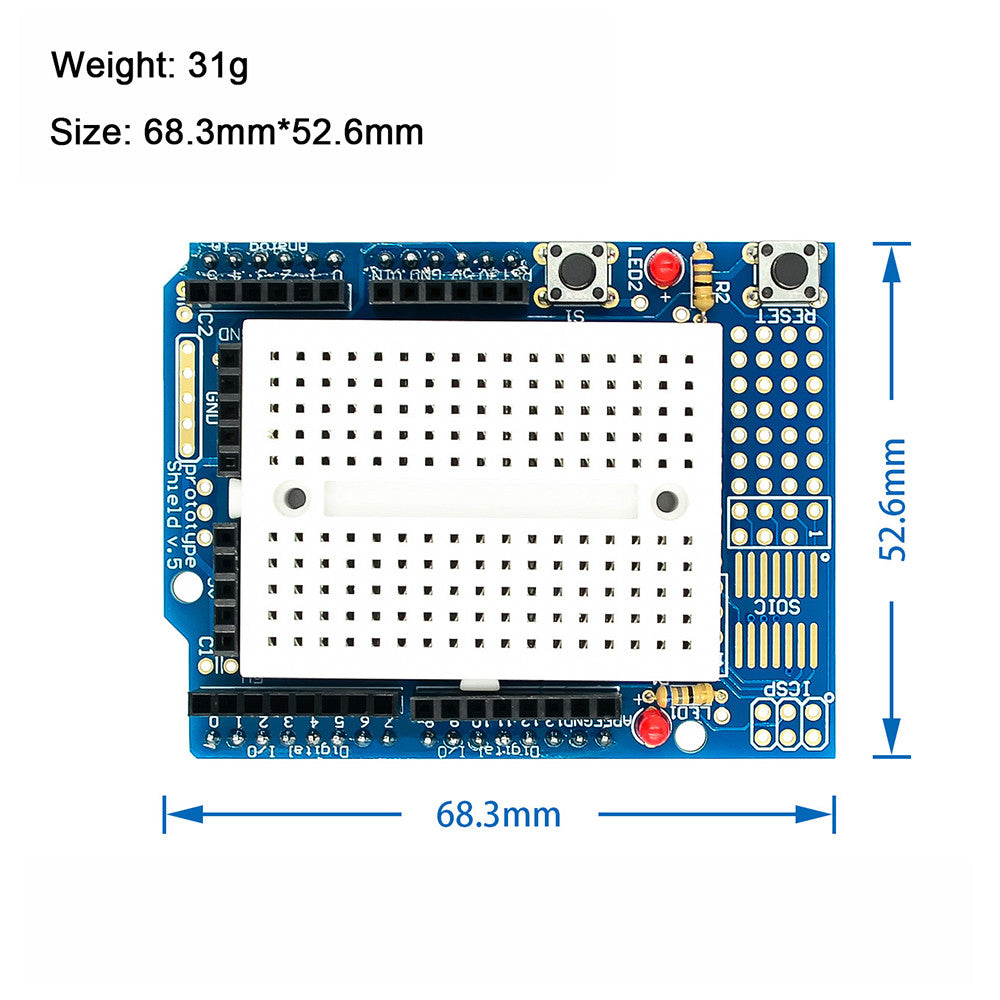

● Dimensions: 69.853.918.5mm

● Mini Breadboard Dimensions: 443410mm

● Weight: Approximately 31g

II. Product Introduction

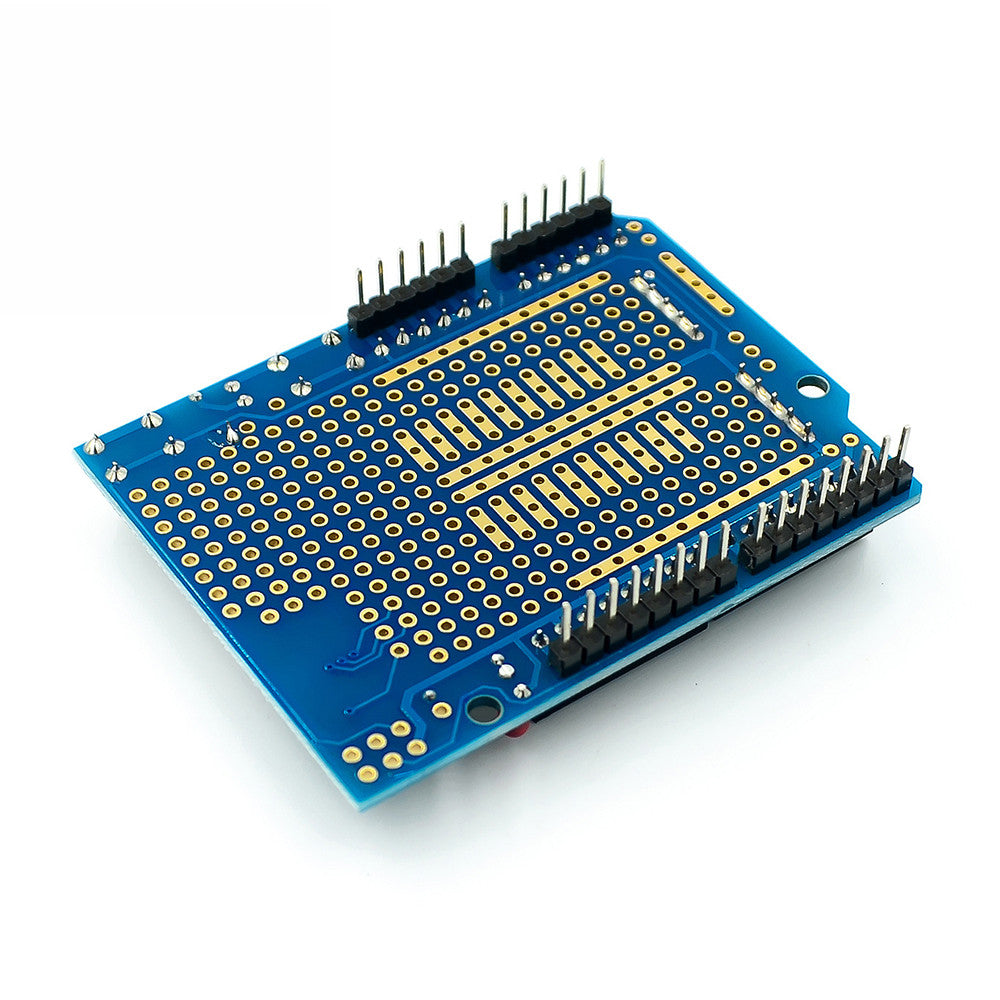

This is a ProtoShield prototype expansion board compatible with Arduino Duemilanove, featuring the following core functions:

Circuit Construction Modes:

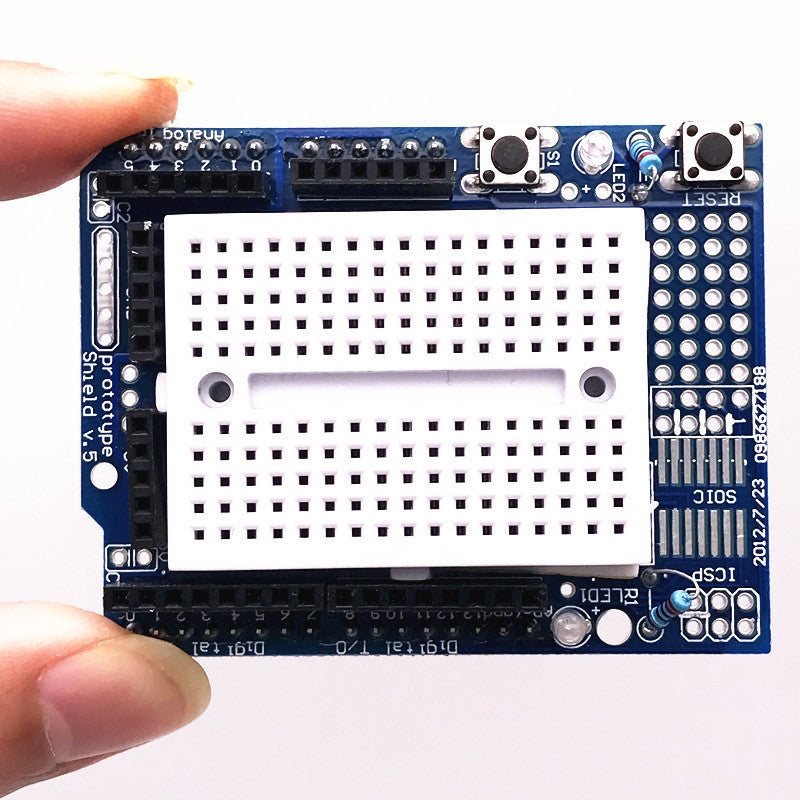

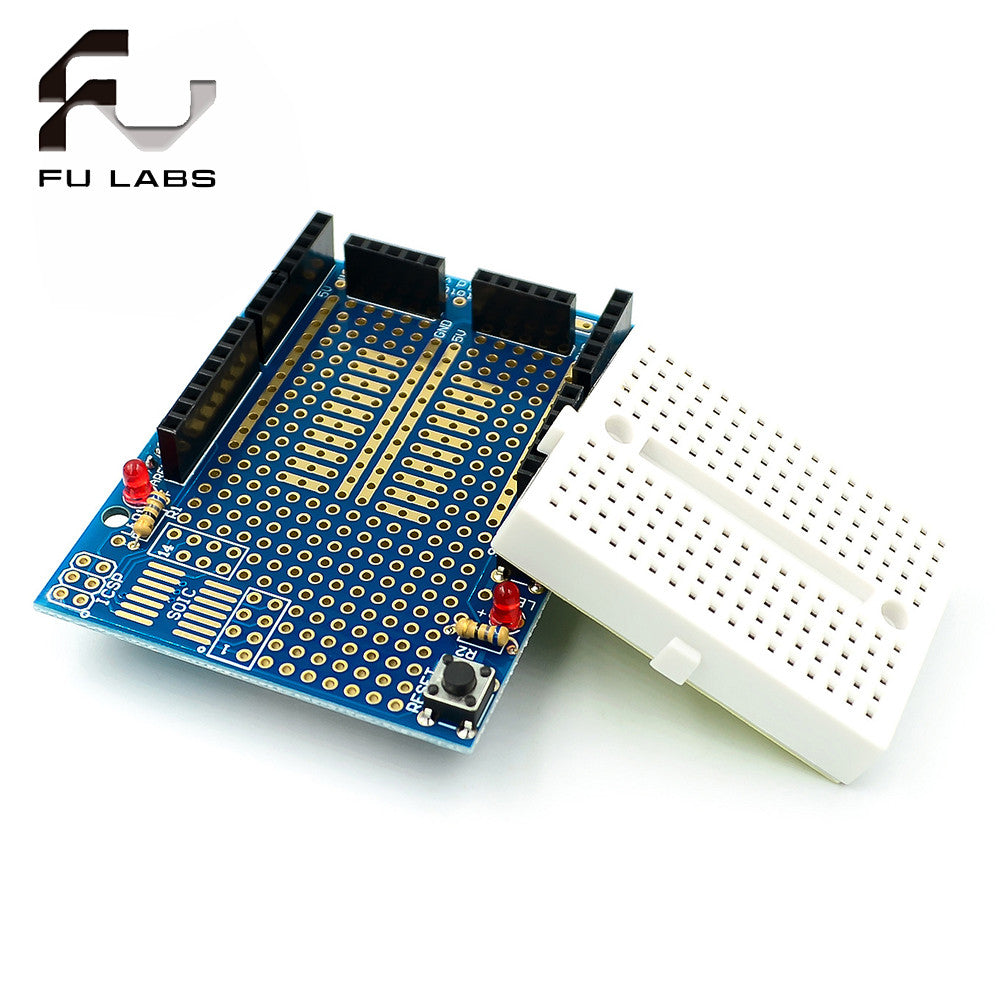

Supports direct component soldering or circuit connection via a mini breadboard (the breadboard and main board are separate and fixed with double-sided tape).

Basic Circuit Configuration:

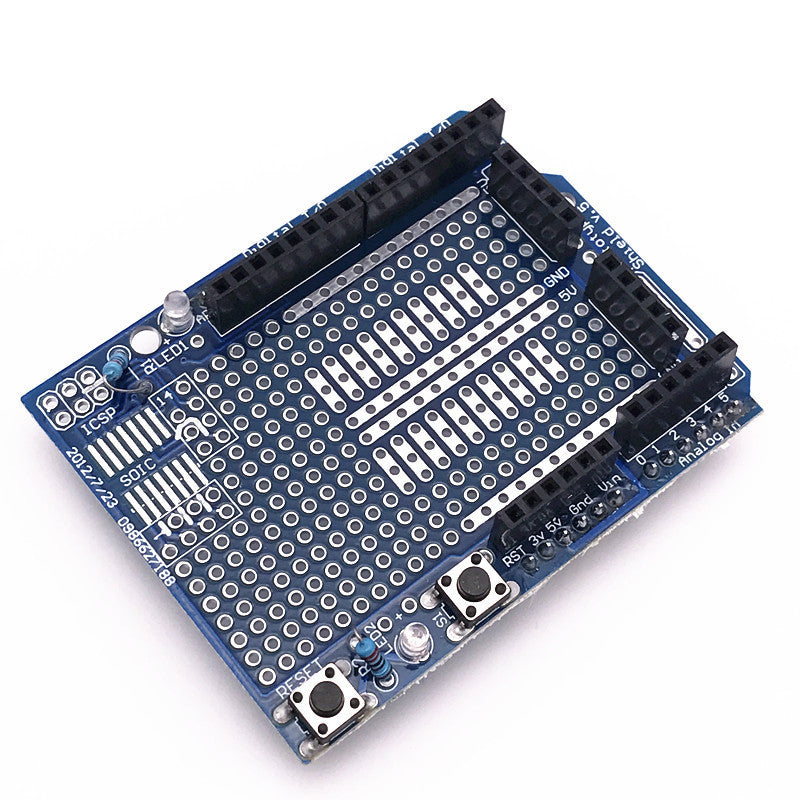

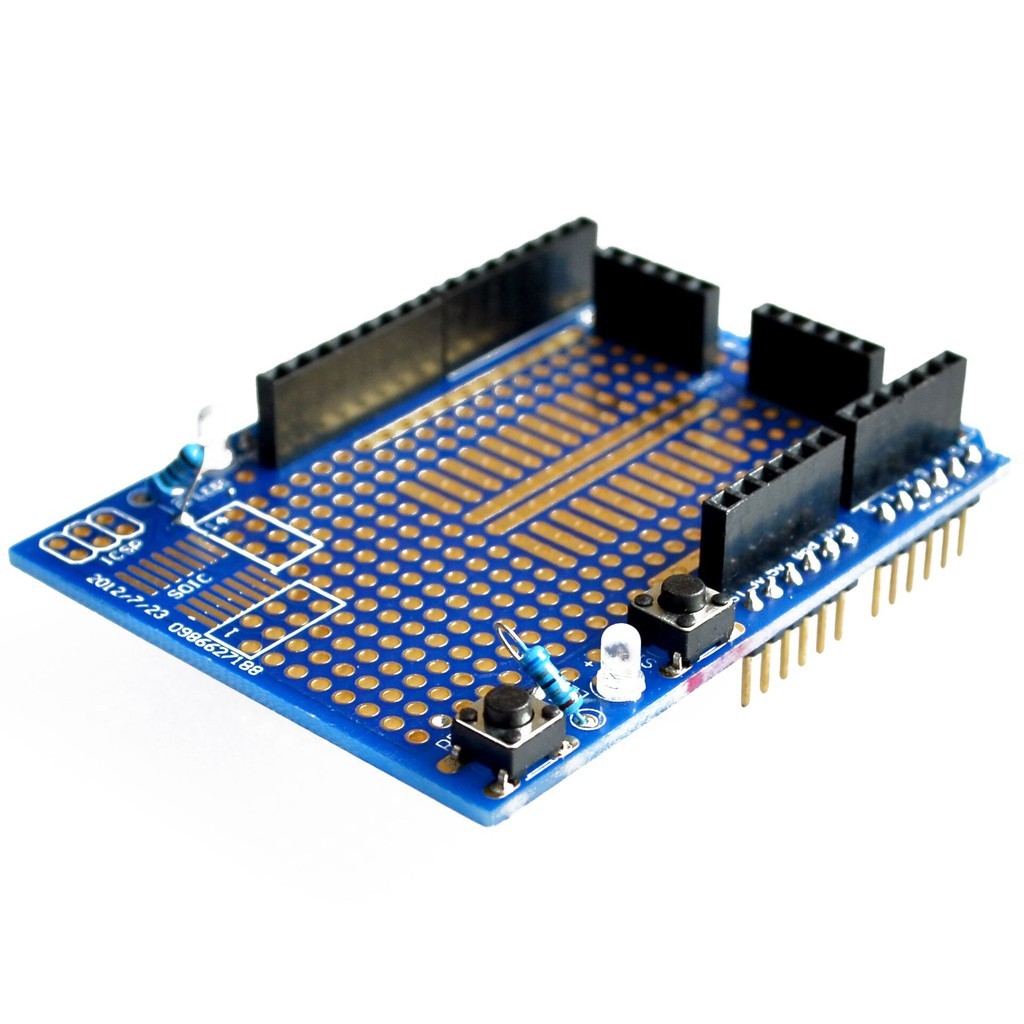

Equipped with 2 LEDs and 2 button circuits on the board.

All pins and power supplies are led out, enabling direct function expansion.

Typical Applications:

Quickly build robot control circuit prototypes.

Verify electronic design schemes, suitable for development within the Arduino ecosystem.
