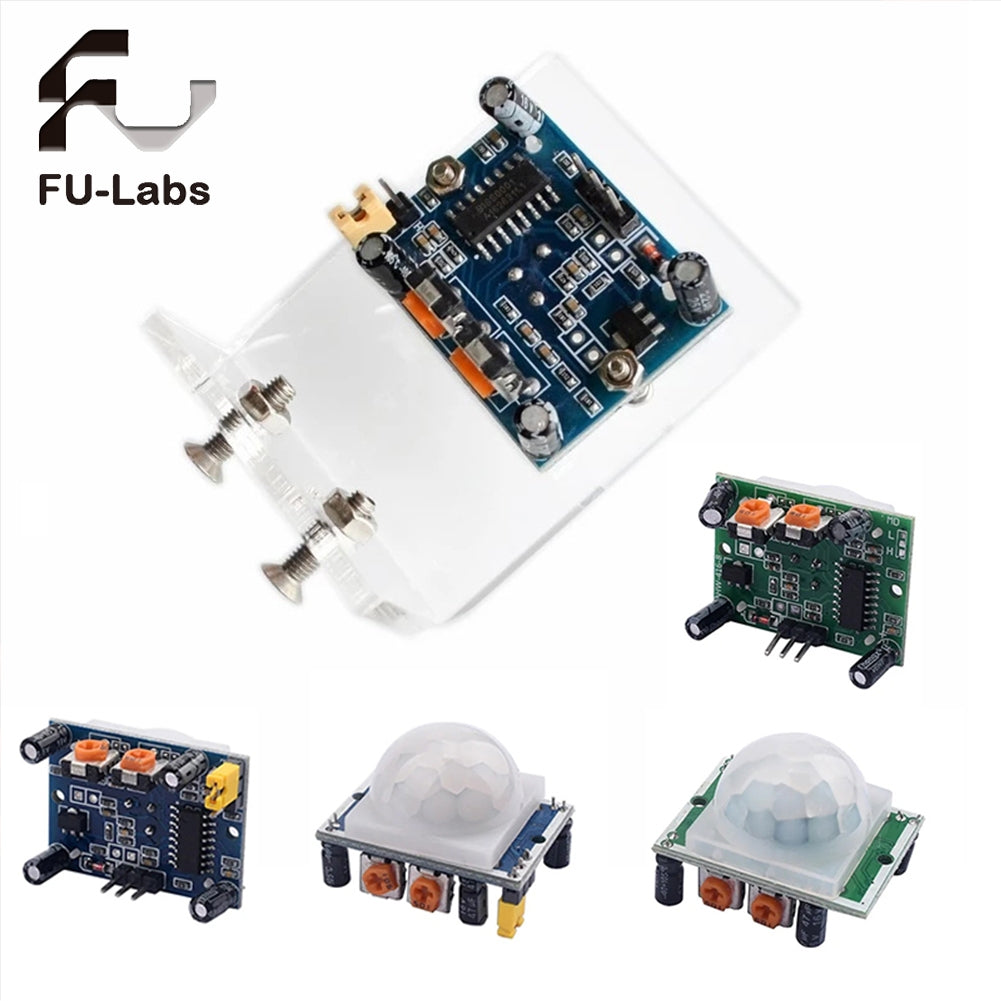

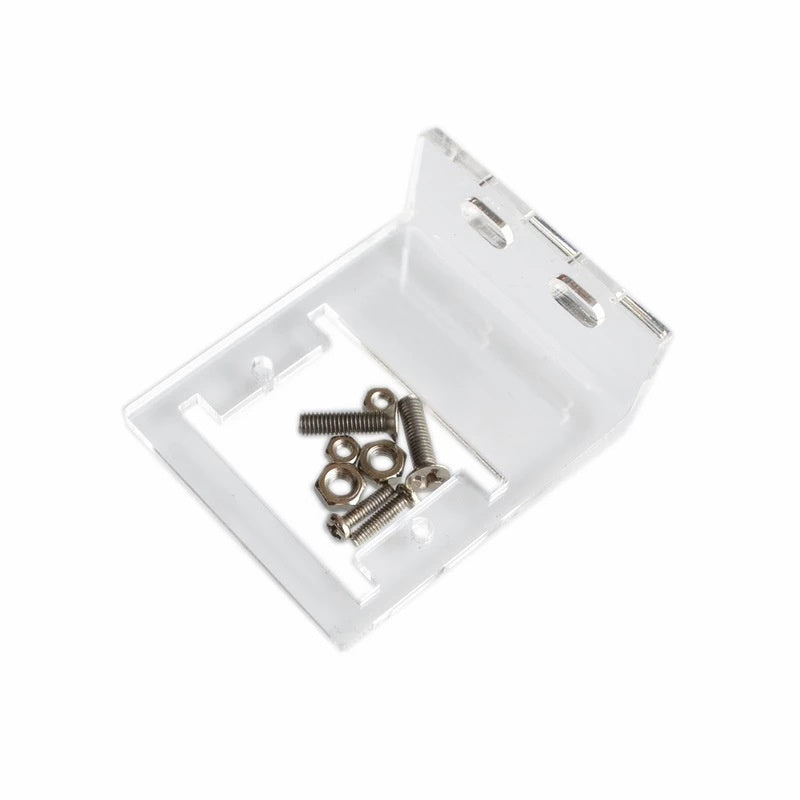

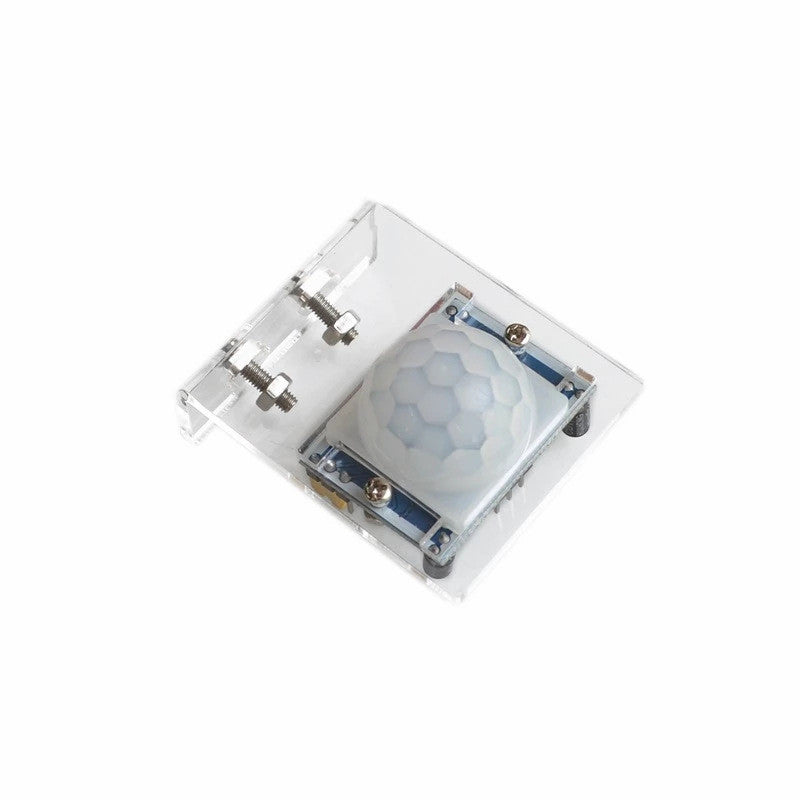

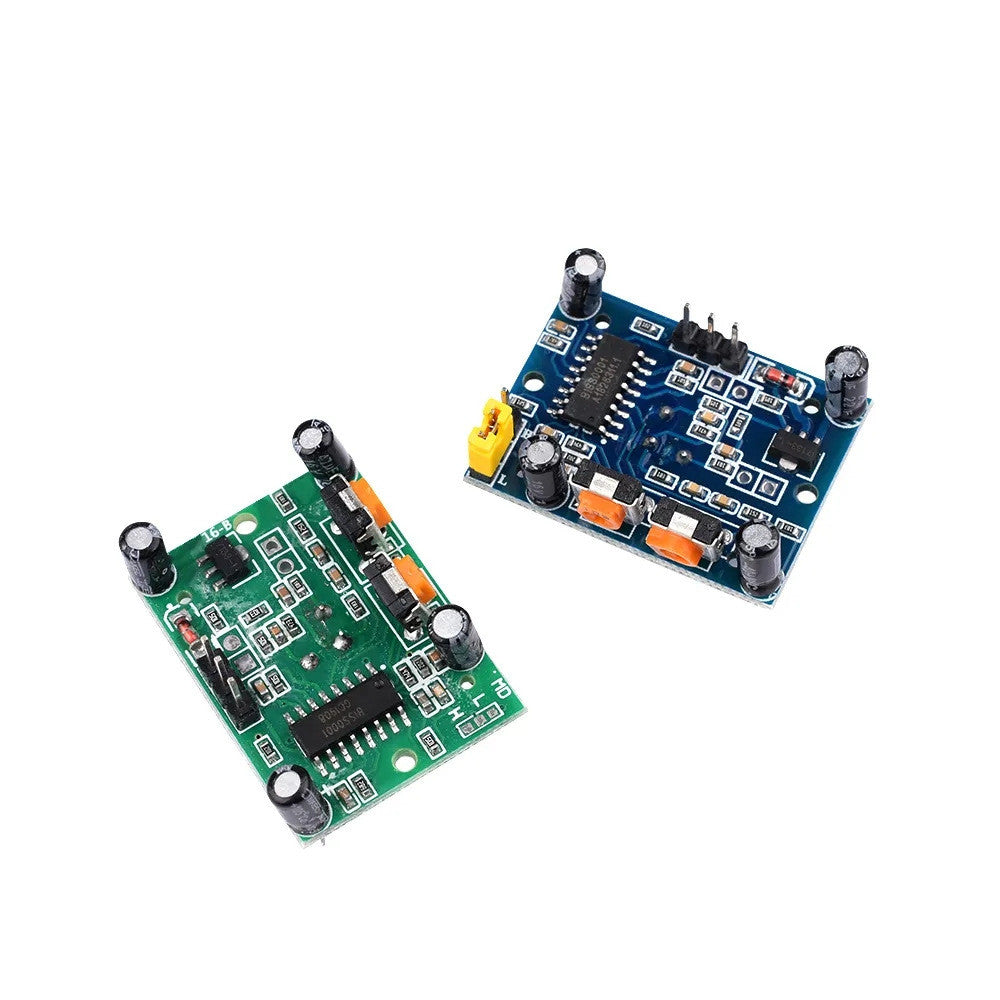

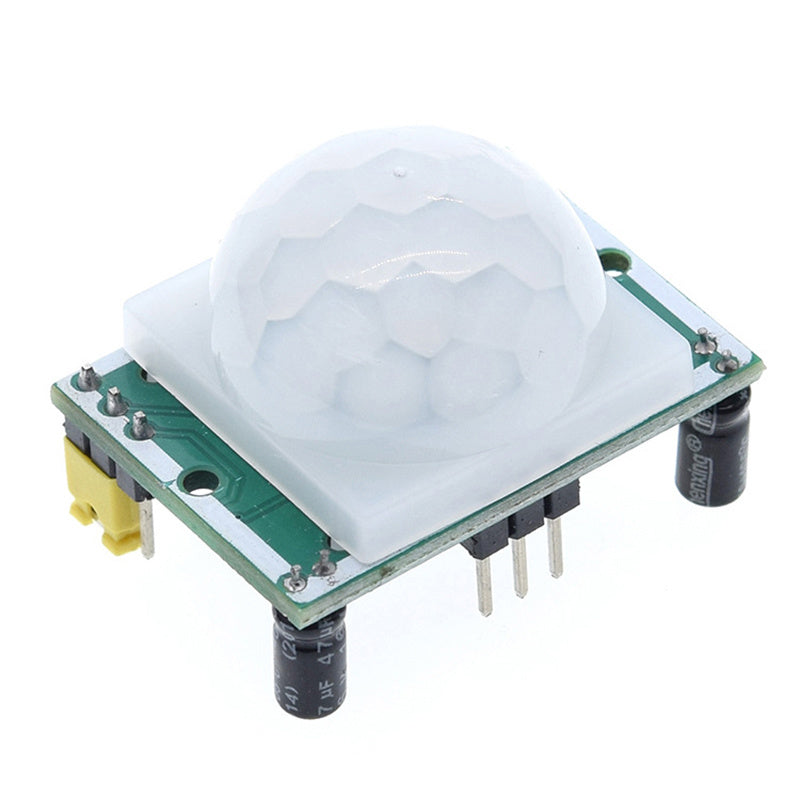

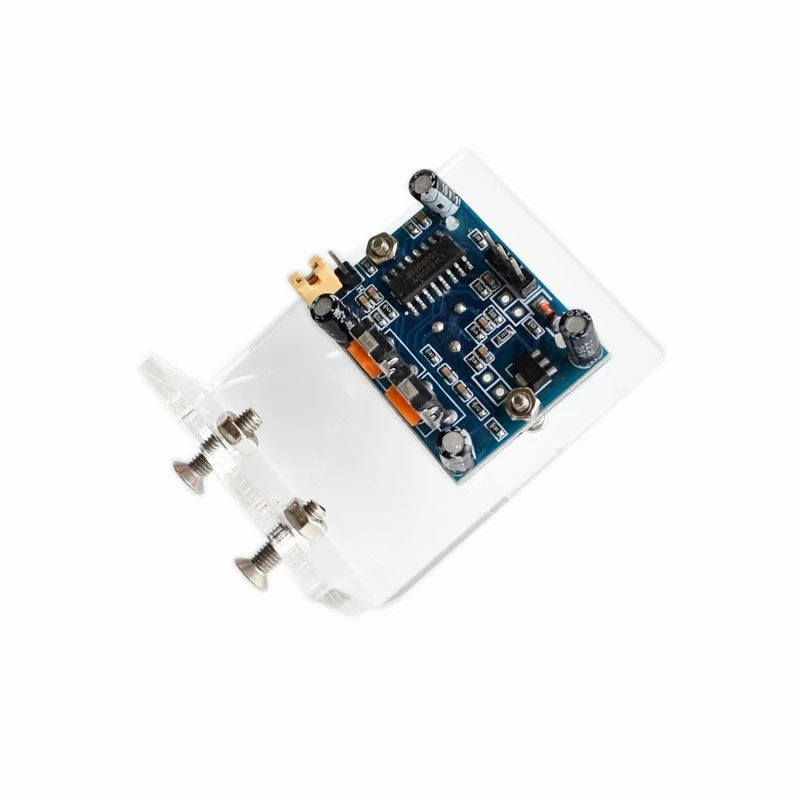

Green/blue HC-SR501 Acrylic stand Adjust IR Pyroelectric Motion Sensor Module For Arduino For Raspberry Pi Kits

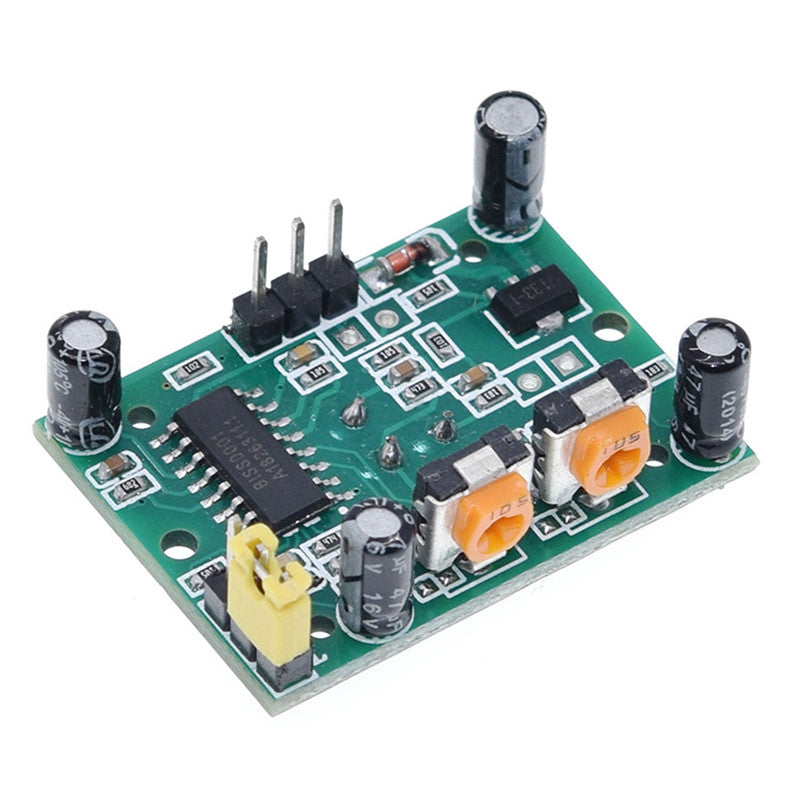

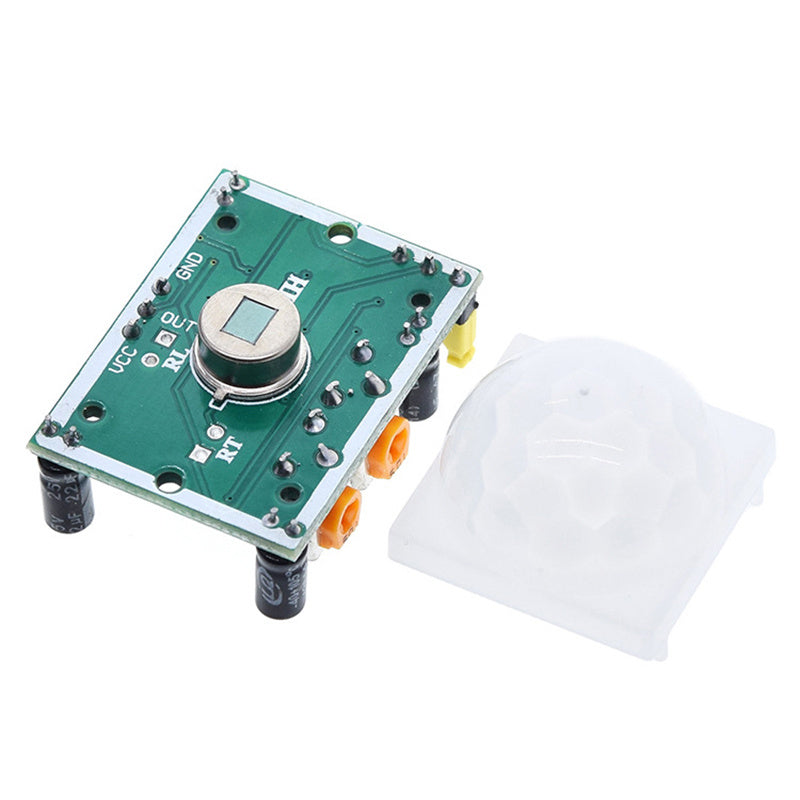

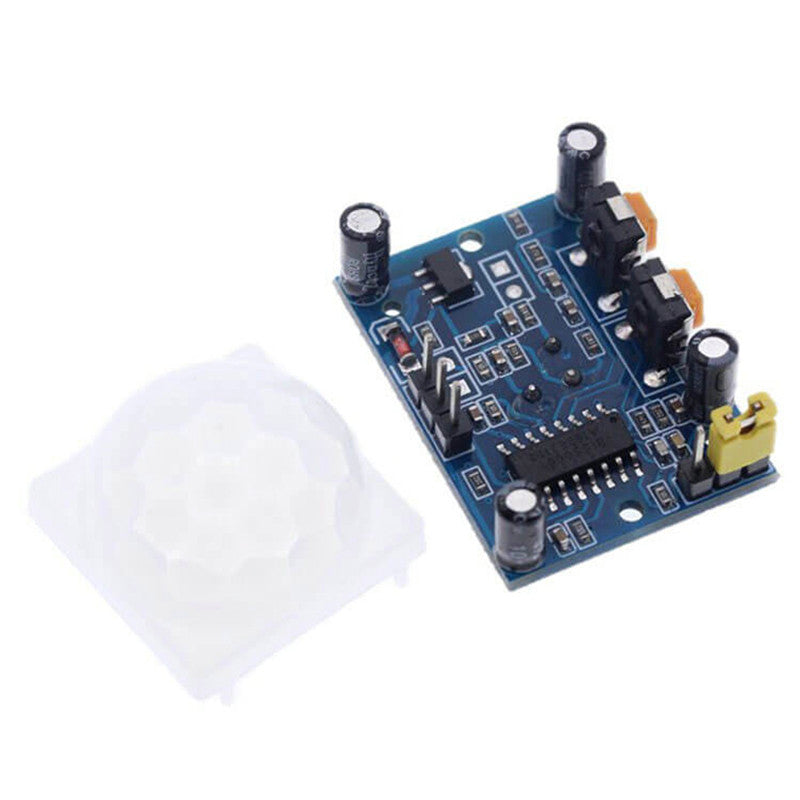

    HC-SR501 is based on infrared technology, automatic control module, using Germany imported LHI778 probe design, high sensitivity, high reliability, ultra-low-voltage operating mode, widely used in various auto-sensing electrical equipment, especially for battery-powered automatic controlled products.

Specification:

● Operating Voltage Range: 5-20VDC

● Quiescent Current: <50uA

● Level output: High 3.3 V /Low 0V

● Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)

● Delay time: 5-300S( adjustable) Range (approximately .3Sec -5Min)

● Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds

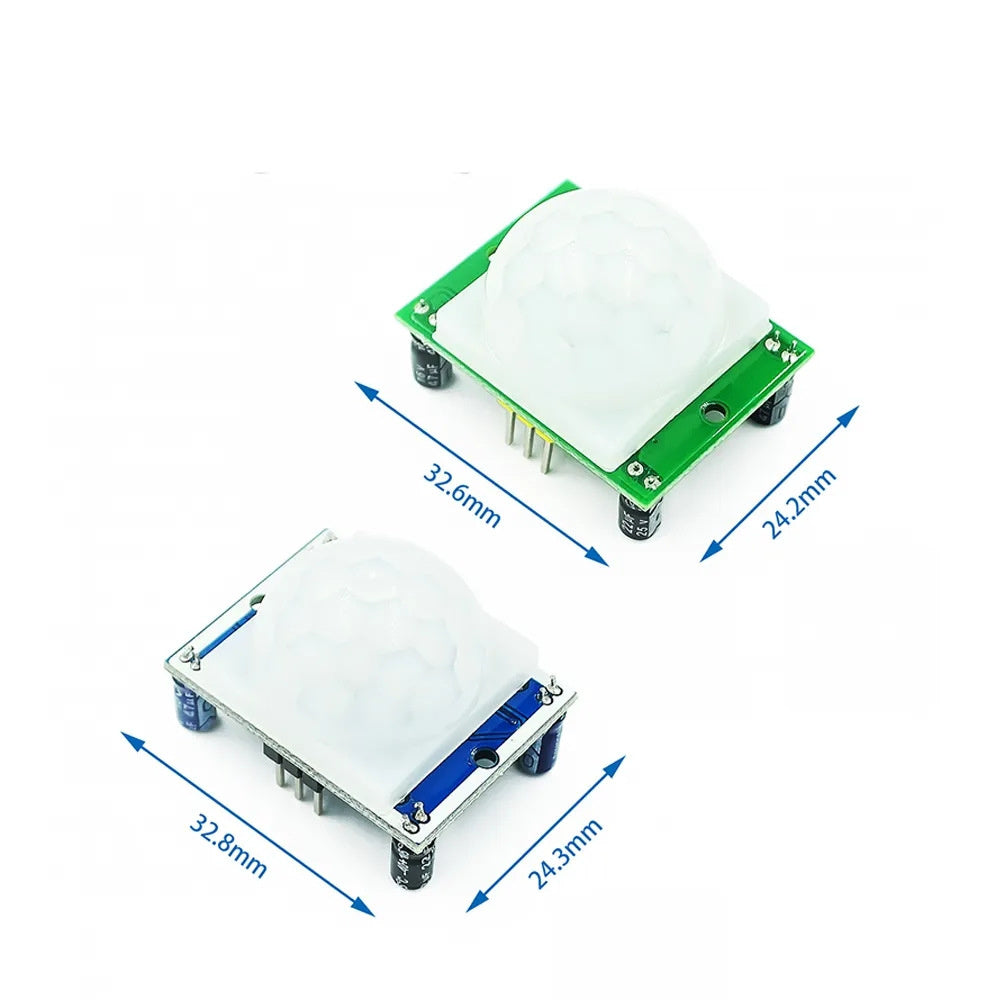

● Board Dimensions: 32mm*24mm

● Angle Sensor: <110 ° cone angle

● Operation Temp.: -15-+70 degrees

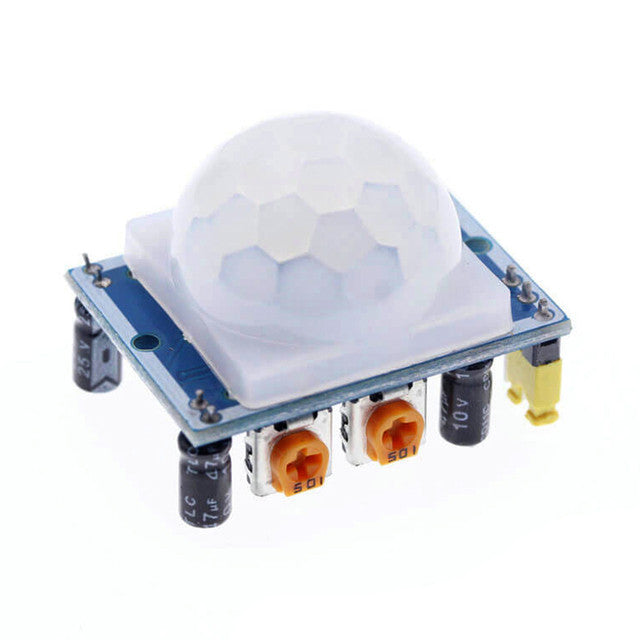

● Lens size sensor Diameter: 23mm(Default)
