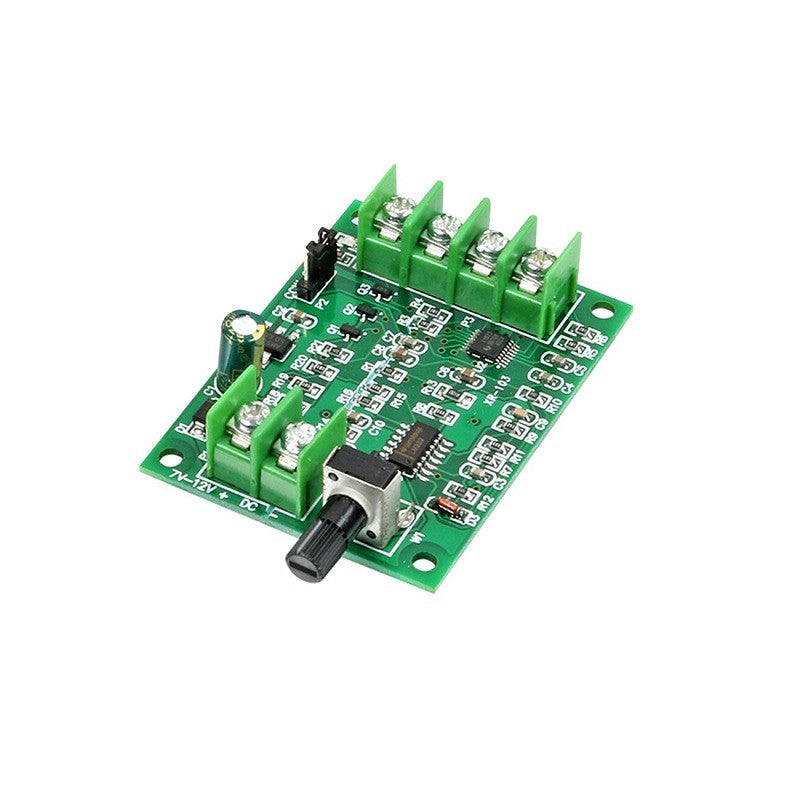

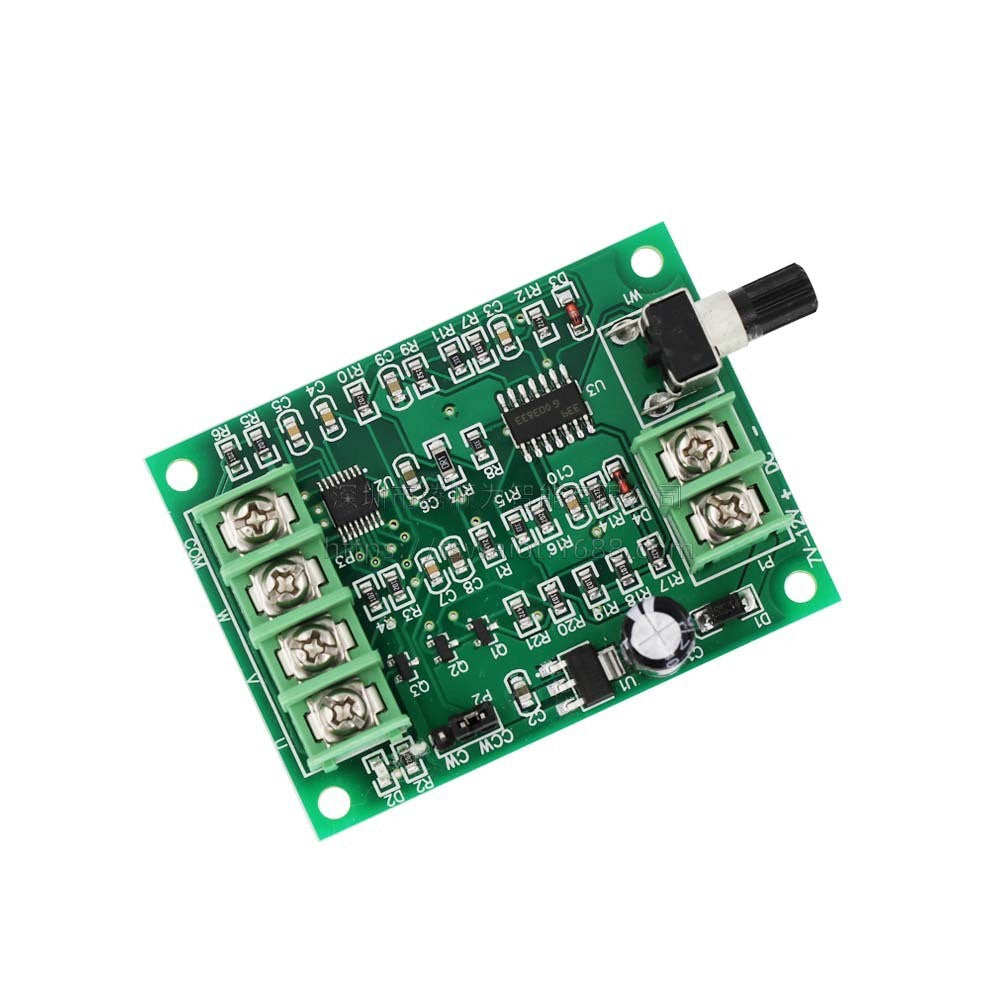

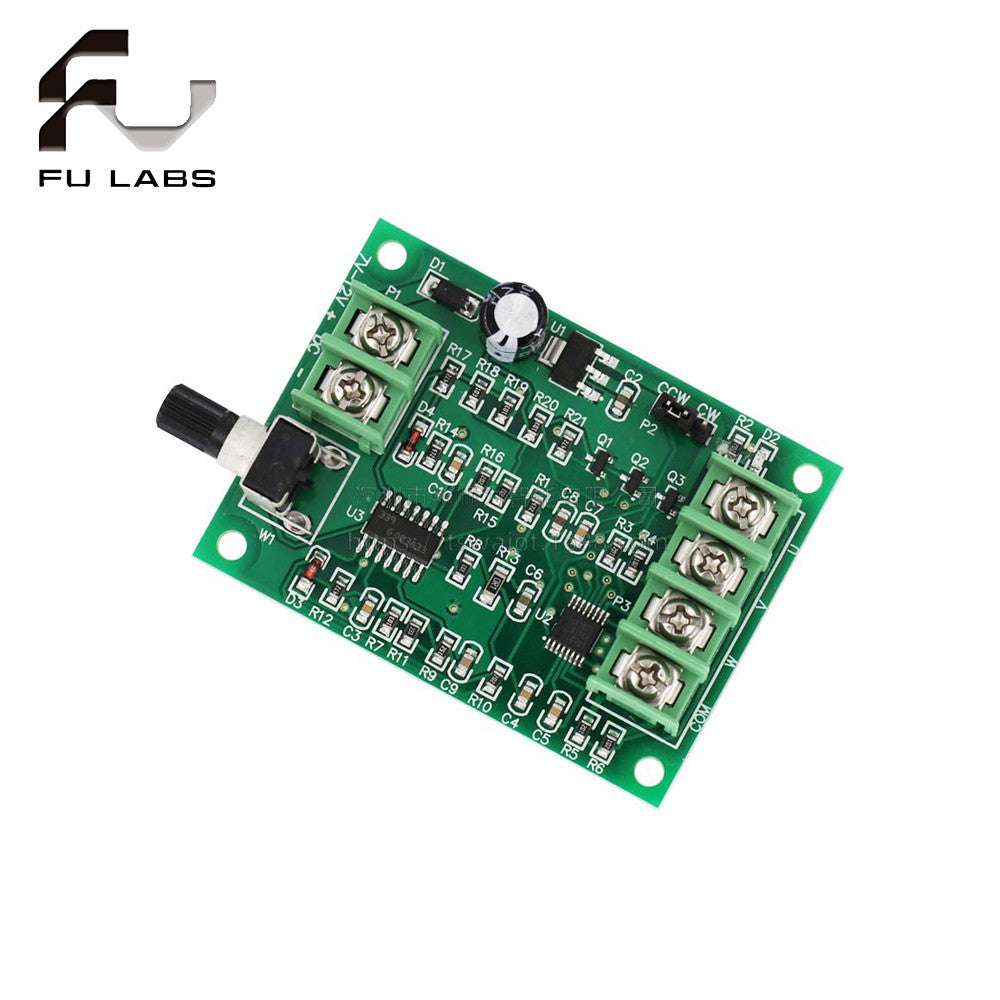

Hard Drive Motor 3/4 Wire 7V-12V Brushless DC Motor Driver Controller Board With Reverse Voltage Over Current Protection

  This driver board can drive hard disk brushless motors, optical drive brushless motors, and other miniature 3-wire or 4-wire Hall-less brushless motors.

Features:

   The driver board includes reverse voltage protection, overcurrent protection, and short-circuit protection.

Simple wiring and user-friendly operation.

Hard disk motors can operate at voltages between 7-12V. Higher voltage results in faster speed, with a maximum speed of around 10,000 RPM.

How to Identify the Common Terminal of a 4-Wire Motor:

Use a multimeter set to the resistance (*1) mode to measure the resistance between the four terminals.

The terminal with the smallest and equal resistance to the other three terminals is the COM terminal (common terminal).

Note:

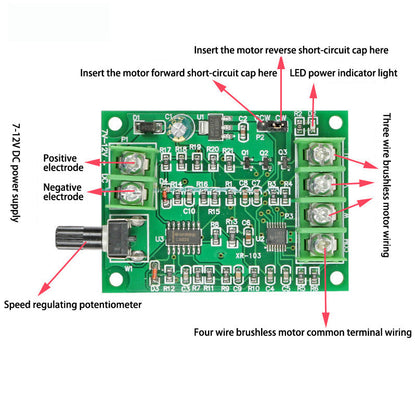

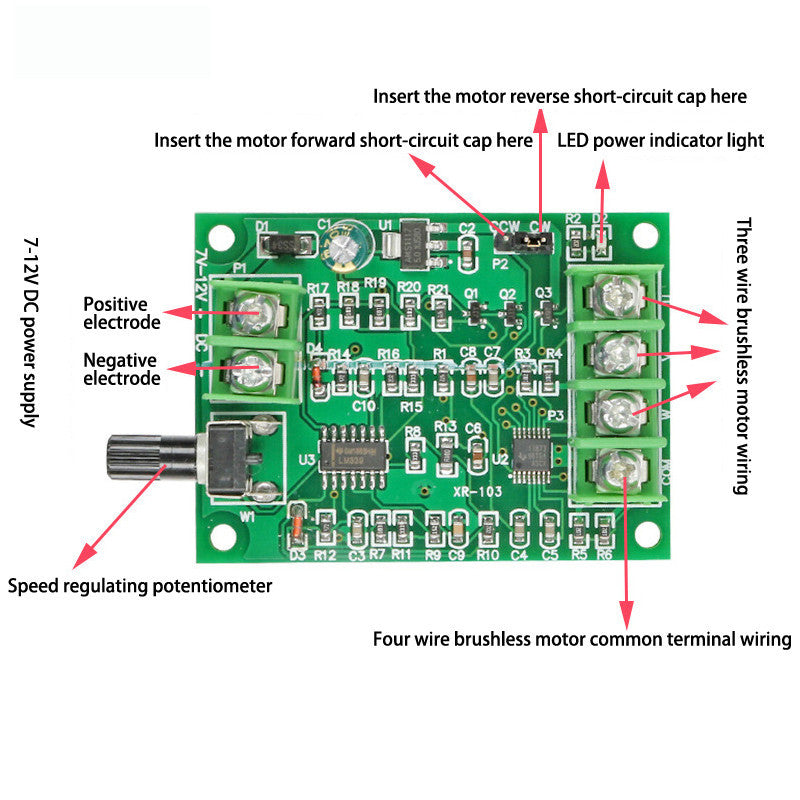

The driver board automatically identifies 3-wire or 4-wire brushless motors.

For 4-wire brushless motors, the COM wire can be left unconnected.

Specifications:

● Material: Other

● Packaging: 1PC

● Size: As picture

● Drive voltage: DC 7-12V

● Working current:<1.2A

Description:

It has strong compatibility and is suitable for all kinds of DC brushless motors to meet your different needs.

The product is equipped with multiple safety functions such as overheag and overload protection to ensure that the motor drive board is automatically disconnected under abnormal conditions and avoid possible equipment failure or fire risk.

Note:

Due to manual measurement, please allow an error of 1-3mm. Please ensure that you do not mind before bidding.

Due to the differences between different monitors, the images may not reflect the actual color of the item. Please refer to the actual image received. Thank you very much.
