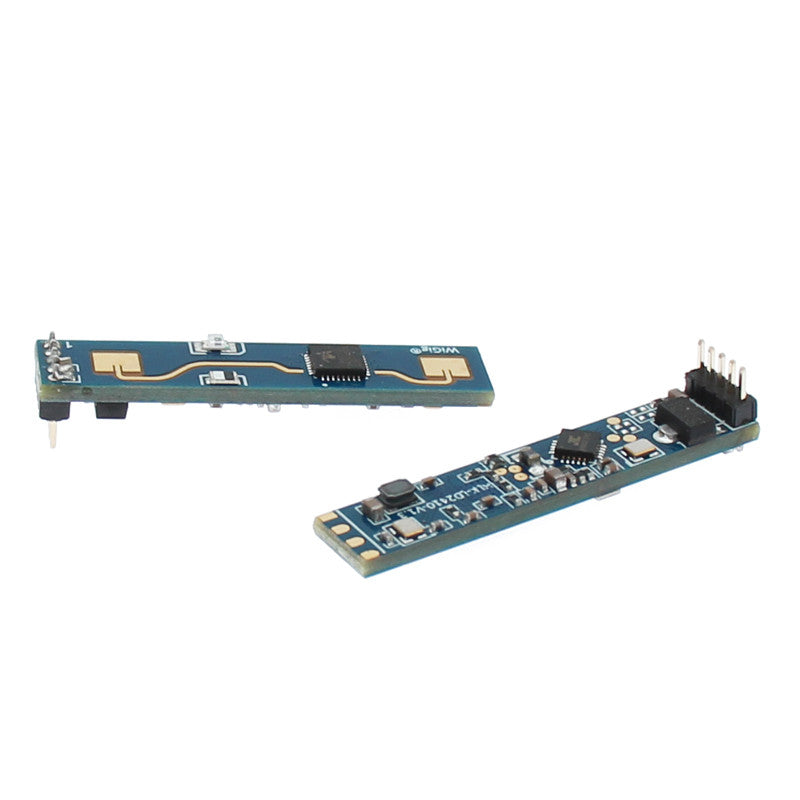

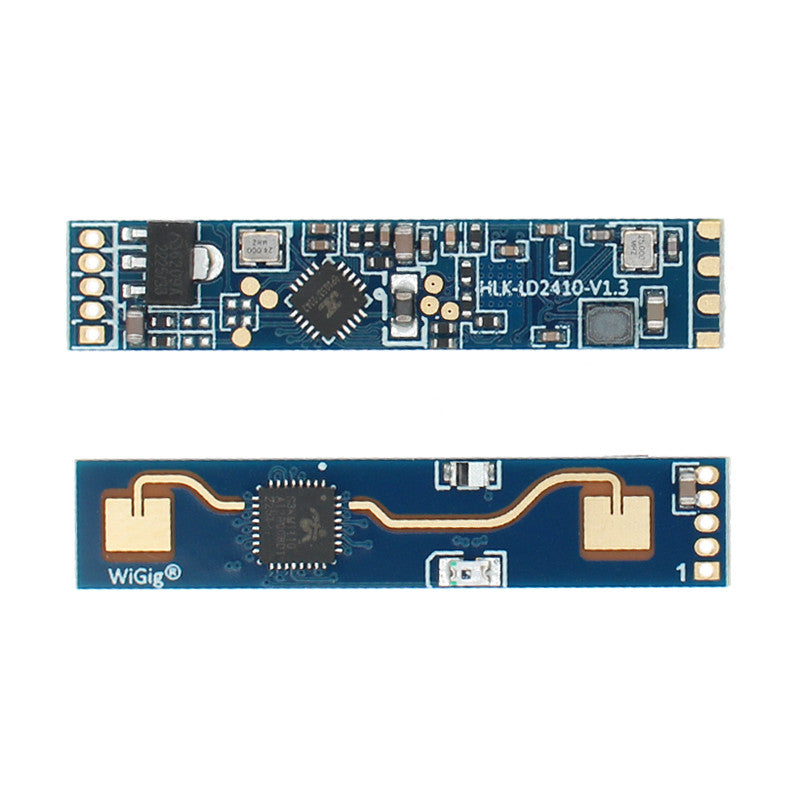

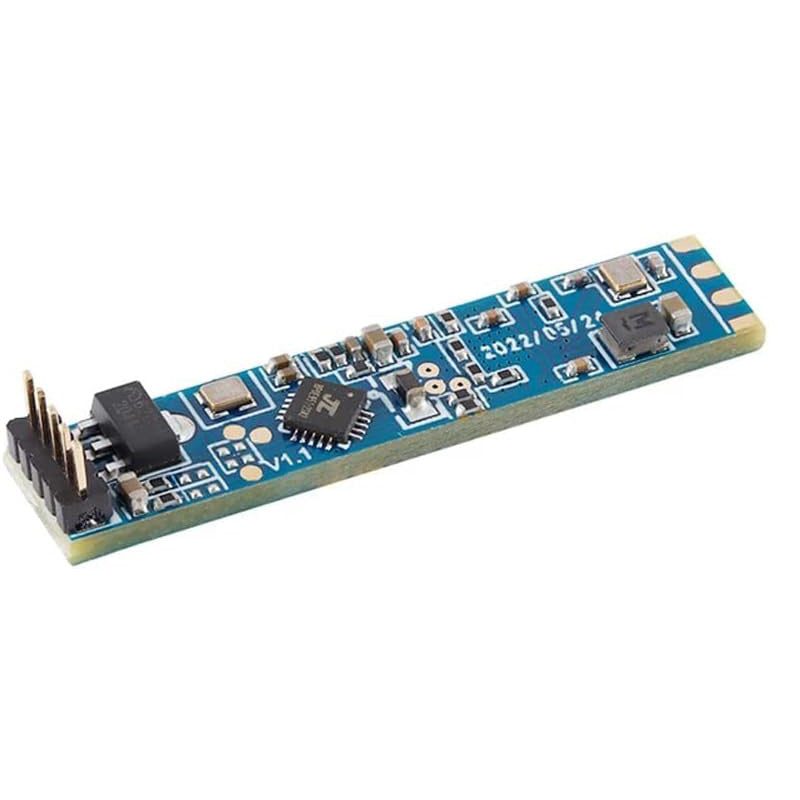

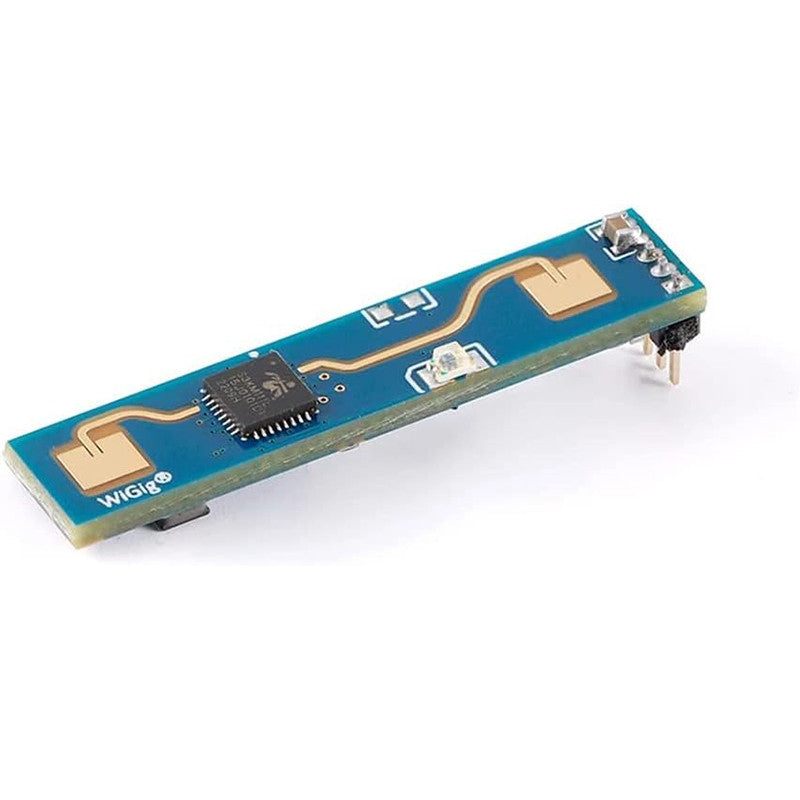

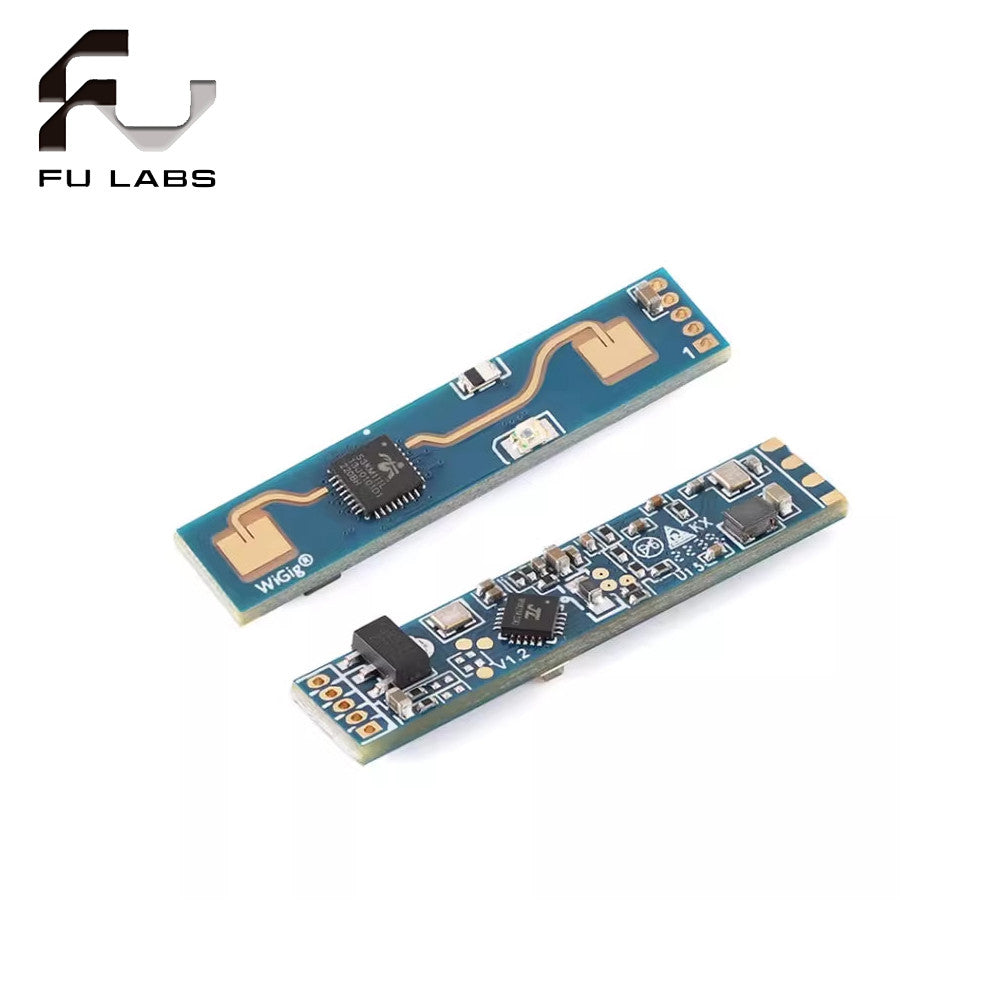

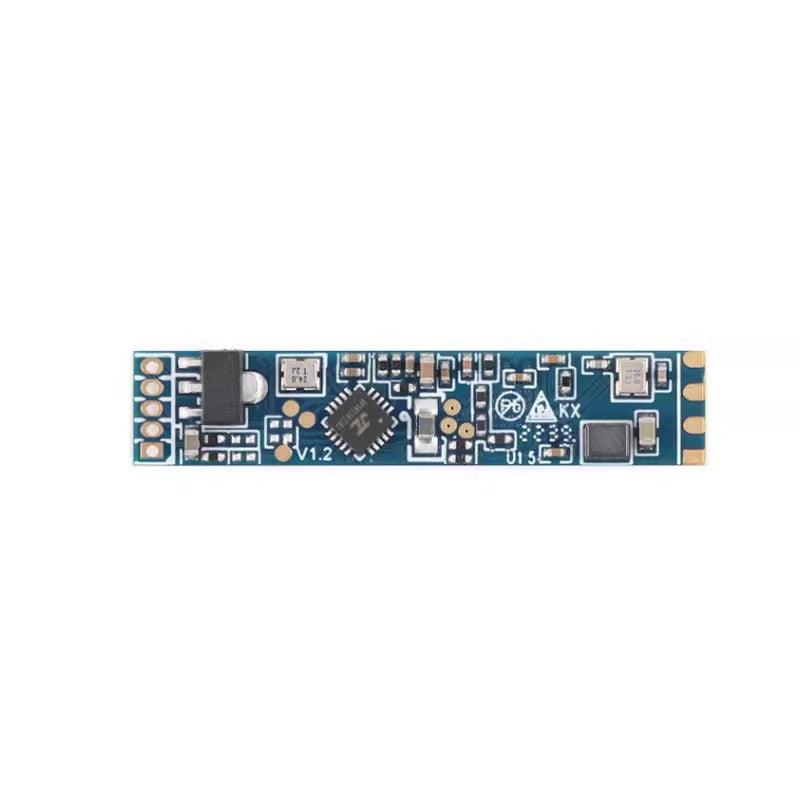

HLK-LD2410 LD2410B 5V Mini FMCW 24G Smart Human Presence Status Sensor Radar Module Consumer Electronic

Product introduction

  HLK-LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.

  This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.

  Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

  2. Product Features

  Plug and play, easy assembly

  The longest sensing distance is up to 5 meters

  Large detection angle, coverage up to ±60 degrees

  Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval

  Multi-level intelligent parameter adjustment to meet the needs of scene changes

  Visual debugging and configuration tools

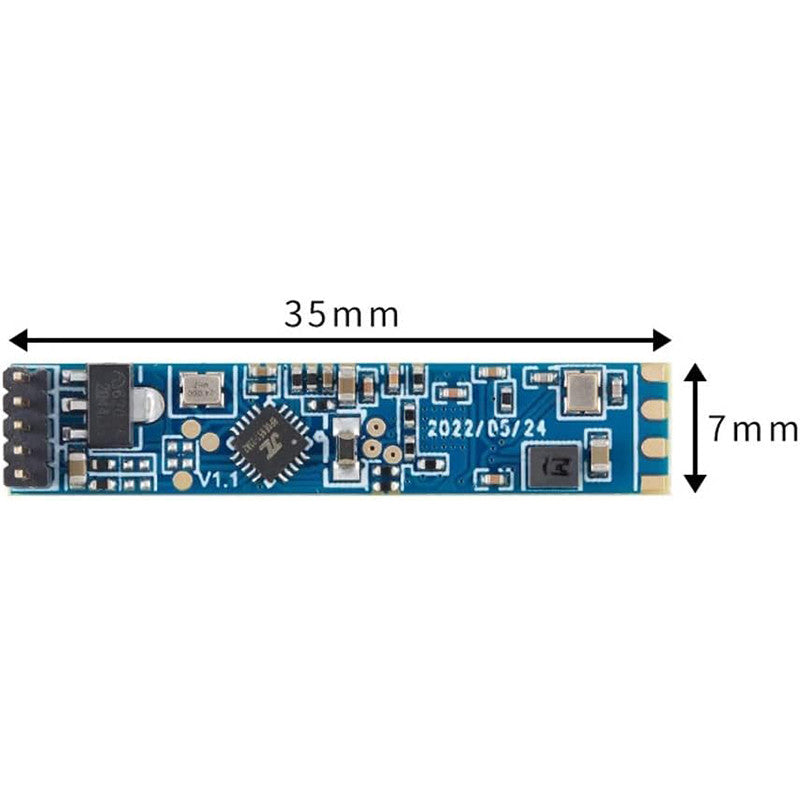

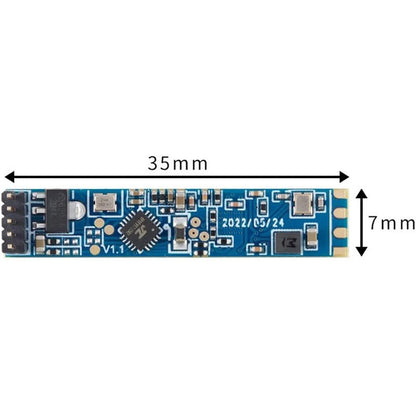

  Small and simplified, the minimum size is only 7mmx35mm

  Supports various installation methods such as ceiling hanging and wall hanging

  24GHz ISM band, compliant with FCC and CE spectrum regulations

  5～12V wide voltage power supply

  The ultimate cost-effective choice

  3. Benefits

  LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology.

  Compared with other solutions, it has obvious advantages in human body sensing applications:

  1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;

  2. It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;

  3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;

  4. It can flexibly configure the farthest sensing
