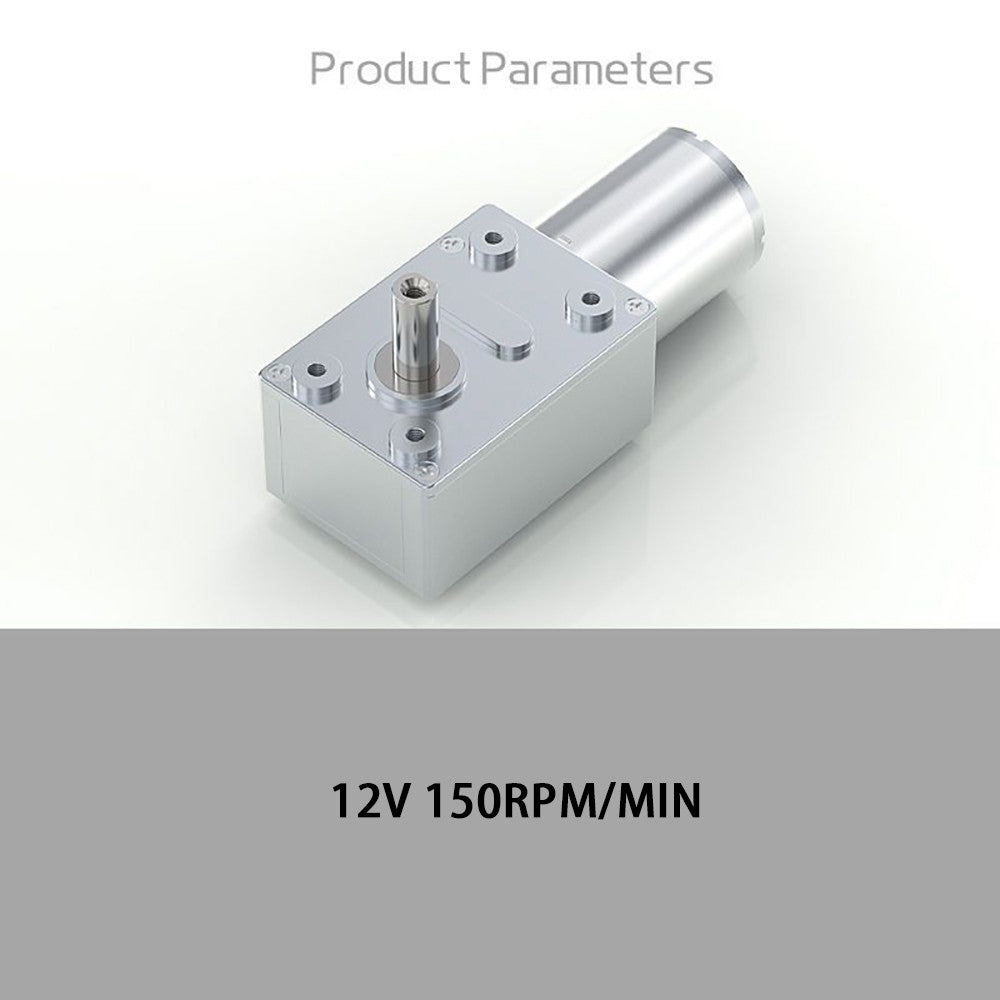

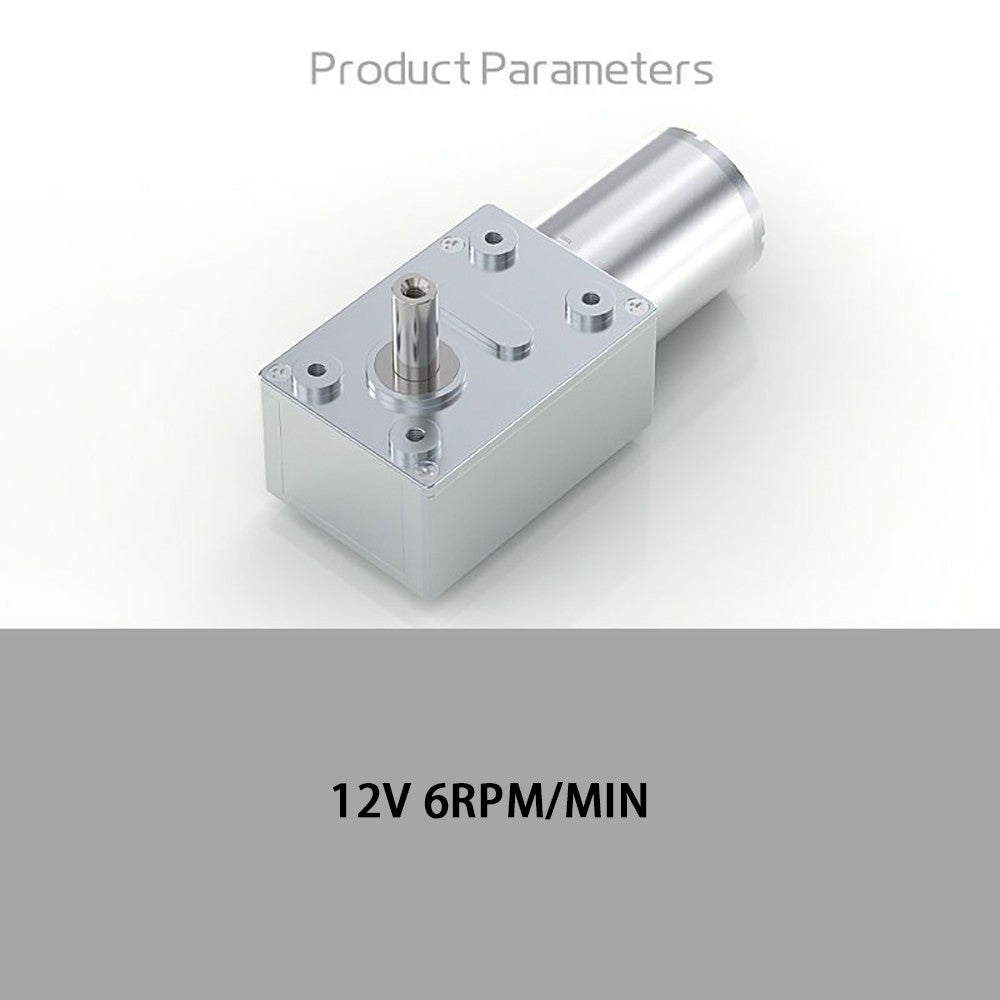

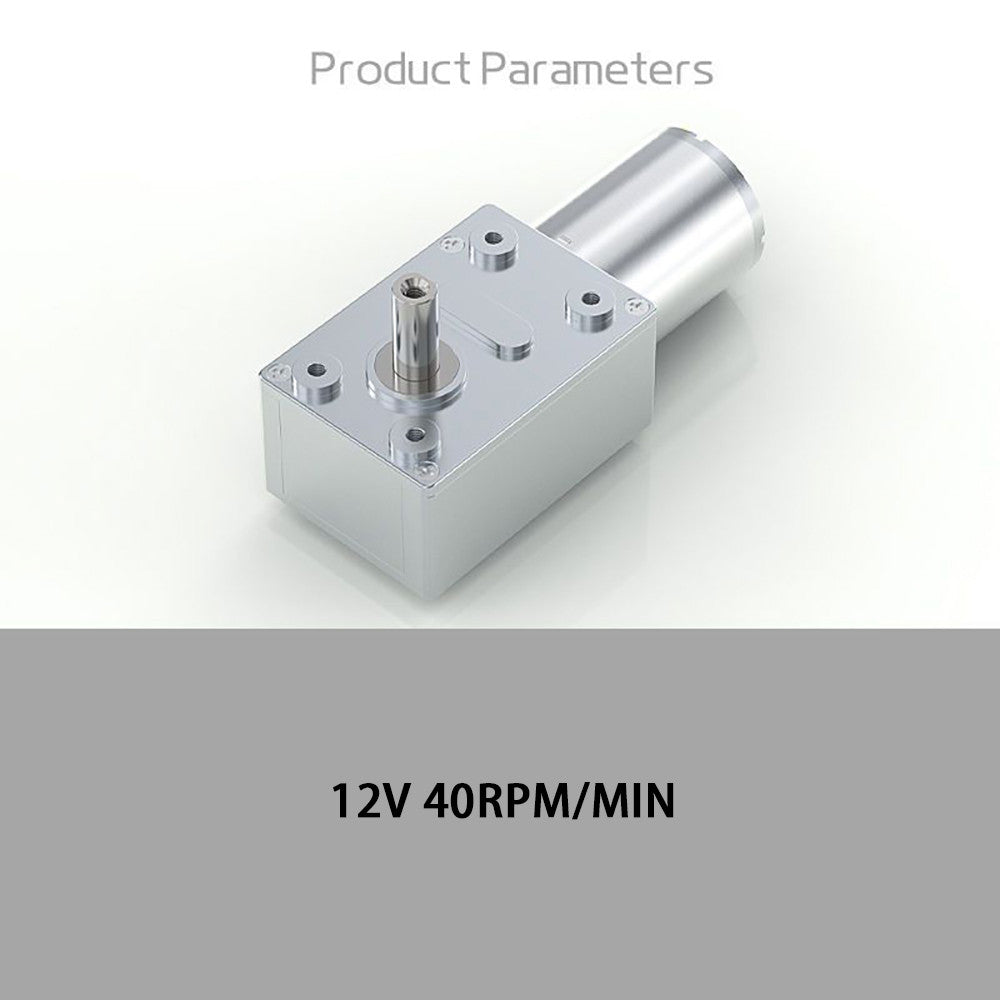

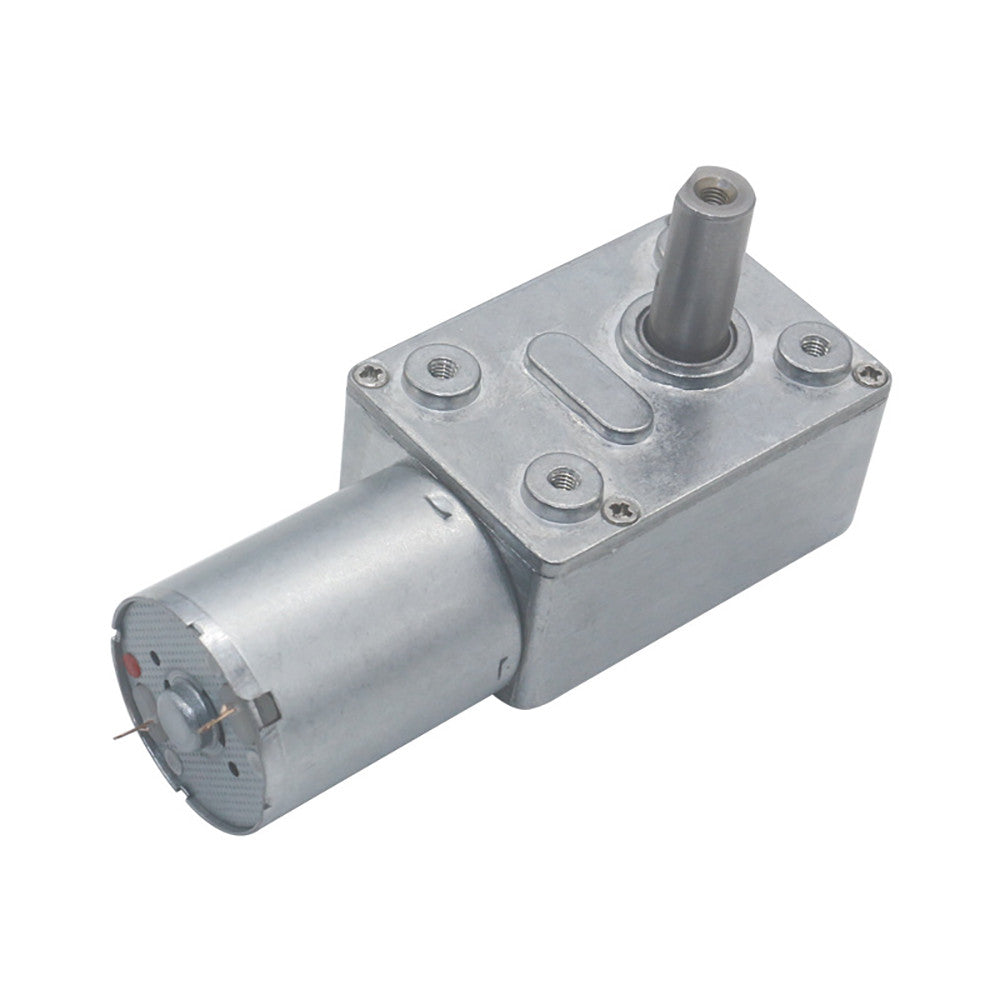

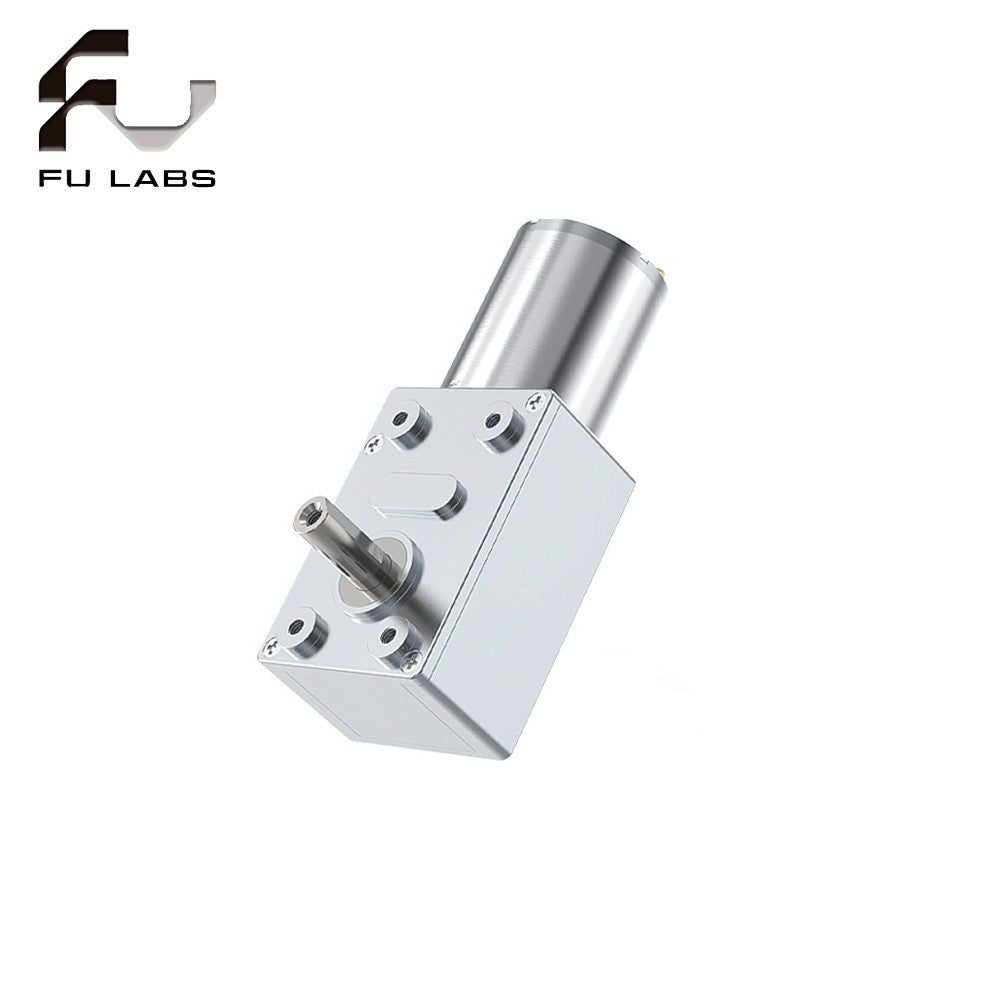

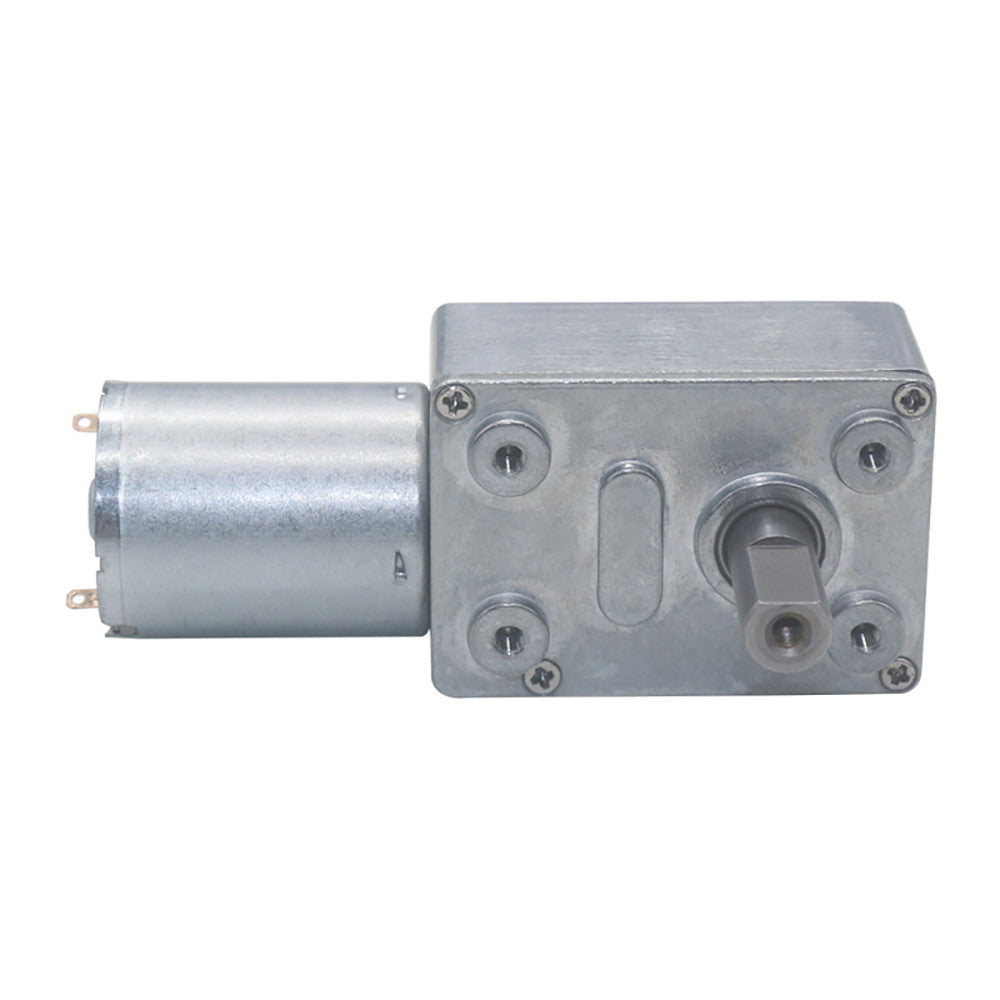

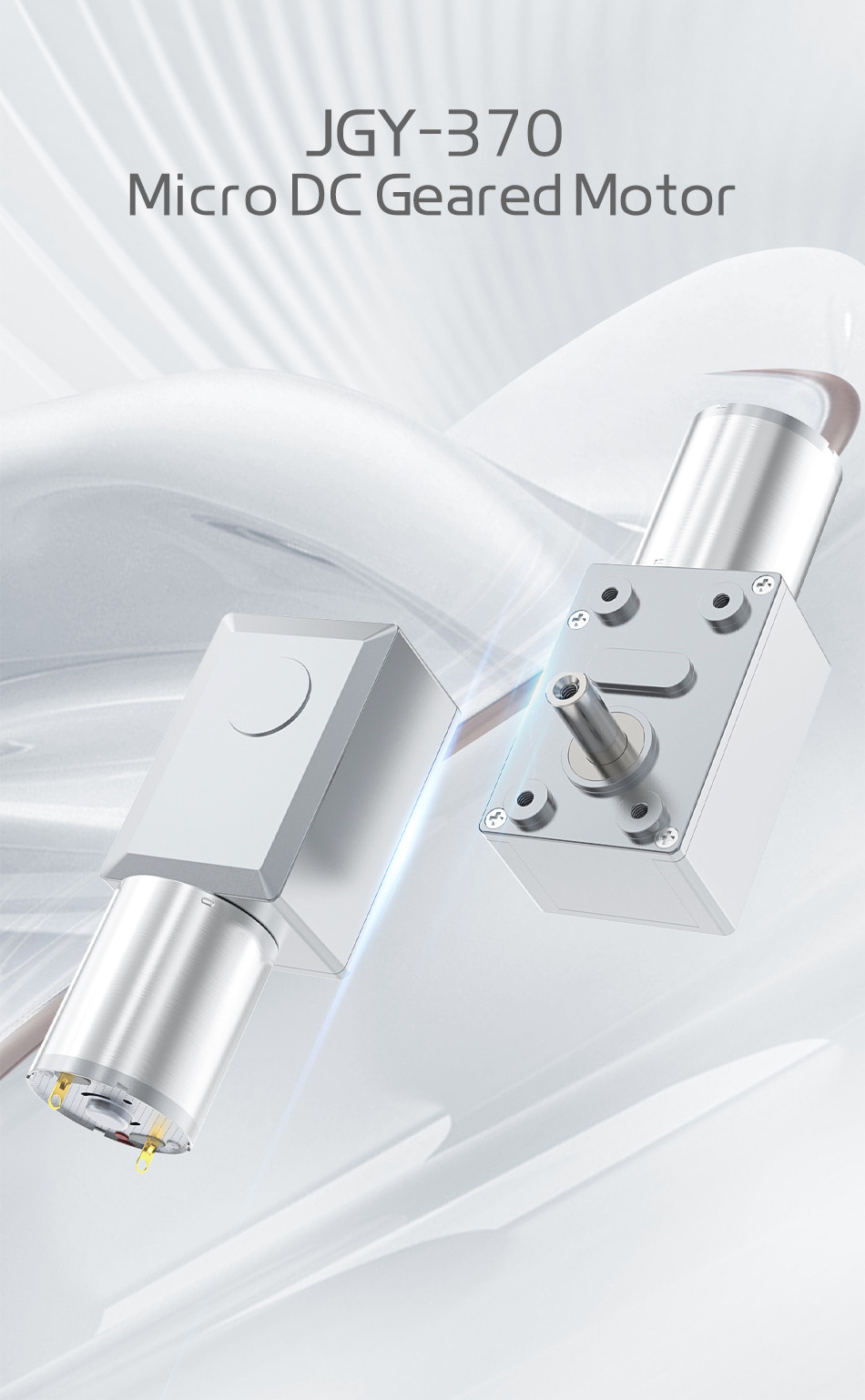

JGY370 DC Gear Motor 6RPM~150RPM 12V Single High Torque Speed Reducer Metal Worm Geared Box Motors Reversible Low Speed Worm

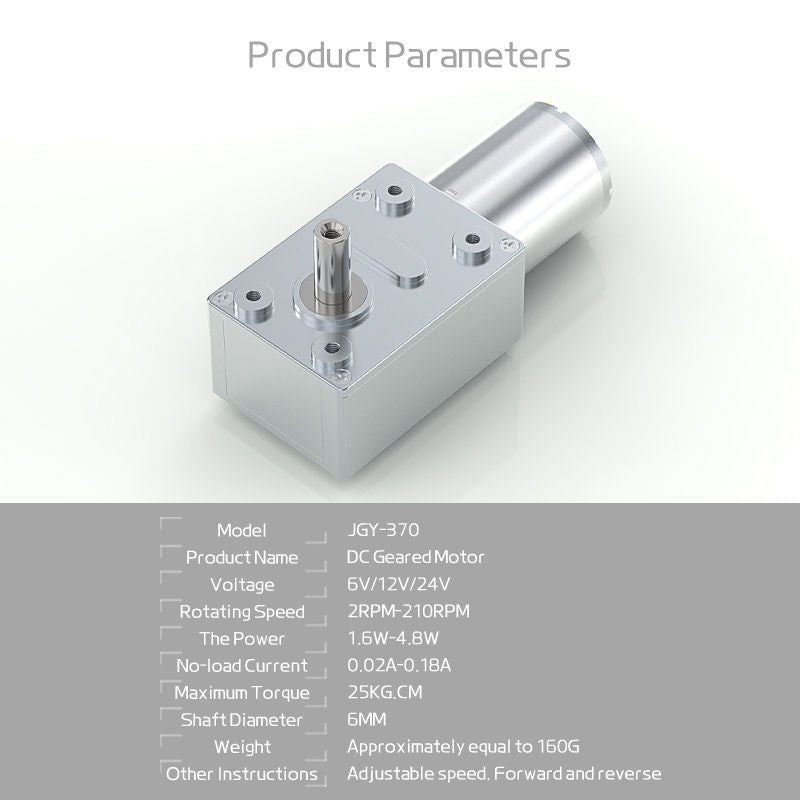

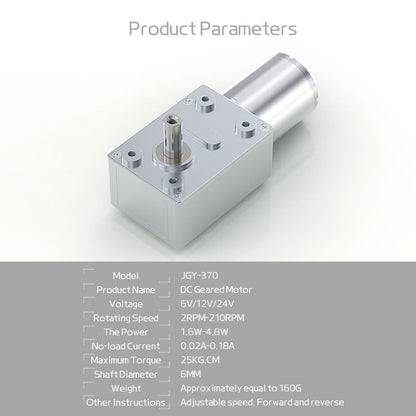

  ● Model:JGY-370

  ● ProductName:DC Geared Motor(Single)

  ● Voltage:12V

  ● Rotating Speed:6RPM-150RPM

  ● The Power:1.6W-4.8W

  ● No-load Current:0.02A-0.1A

  ● Maximum Torque:25KG

  ● Shaft Diameter:6MM

  ● Weight:Approximately equal to 160G

  Other Instructions:Adjustable speed, Forward and reverse

  Note!

  1. Prohibit that the motor being in locked rotor.

  2. Please choose the correct the voltage 6V 12V 24V.

  3. When the oad torque equal to the rated torque, the load rotation speed equal to the rated ratation speed;when the real load greater than therated torque ,the real ratation speed wi less than the rated rotation speed.

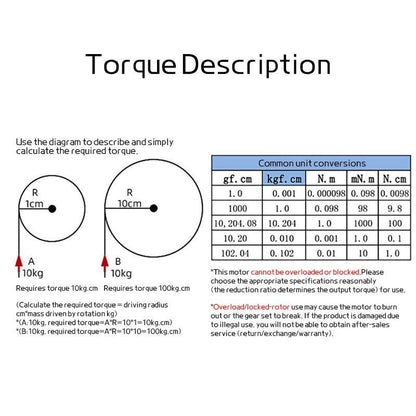

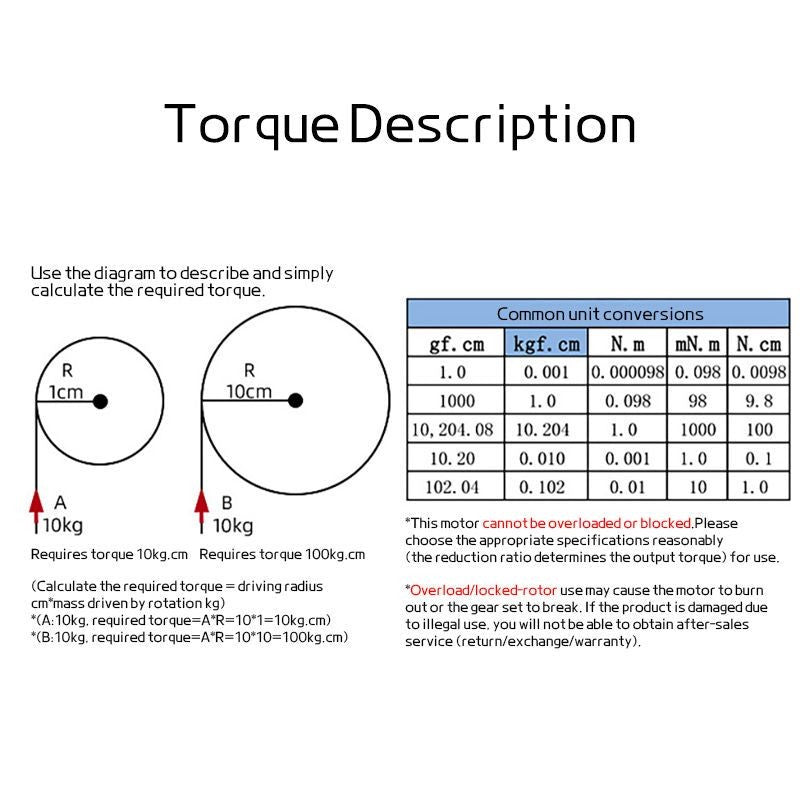

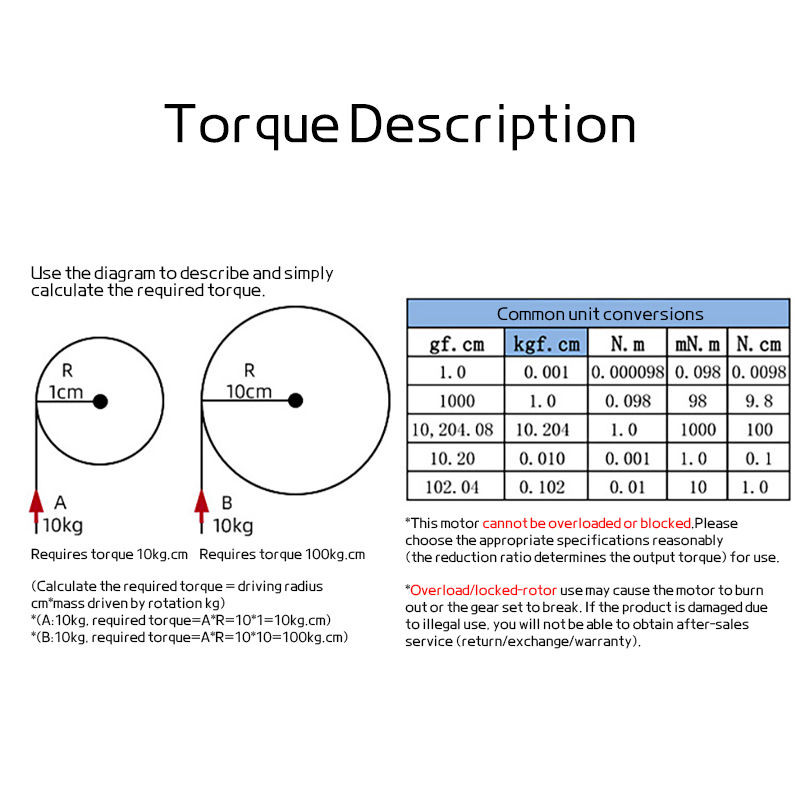

  4. Please choose the correct model refer to the rated torque parameter.

  5. Close to or excess the ultimate load torqueit cound have caused damage to the motor interior.

  6. Smaller the rotation speed,greater the torque,and vice versa.

  7. In the normal working,the l motor is about 50db.        When the rotation speed or load are change,the noise will have micro change.

Our professional equipment can make the quality and service life of the motor very good, and we will never cut the cost to save the cost.  The service life of our motor can be long. than the life of a conventional motor.
