Modified Board Circuit Board Control Motherboard Fan Remote Control Floor Electric Fan Computer Board with Remote Control Type Without Battery

   Feature:

  1: Wide range of applications

  2: Small size

  3: Durable

  4: Simple to use

  This board is universal. Floor fans, shaking heads, desk fans, etc. can be converted into remote control fans even if they used to be fans without remote control. The modification is simple. The 3 wires can be controlled by connecting the high, middle and low grades respectively, and the modification is simple!

Input voltage: 110V-240V 50HZ-60HZ

  Output voltage: 110V-240V 50HZ-60HZ

  Output power: four-way output, single-way 100W, total power 400W

  Receiving method: infrared

  Receiving distance: 6-10 meters

  Instructions:

  1. On/Fan speed: In standby state, press the "On/Fan Speed" button, the fan will work in strong wind, and then press this button again, the fan can work in a cycle of "large-medium-small"

  2. Shaking his head: In the working state, press the "Shake Shaking" key to enter the shaking head state, and press this key again to turn off the shaking head.

  This function cannot be used without a shaking motor!

  3. Timing: in working state, press the "timing" key, follow the sequence of "0.5-1-1.5-2-2.5-3-3.5-4- 4.5-5-5.5-6-6.5-7-7.5-0" Cycle timing.

  4. Wind type: In the working state, press the "wind type" button to switch the working mode of "natural wind -- sleep wind -- normal wind"

  5. Shutdown: In working state, press this key to turn off all working states of the fan.

  list

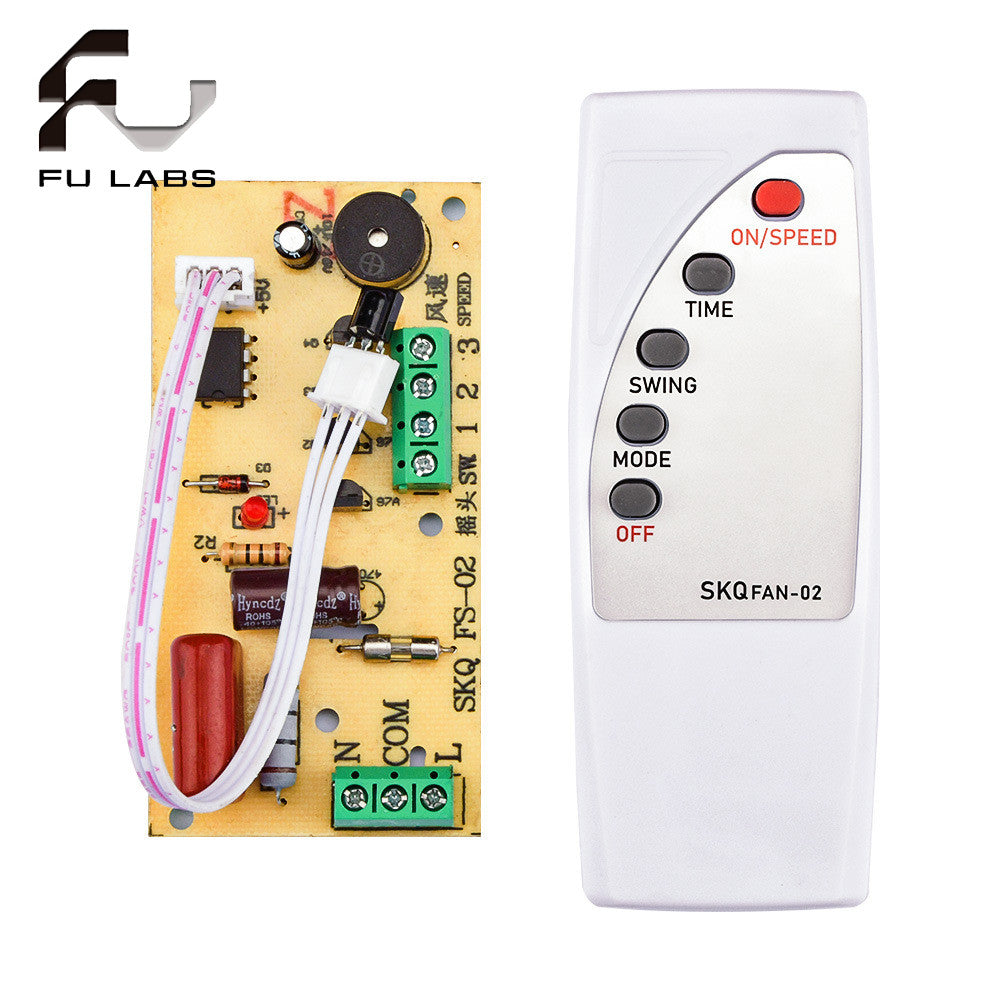

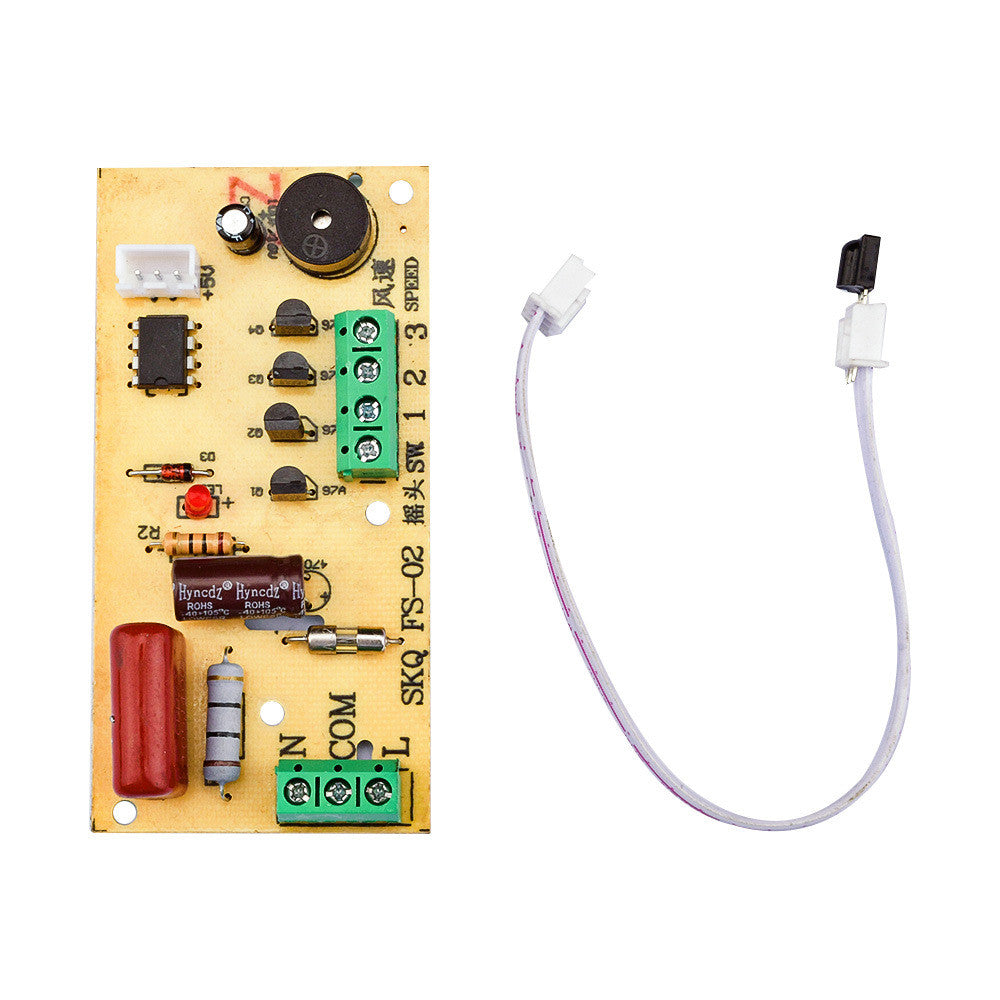

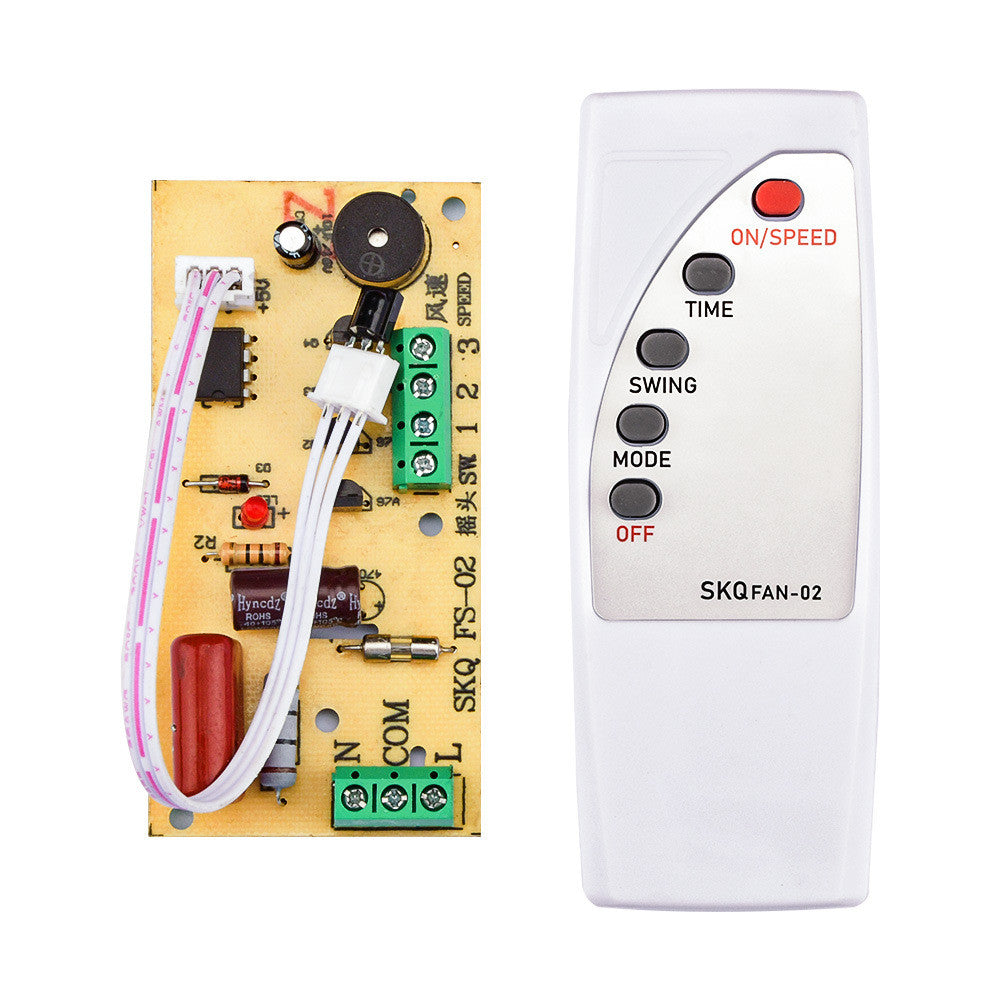

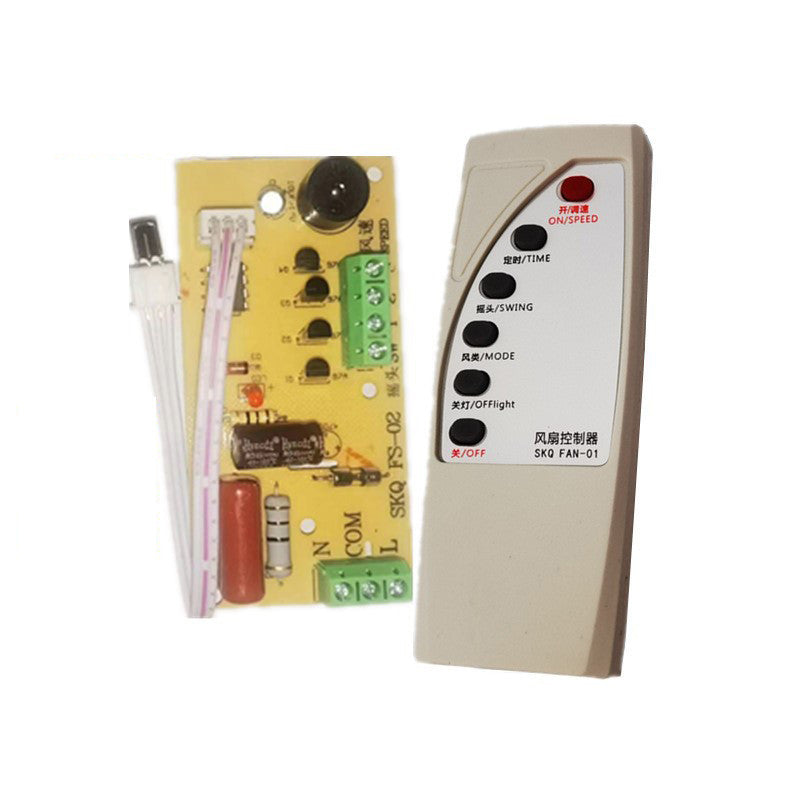

  1*control board

  1*remote control
