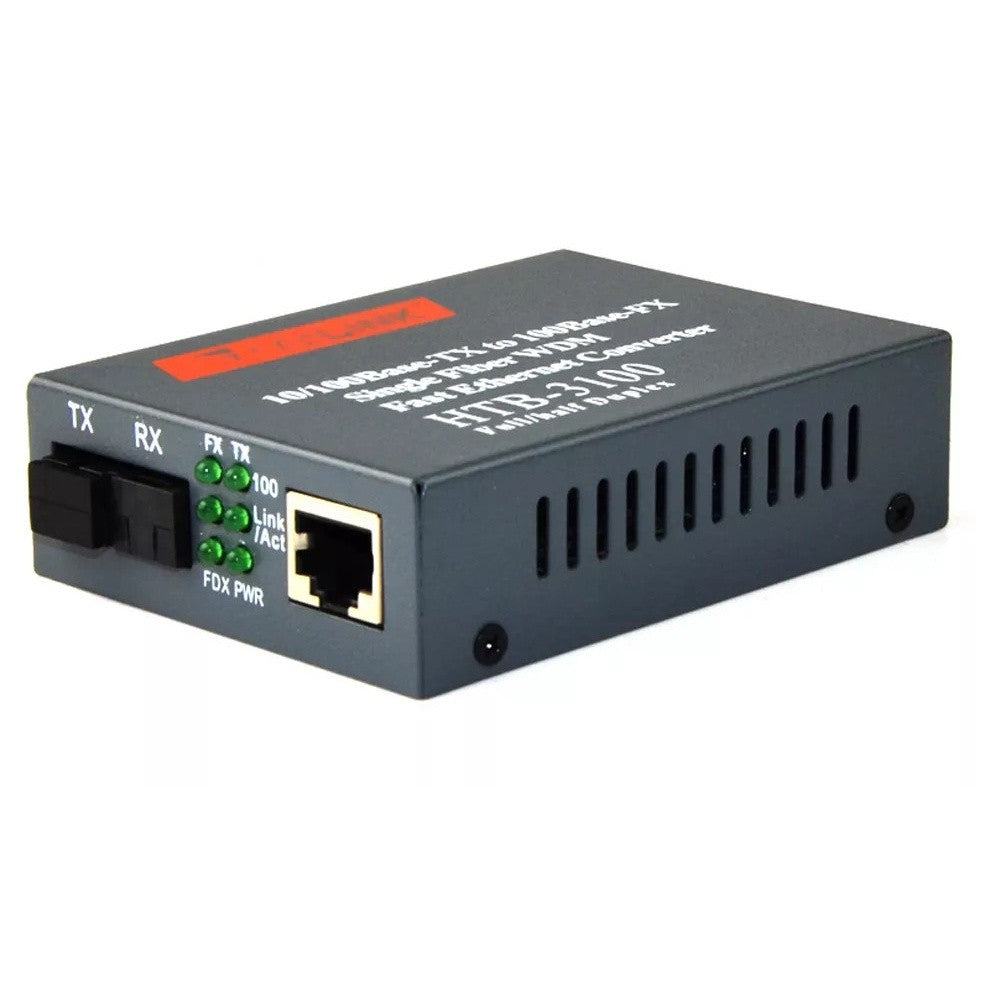

Netlink Media Converter Htb-3100 (A + B) Fiber Optic Wdm Rj45 Ftth

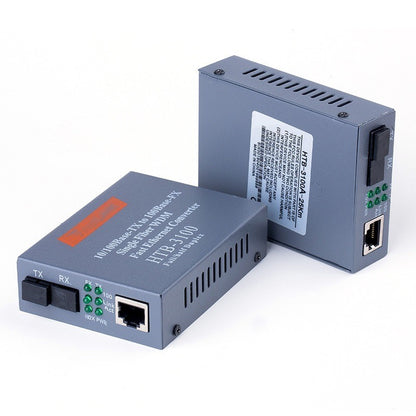

  NetLINK Media Converter HTB-3100 (A + B) Fiber Optic WDM RJ45 FTTH Media Converter

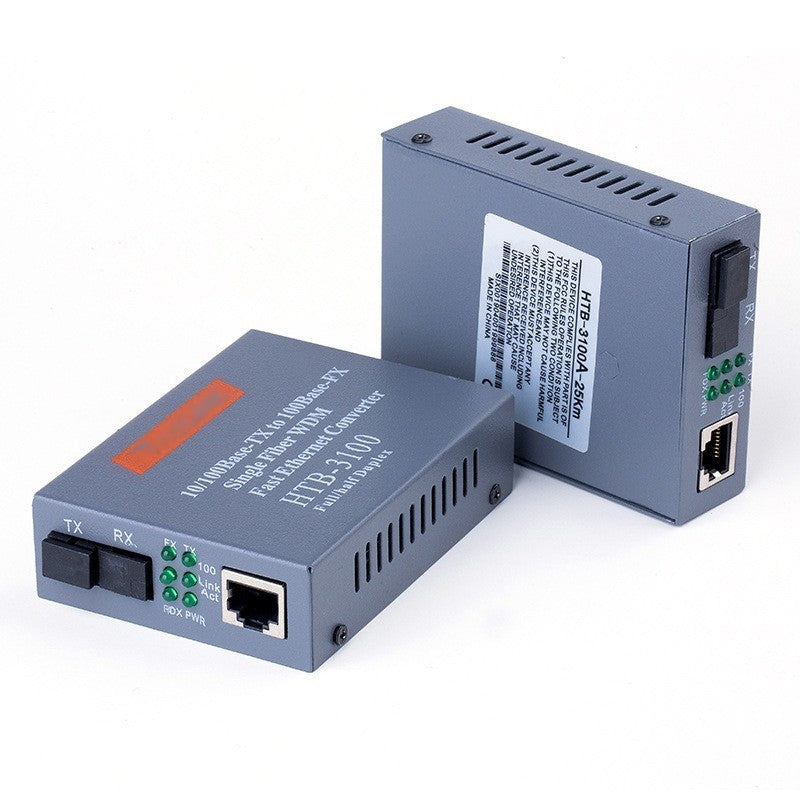

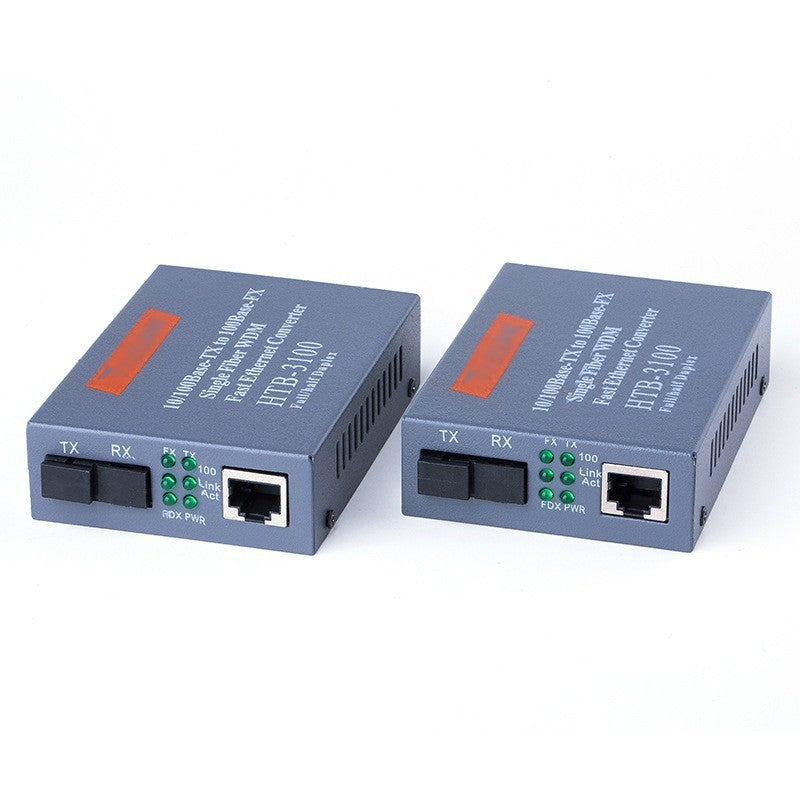

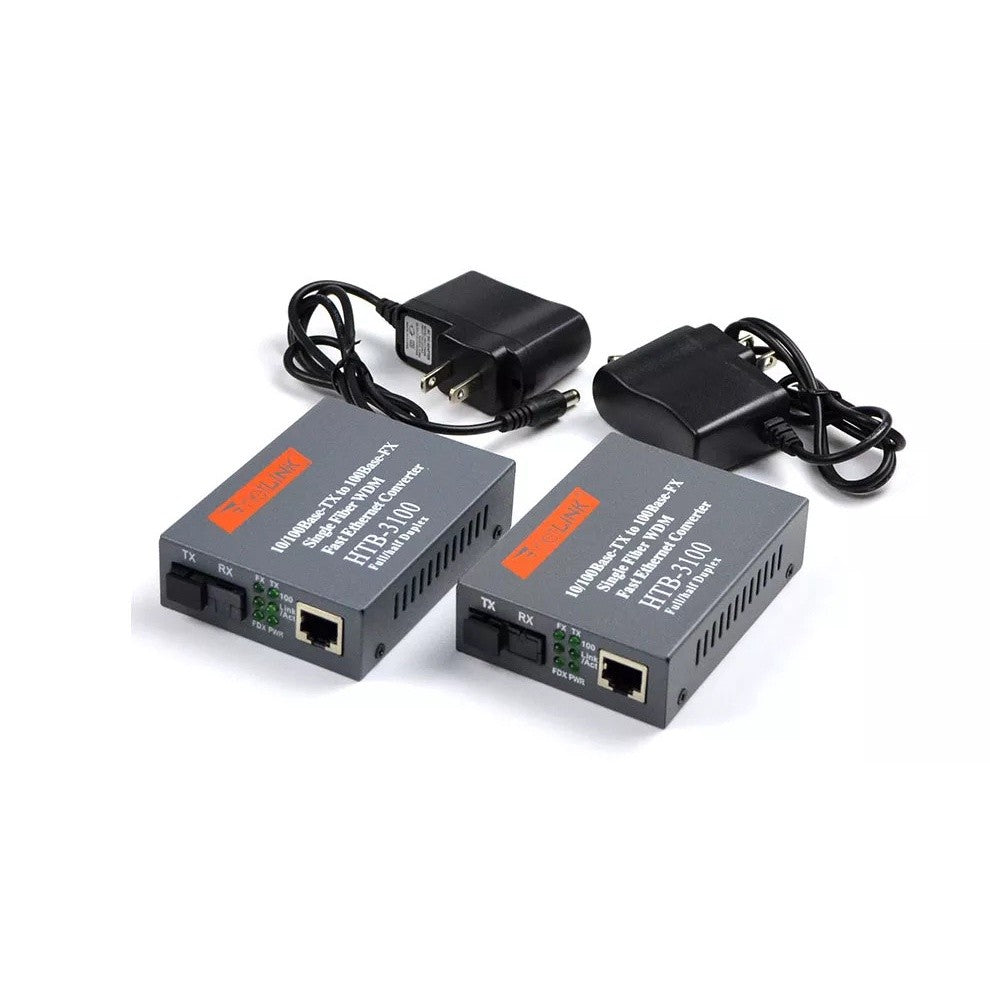

PAIR A <->B included

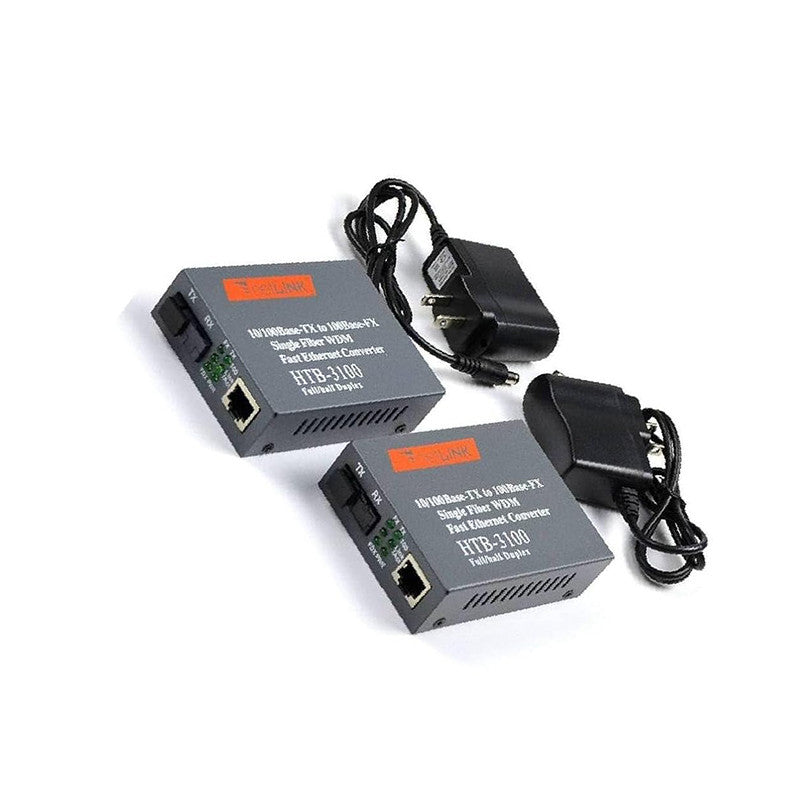

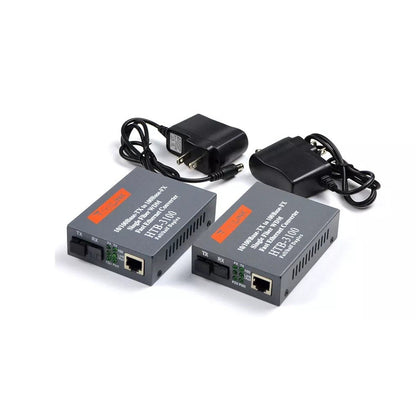

with power supply

Bidirectional 10/100M adaptive Ethernet fiber optic transceivers, using the latest IC plus 113GH chip, high-quality single-fiber bidirectional optical transceiver module, stable performance, and excellent quality. For telecommunications, broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

Features:

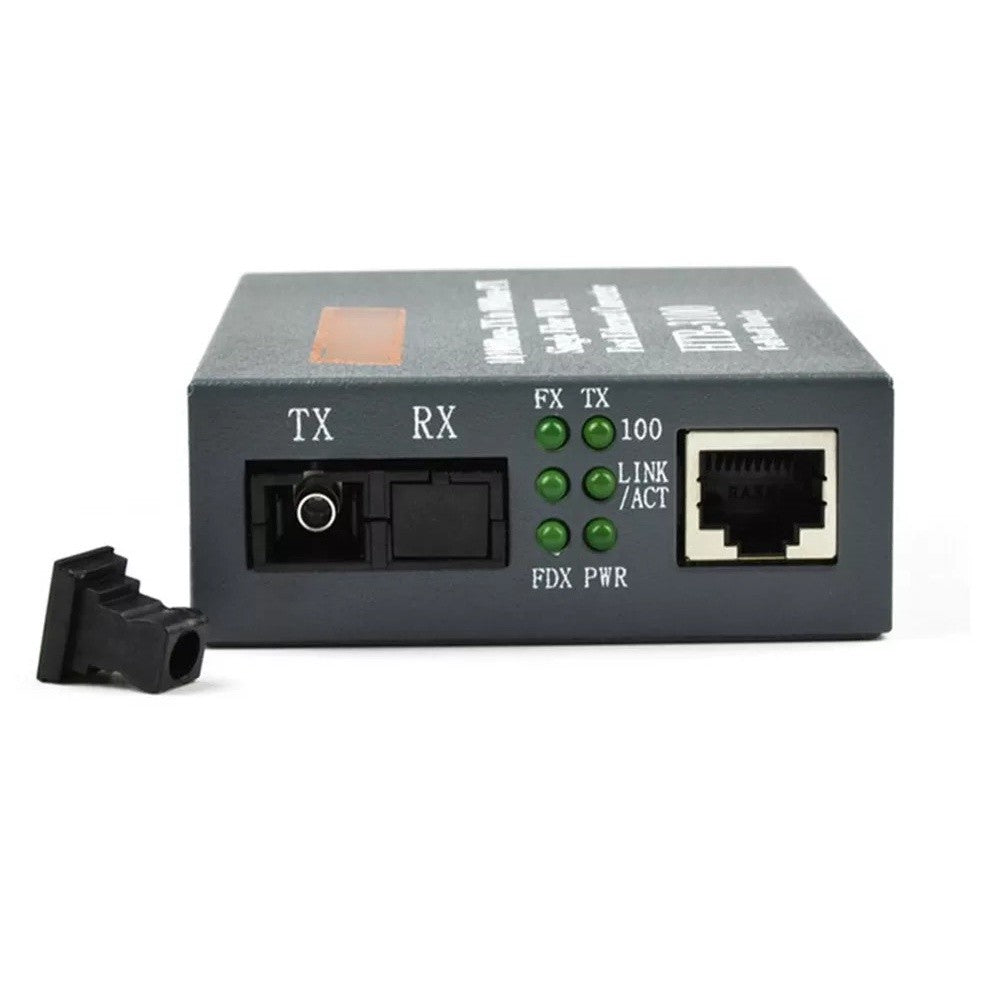

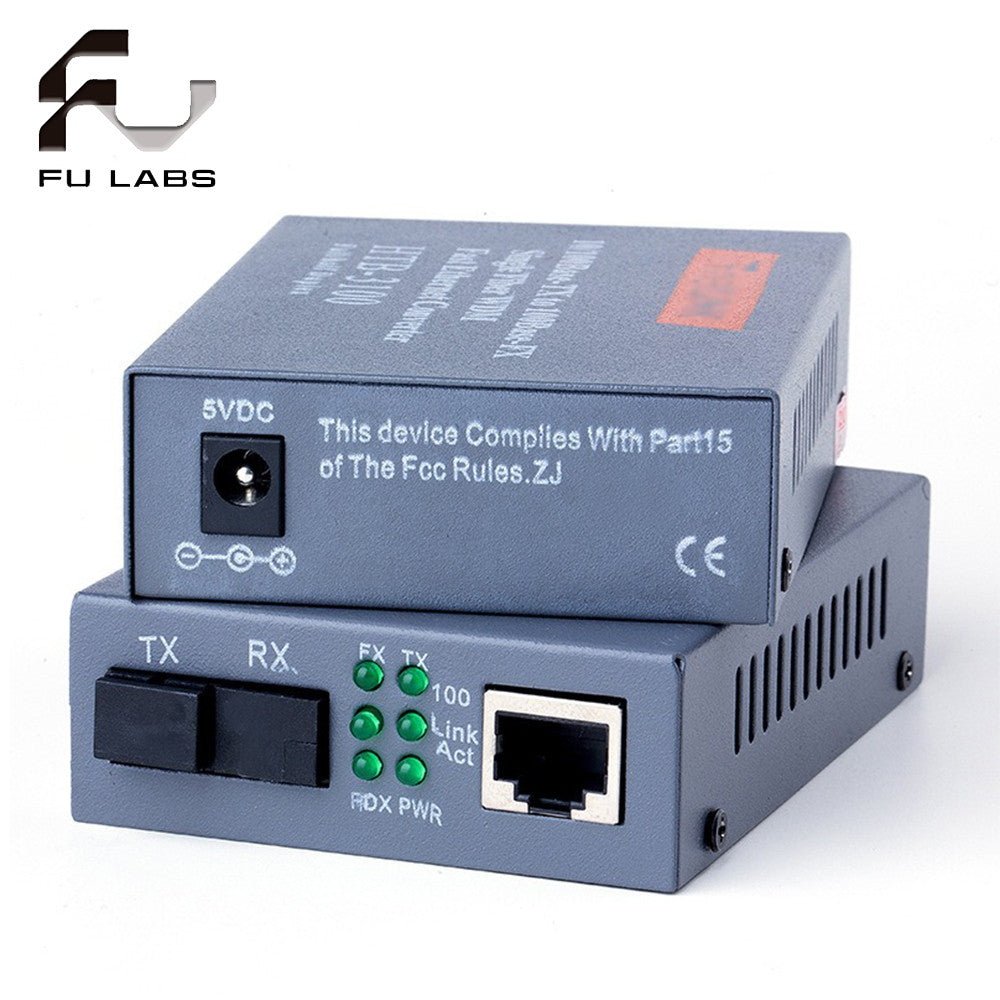

An RJ45 port and a single-fiber SC optical port, to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet ) and 100base FX (fiber optic)

Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;

Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;

Has 10M/100M adaptive capacity ;

Ethernet interface can adaptively direct line/crossover cable connection ;

Support full/half-duplex mode ;

Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;

Supports broadcast storm prevention function ;

1916 Byte support large data frame ( optional ) ;

Built-in lightning protection circuit, which can greatly reduce the damage caused by lightning induction ;

UTP up to 100 meters; longest 100 km single-mode fiber ;

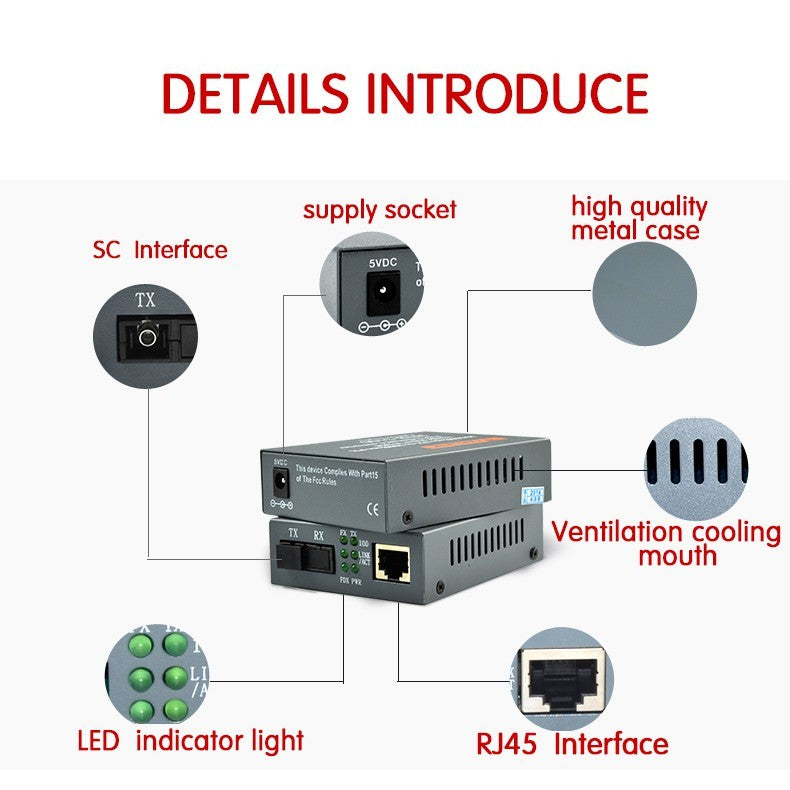

There are six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working status of the transceiver and determine the cause of the fault ;

There are external, internal power supplies of two types: AC100 ~ 265V / DC5V switching power supply ;

Working temperature : 0 ~ 50 degrees;

Storage temperature : - 40 ~ 70 degree ;

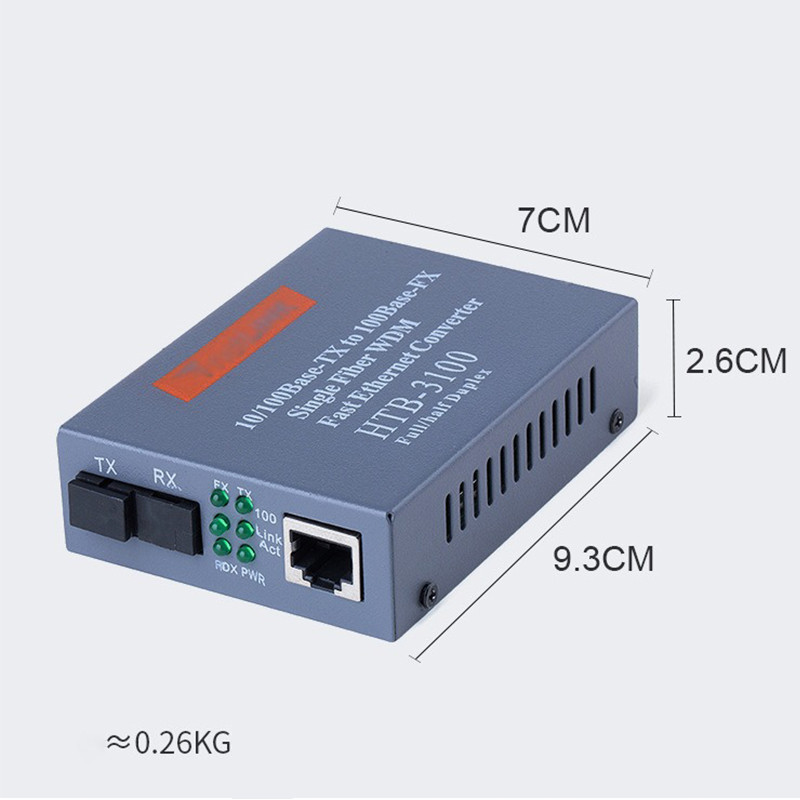

Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.

Outer Dimensions: 95mm × 71mm × 25mm
