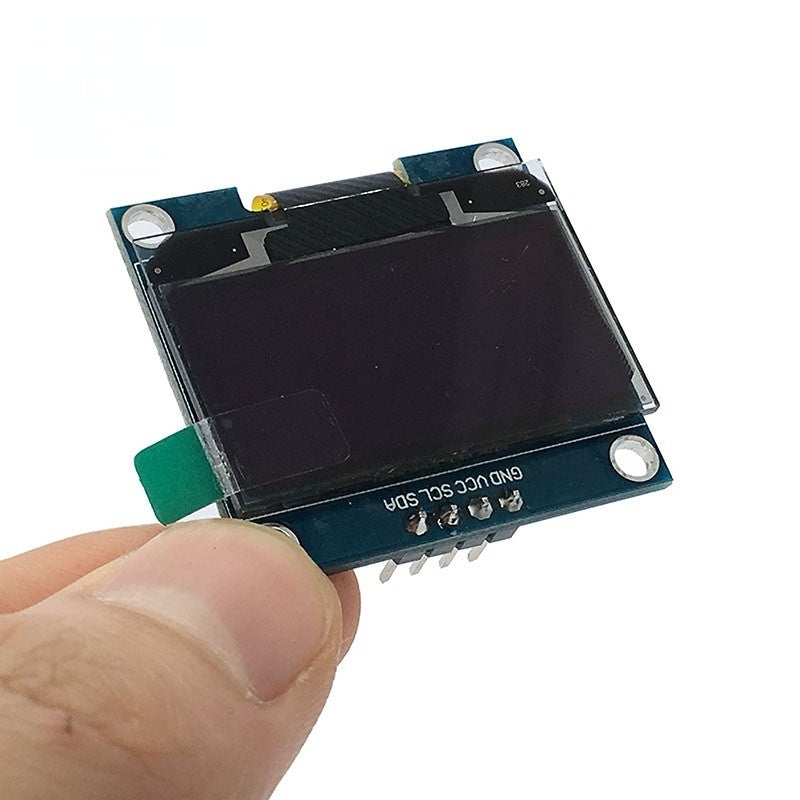

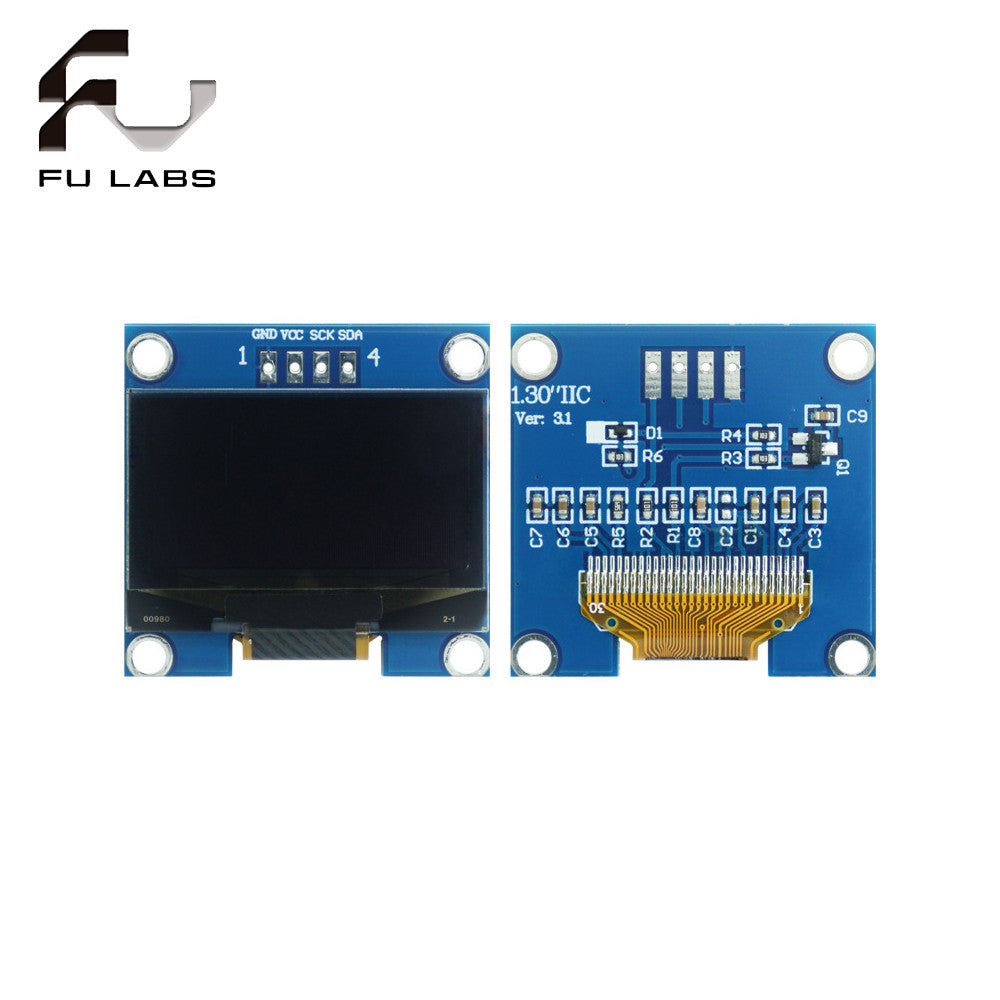

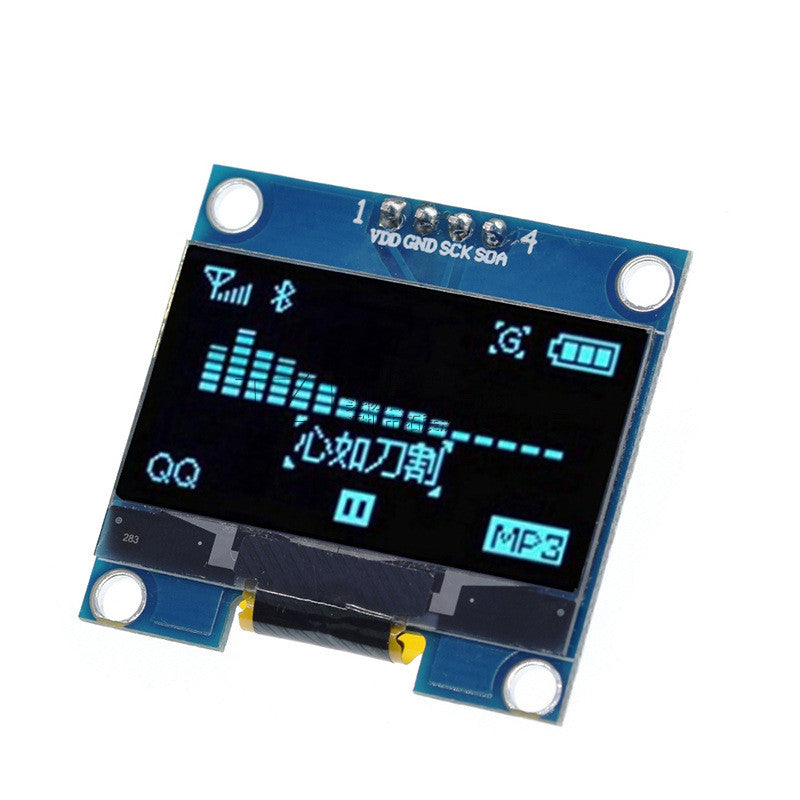

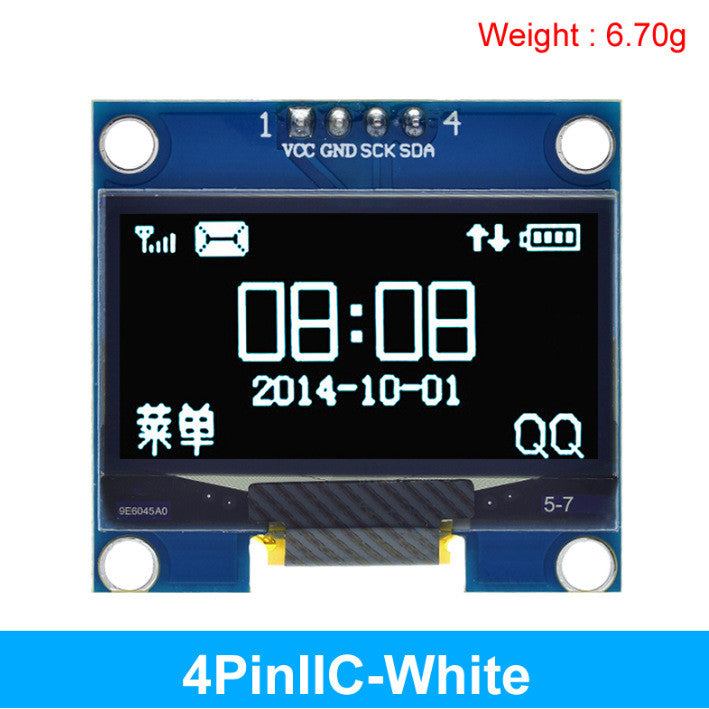

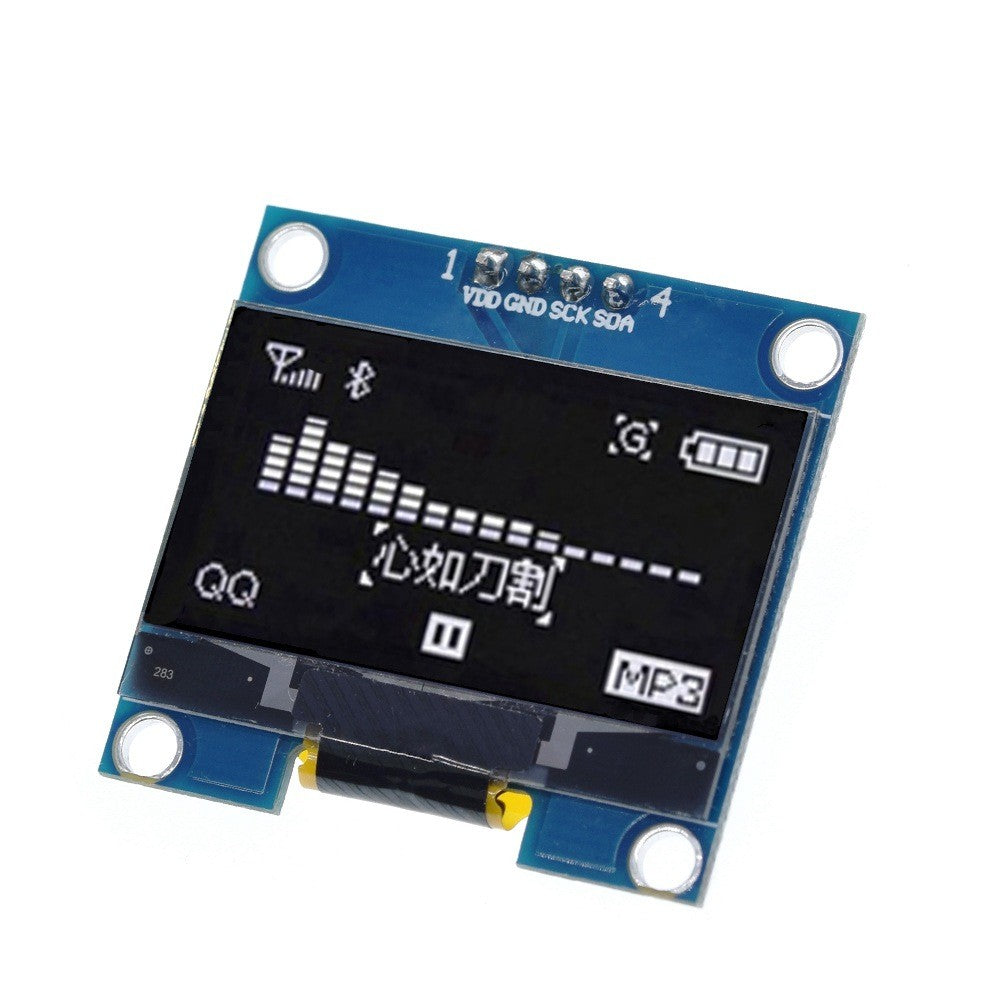

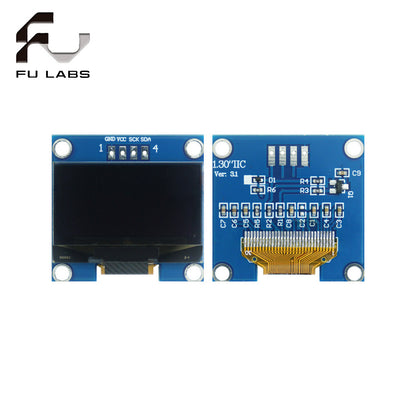

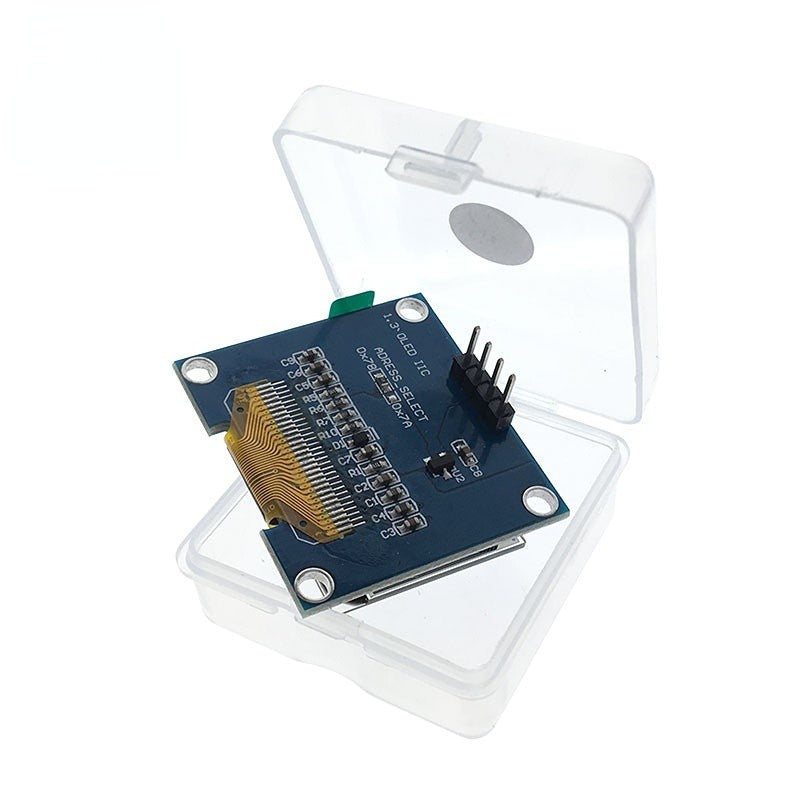

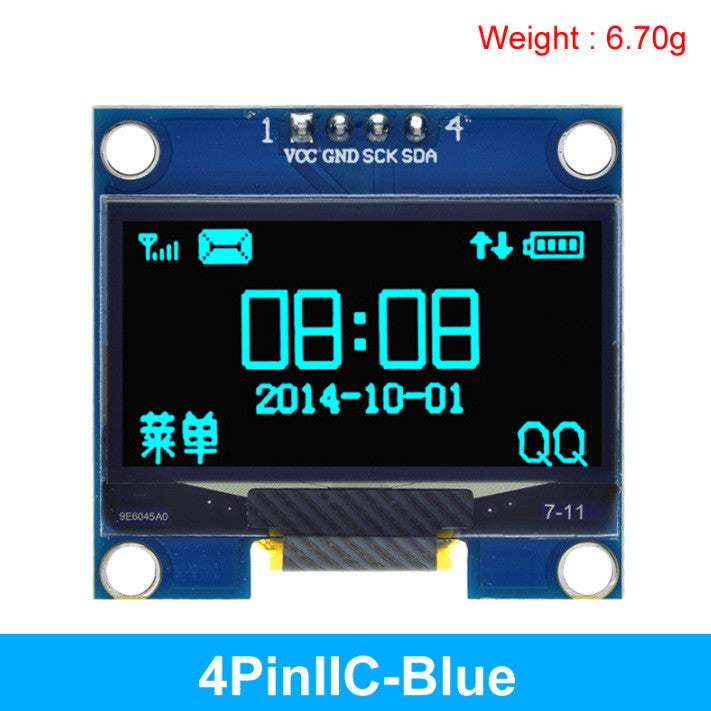

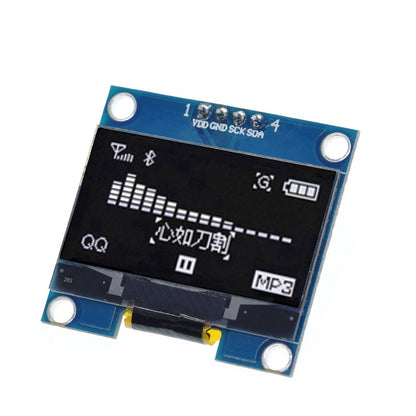

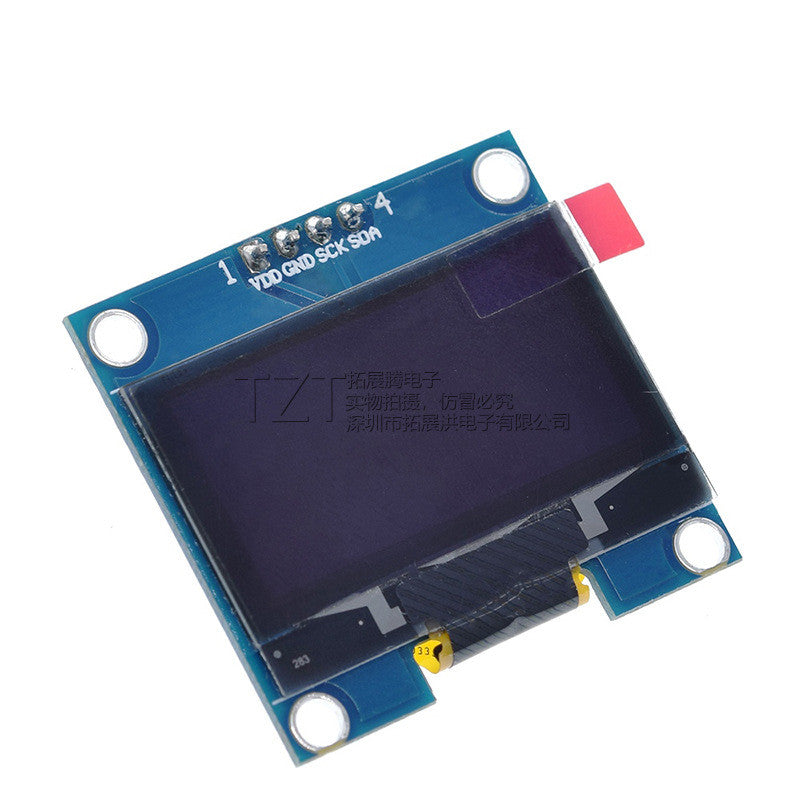

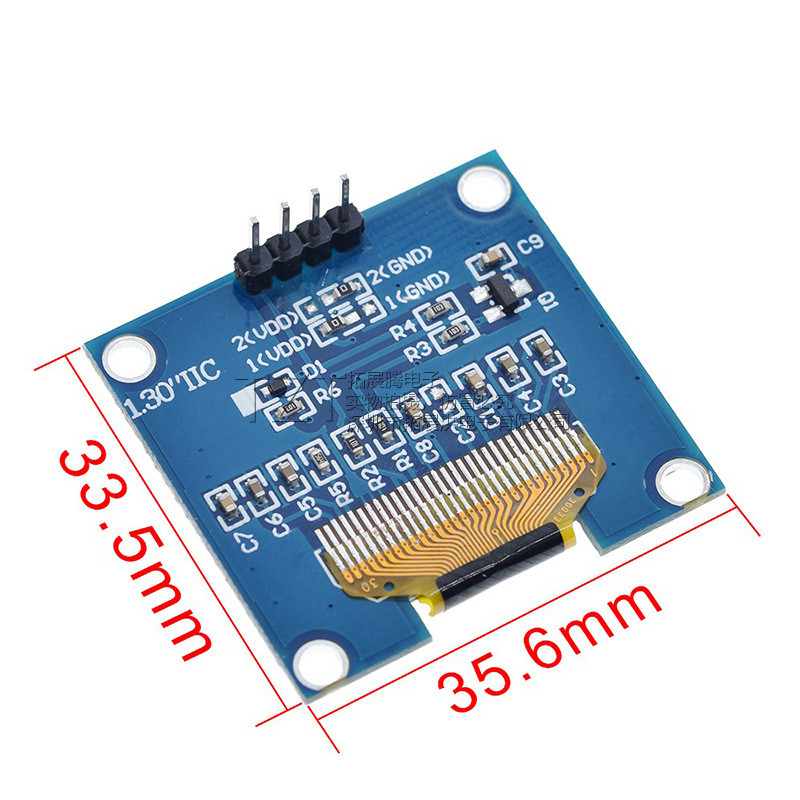

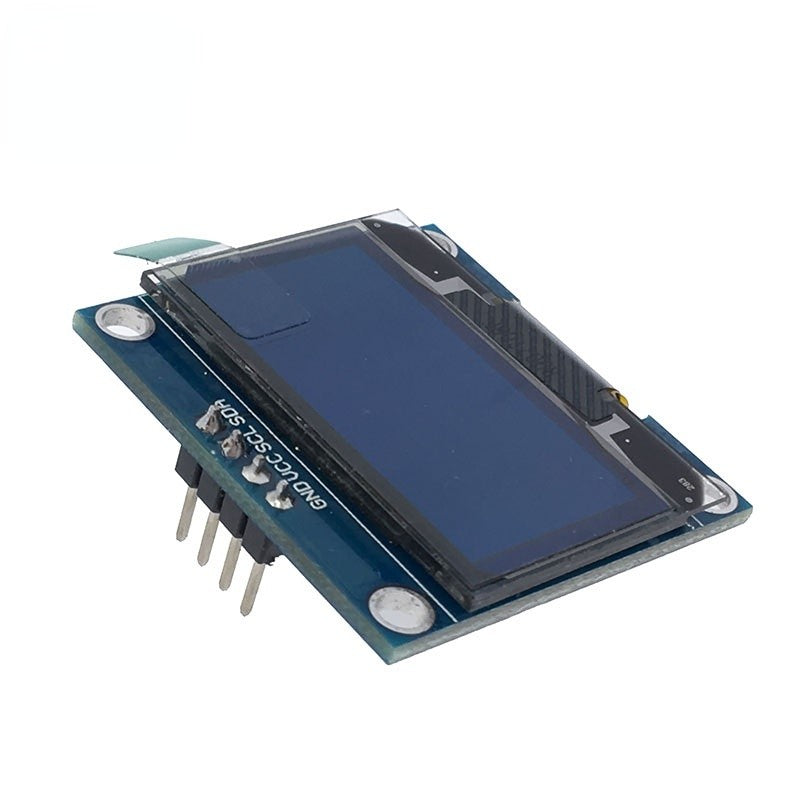

OLED module white/blue color 128X64 1.3 inch OLED LCD LED Display Module 1.3" IIC I2C Communicate 4PIN

Product Parameters (PARAMETER)

● Resolution: 128*64

● Control Chip: SSHH 1106

● Display Area: 29.42*14.7 (mm)

● Driving Voltage: 3.35v

● Operating Temperature: -40~70

● Interface Type: Default SP Interface (Can be modified to IIC)

Product Description (DESCRIPTION)

  SH1106 is basically compatible with SSD1306. The difference is that the RAM of the SSH1106 control chip is 13264 space, while that of SSD1306 is 12864 space. And the 1.3 - inch OLED is a 128*64 dot matrix. So during screen production, the middle 128 columns are used. When using the SSD1306 program for the SSH1106 screen, just change the starting address to start from column 0X02. So there's no need to worry when using it; it's very simple.

Interface Definition (INTERFACE DEFINITION)

1: GND (Power Ground)

2: VCC (Power Voltage)

3: CLK (Clock Line)

4: MOSI (Data Line)

5: RES (Reset Line)

6: DC (Data/Command)

7: CS (Chip Select Line)
