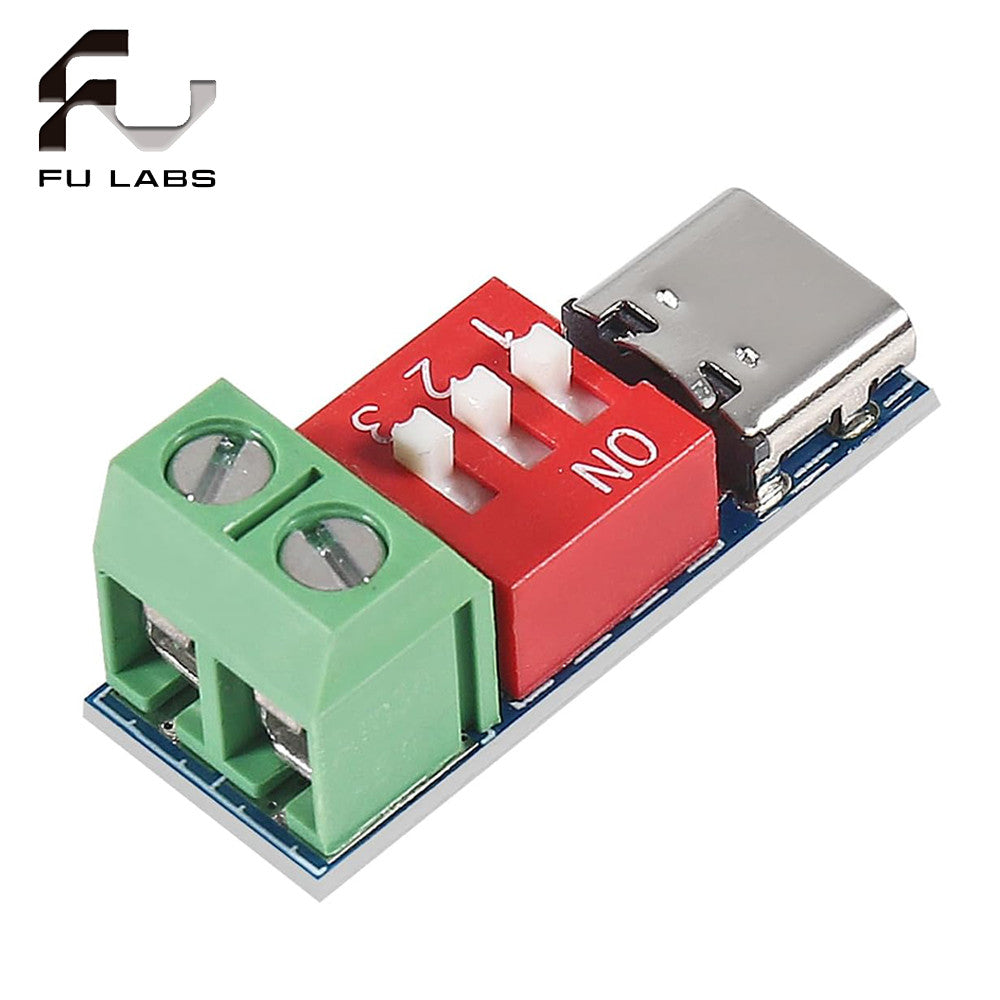

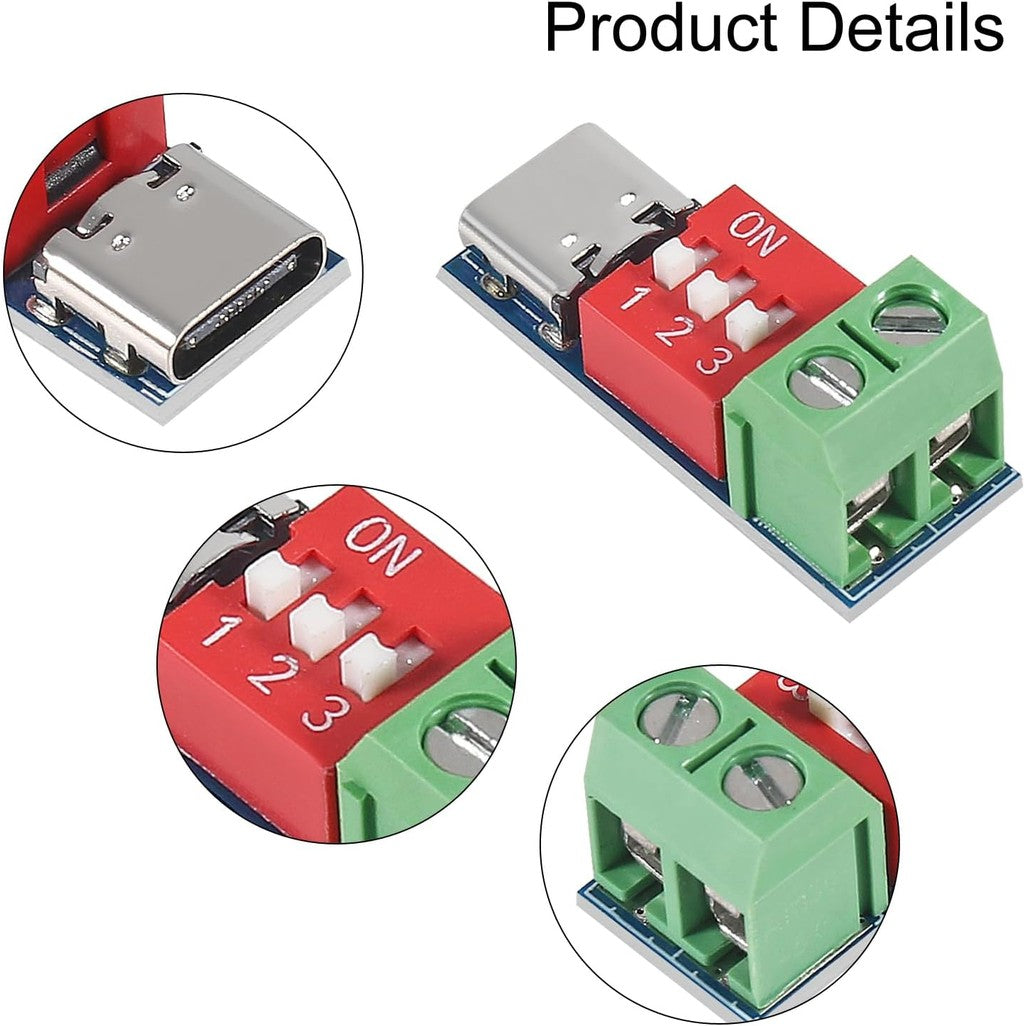

PDSink PD Decoy PD Fast Charging Test Board Adjustable Voltages 5V-20V Dial-code Adjustment Charge Connector

   PDSink PD Decoy PD Fast Charging Test Board Adjustable Voltages 5V-20V Dial-code Adjustment Charge Connector

eatures:

   1. Support fast charging protocols such as PD3.0/2.0 and BC1.2

   2. Support USB Type-C PD, forward and reverse insertion detection and automatic switching

   3. Support 4V to 22V input voltage

Product parameters:

   Support fast charging protocols such as PD3.0/2.0 and BC1.2

   Support USB Type-C PD

   Support positive and negative insertion detection and automatic switching

   Support 4V to 22V input voltage

   Up to 100W power

Product description:

   PD decoy supports PD3.0/2.0, BC1.2 and other boost and fast charging protocols, supports up to 100W power, and provides over-temperature and over-voltage protection and other functions. The voltage can be adjusted by dial switch, and the maximum output voltage is 20V.

instructions

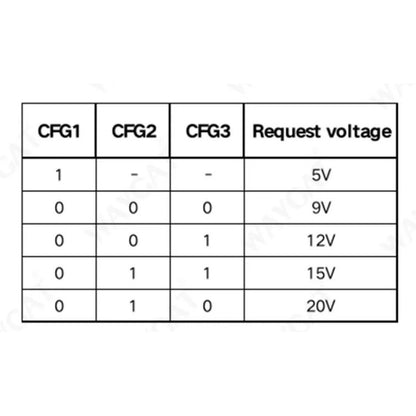

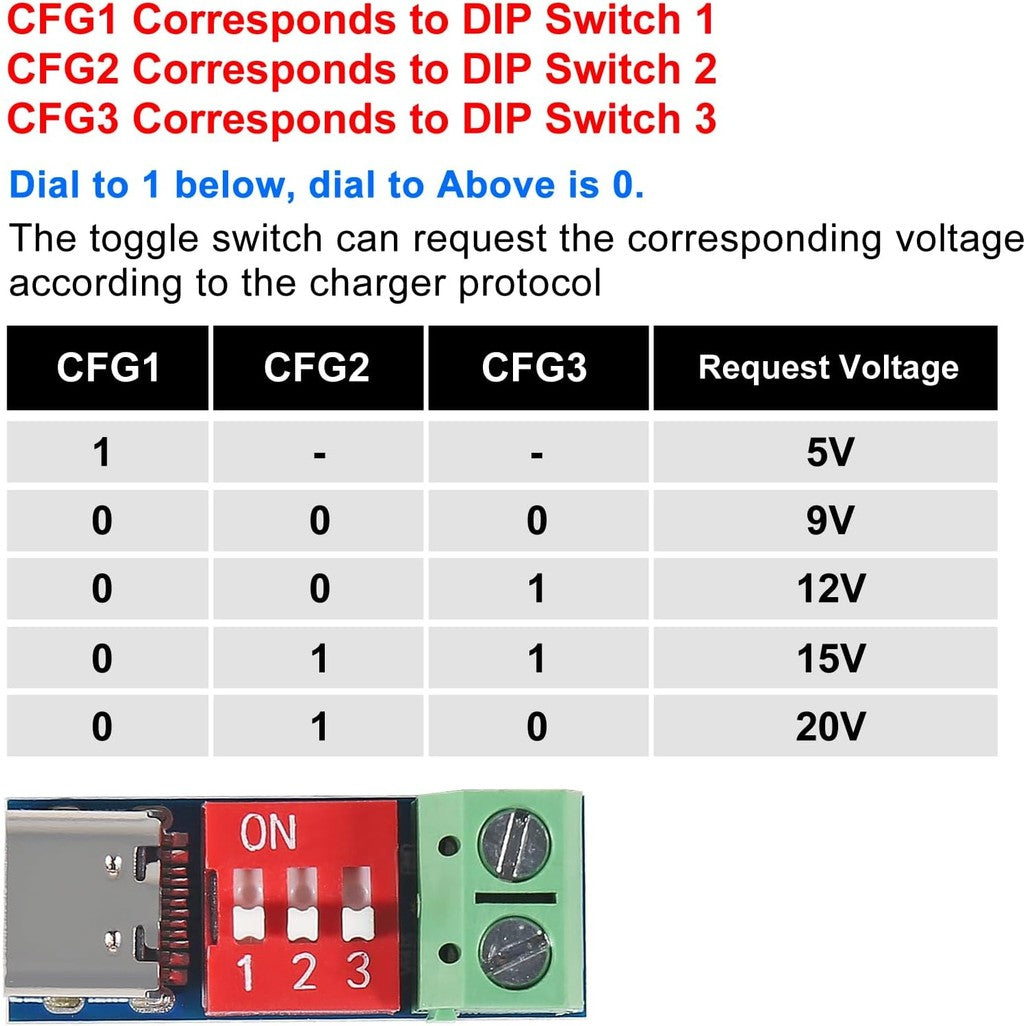

   CFG1 corresponding dial switch 1

   CFG2 corresponding dial switch 2

   CFG3 corresponding dial switch 3

   Dial down to 1, and dial up to 0. Toggle the switch to request the corresponding voltage according to the charger protocol
