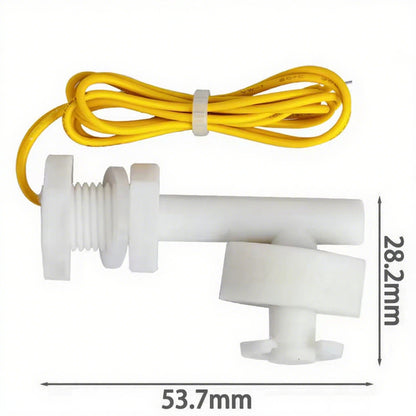

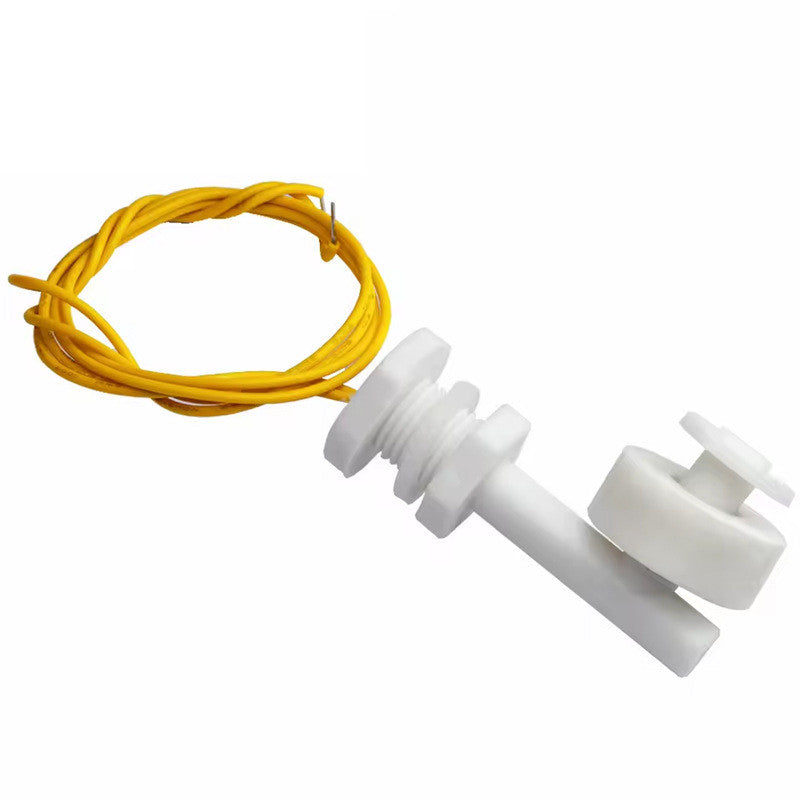

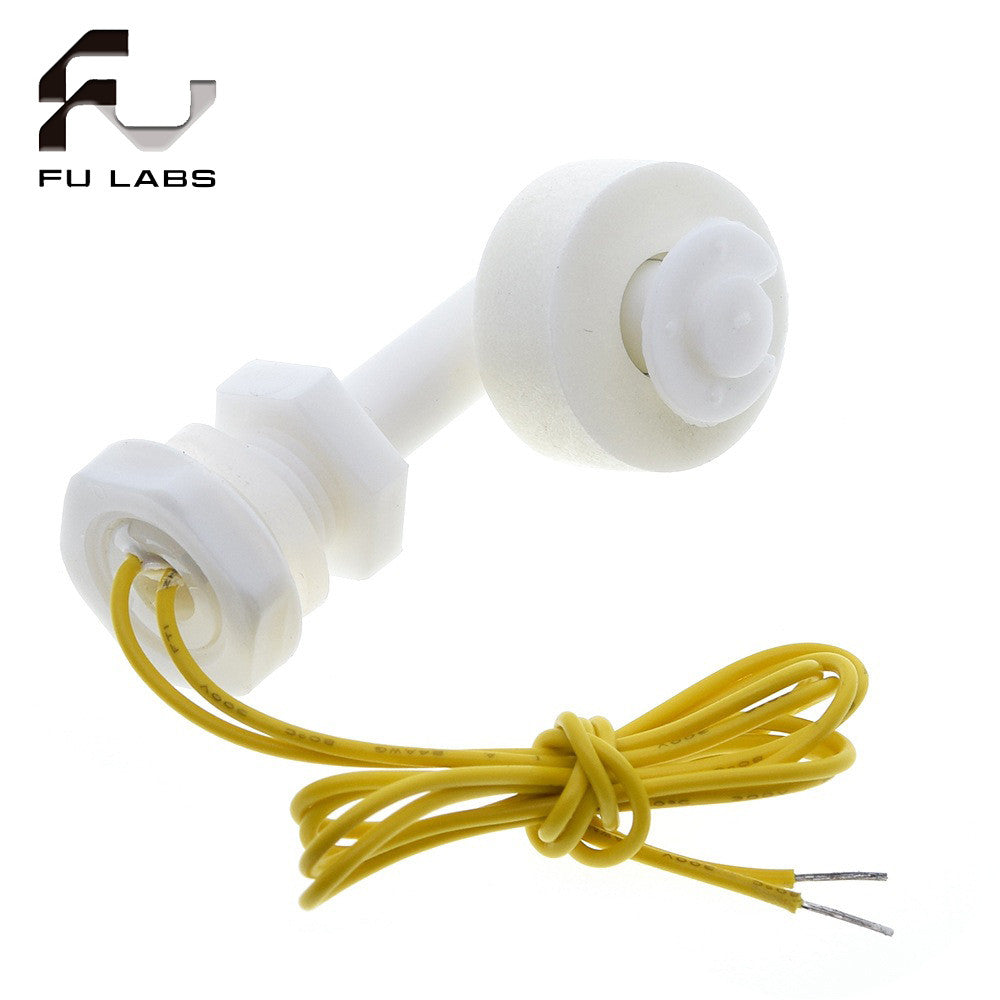

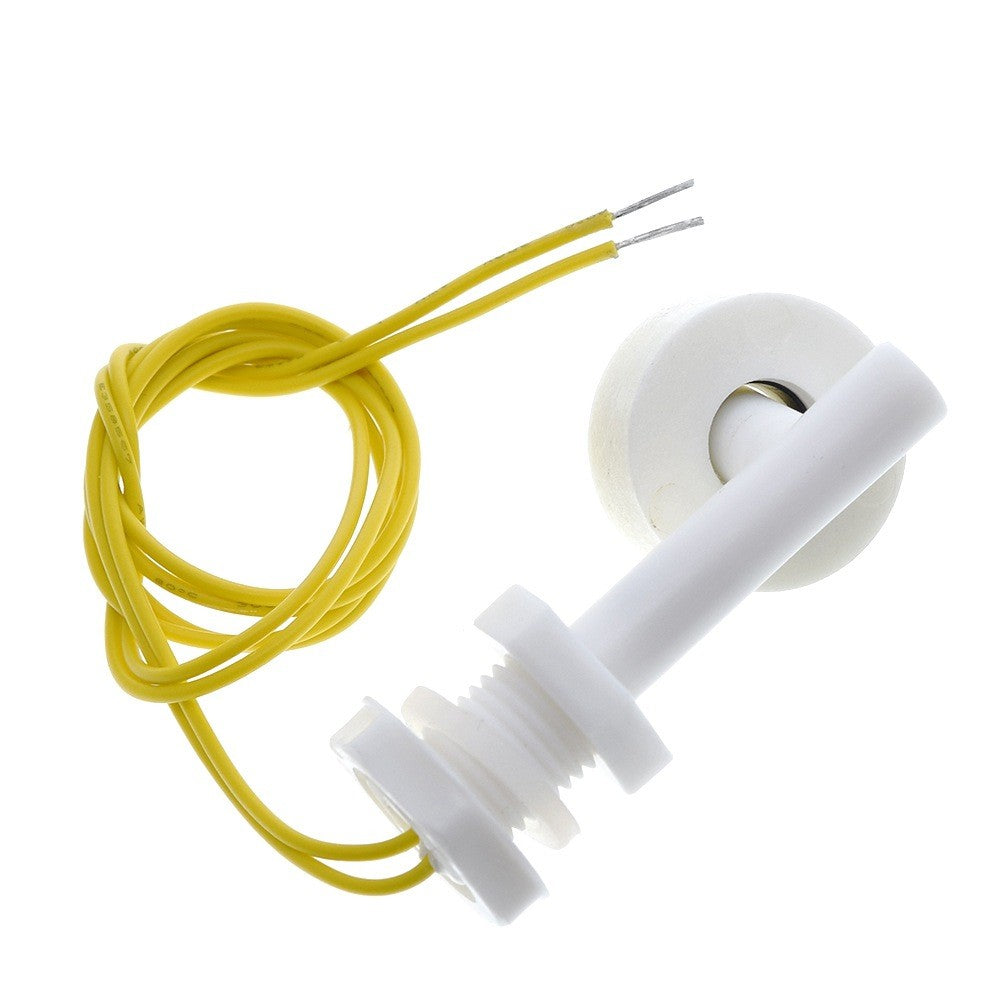

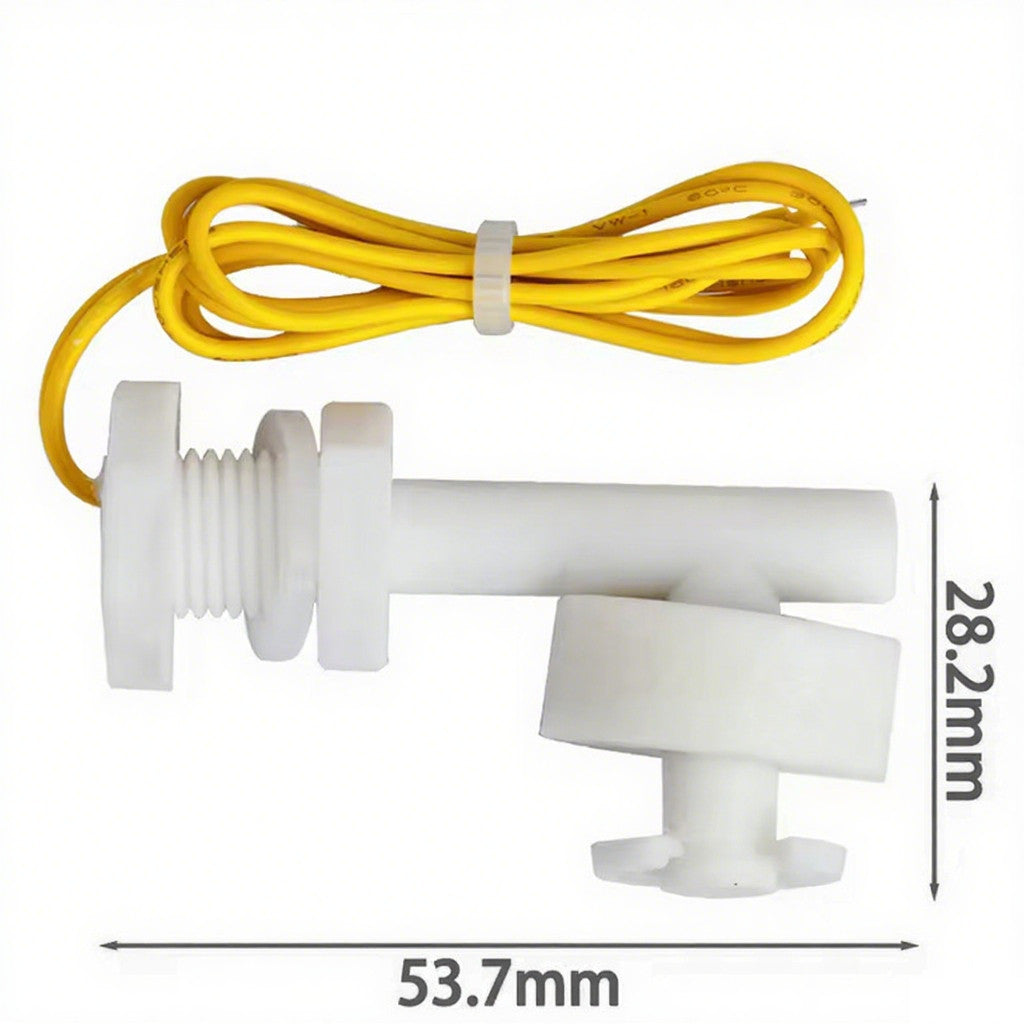

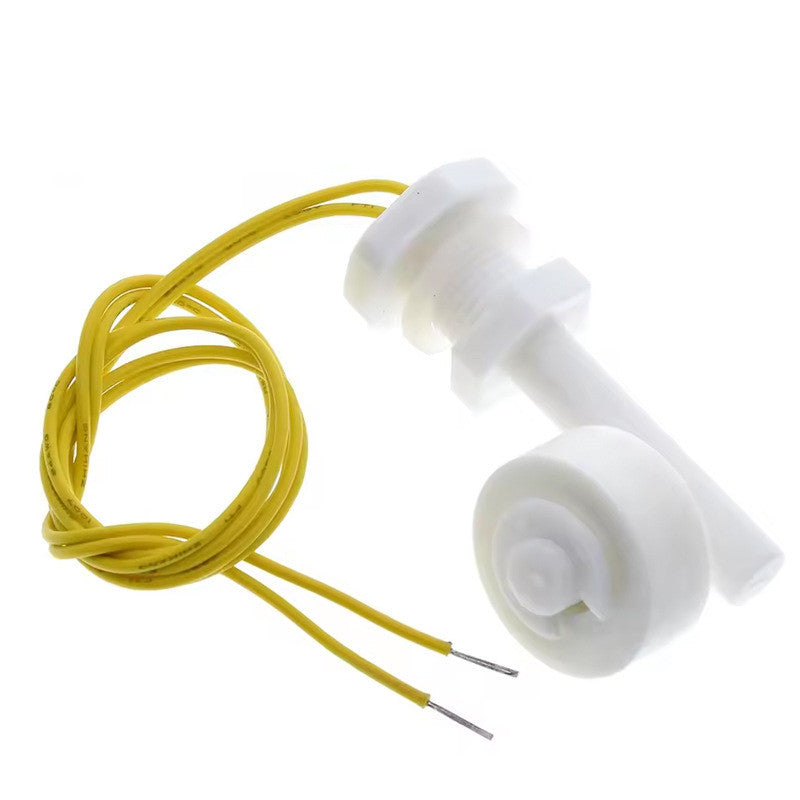

pp Float Switch Plastic Water Level Control Right Angle

Product Description of Float Switch

I. Product Introduction

   The float switch is used to detect the liquid level in the tank and can be linked to start devices such as pumps, indicators, and alarms. It has a wide range of applications, including scenarios such as water towers, brine tanks, fresh water tanks, gardening, aquariums controlled by power heads, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, ships, air - conditioning drain pans, high - pressure cleaners, carpet cleaners, aquarium fluid control, ice makers, coffee pots, marine applications, automobiles, tropical fish tanks, evaporator coils, condensate lines, relays, etc. It is a mini float switch without mercury, and its right - angle design can be flexibly arranged at any height.

II. Product Parameters

● Low Voltage (0 - 110VDC/AC)

● Switch current: 0.5A

● Power: 10W

● Load current: 1.0A

● High Voltage (0 - 220VDC/AC)

● Switch current: 1A

● Power: 50W

● Load current: 3.0A

General Parameters

● Contact resistance (excluding wires): 100mΩ

● Operating temperature: - 30 ~ 125℃

Remarks

  It is recommended to use a voltage of 0 - 110V, and it is not recommended to use high voltage.
