QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module DC8-32V 3.25A 65W Step Down Module SCP/FCP/PD

   QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module DC8-32V 3.25A 65W Step Down Module SCP/FCP/PD

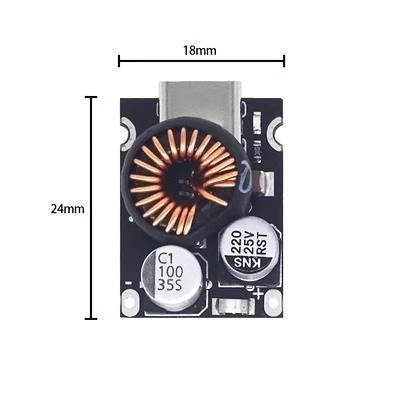

Product characteristics:

   ● Input voltage: DC 8~32V

   ● Output voltage: When connected to a power receiving device compatible with TYPE-C

   Automatic adjustment between 3.3V and - 21V after standby (input power

   The voltage should be higher than the output voltage. To trigger a 20V fast charge

   Input voltage should be higher than 20V)

   ● Output power: maximum 65W (5V3A.9V3A, 12V3A，20V3.25A, etc.)

   Conversion efficiency: 92% - 97%

   Output voltage ripple:<200mV

   No-load current:<3mA

   Input overvoltage and undervoltage protection

   Input overcurrent protection

   Output overcurrent and short circuit protection

   Overtemperature protection for harvester

Supported charging protocols

   BC1.2, Apple Protocol

   Qualcomm QC2.0 and QC3.0

   Huawei Fast Charging Protocol FCP and SCP

   Samsung Fast Charging Protocol AFC

   MTK PE+1.1 and MTK PE+2.0

   PD2.0/PD3.1 (PPS) output protocol

Product Application

   ● Various types of power transformation fast charging output

Description：

   When using a 20 ^ 24V power adapter as an input, it is recommended to power on the power supply before connecting to this module, otherwise it may occur that the power supply is powered on slowly

   This resulted in an error in the module matching power and the inability to output 65W.

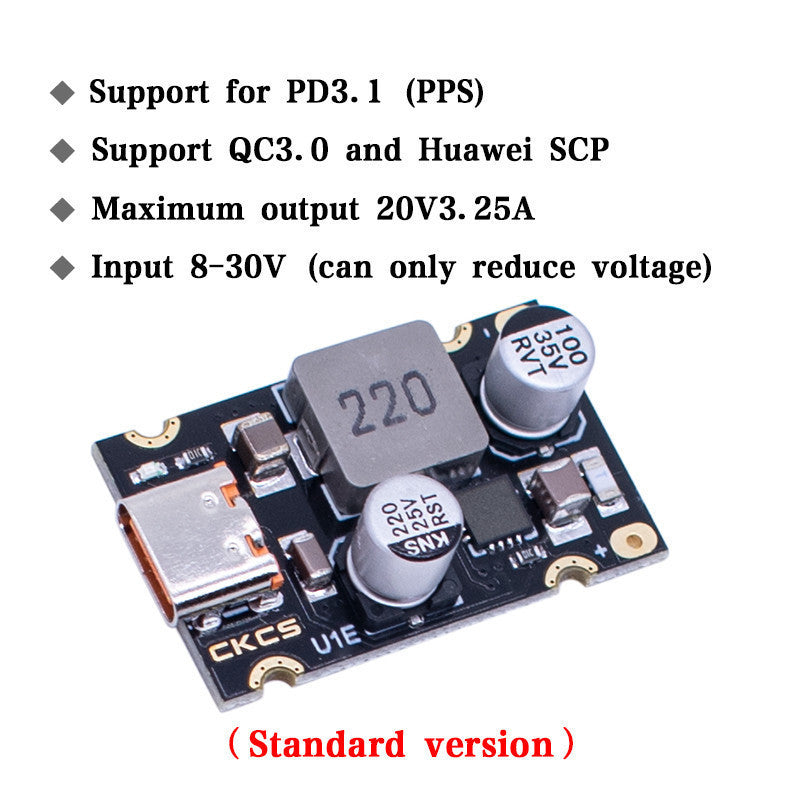

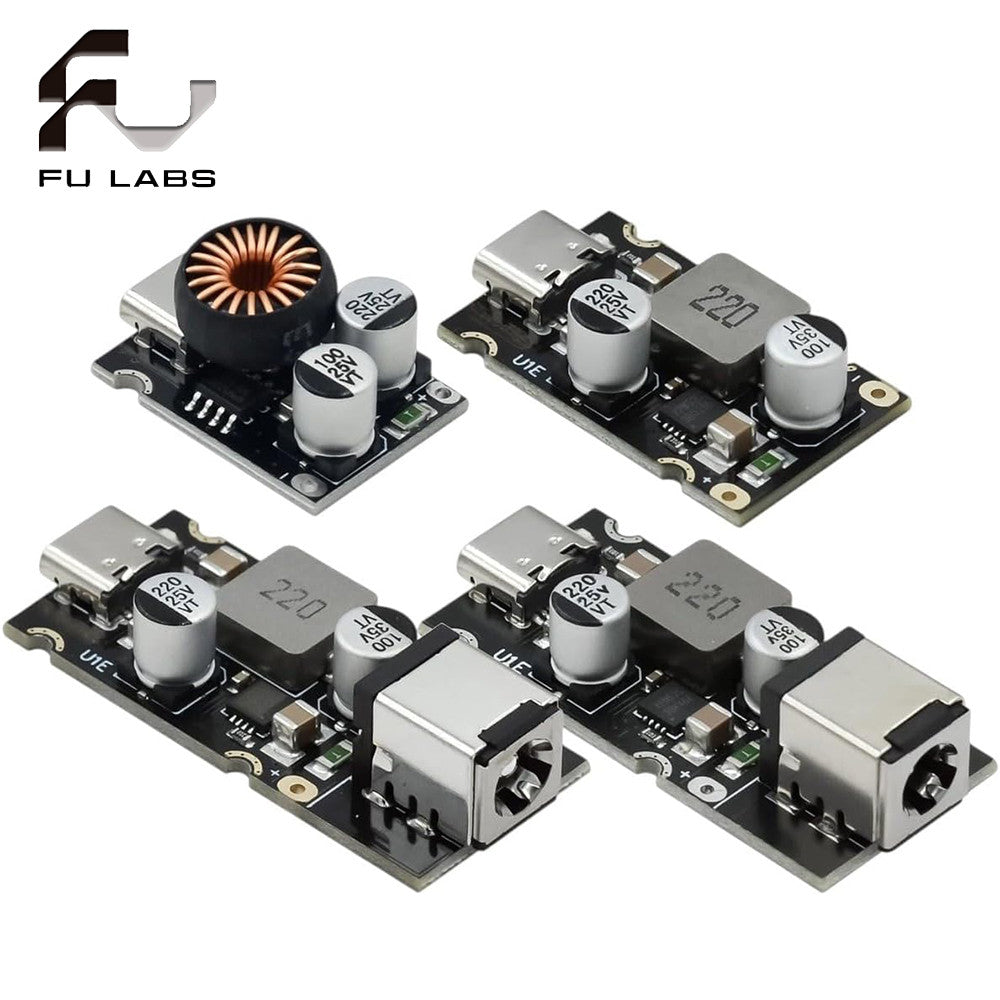

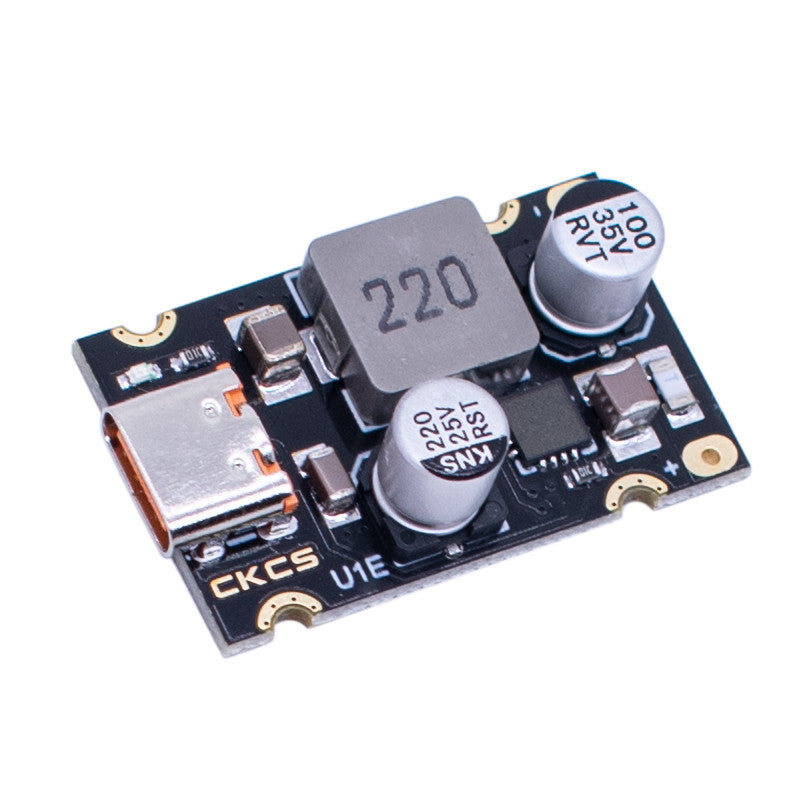

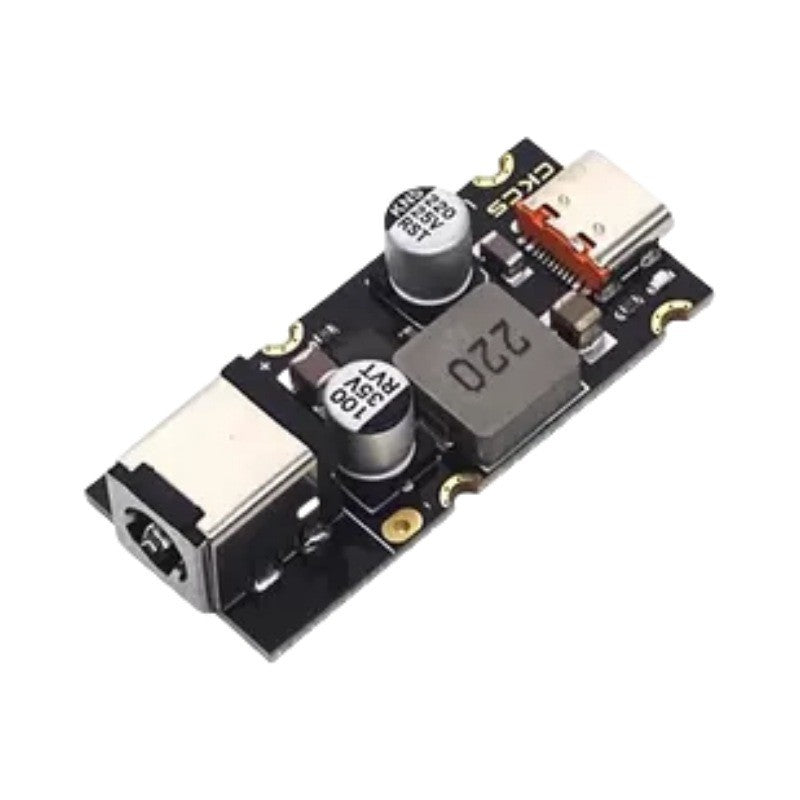

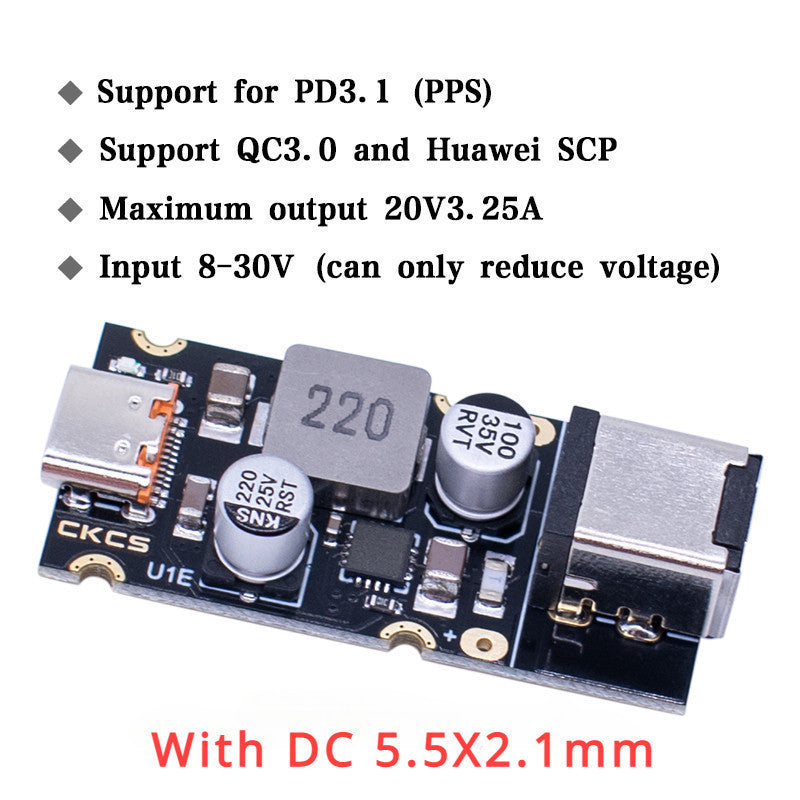

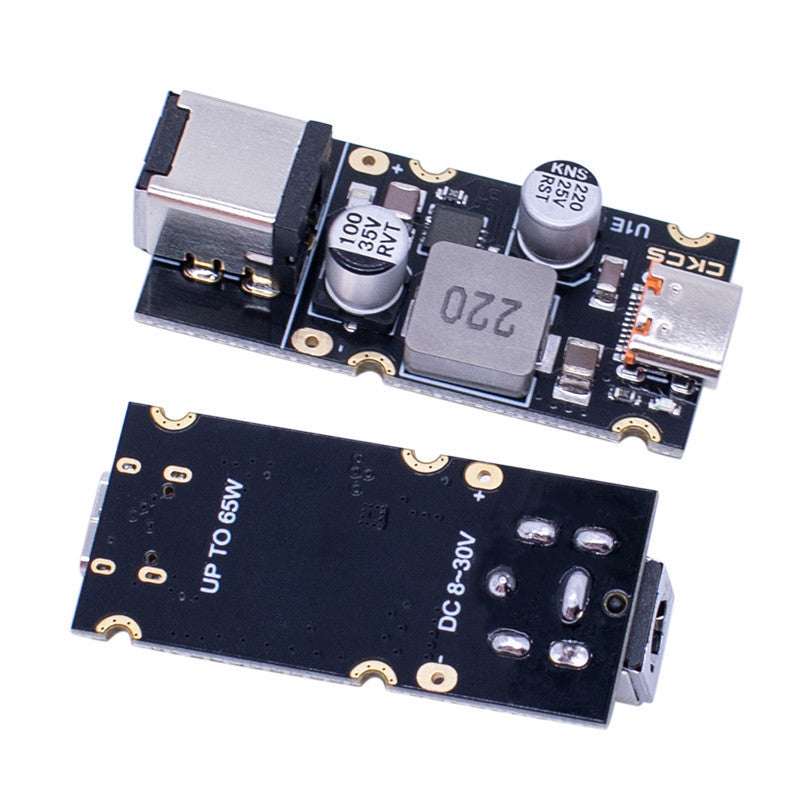

   There are two types of DC models: 5521 and 5525.

   5521: Outer diameter 5.5mm, inner diameter 2 1mm;

   5525: Outer diameter 5.5mm, inner diameter 2 5mm.

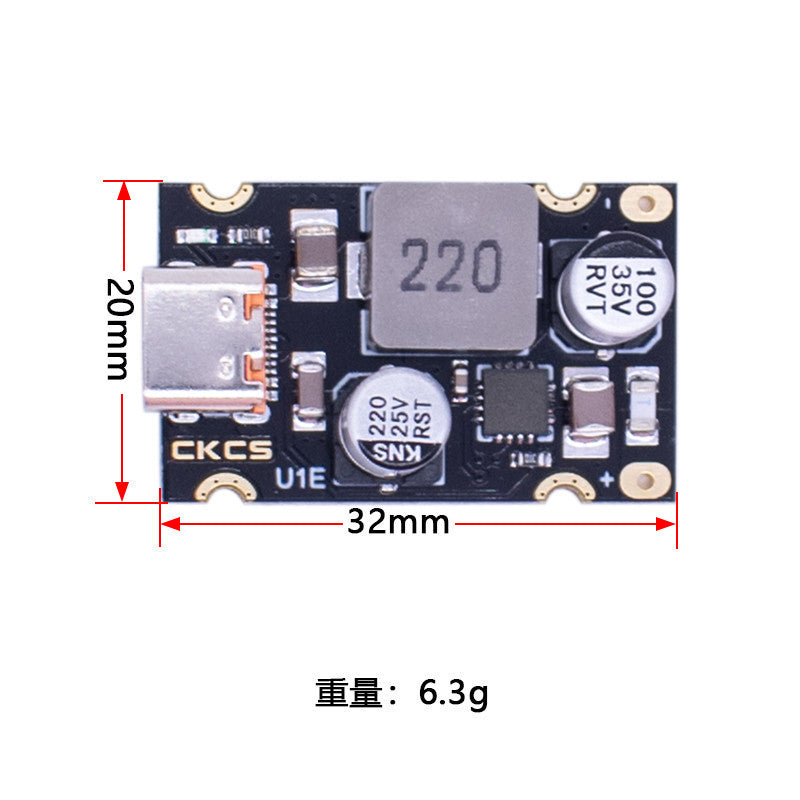

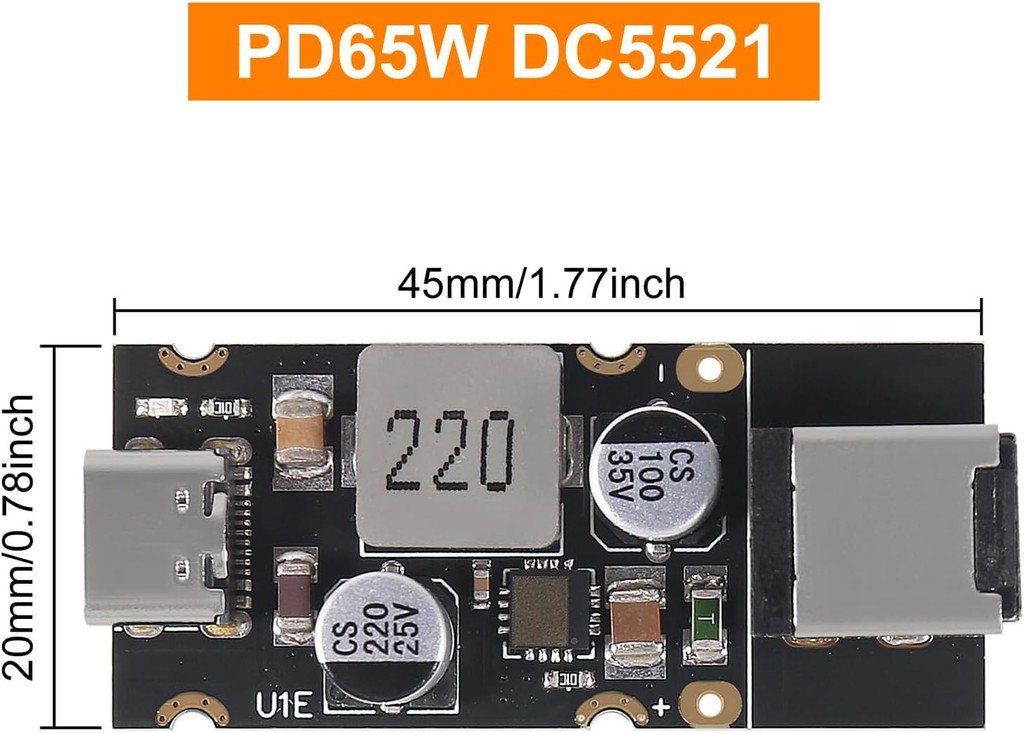

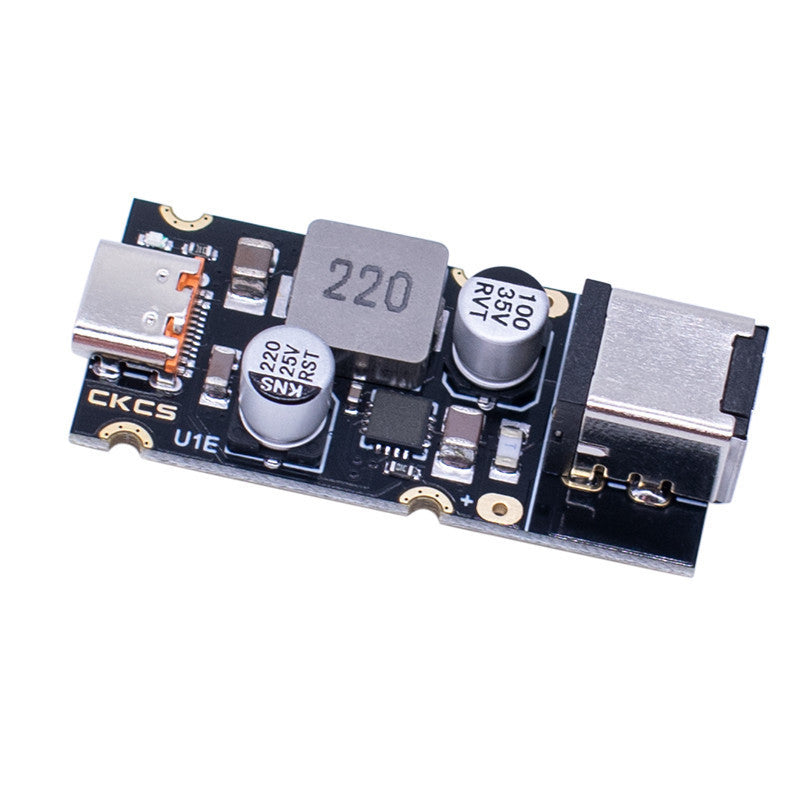

   The length of the DC model is increased by 12mm compared to the standard model, which is 44mm. Both the Type-c mother seat and the DC seat protrude about 1mm from the plate edge.

   The 5521 model is also compatible with the 5525 plug with tuning fork shrapnel。
