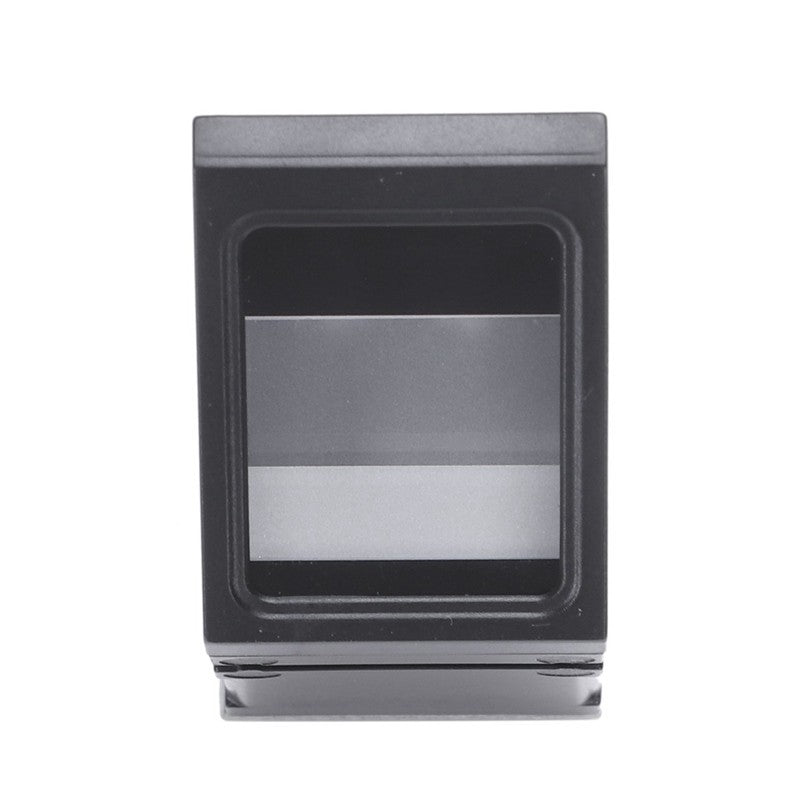

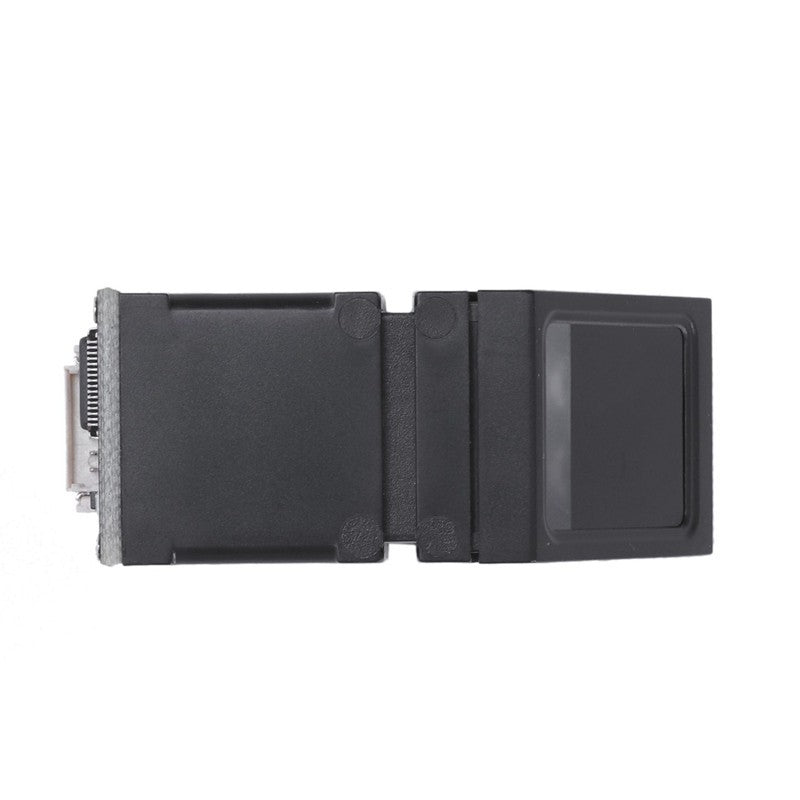

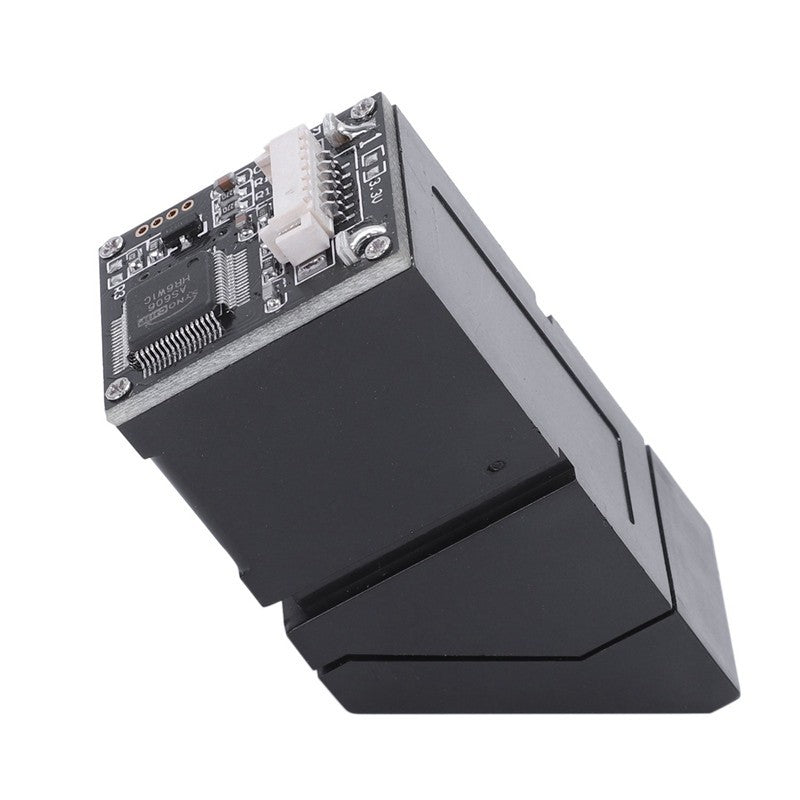

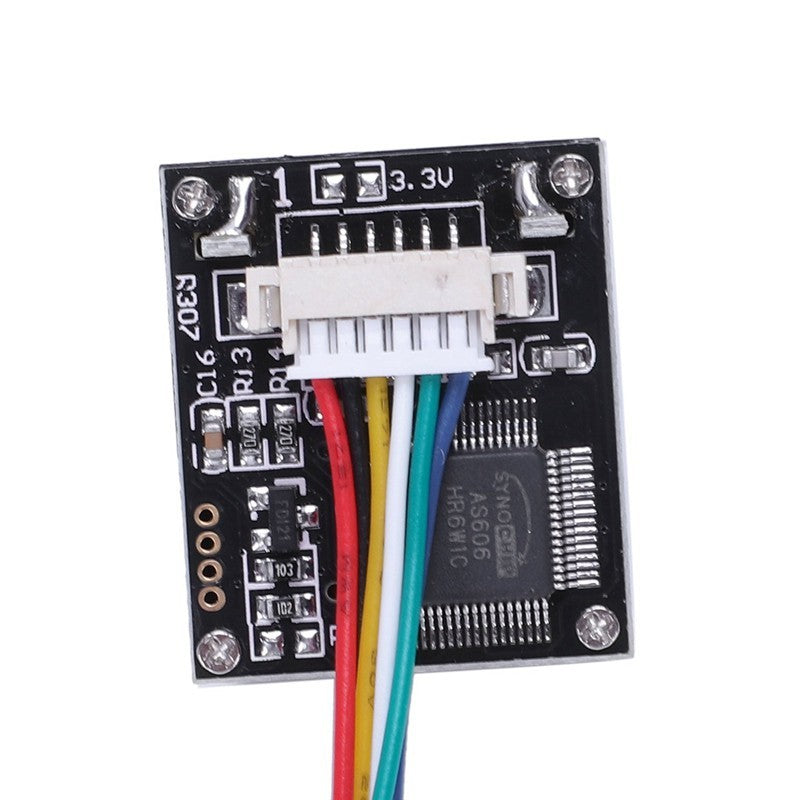

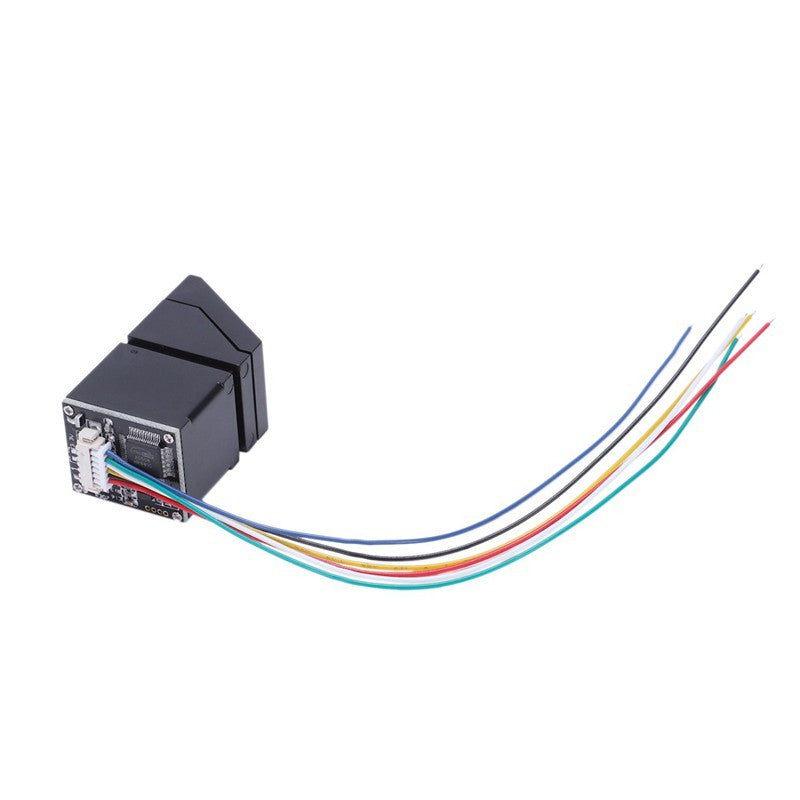

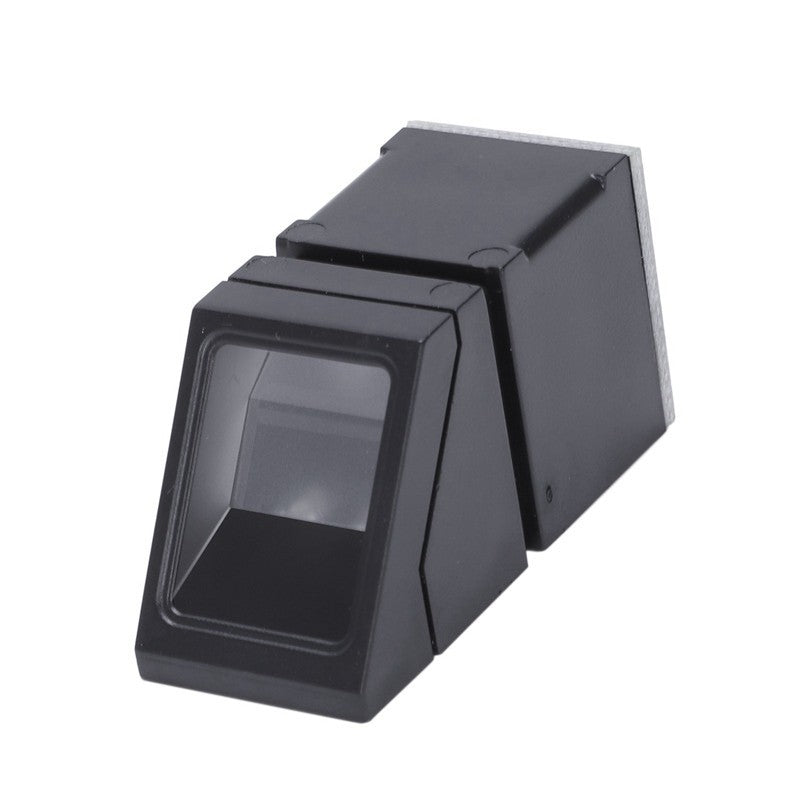

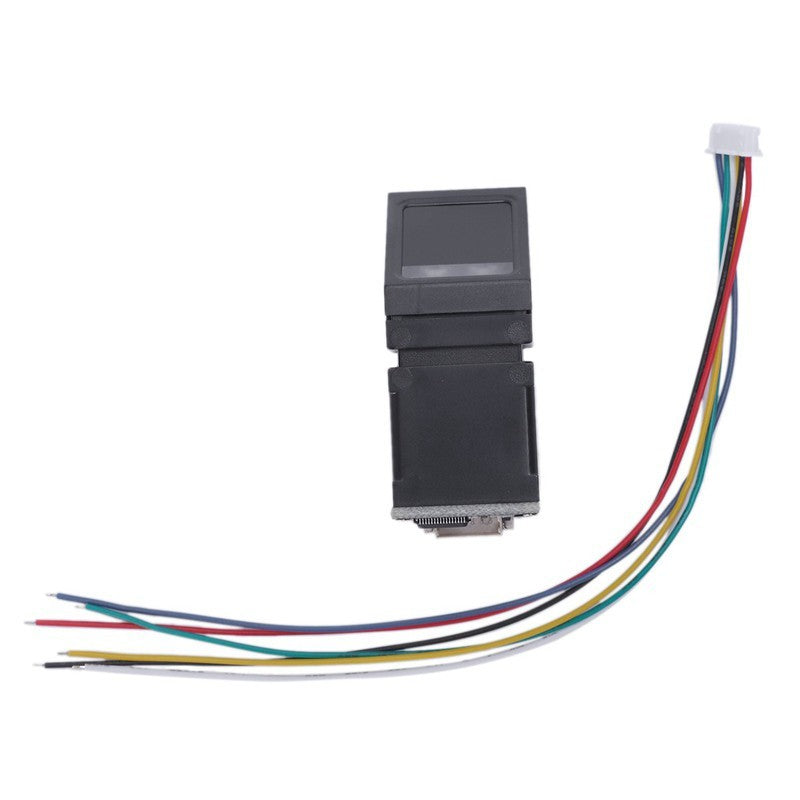

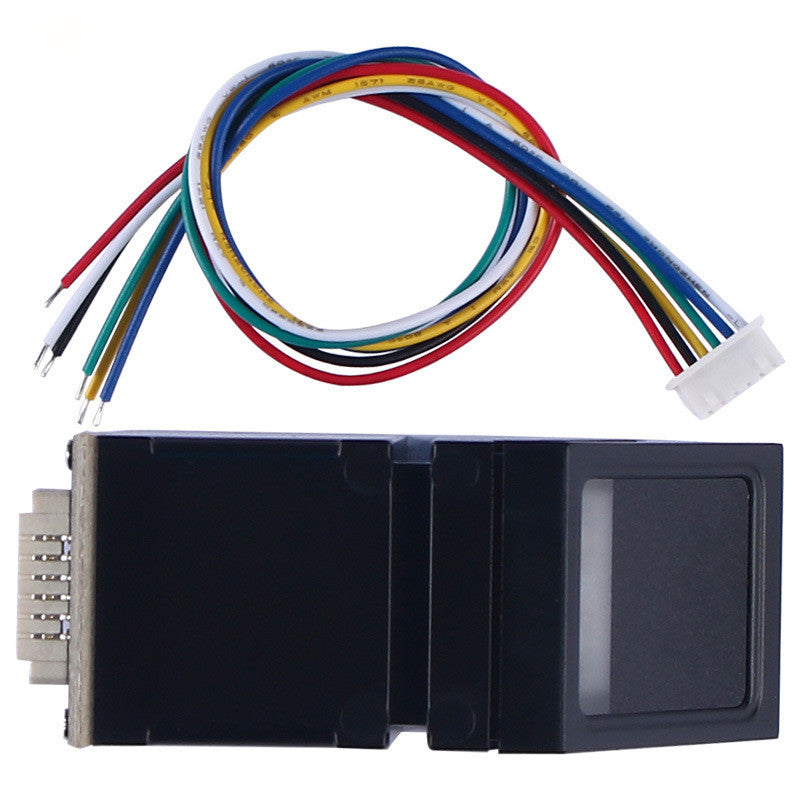

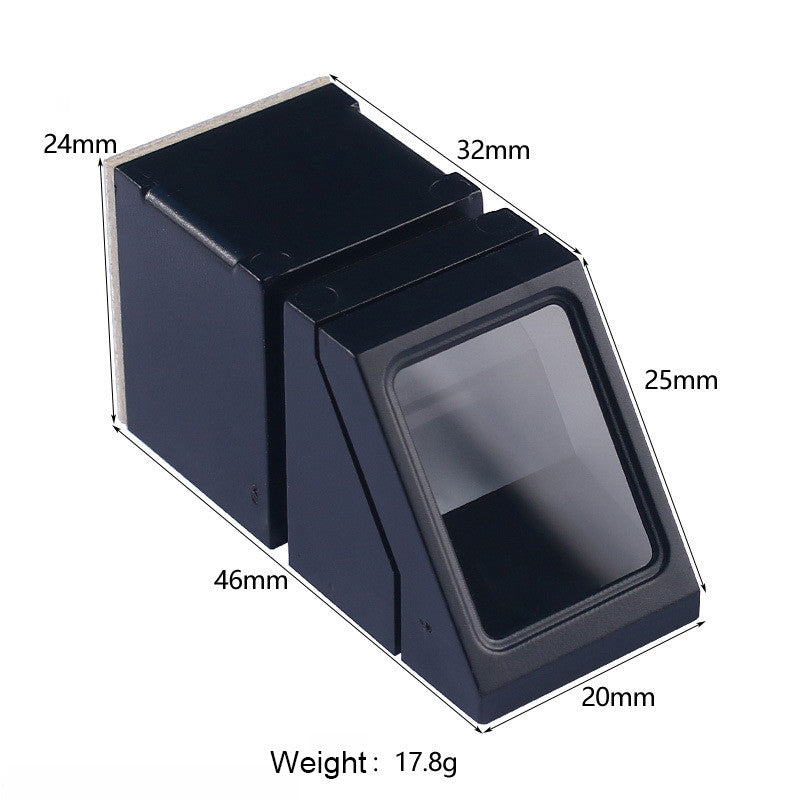

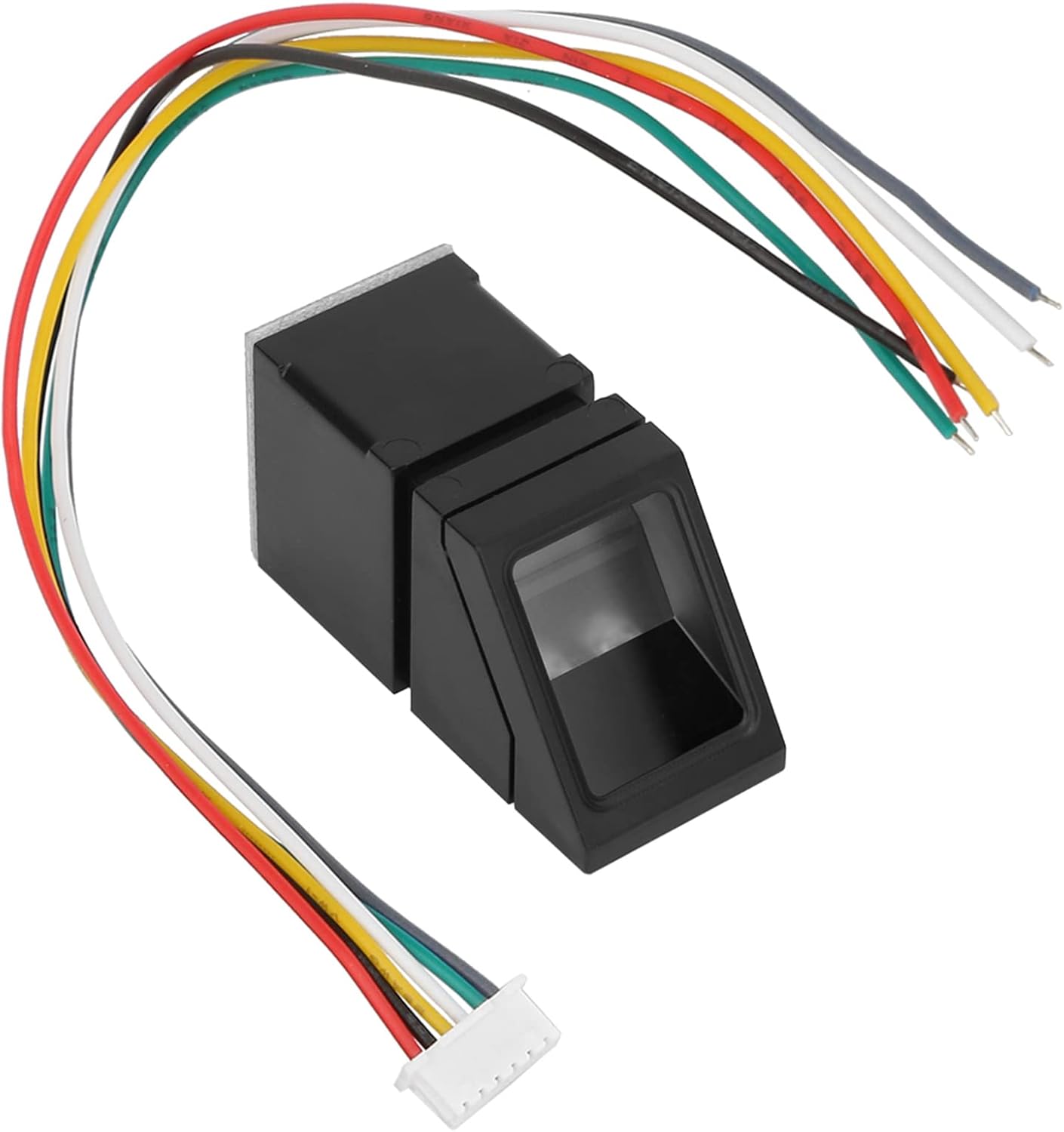

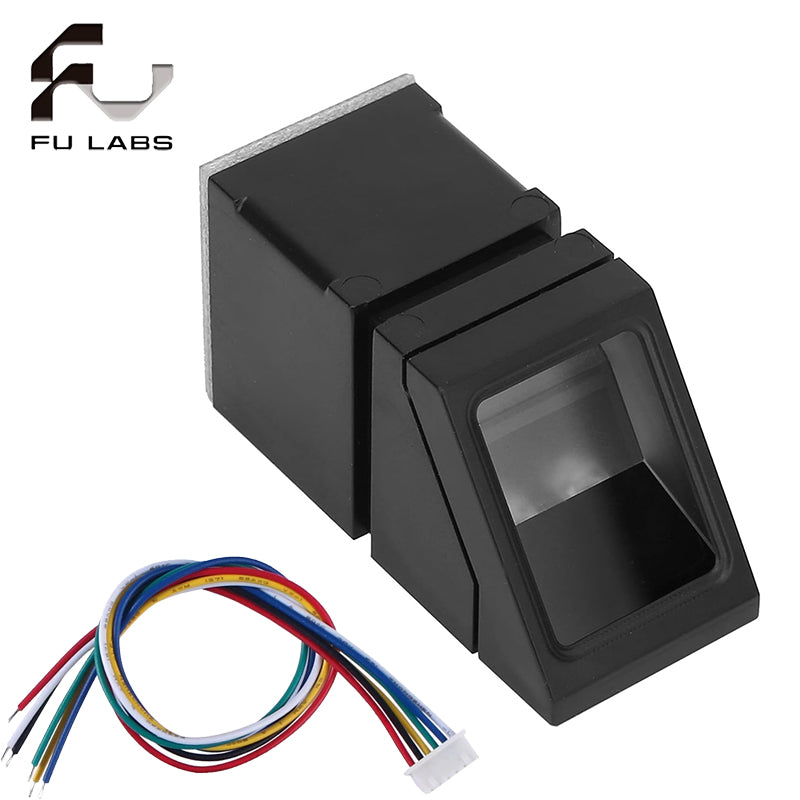

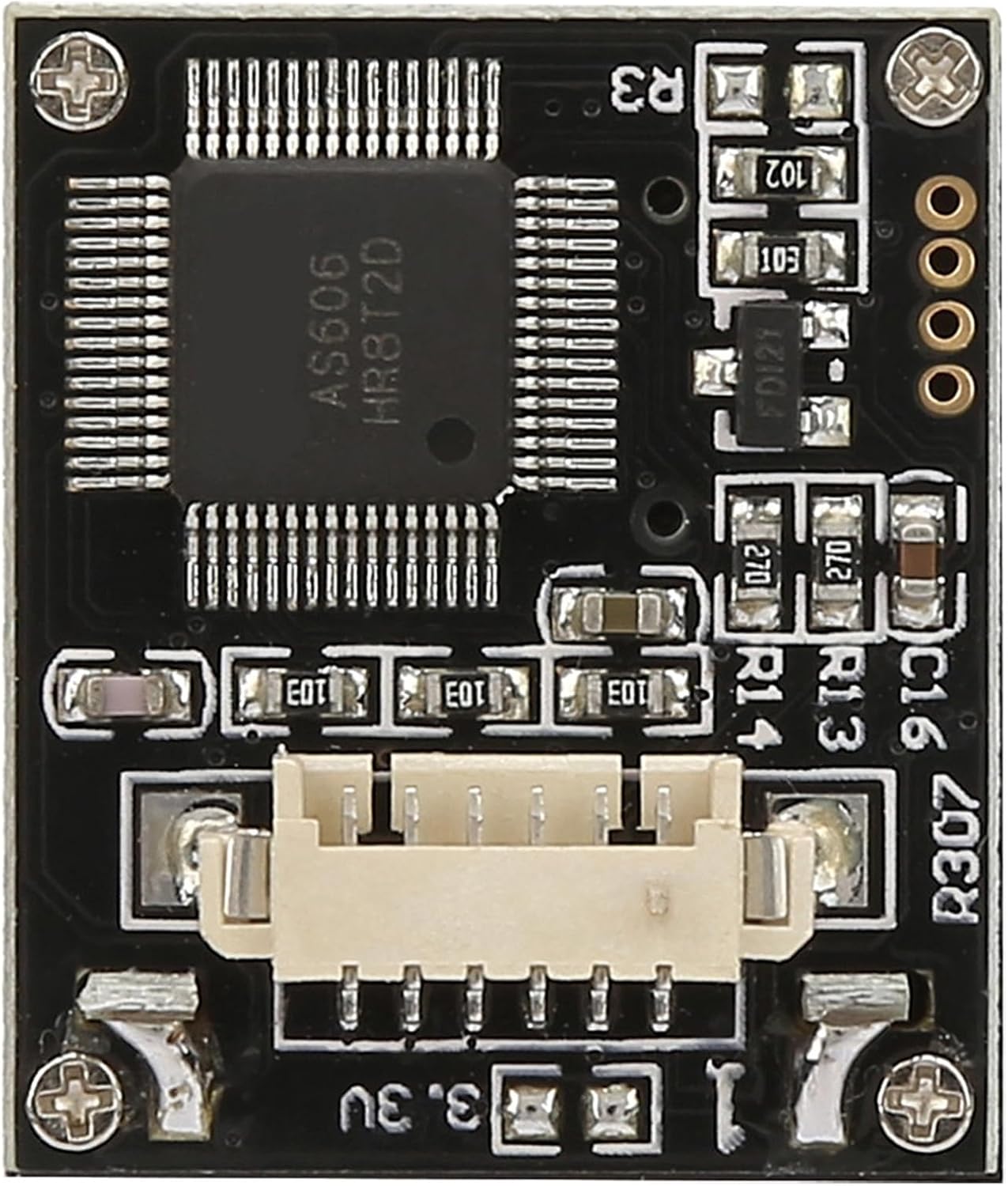

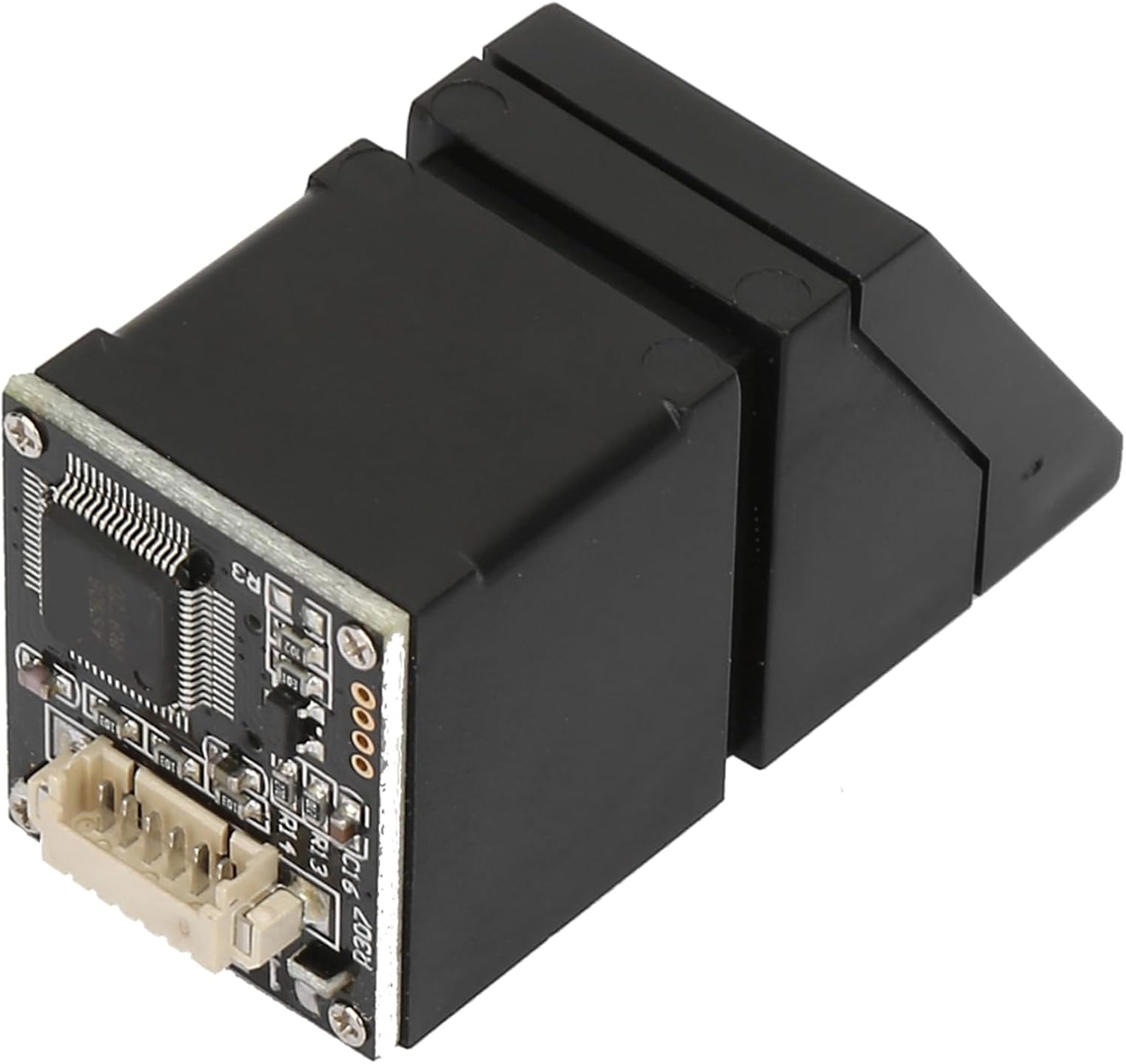

R307 Capacitive Fingerprint Reader/Module/Sensor/Scanner Optical Fingerprint Sensor

Key Features:

Fingerprint Capacity: Stores up to 1000 fingerprints.

Interfaces:

● Dual interfaces: RS232 (TTL level, default baud rate 57600, adjustable) and USB2.0.

USB2.0 connects to PCs.

RS232 interfaces directly with microcontrollers (e.g., ARM, DSP) supporting 3.3V/5V logic.

Note: PC connection requires level conversion (e.g., MAX232 circuit).

Module Self-Test:

● Power-on: Flash from the fingerprint window indicates normal self-check.

No flash? Check power supply connections.

Normal operation may cause slight chip heating (tested for safety).

● Colour:Black

Technical Specifications

Electrical:

● Voltage: DC 4.2–6.0V

● Current: 50mA (typical), 80mA (peak)

Performance:

● Capture Time: <0.3s

● Window Size: 14×18mm

● Matching Modes: 1:1 verification, 1:N search

● Security: 5 levels (1=lowest, 5=highest), FAR <0.001%, FRR <1.0%

● Search Time: <1.0s (for 1000 fingerprints)

Communication:

● UART Baud Rate: (9600×N)bps, N=1–12 (default: 57600bps)

● Host Interfaces: UART, USB1.1

Environmental:

● Operating: -20°C to +40°C, 40–85% RH (no condensation)

● Storage: -40°C to +85°C, <85% RH
