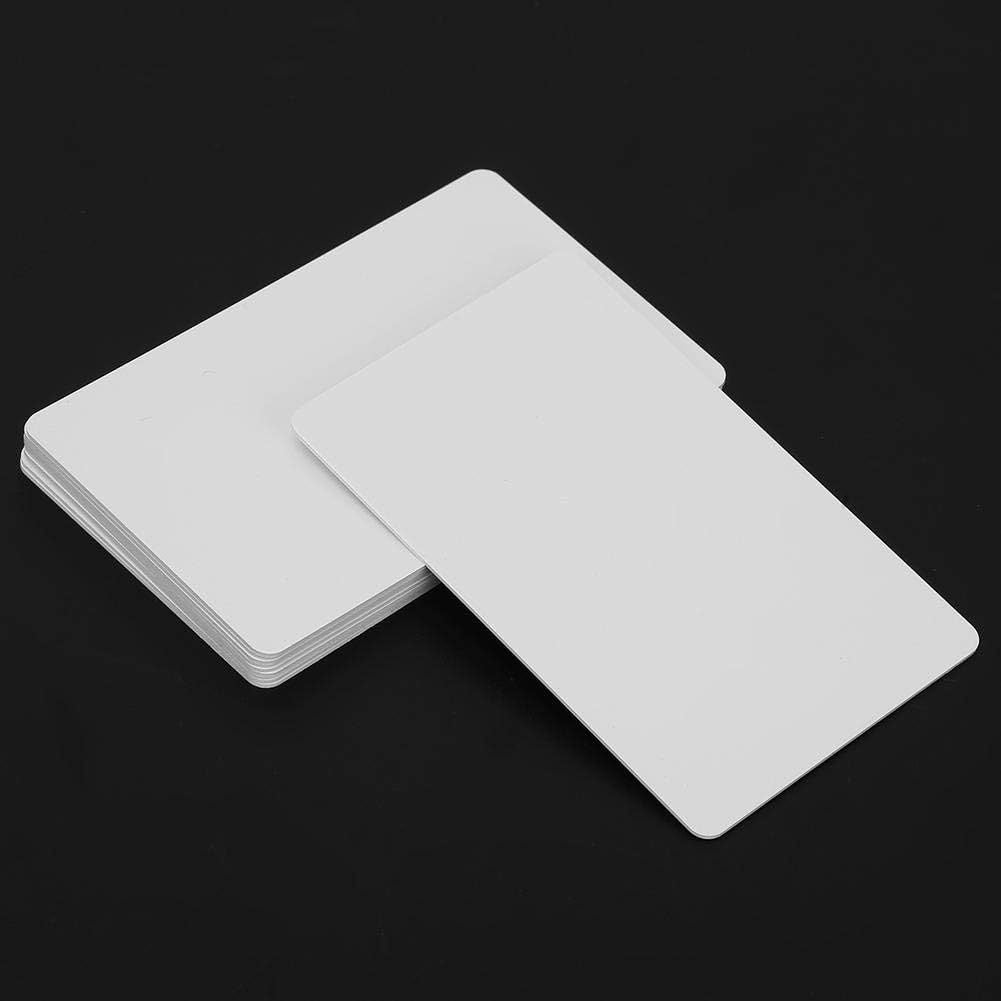

This IC card has an unchangeable serial number and cannot be used to copy access cards. It can be written.
- NFC cards may not work with iPhone application
Specifications:
*Contactless transmission of data and supply energy (no battery needed)
*Operating distance: Up to 100mm (depending on antenna geometry)
*Operating frequency: 125khz/13.56MHz
*Data transfer: 106kbit/s
*1Kbit, organized in 16 sectors, with each district with two passwords
*User-definable access conditions for each memory block
*Data retention of 10 years.
*Write endurance 100 000 cycles
Security
*Individual key set per sector (per application) to support multi-application with key hierarchy
*Unique serial number for each device
*Transport key protects access to EEPROM on chip delivery
Key features

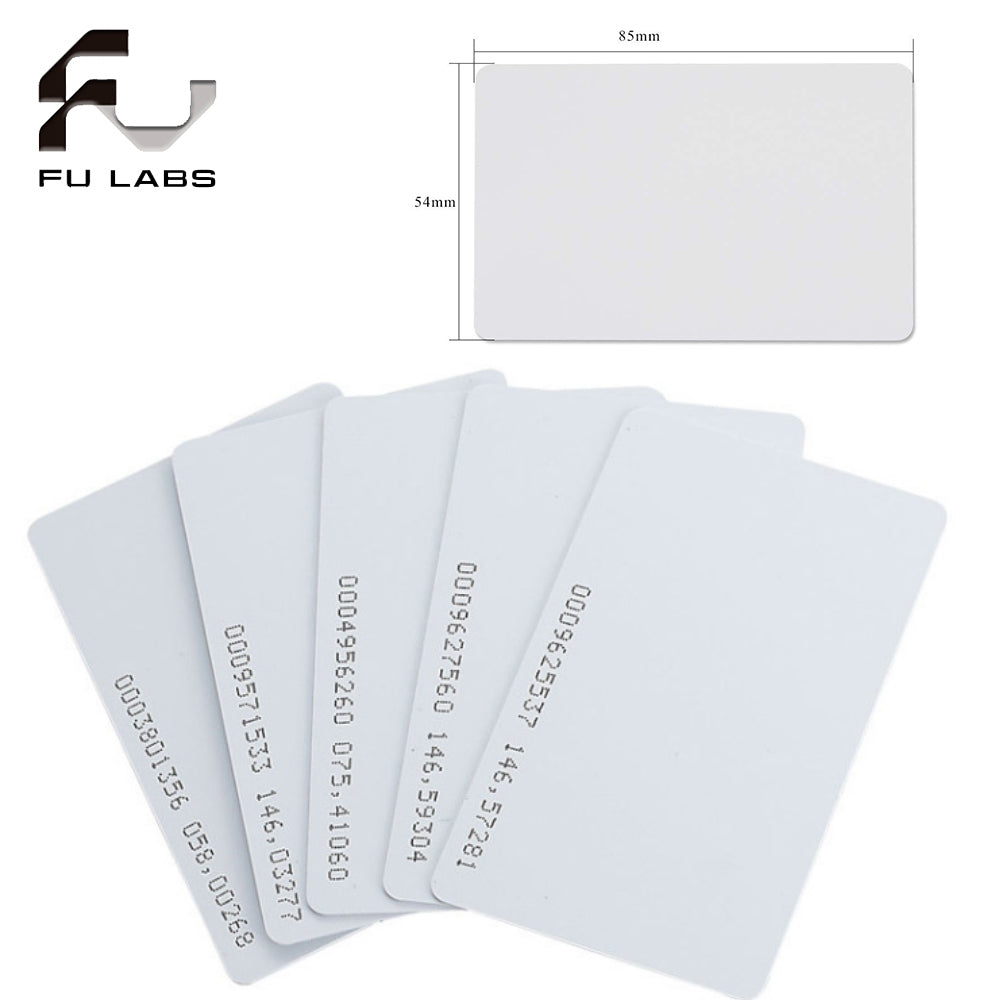

•Dimensions: 86 x 54mm
•Thickness: 0.88mm
•Material: PVC
•Data storage time: minimum 10 years
•Operating temperature: -20 to +60°C
•Stockage temperature: -20 to +65°C
Key applications
*Public transportation
*Access control
*Event ticketing
*Gaming & identity
- The frequency of a card is 13.56 Mhz. A standard 1386 proximity card is 125KHz.
- The standard card is factory programmed with a unique 32-bit serial number. This is a random number and does not contain a facility code. Most 26-bit proximity cards use a facility code within their configurations.
- A card has memory for storing values (typically up to 1 kilobyte of data). A proximity card does not have the capacity to store values.
RFID Readers & Prox Card Readers
- It’s important to make sure your card readers can “read” technology cards that are 13.56 KHz; your readers may only be able to read the 125KHz frequency. Also, Cards come pre-encoded with a unique 32-bit number, so you will need to make sure your software can read 32-bit formats.
