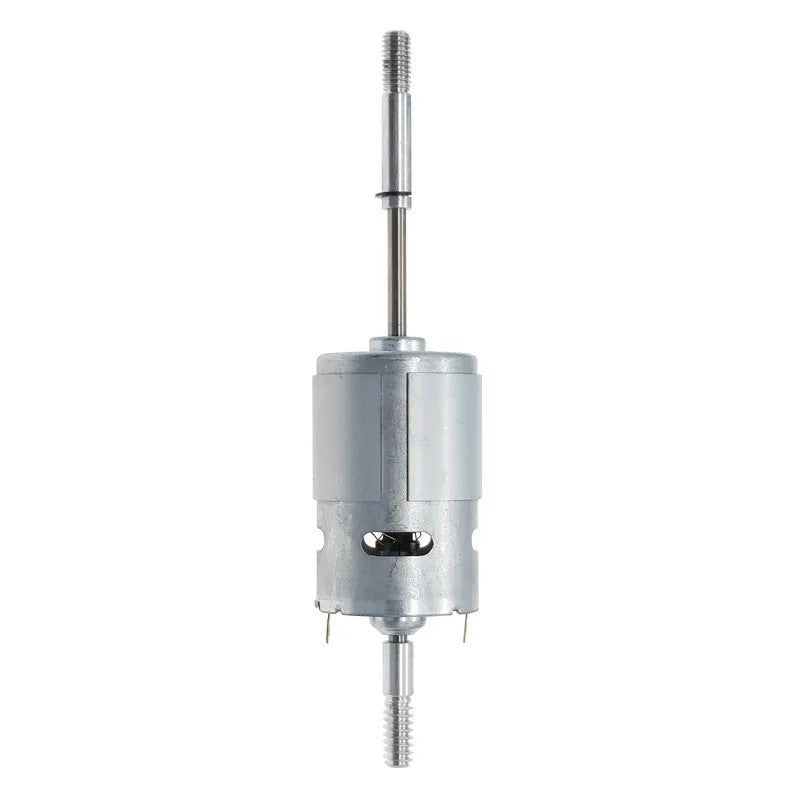

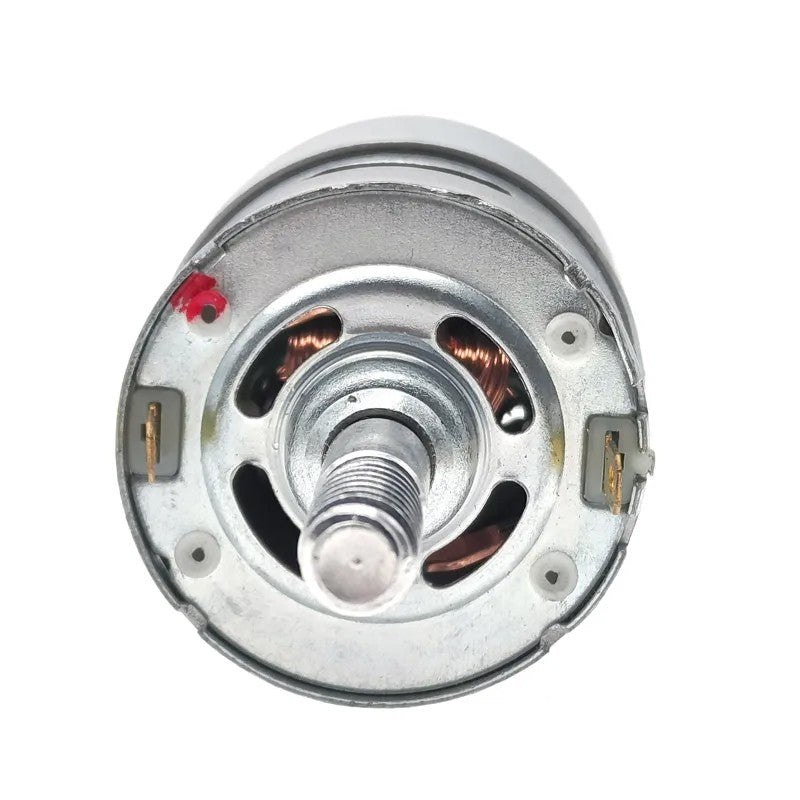

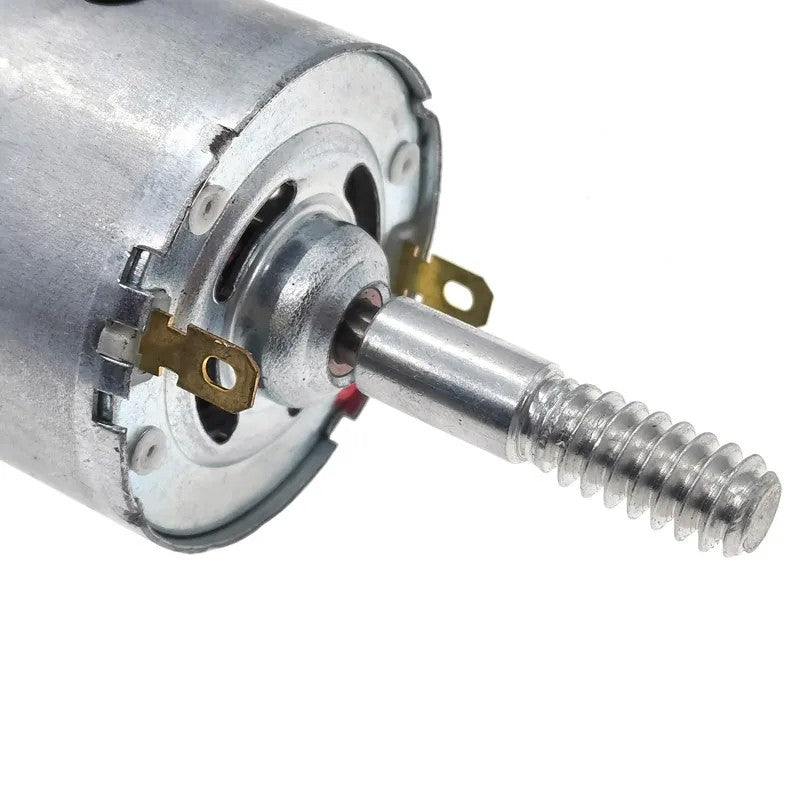

RS755-3380 DC12V Fan Motor Replacement 220V AC For Electric Fan Low Noise High Power,Speed Control

   Features:

  1.DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!

  2.DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.

  3.The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.

  4.Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

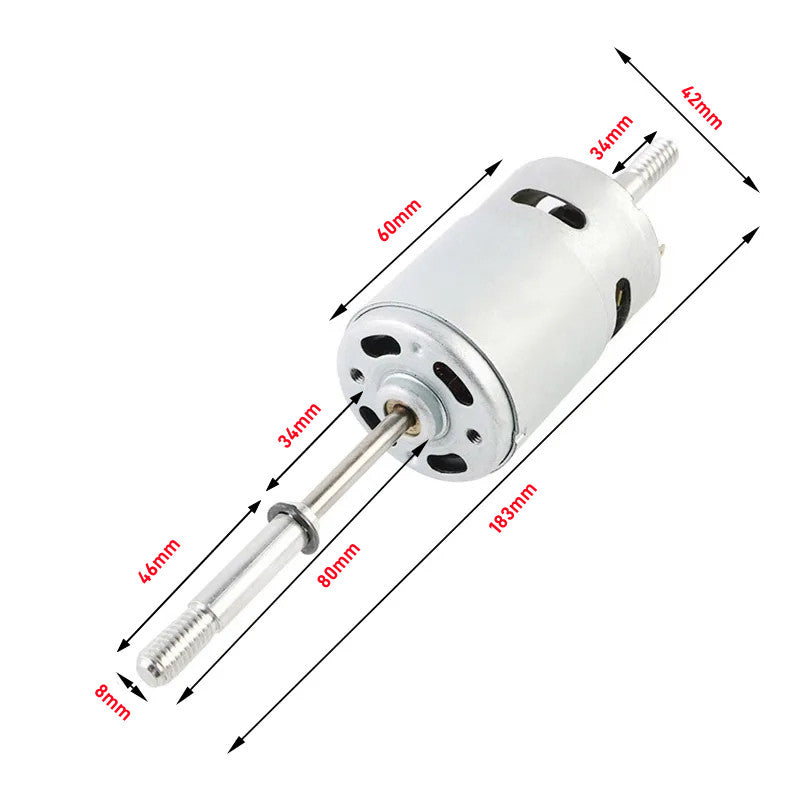

  Specifications:

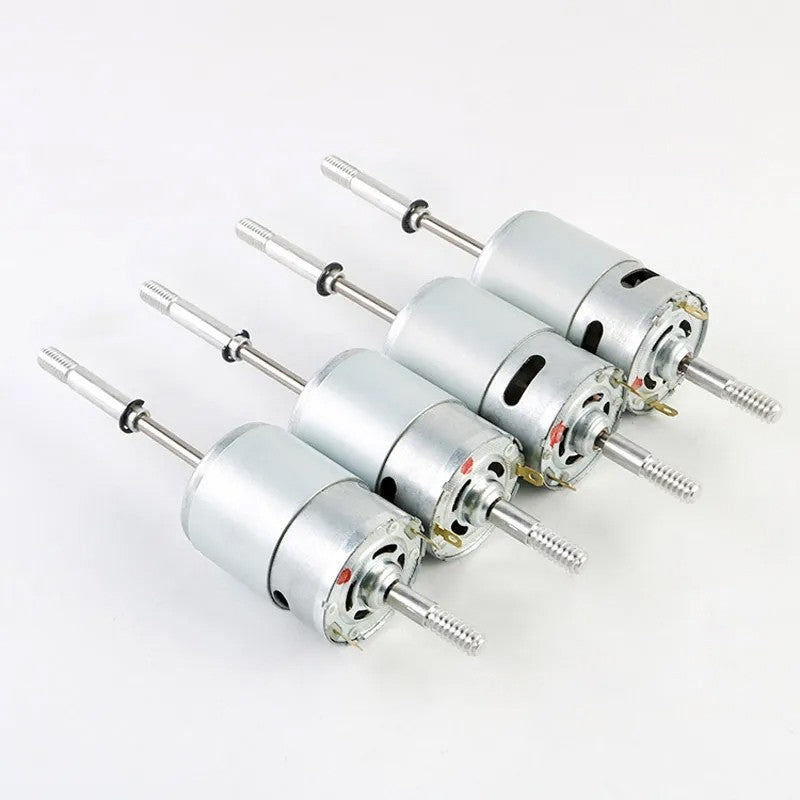

  Model: RS755-3380

  Working Voltage: 8V to 13.5V

  RPM: 2600Current: 0.2A

  Wattage: 22 watts ,13V with load

                  17 watts ,12V with load

  3200 rpm no load

  2000 rpm with fan load

  * brush type motor

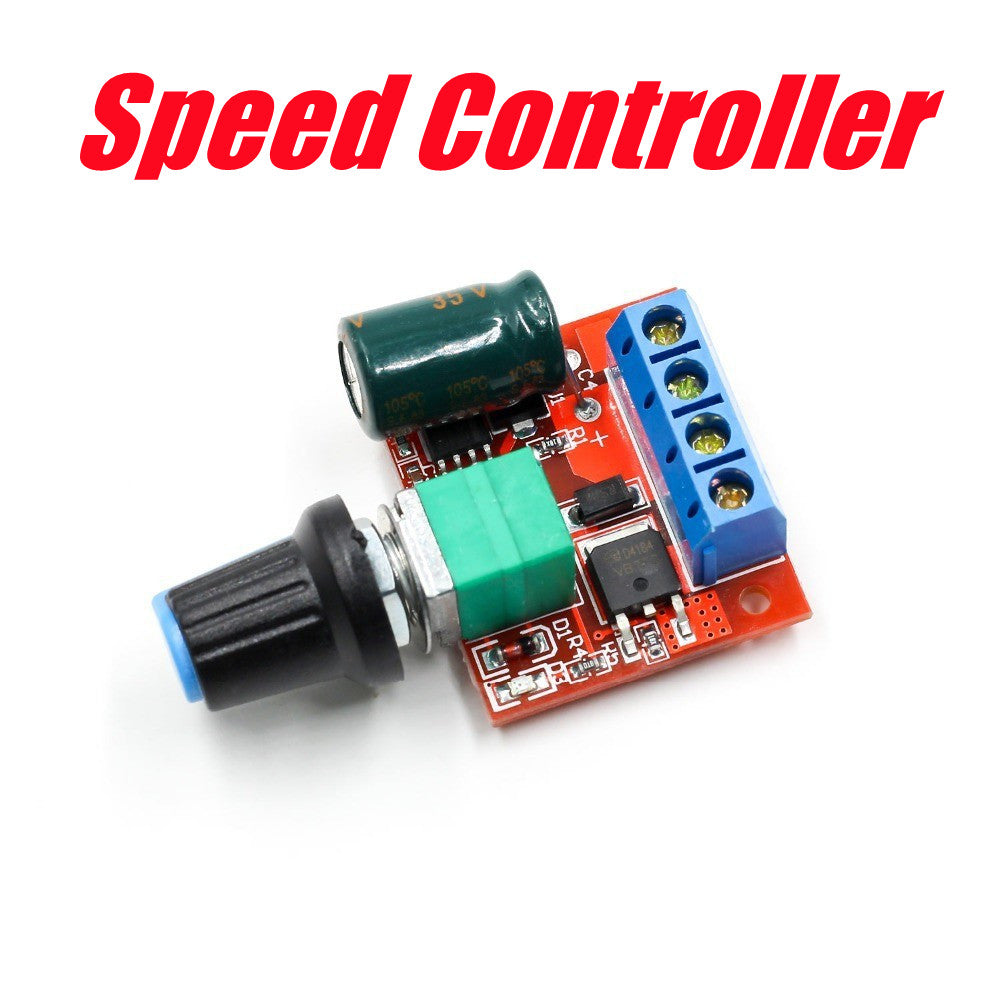

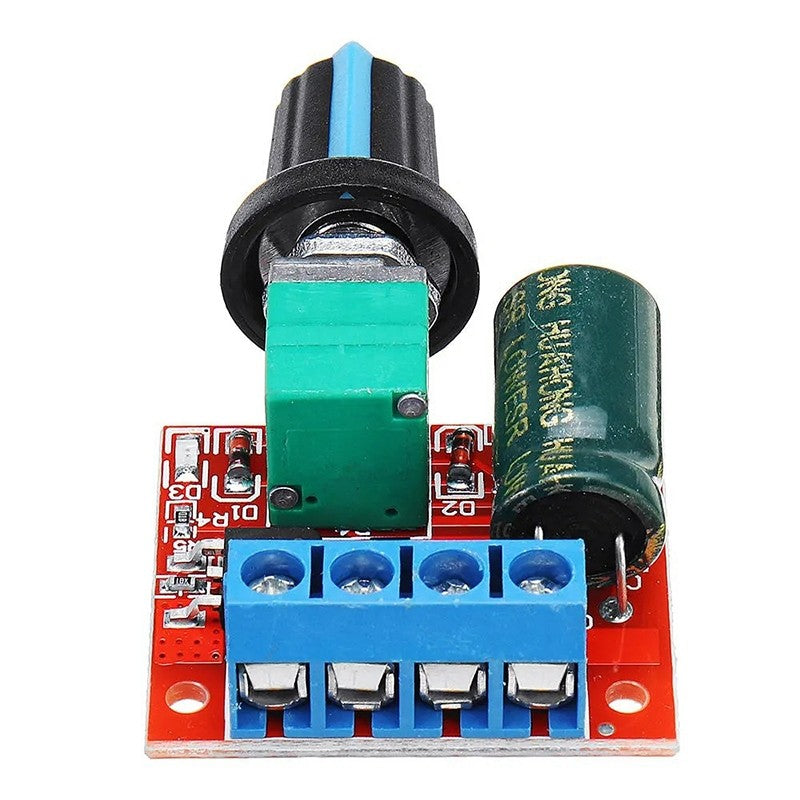

  5A Mini DC Motor PWM Speed Controller

  1.By screwing the potentiometer, you can turn off power supply output. High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recovery.

  2.Default disconnection of short circuit point. Please note: the operating voltage can be switched to 4.5V-35V by bridging the connectors marked '4.5V-35V' on the PCB.

   Package Contents:

  1*Speed Controller

  Or

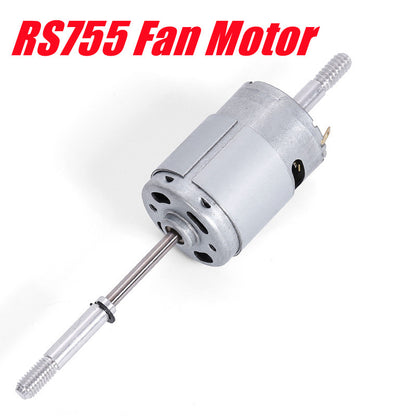

  1*RS755 Fan Moto

  OR

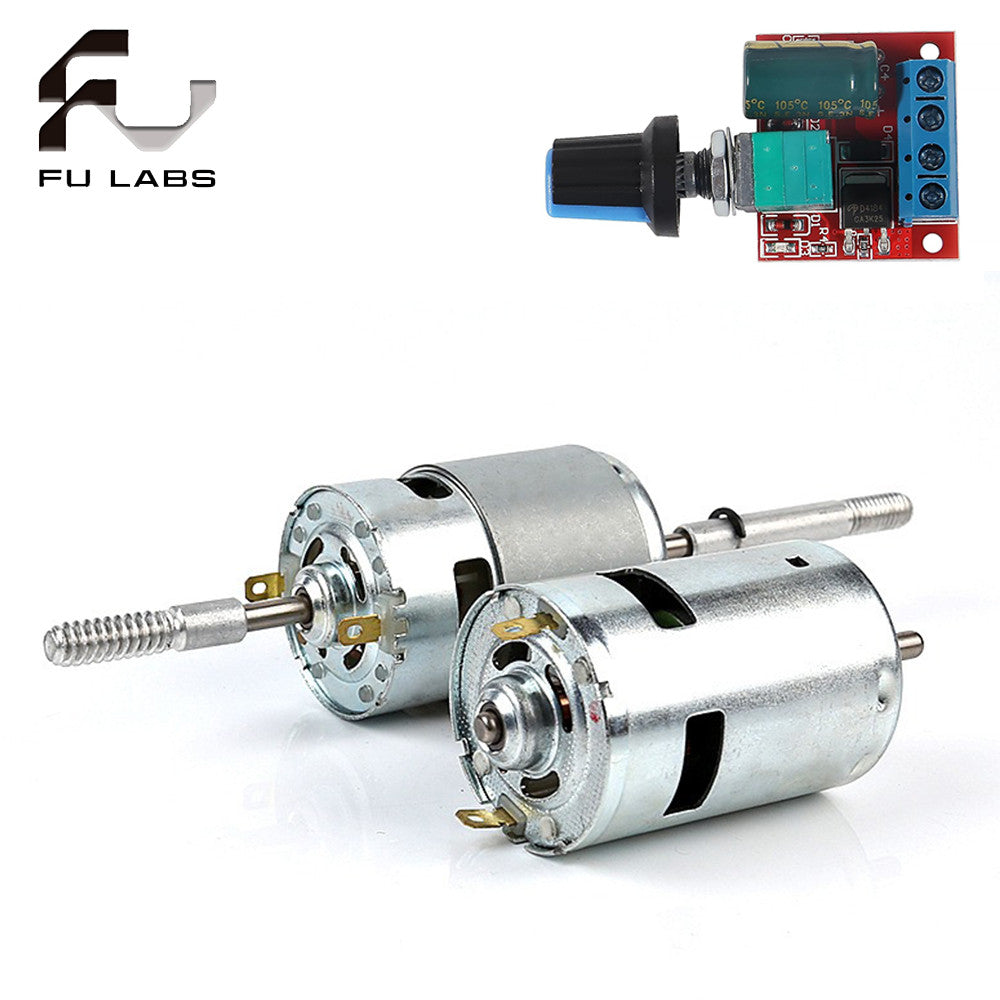

  1*RS755 Motor+1*Speed Controller
