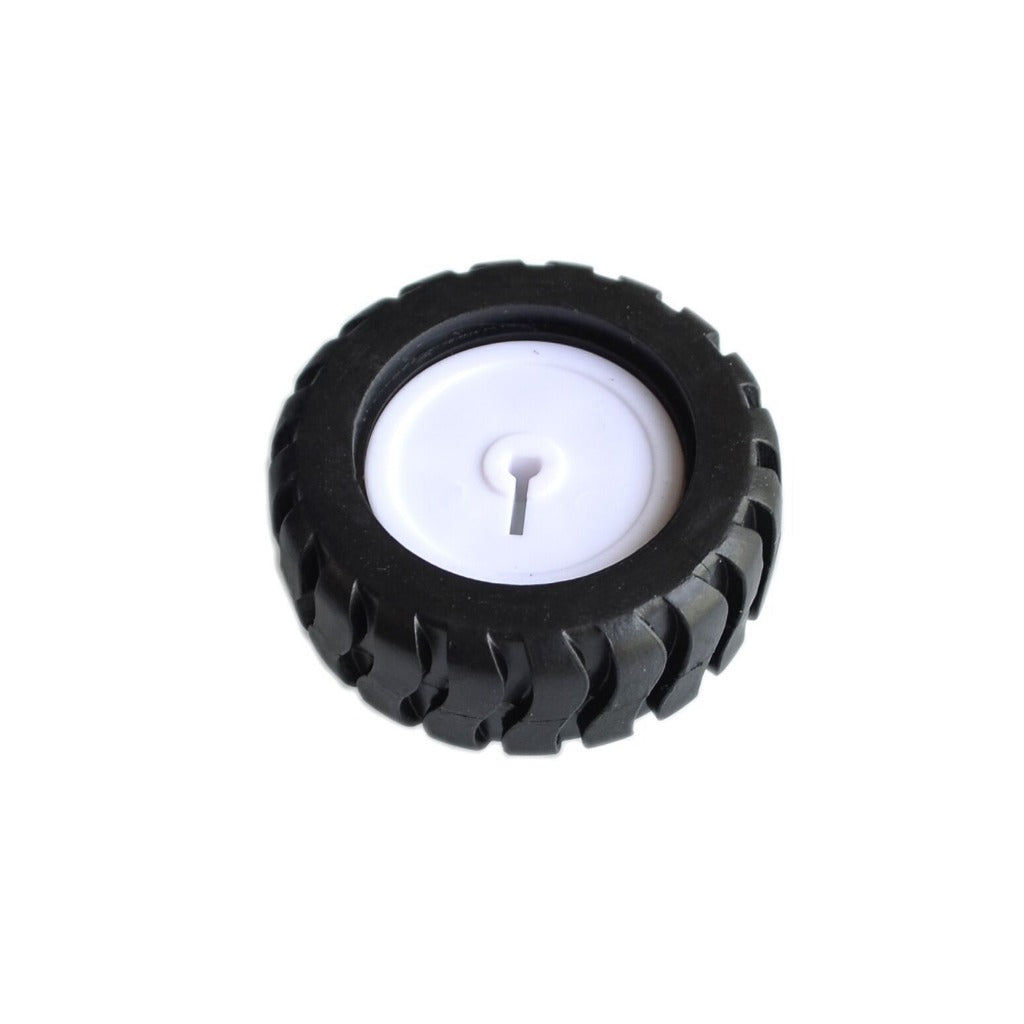

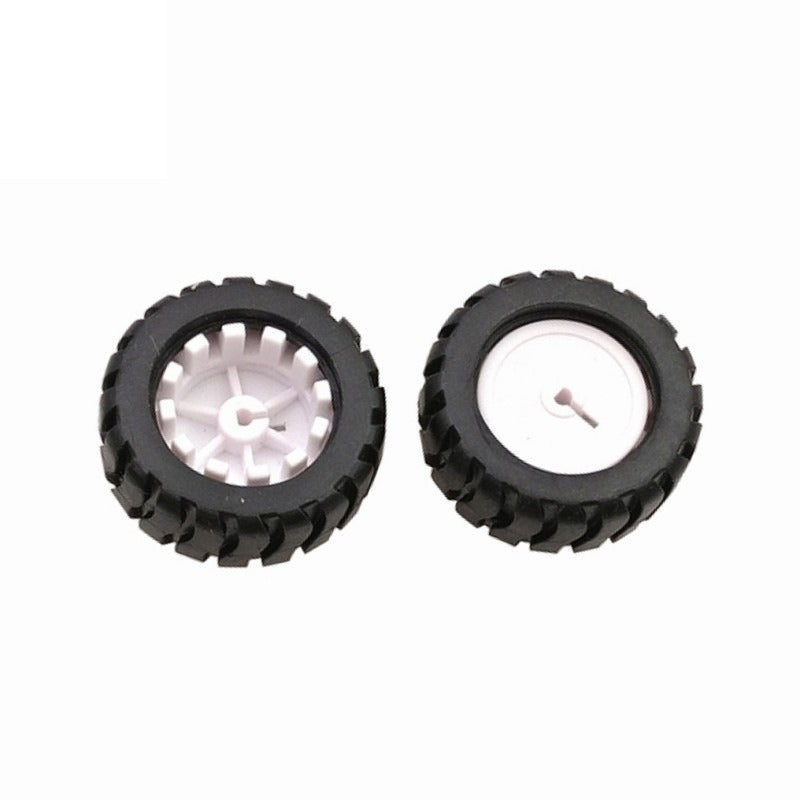

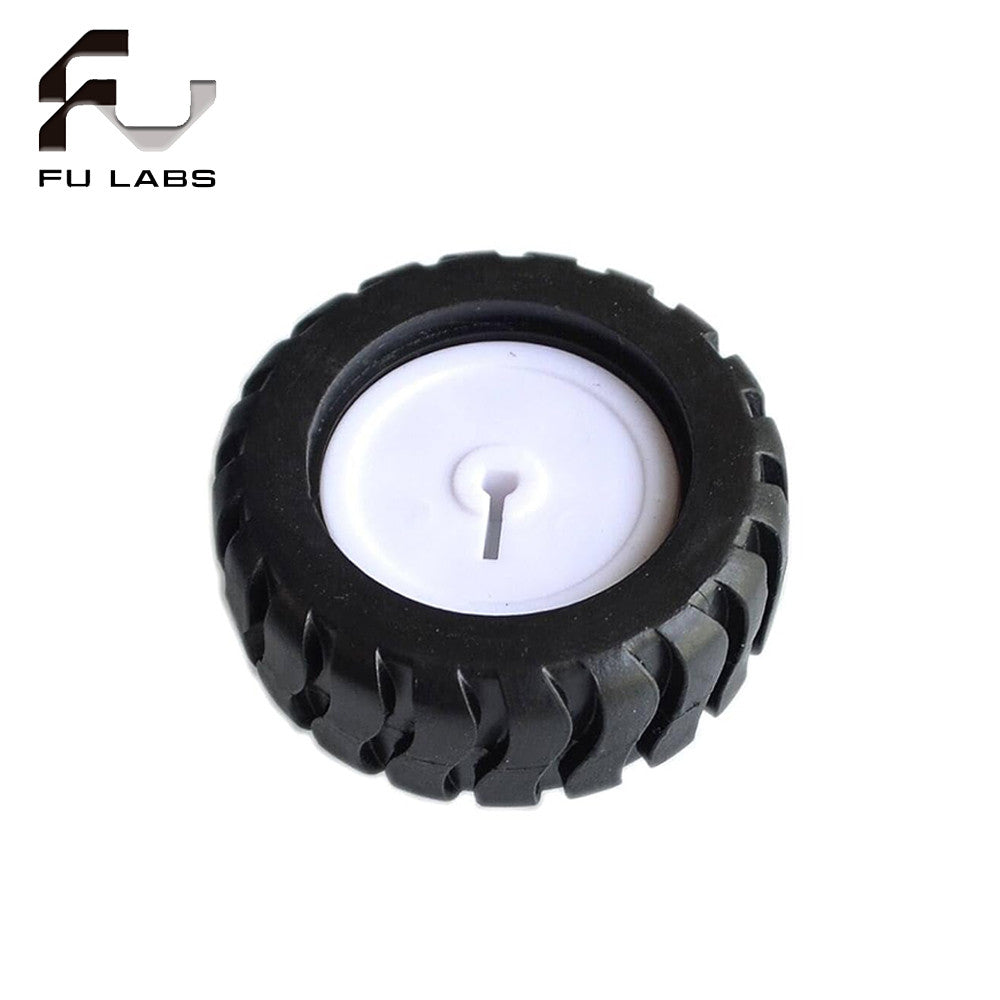

Rubber Wheel N20 ABS 43X19MM, D type 3mm hole

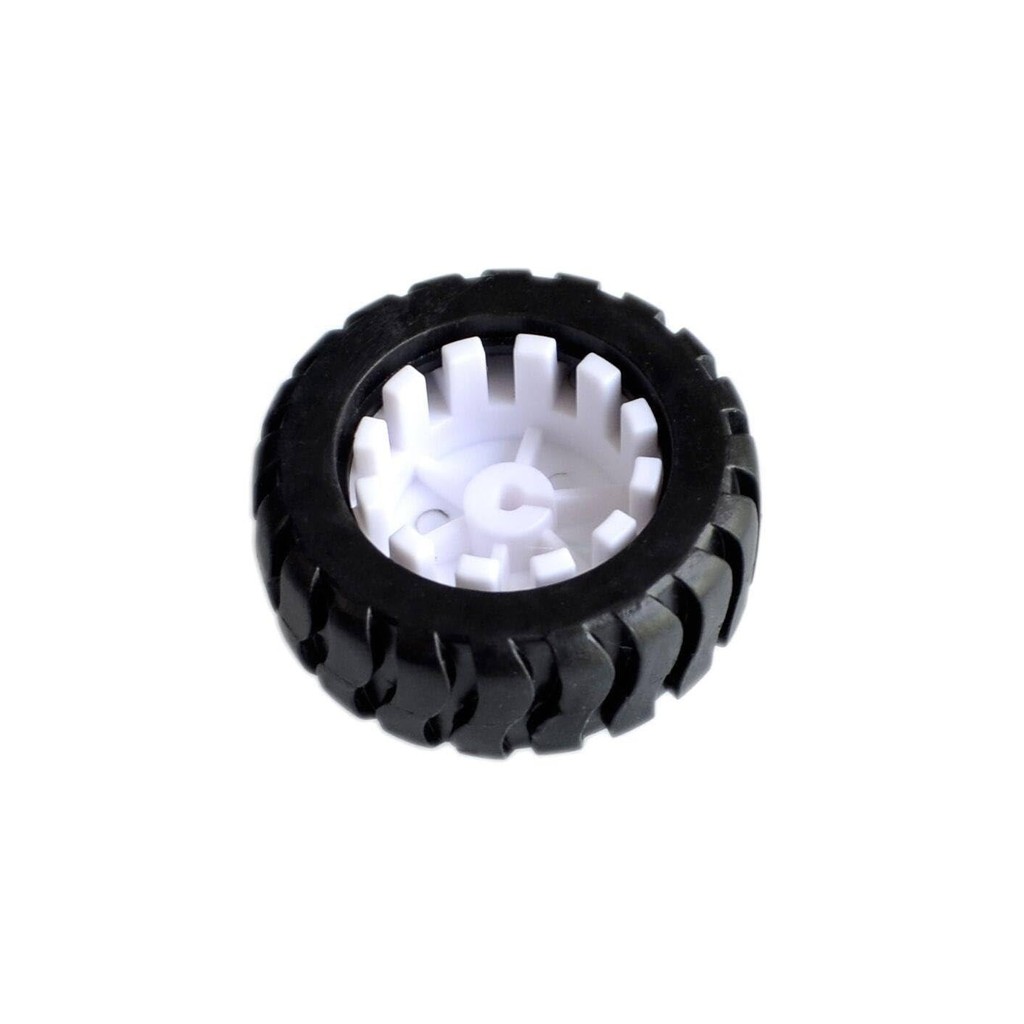

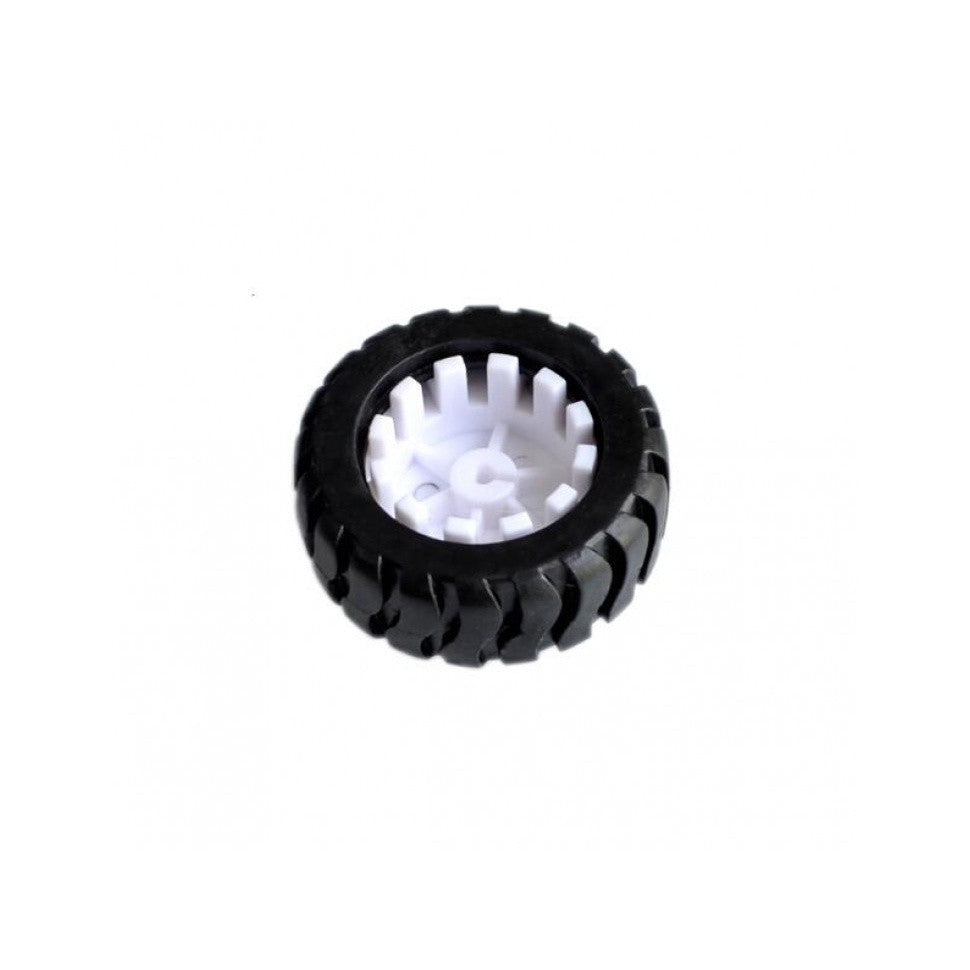

  This custom-designed rubber wheel has a rubber tire with a diameter of 1.69" (43 mm). It is designed to fit the output shafts on our mini metal gear motors as well as the Solarbotics metal gear motors. Teeth on the hub optionally allow a reflectance sensor to be used for encoder feedback.

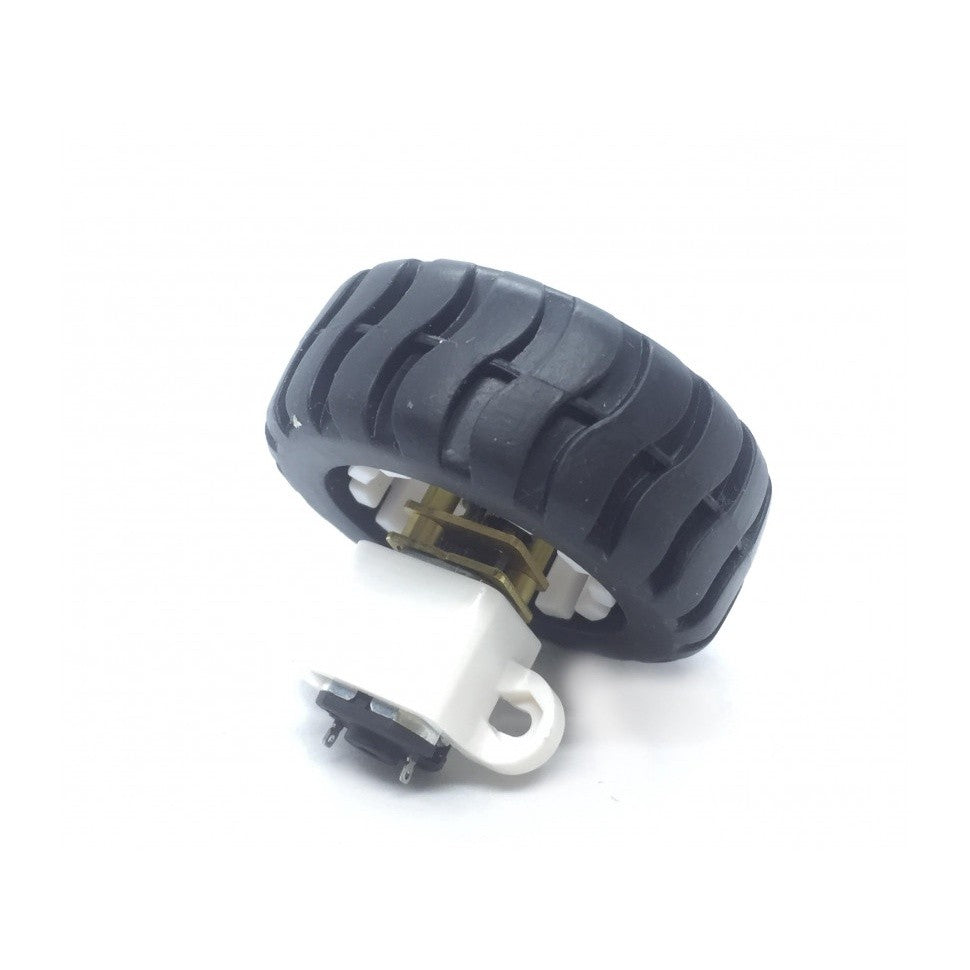

Gear motors should be mounted onto the side of the hub with the protruding teeth. The output shaft will slide into the socket easily at first but will achieve a snug fit when pressed through to the other edge of the hub.

The output shafts on the Solarbotics metal gear motors will also fit these wheels, but because they are shorter they will have to be mounted onto the other side of the wheel where the fit is tighter.

The Micro Metal Gearmotor Bracket Extended is specifically designed to work with this wheel. Please note that the non-extended version of our mounting bracket will not work well with this wheel.

QUICK SPECS:

Diameter: 43mm

Thickness: 19mm

Aperture: D type 3mm hole

Material: ABS plastic + rubber

Compatible with N20 motors
