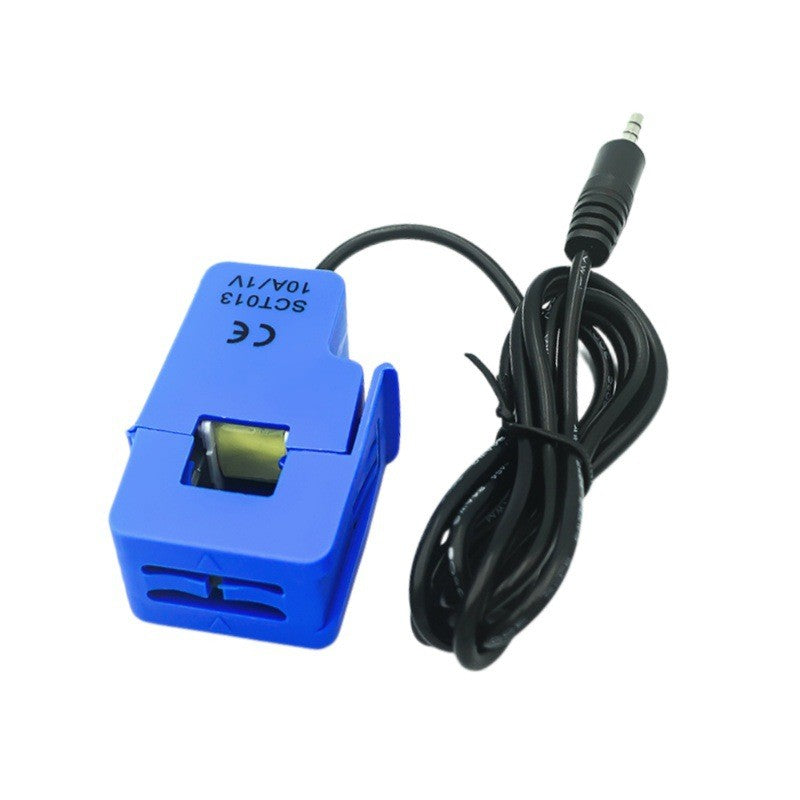

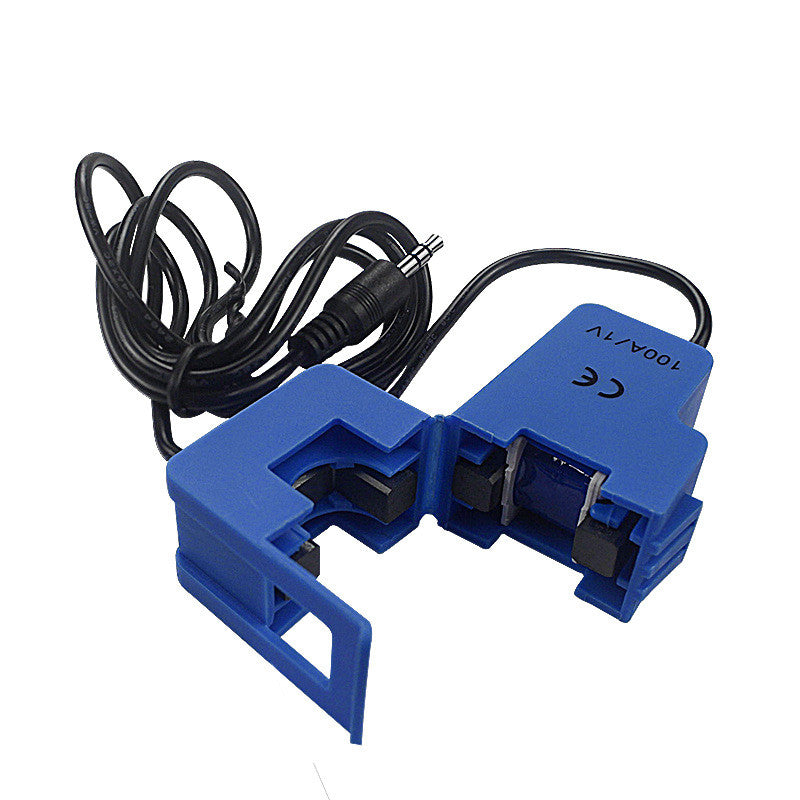

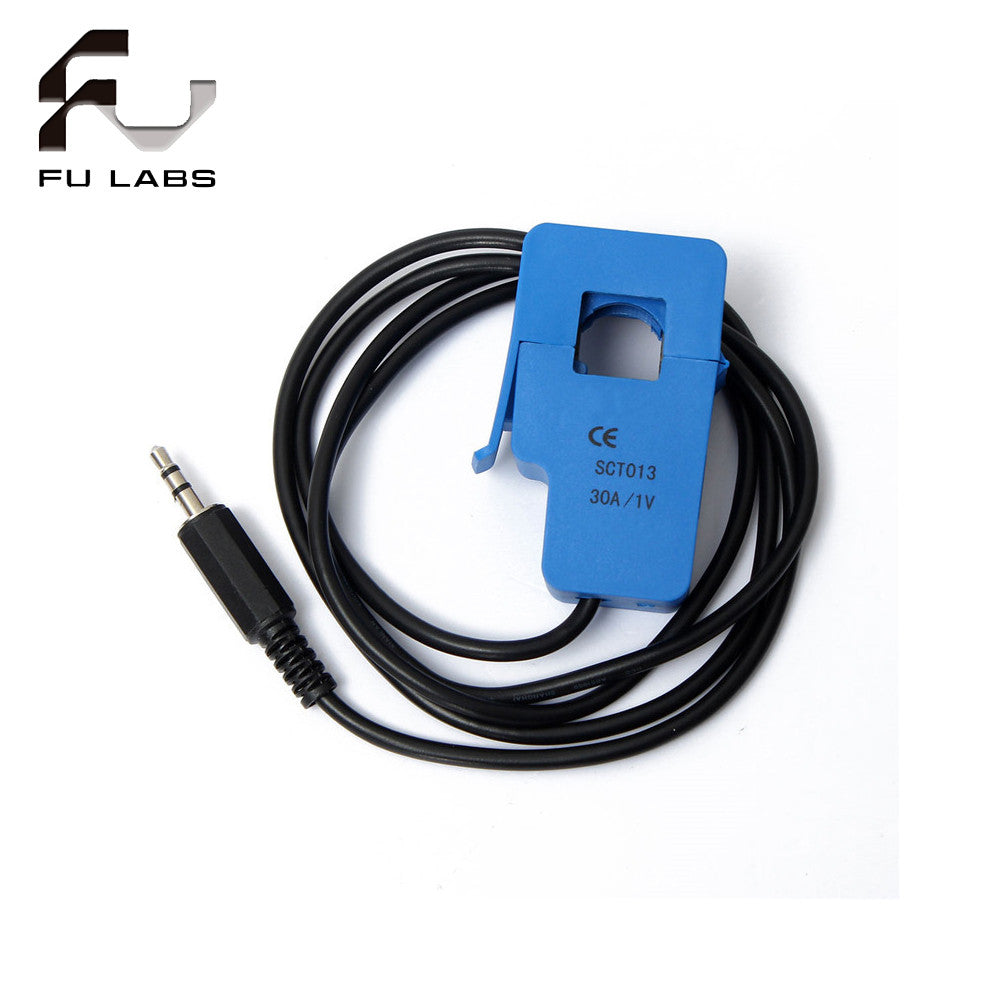

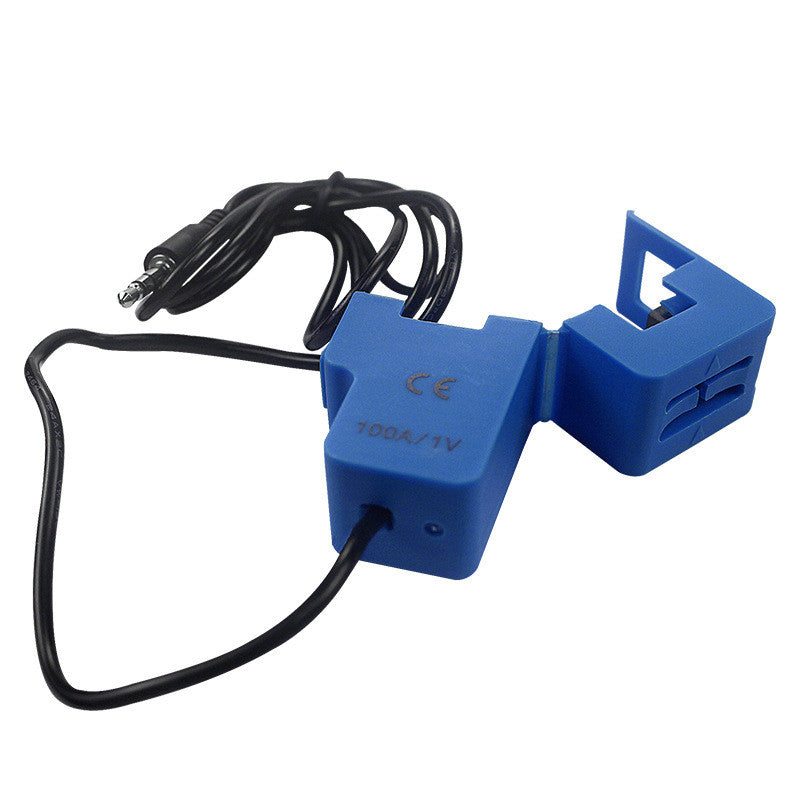

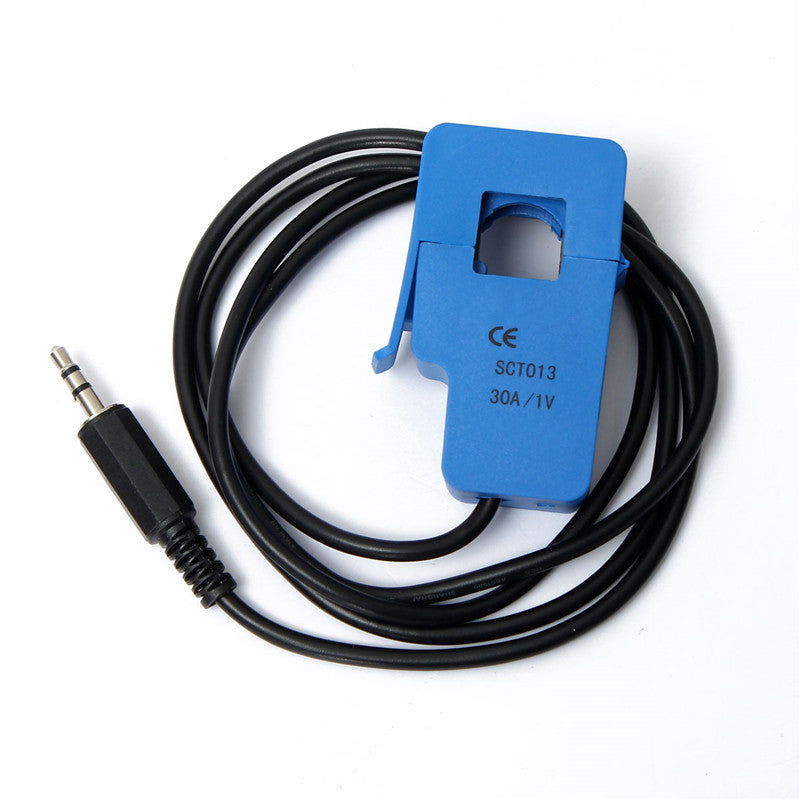

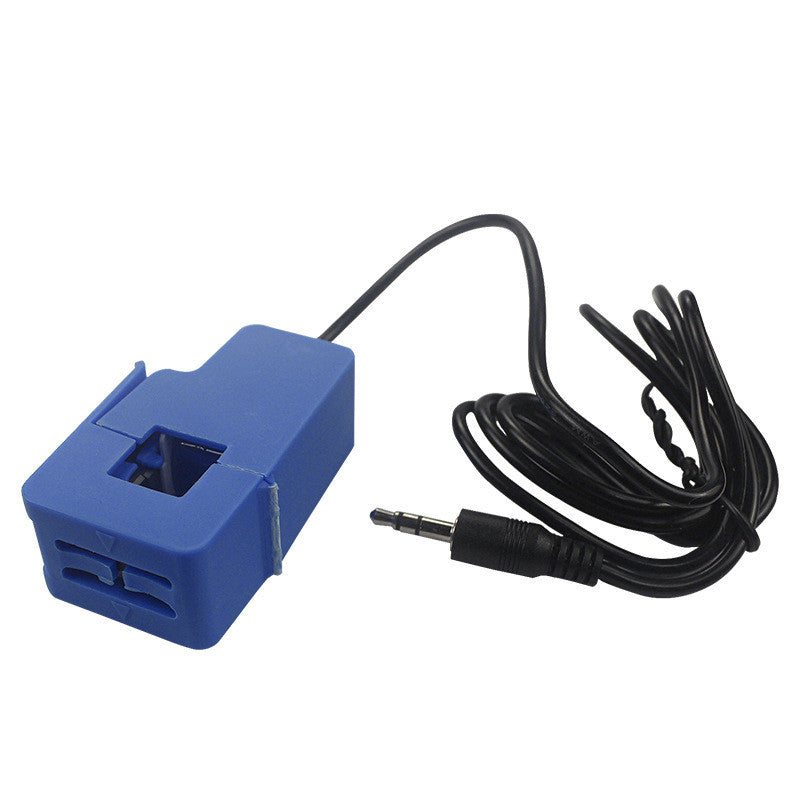

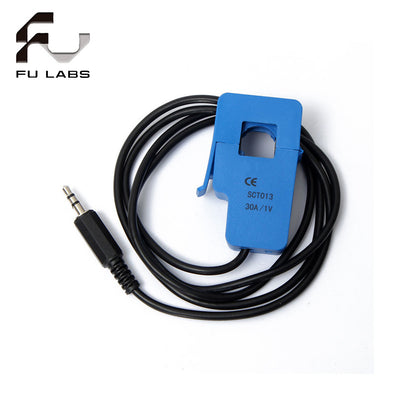

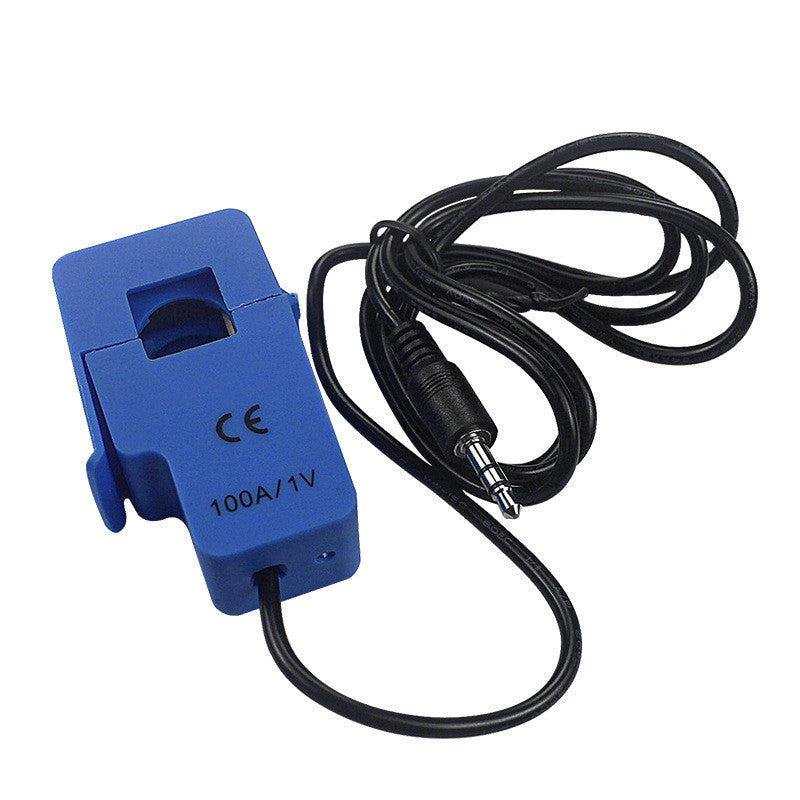

SCT-013-000 Circuirocks Non-Invasive AC Current Sensor Split Core 30A-100A Sct-013-030

SCT013 Series Current Transformer Specifications

Models:

SCT013-030: 30A/1V/1% accuracy

SCT013-000: 100A/50mA/1% accuracy

SCT013-000: 50A/1V/1% accuracy

Electrical Characteristics:

Frequency range: 50Hz-150kHz

Output types: Current output (50mA) or Voltage output (1V)

Non-linearity: ±3% (10%-120% rated current range)

Output interface: 1.5m cable with Φ3.5mm TRS connector

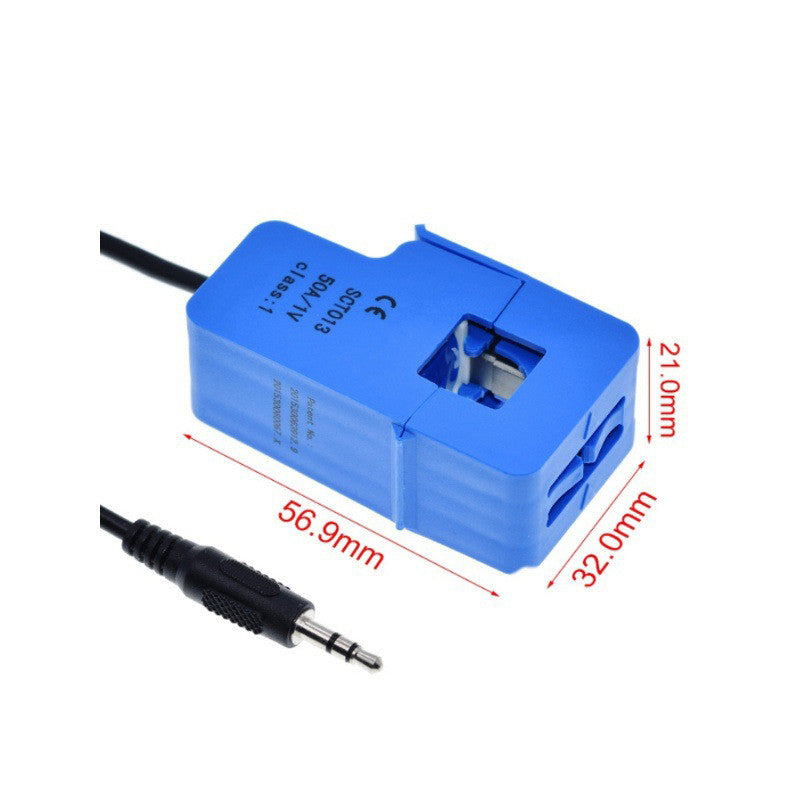

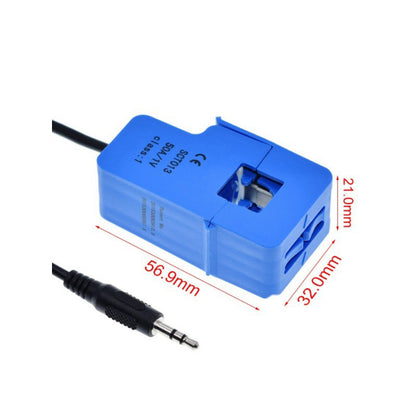

Mechanical Properties:

Core opening: 13mm×13mm (Internationally compatible)

Core material: Ferrite

Mechanical durability: ≥1000 open/close cycles (tested at 20℃)

Operating temperature: -25℃ to +70℃

Safety Certifications:

Dielectric strength: 6000V AC/1min (housing to output)

Flame rating: UL94-V0 certified

Applications:

Current measurement, monitoring and protection for AC motors, lighting systems, air compressors and other equipment
