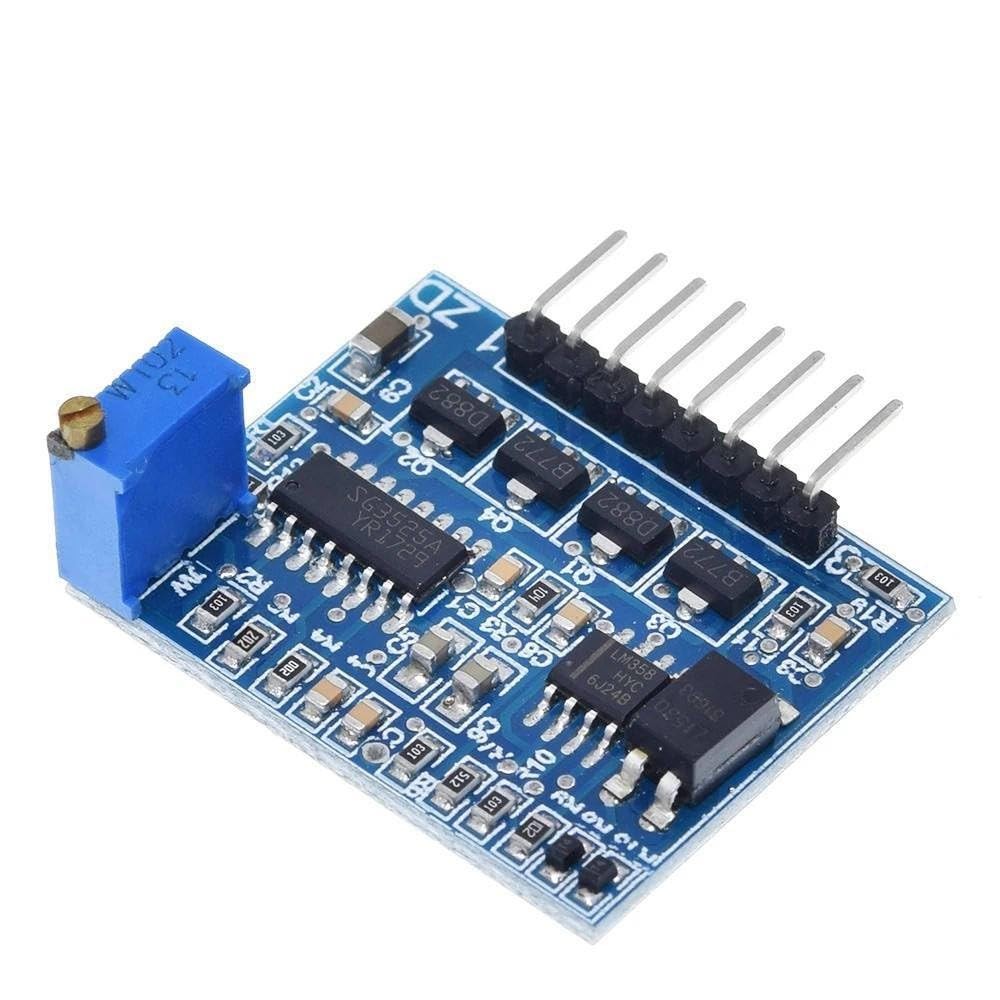

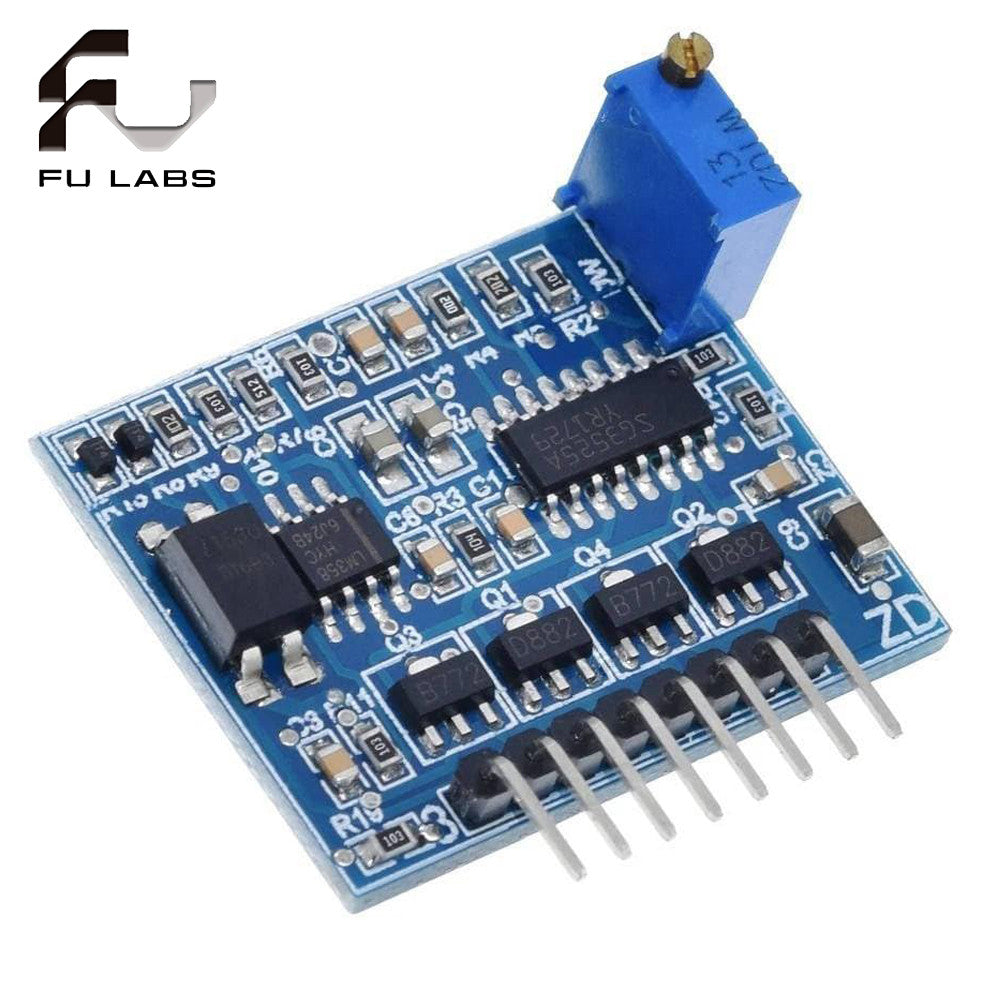

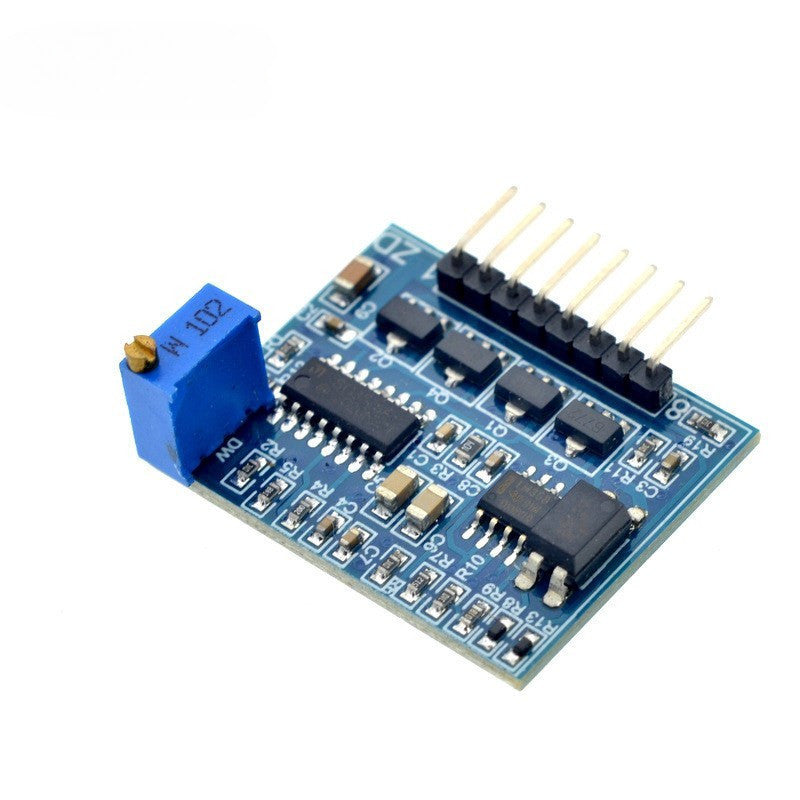

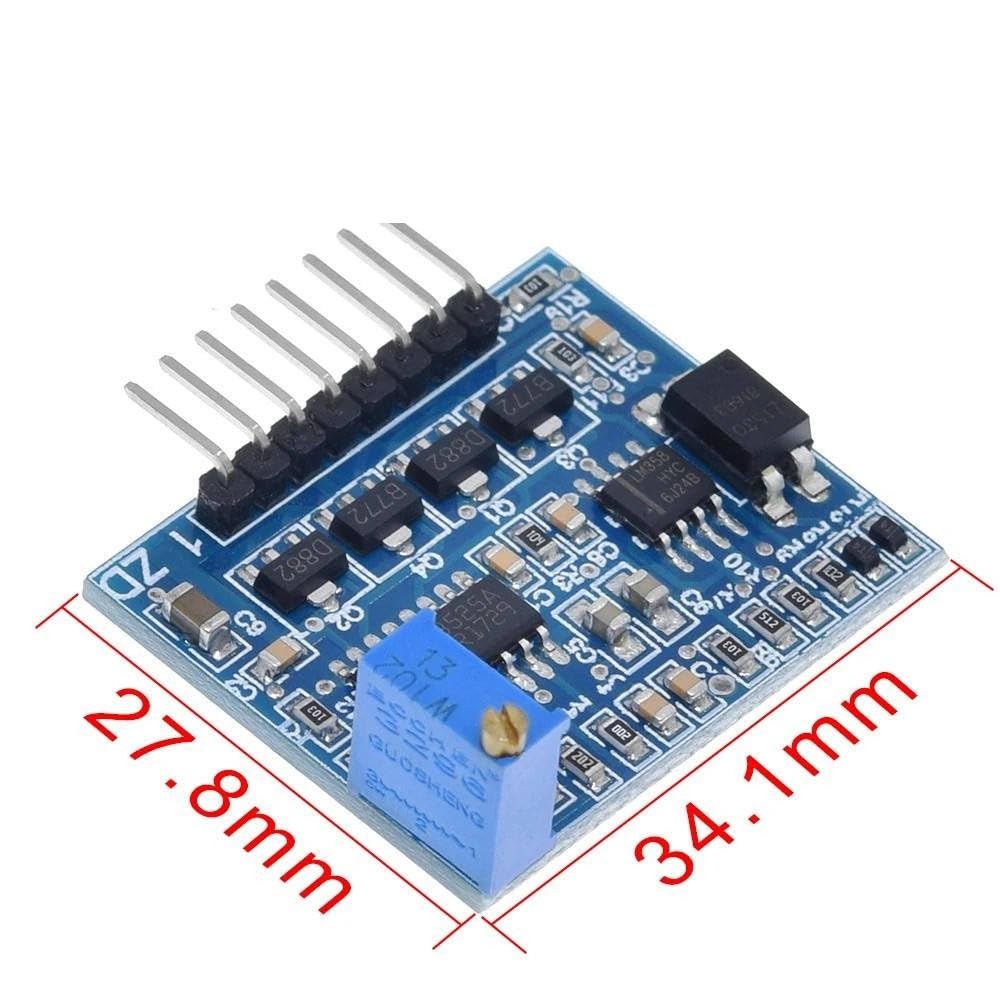

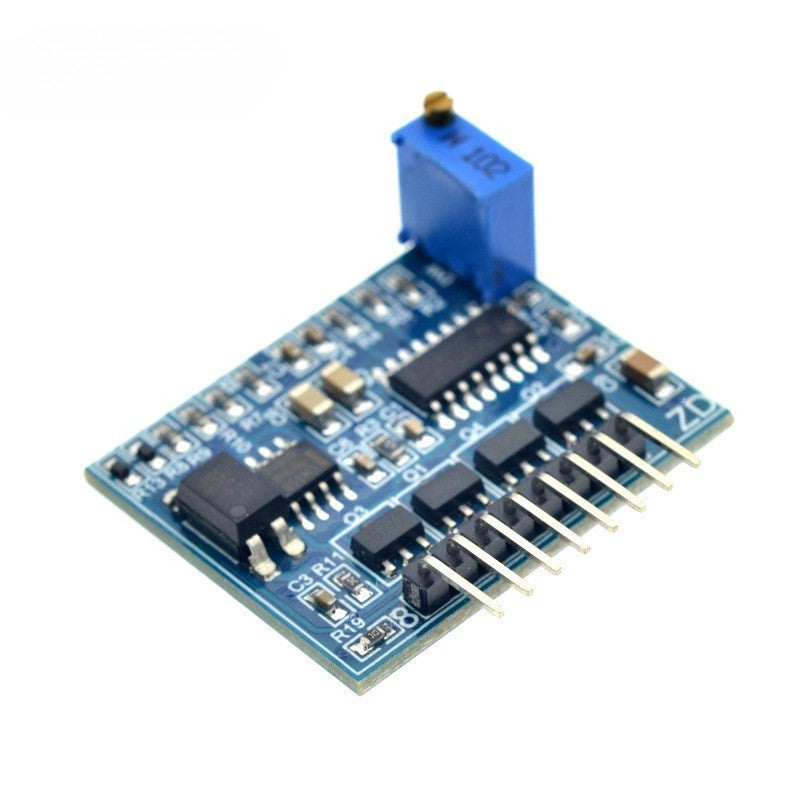

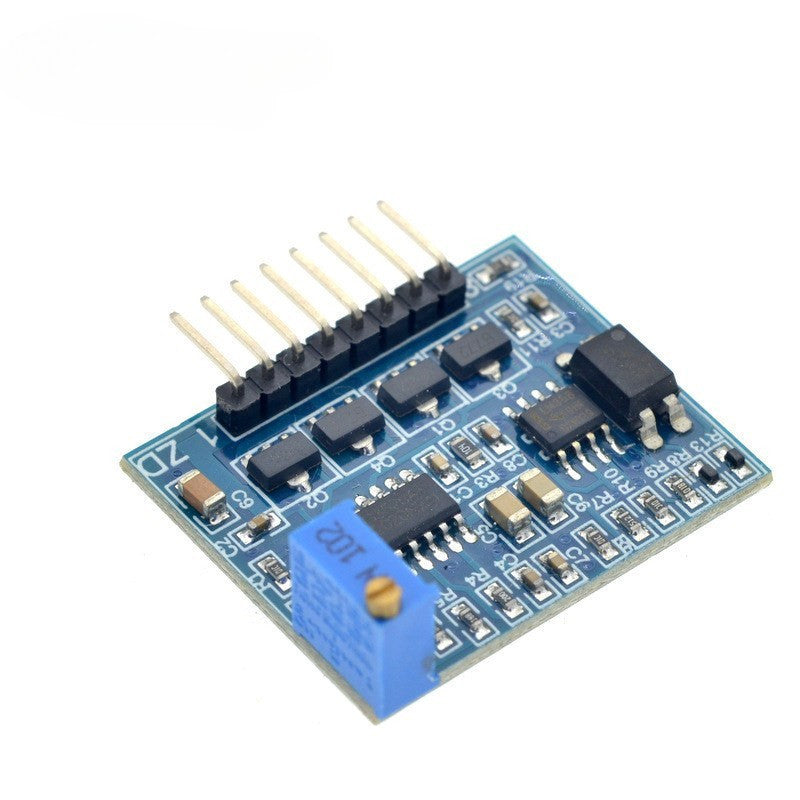

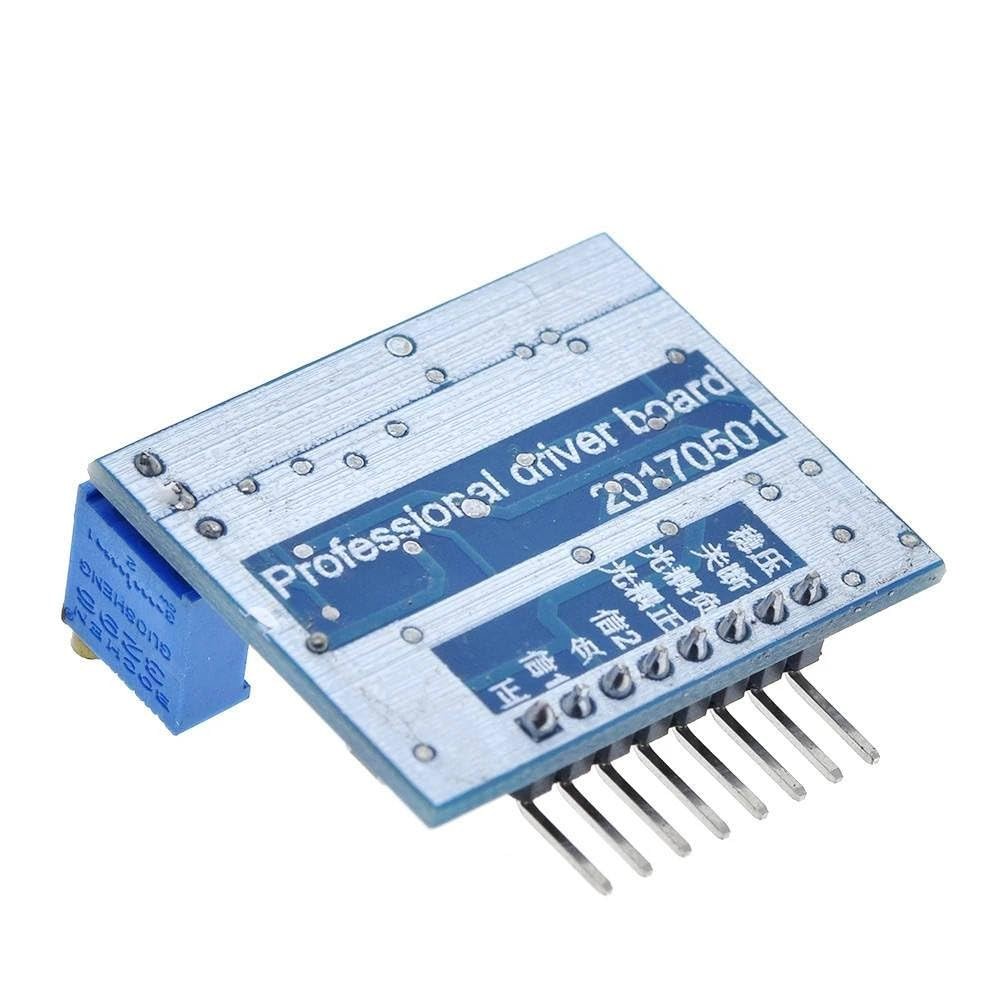

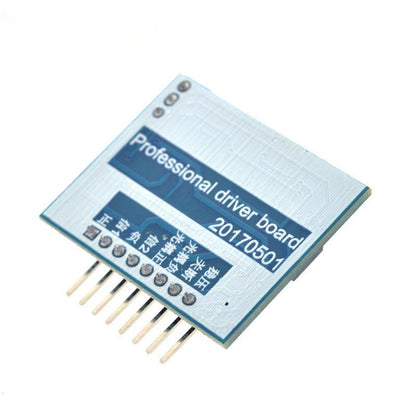

SG3525 LM358 Inverter Driver Board 12V-24V Mixer Preamp Drive Module Frequency Adjustable 1A

   SG3525 LM358 Inverter Driver Board 12V-24V Mixer Preamp Drive Module Frequency Adjustable 1A

Feature:

   1. Adjustable Frequency: Our inverter drive plate offers adjustable frequency, allowing you to customize the output to meet your specific needs.

   2. Overcurrent and Short Circuit Protection: Our product has built-in overcurrent and short circuit protection, which will automatically stop operation to prevent damage in case of any issues.

   3. Adjustable Output Voltage: Our inverter driver board enables adjustable output voltage, providing a superior performance with customizable settings.

   4. High-Current Output: With an output current of up to 1A, our mixer preamp drive module can drive up to 20 pieces of 3205 effect tubes without any issues, making it highly efficient for your needs.

Description:

   1.Output:12-24V

   2.Driver current:1A(max)

Power supply: 8-12V

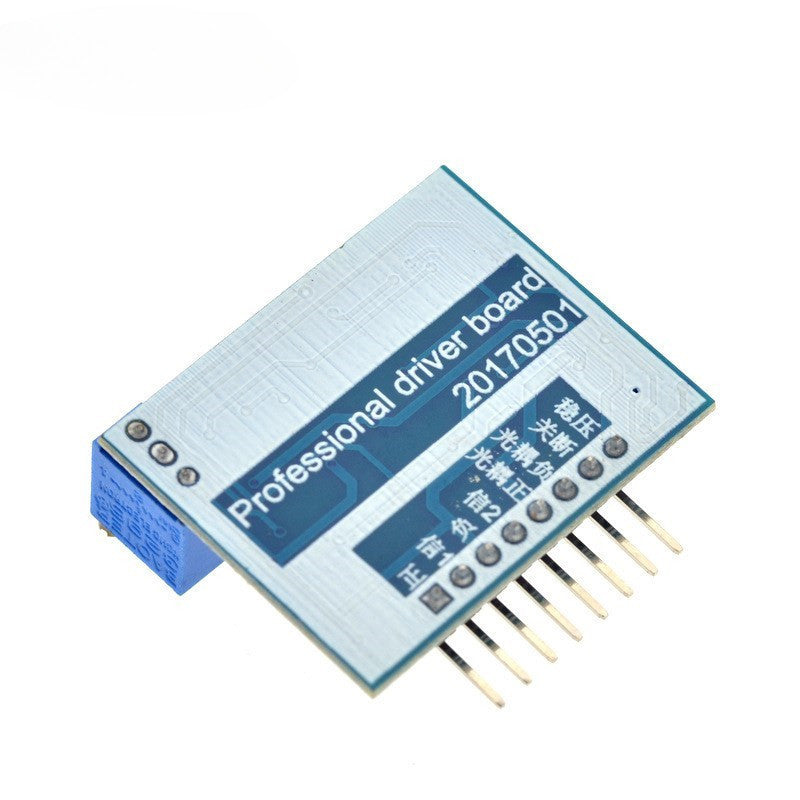

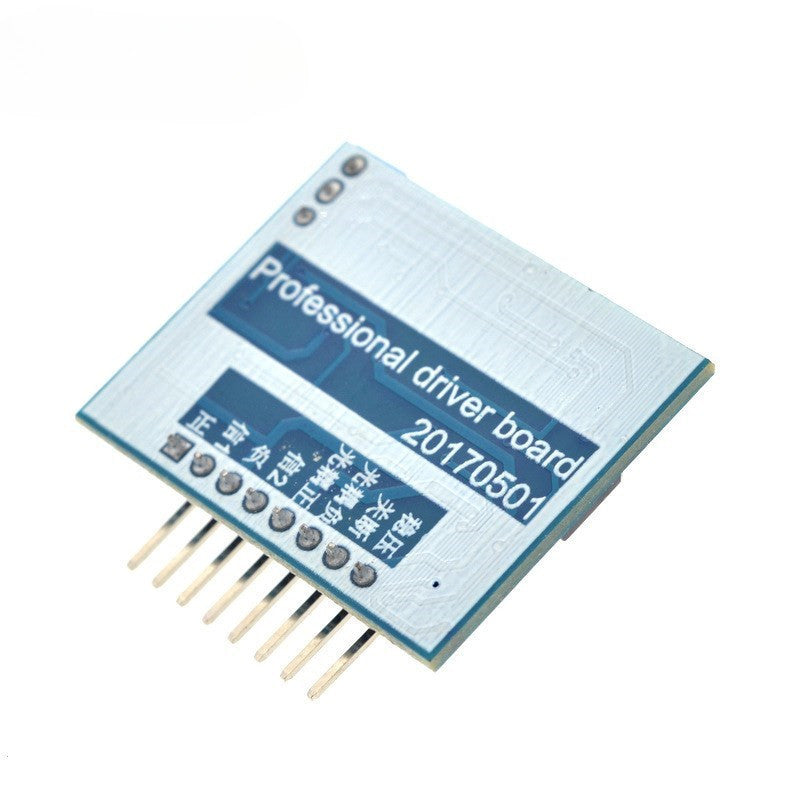

Pin Description：

   1, positive power supply

   2, the signal output

   3, the power anode

   4, the signal output

   5, optocoupler input positive

   6, the output of the optocoupler negative

   7, Signal off short foot

   8, Signal feedback pin
