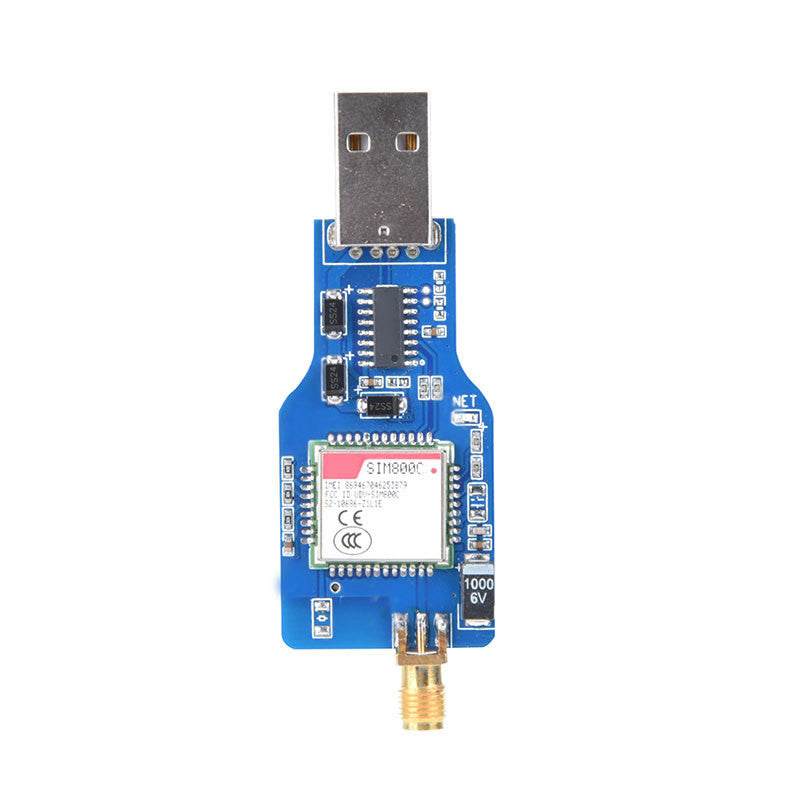

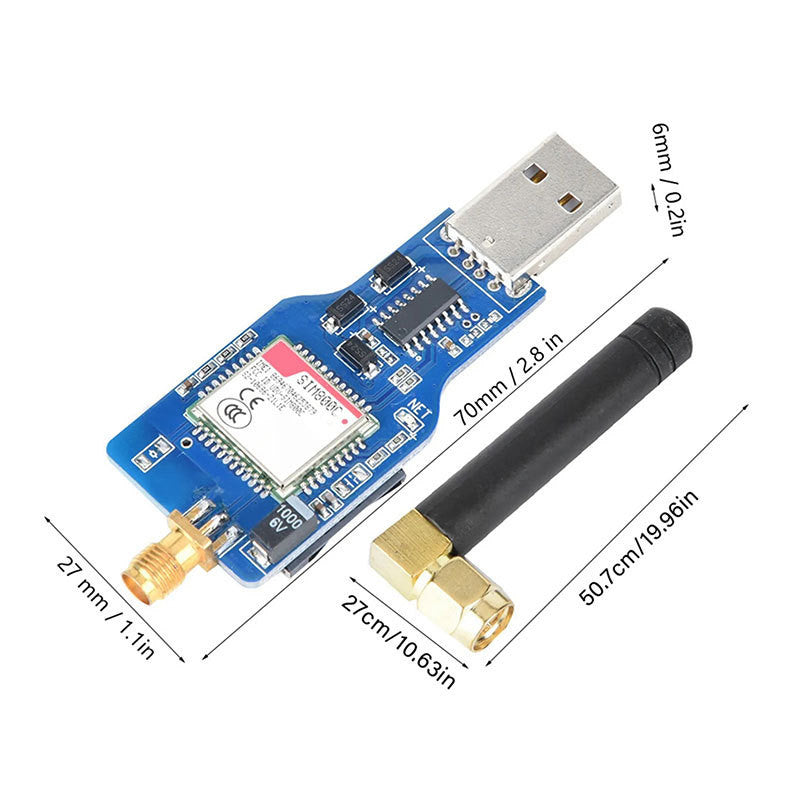

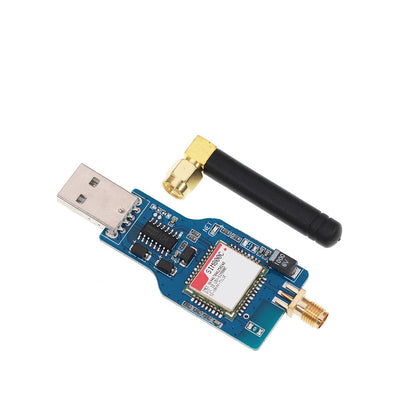

SIM800C USB to GSM Module Quad-band GSM GPRS Module for Bluetooth SMS Messaging With Antenna

System Compatibility

What systems are supported?

This is a question many customers have asked. Our product uses the CH340G serial - to - USB conversion chip. As long as your system can install the driver for this chip, it will be supported!

Why choose CH340G?

Because this chip has an easy - to - install driver and high compatibility. Although it doesn't have a price advantage, we still choose this chip for the sake of stability.

Versions

● High - end version: 32M version, with Bluetooth and TTS functions

Product Materials

● The materials include:

User Manual

Drivers for Linux and Windows

AT Command Manual

Serial Port Debugging Software

Reference Upper - computer Source Codes (C#, VB)

Supporting Materials and Usage Instructions

Product Introduction

Functions the module can achieve:

SMS Sending and Receiving

Provide management software for convenient sending, receiving, and reading of SMS.

Call Function

Can be done with just one command: ATD10086;

GPRS Data Transmission

Suitable for industrial - use small - volume data transmission, such as wireless meter reading, meteorological monitoring, etc.

Bluetooth Data Transmission (Supported by High - end Version)

Bluetooth standard is IEEE802.15, working in the 2.4GHz frequency band. It can perform file transfer, data transmission, etc. with other Bluetooth devices.

TTS Speech Synthesis (Supported by High - end Version)

During a call, send text to the device, and the device will convert the text into speech and output it to the mobile phone side.
