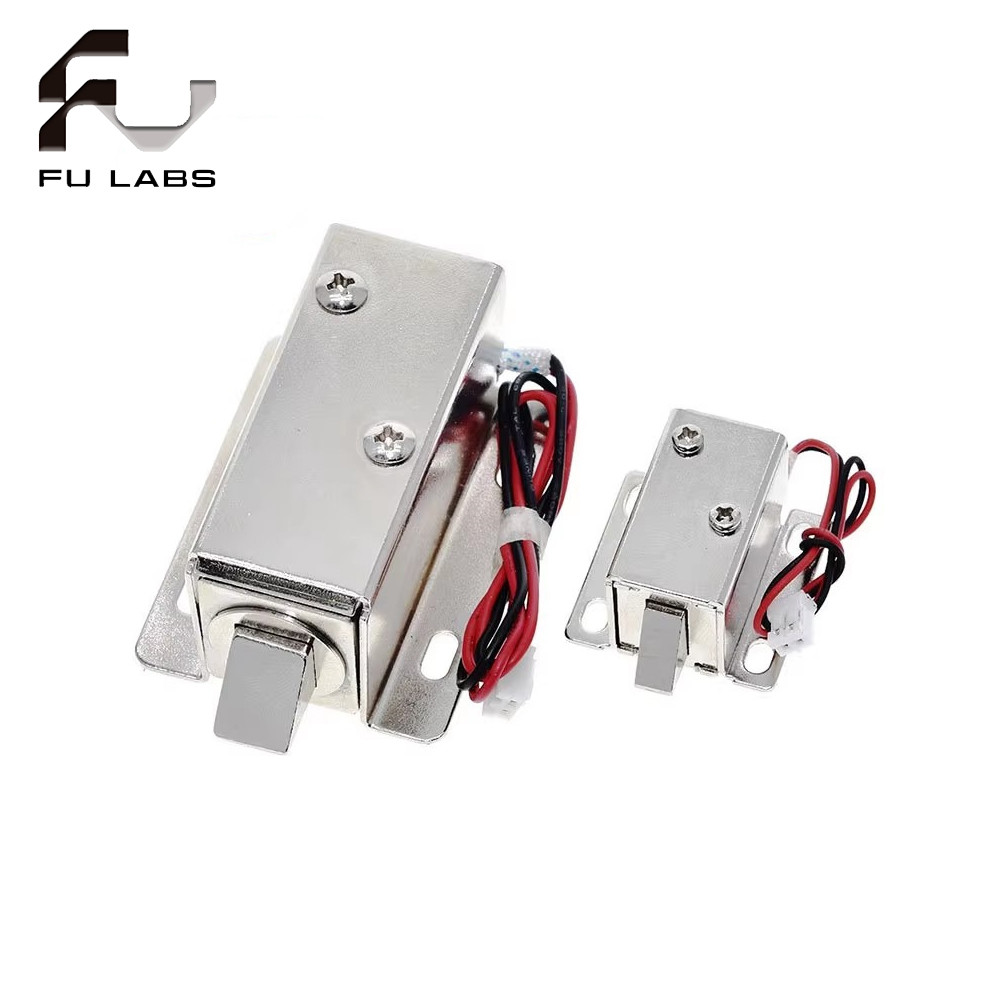

Solenoid Lock 12V DC Practical Safety Electromagnetic Solenoid Lock for Cabinet Door Drawer

Product Parameters and Instructions of Electromagnetic Lock

I. Product Parameters

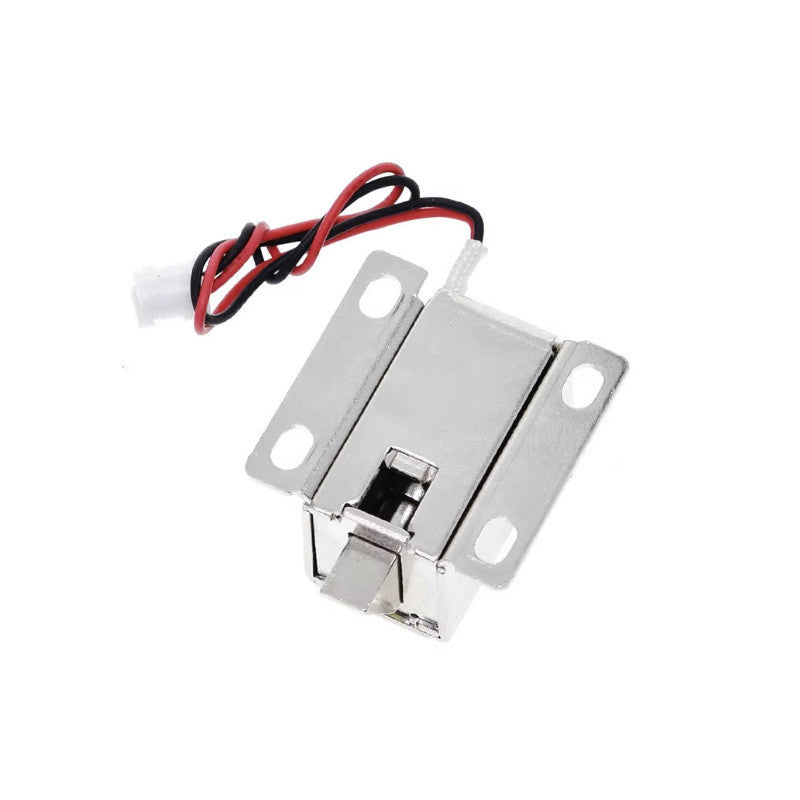

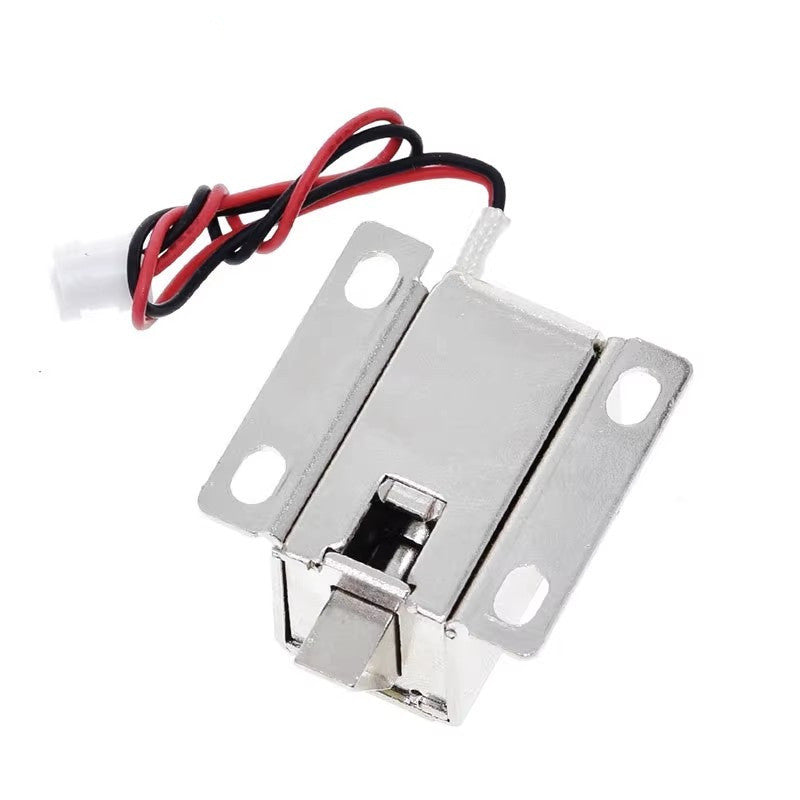

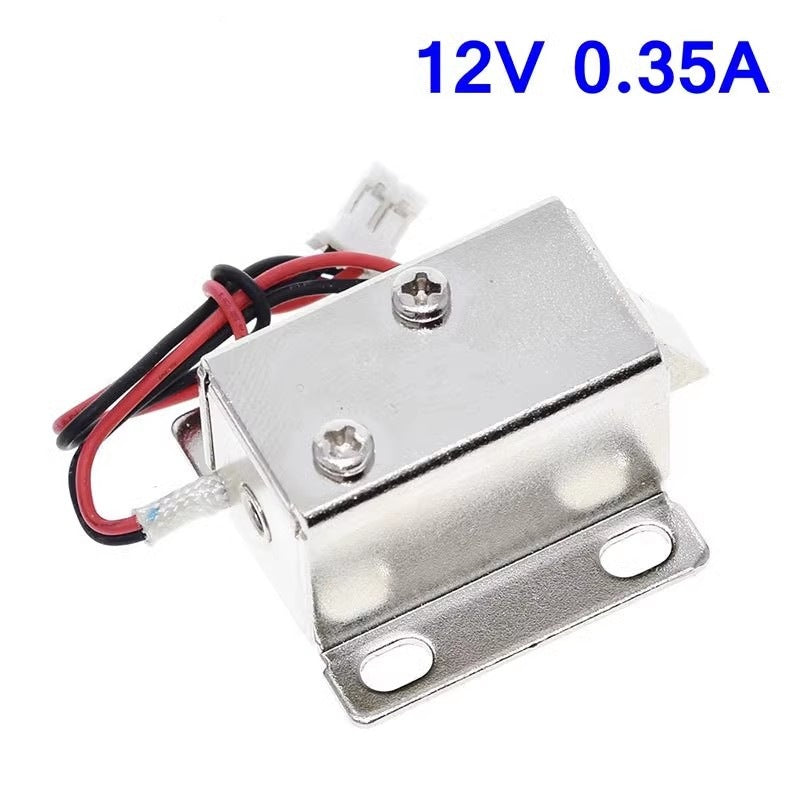

(I) Model: 12V 350mAh

- Product Name: Electromagnetic Lock

- Product Model: 12V 350mAh

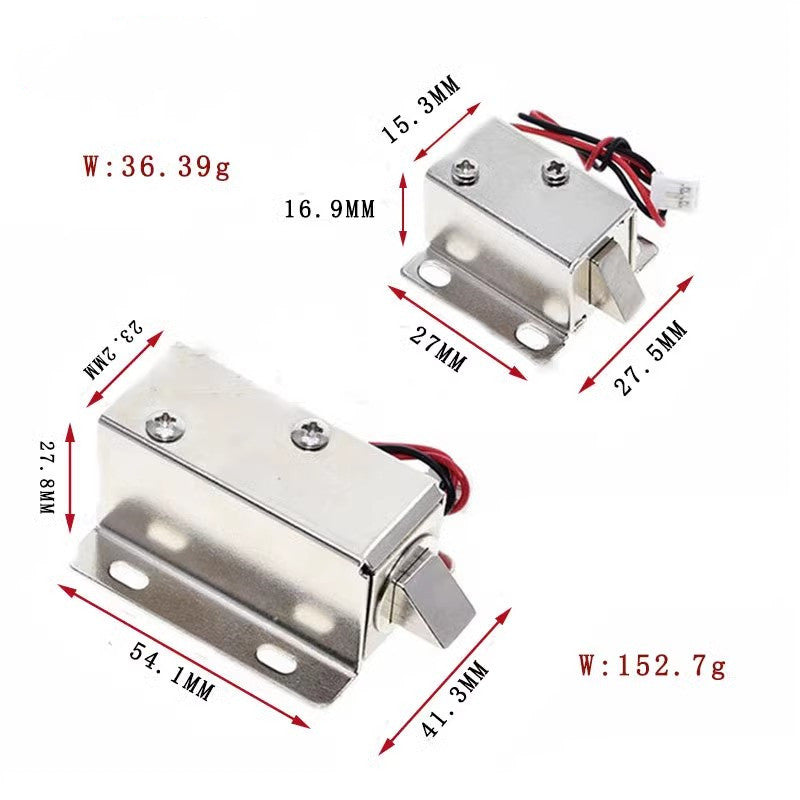

- Dimensions: 27.52716.9mm

- Lead Length: 25mm

- Locking Telescopic Length: 10mm

- Power Form: Interruption

- Unlocking Time: 1 second

- Weight: Approximately 36.35g

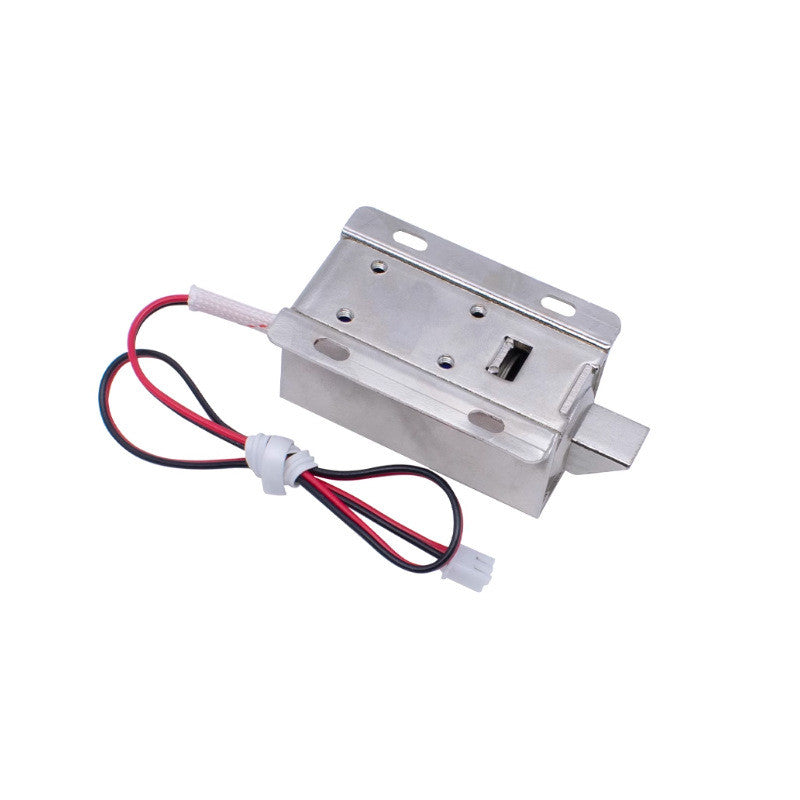

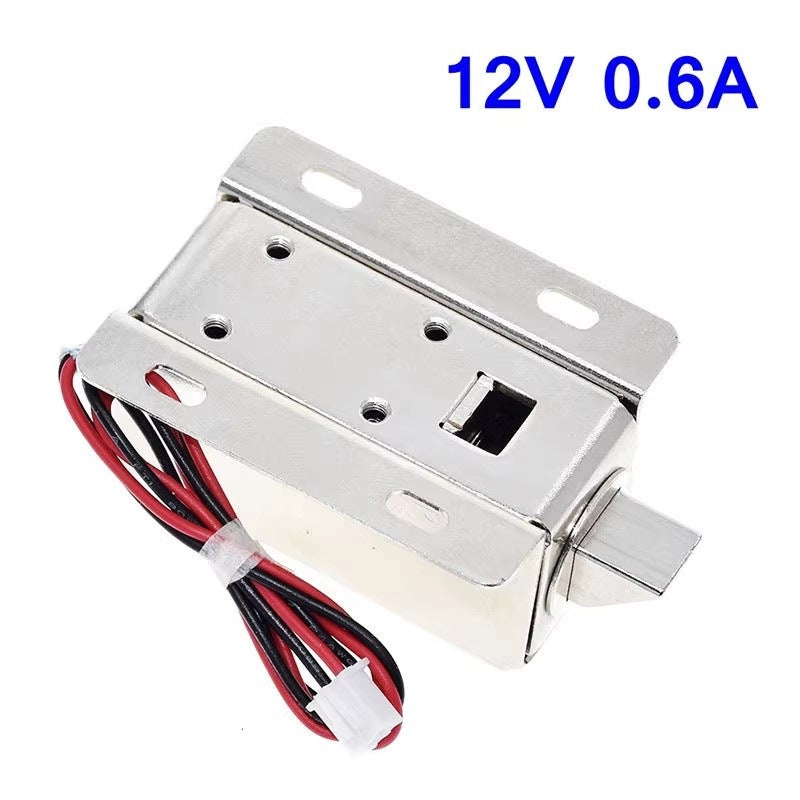

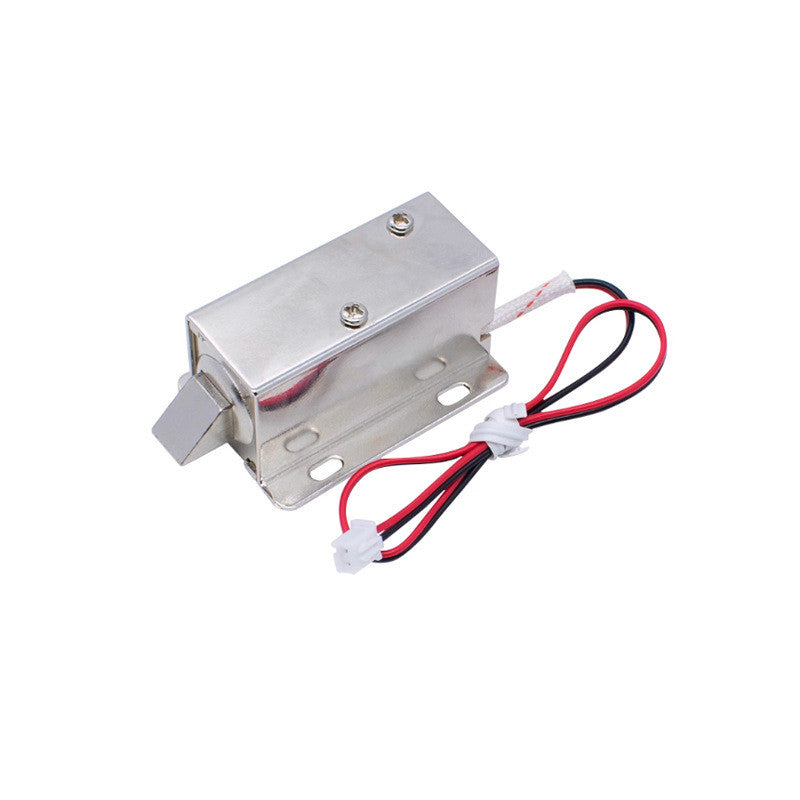

(II) Model: 12V 0.6A

- Product Name: Electromagnetic Lock

- Product Model: 12V 0.6A

- Voltage: DC12V

- Current: 0.6A

- Dimensions: 54.141.327.8mm

- Telescopic Length: 10mm

- Excitation Form: Intermittent

- Action Response Time: 1 second

- Continuous Undervoltage: <10s

- Operating Temperature: -40℃~+50℃

- Weight: Approximately 152.75g

II. Product Description of 12V 350mAh

It is a 100% new high-quality ultra-small electric lock, featuring rust resistance, durability, safety, and ease of use. It is suitable for electronic control systems of anti-theft doors or fire doors.

Working Principle: Adopting the electromagnetic principle, when the current passes through the silicon chip, the electromagnetic lock will strongly attract and tightly hold the iron, thus locking the door.

Wiring Instructions: Connect the red wire to the positive electrode and the green wire to the negative electrode. When the connecting wires are properly connected and the current is available, the electric lock can control the opening and closing of the door.
