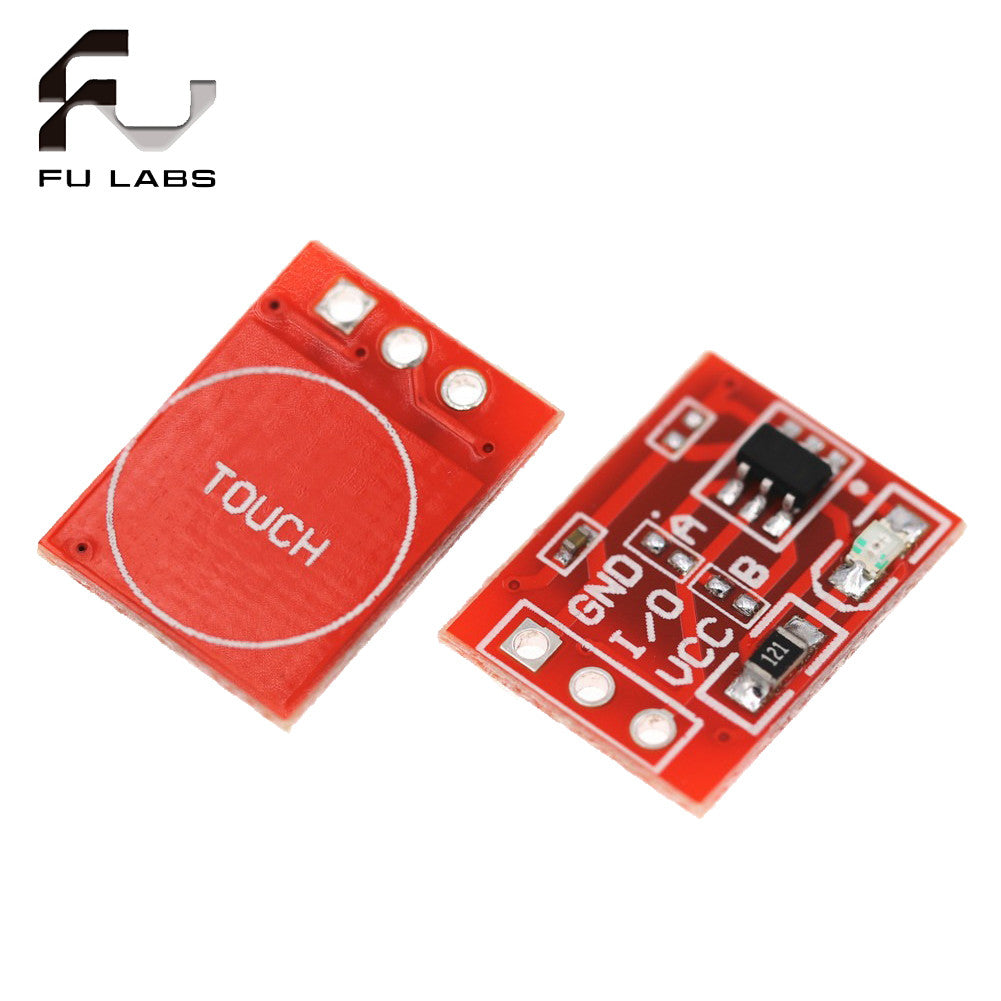

TTP223 Touch button Module Capacitor type Single Channel Self Locking Touch switch sensor

TTP223 Touch button Module Capacitor type Single Channel Self Locking Touch switch sensor

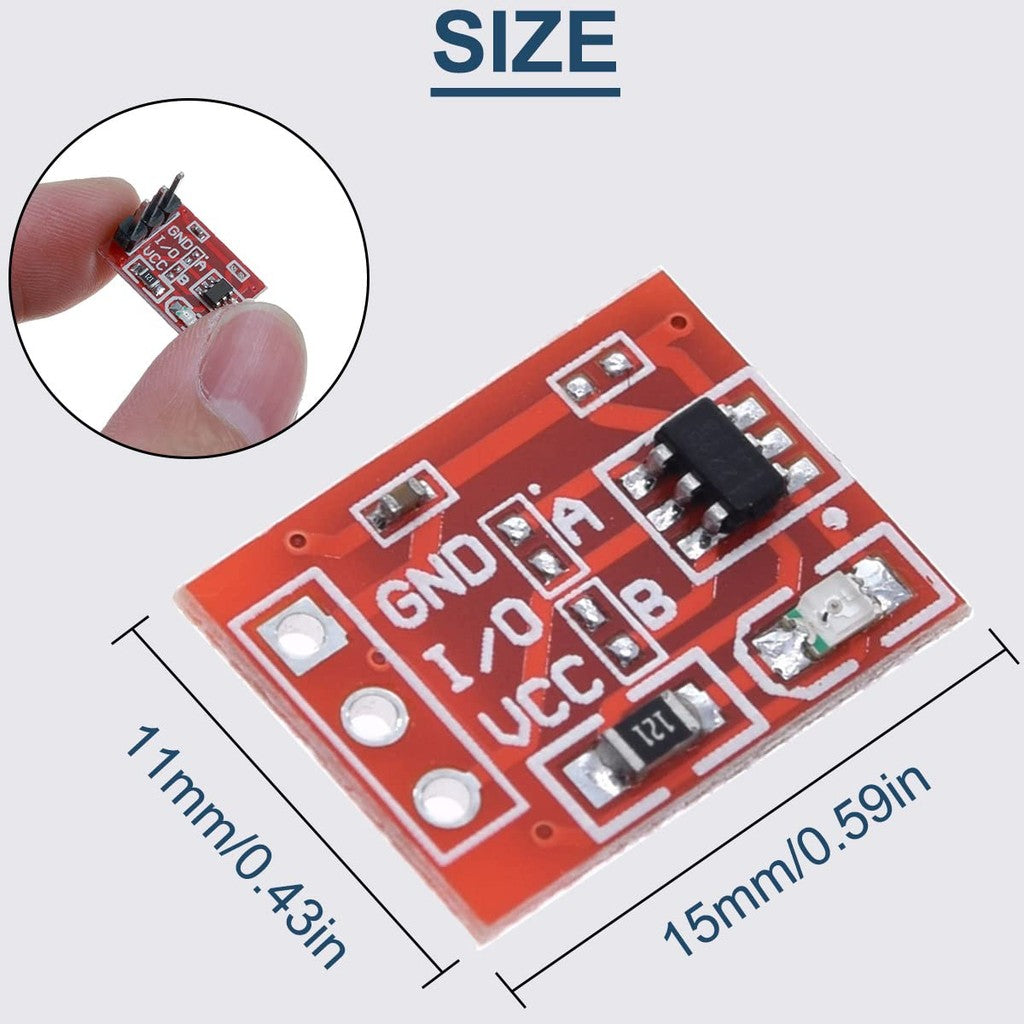

● 1.Size:15*11mm

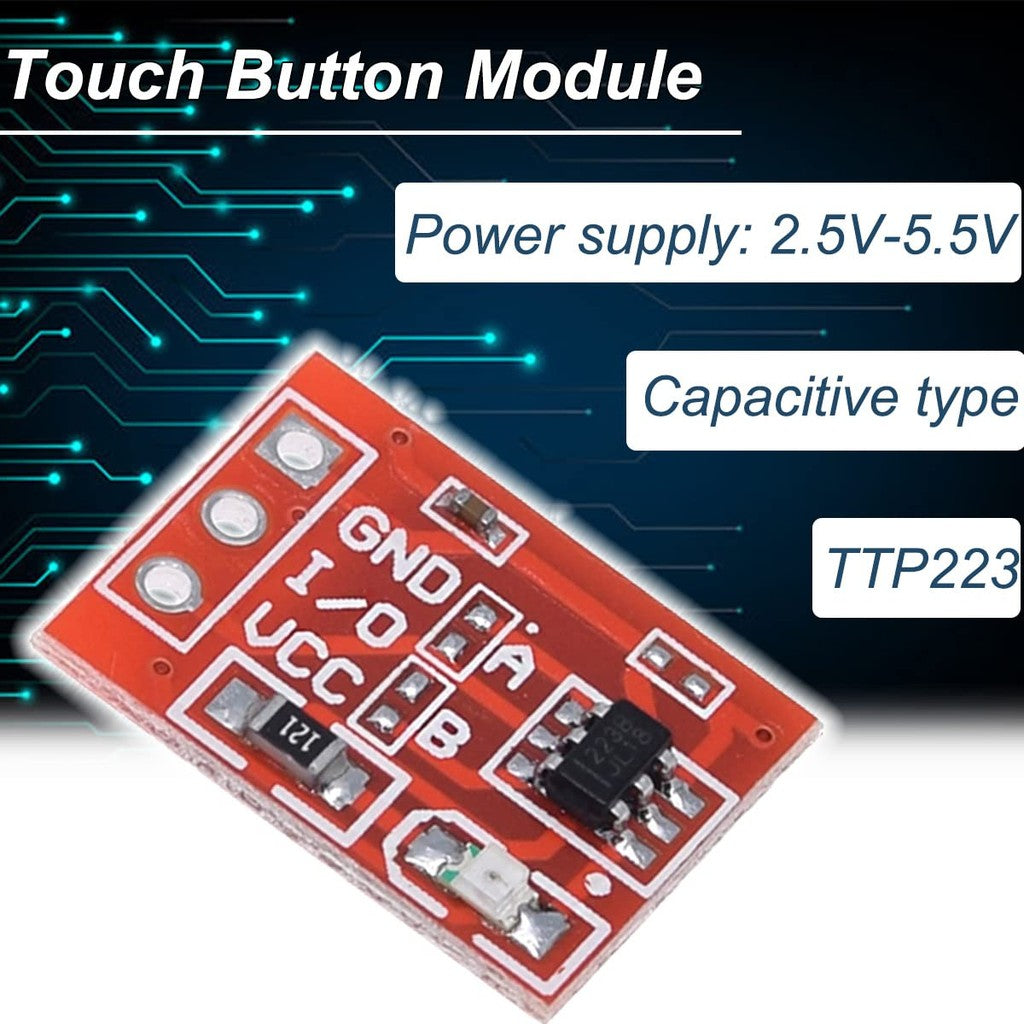

● 2.Power:2.5-5.5V

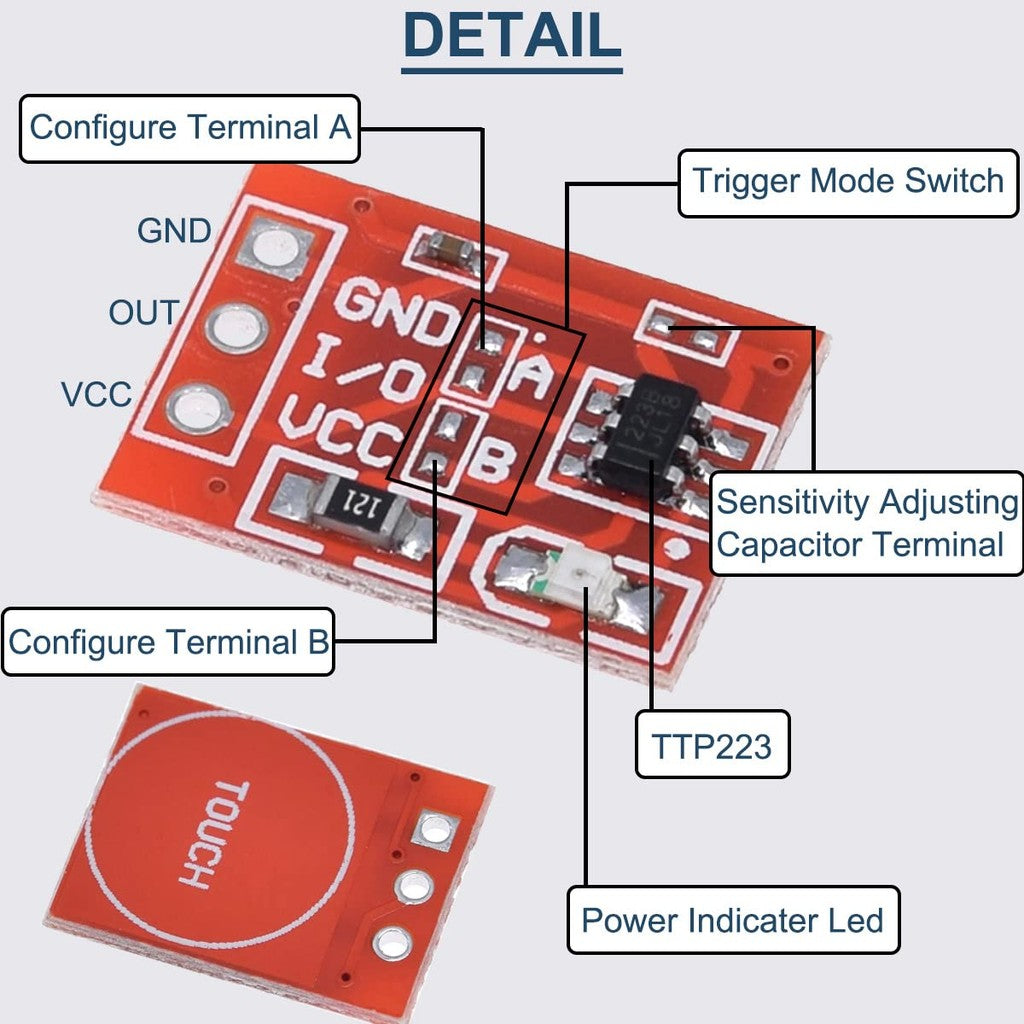

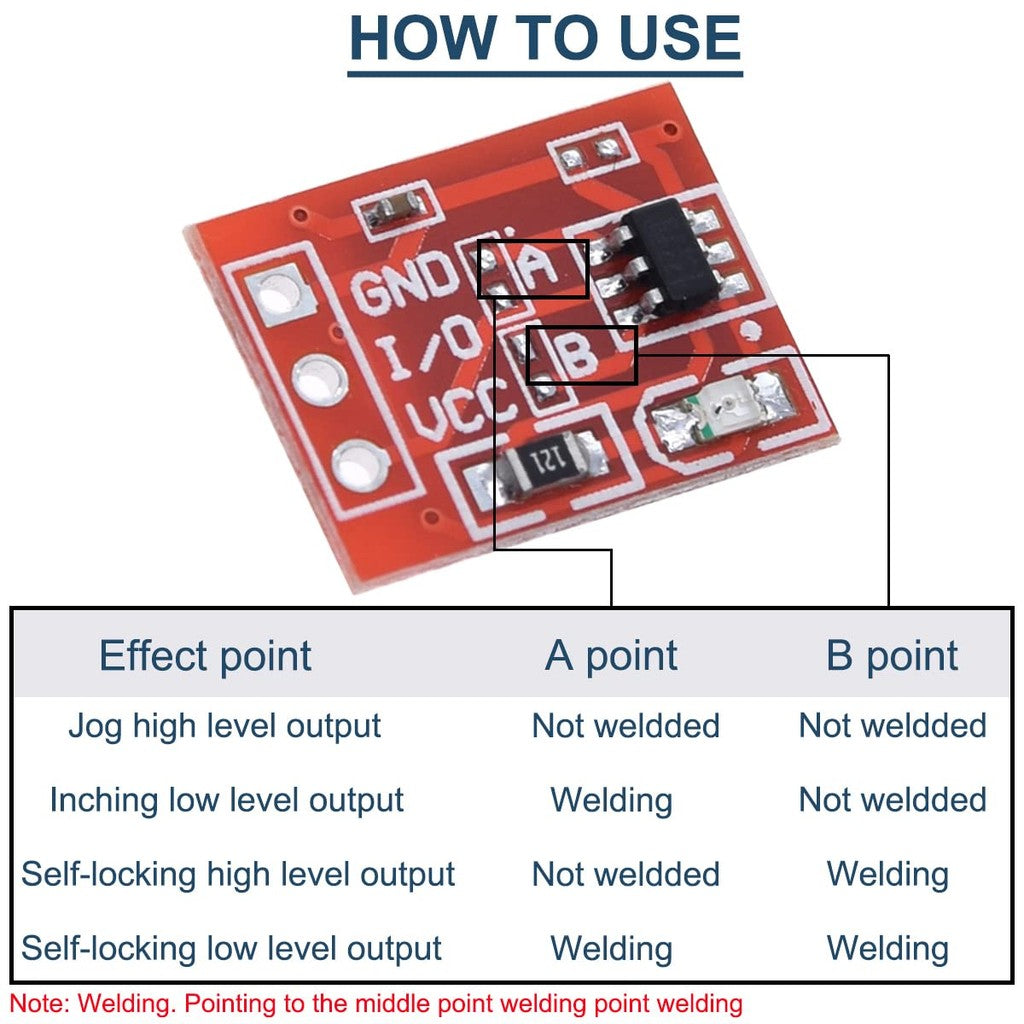

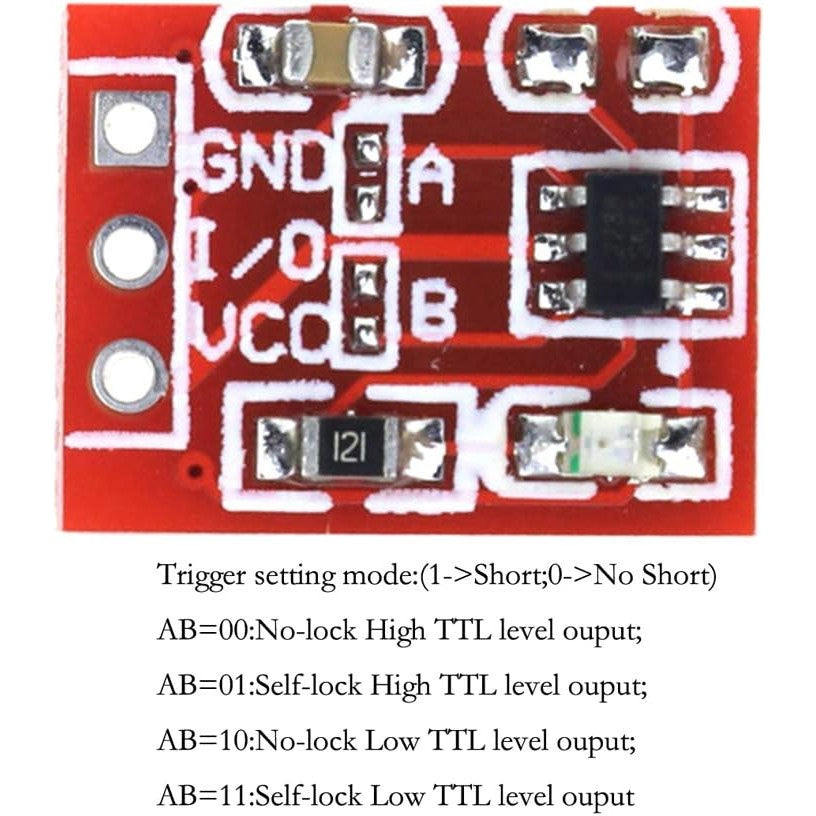

● Trigger setting mode: (1- > Short ; 0- > No Short)

    AB=00:No-lock High TTL level ouput;

    AB=01:Self-lock High TTL level ouput;

    AB=10:No-lock Low TTL level ouput;

    AB=11:Self-lock Low TTL level ouput;
