Waveshare Industrial USB to RS485 Converter with Original FT232RL and SP485EEN Embedded Protection Circuits for Industrial Control Equipments and/or Applications

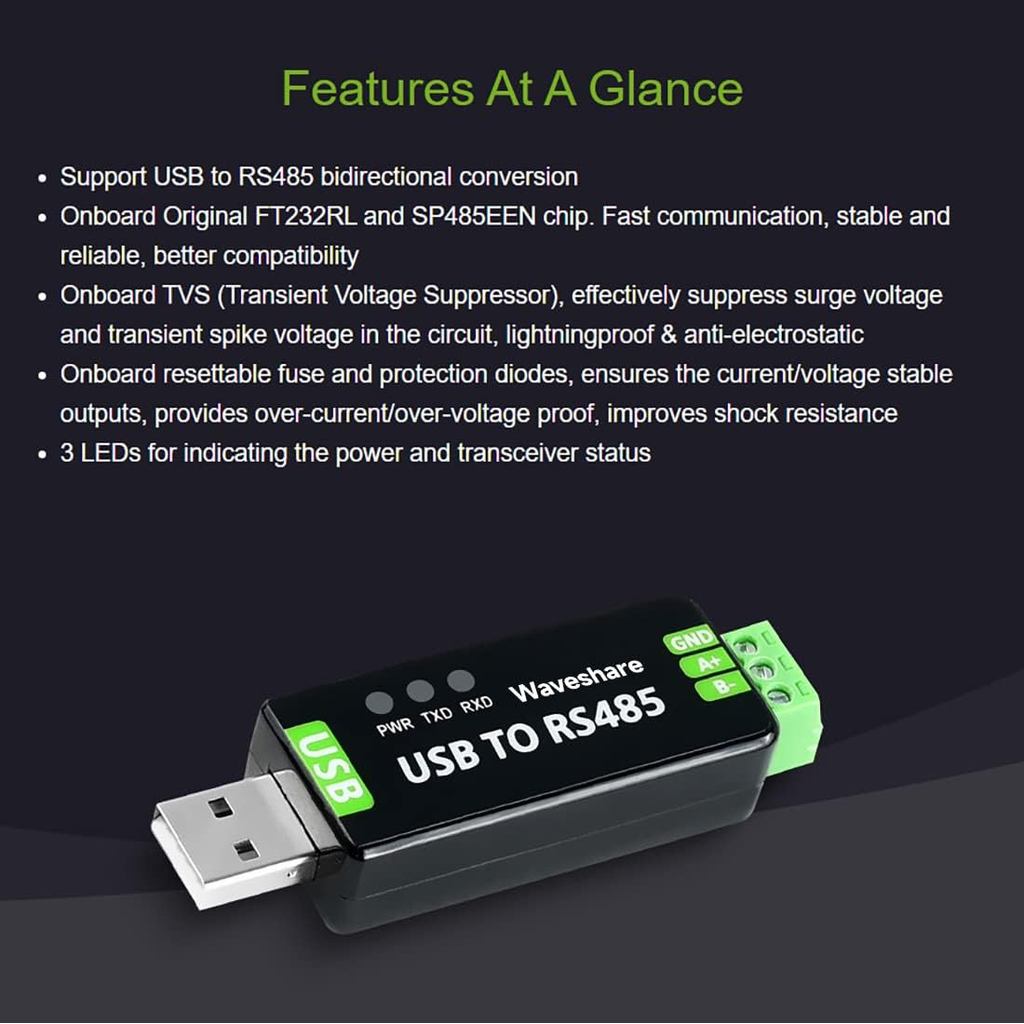

   USB to RS485 communication,Adopt original FT232RL, fast communicating, stable and reliable, better compatibility

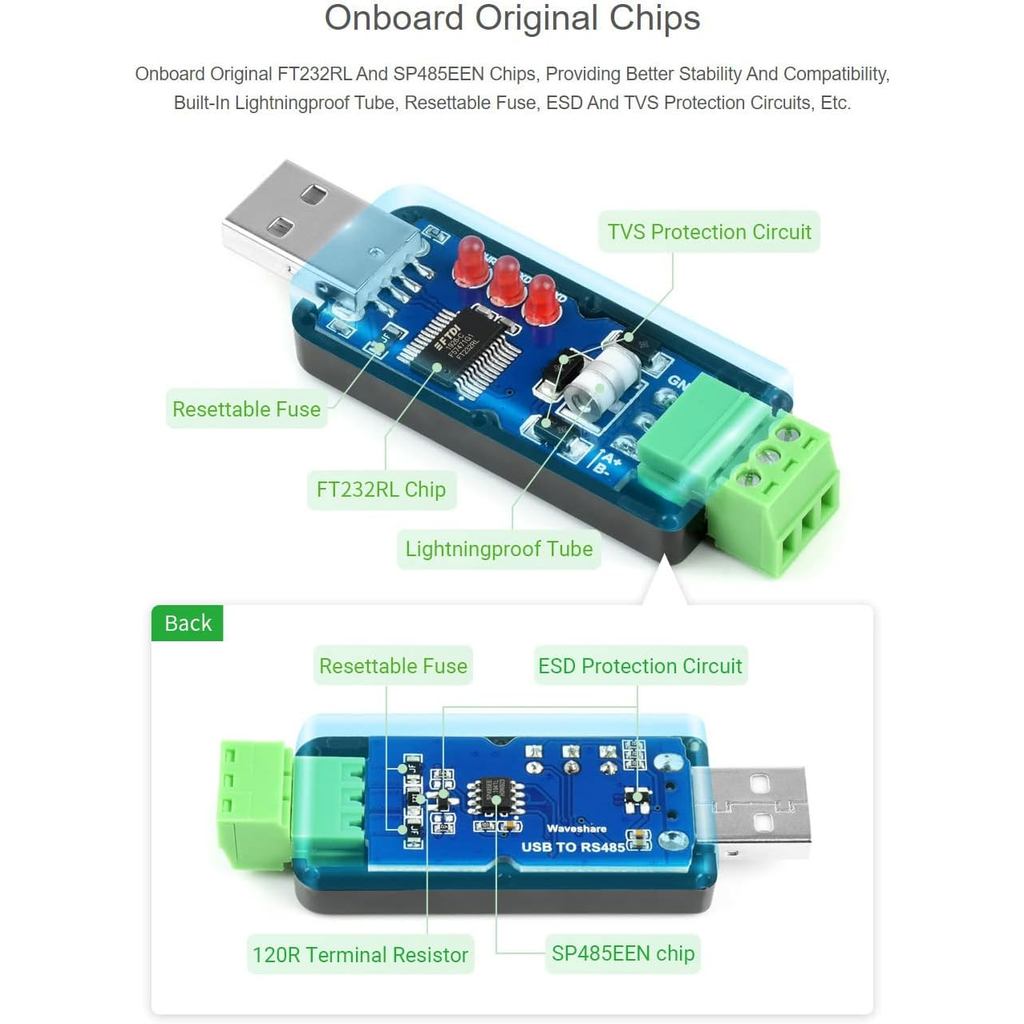

  Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, For Apple interface-proof & anti-electrostatic

  Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance,3 LEDs for indicating the power and transceiver status

  The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an perfect choice for industrial control equipments and/or applications with high communication requirement.

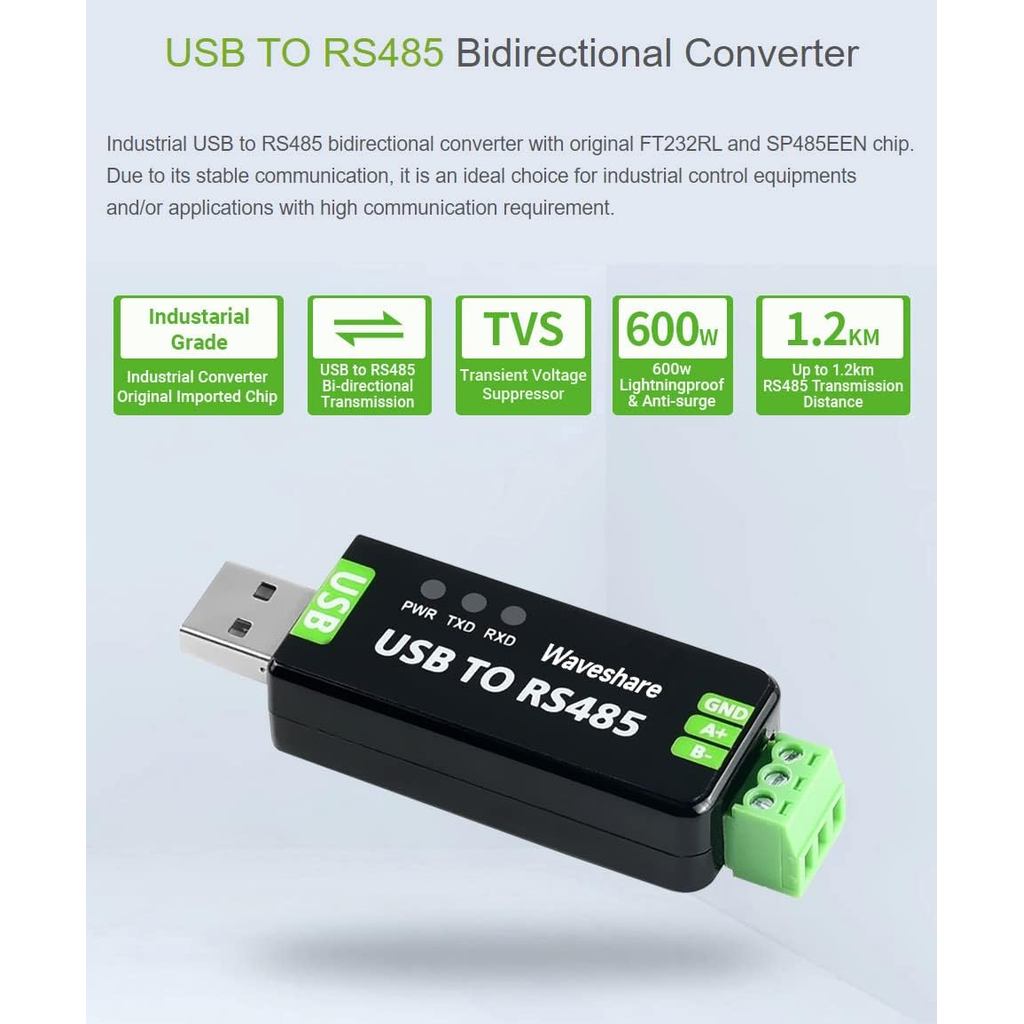

  This is an industrial USB to RS485 converter with original FT232RL inside. It features embedded protection circuits such as For Apple interface-proof, resettable fuse, ESD protection, and TVS diode, etc. It's pretty small in size.

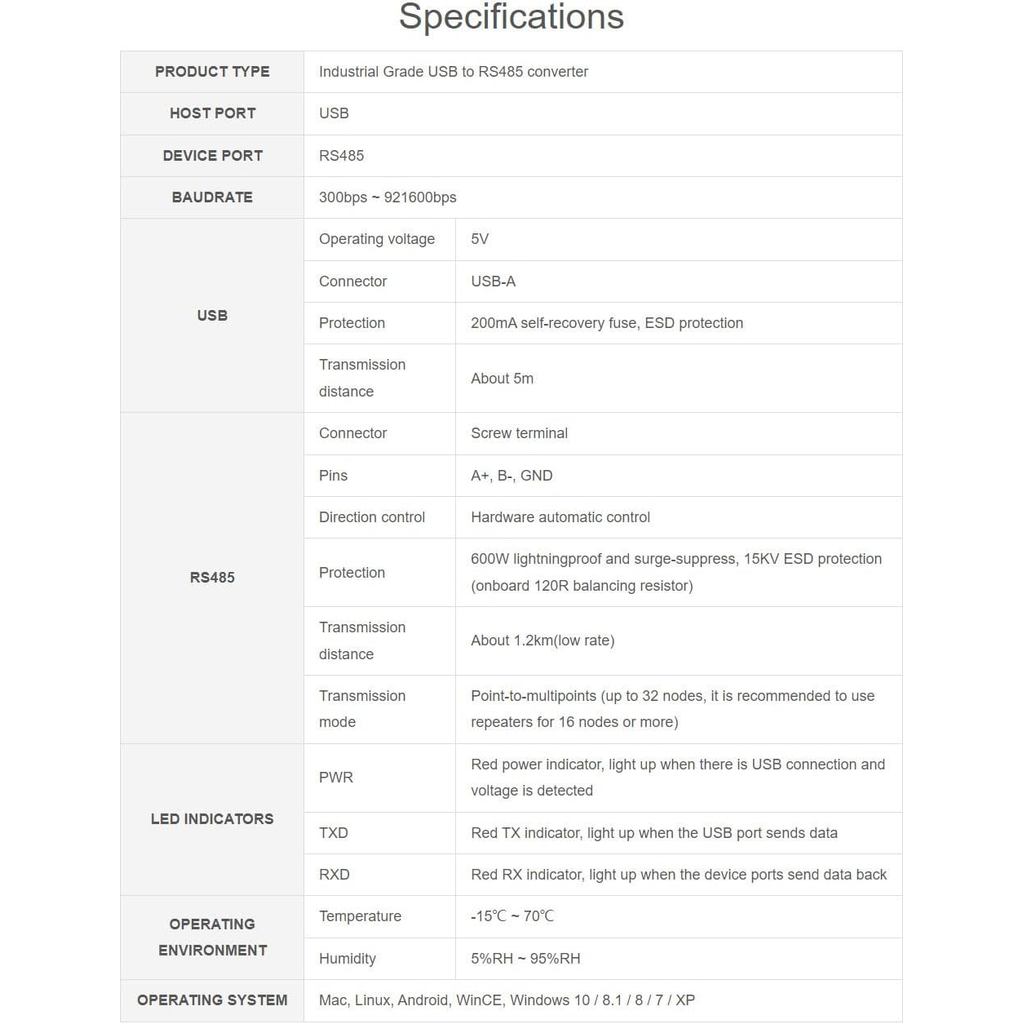

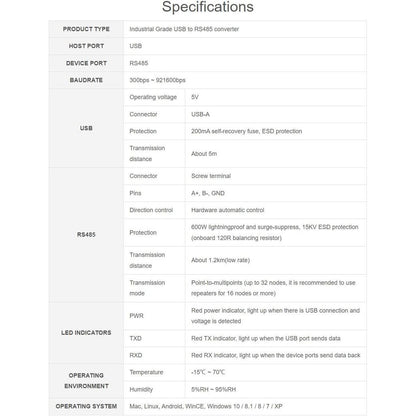

  Product type:industrial converter

  Baudrate:300-921600bps

  Host port:USB

  Device port:RS485

  USB:Operating voltage:5V ,Connector:USB-A

  Protection:200mA self-recovery fuse, ESD protection

  Transmission distance:about 5m

  RS485:

  Connector:screw terminal

  Pins:A+, B-, GND

  Direction control:hardware automatic control

  Protection:600W For Apple interface-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)

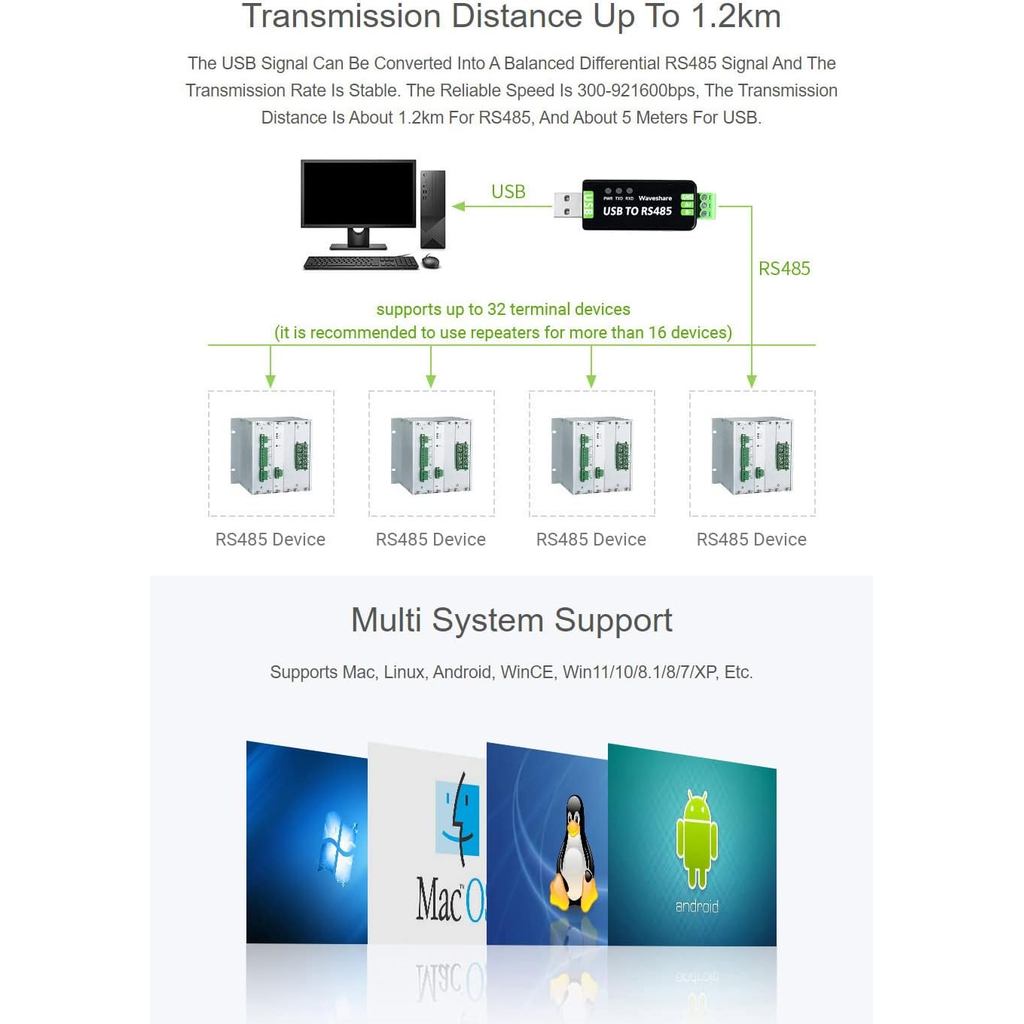

  Transmission distance:about 1200m (low rate)

  Transmission mode:point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

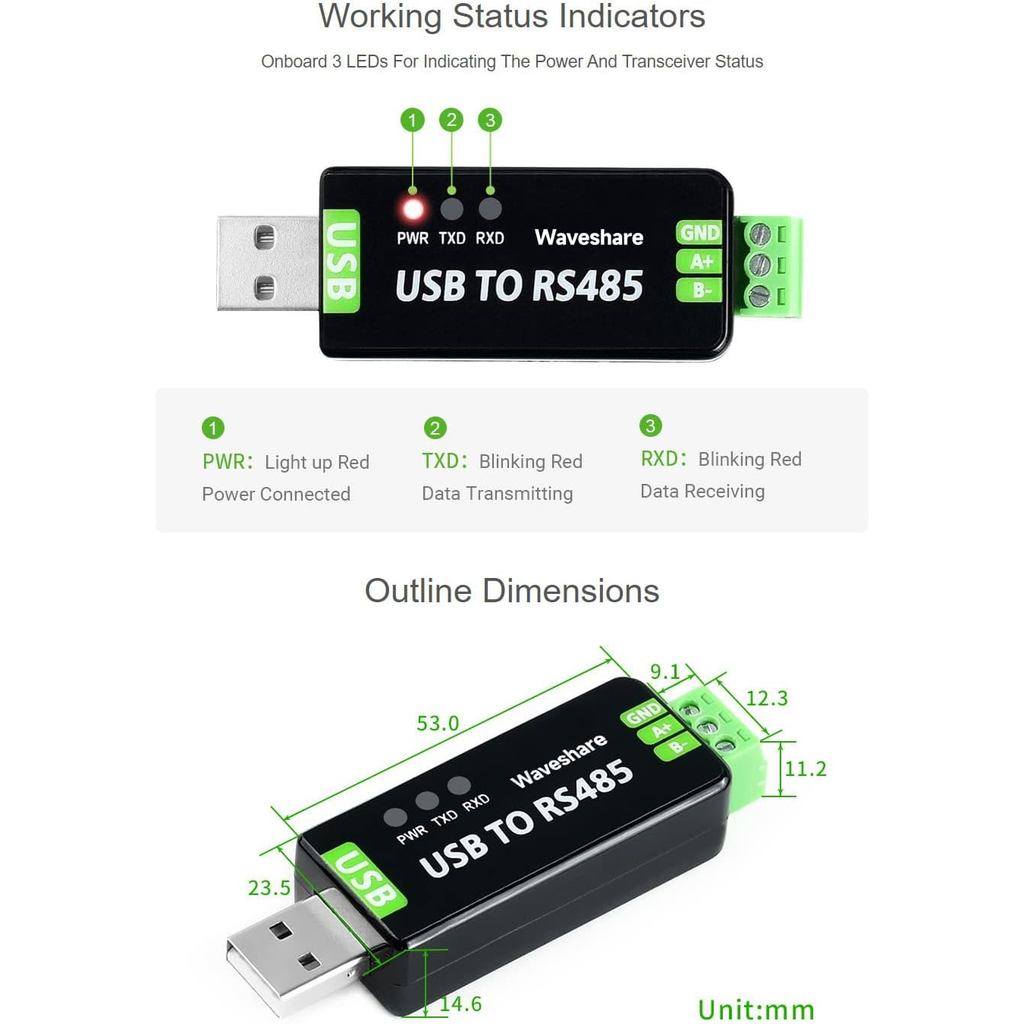

  LED indicators:

  PWR:red power indicator, light up when there is USB connection and voltage is detected

  TXD:red TX indicator, light up when the USB port sends data

  RXD:red RX indicator, light up when the device ports send databack

  Operating environment:

  Temperature:-15° ~ 70°

  Humidity:5%RH ~ 95%RH

  Operating system:Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

  Brand Name: Waveshare

  Demo Board Type: ARM

  Model Number: USB TO RS485

  colour:black

  Material:ABS

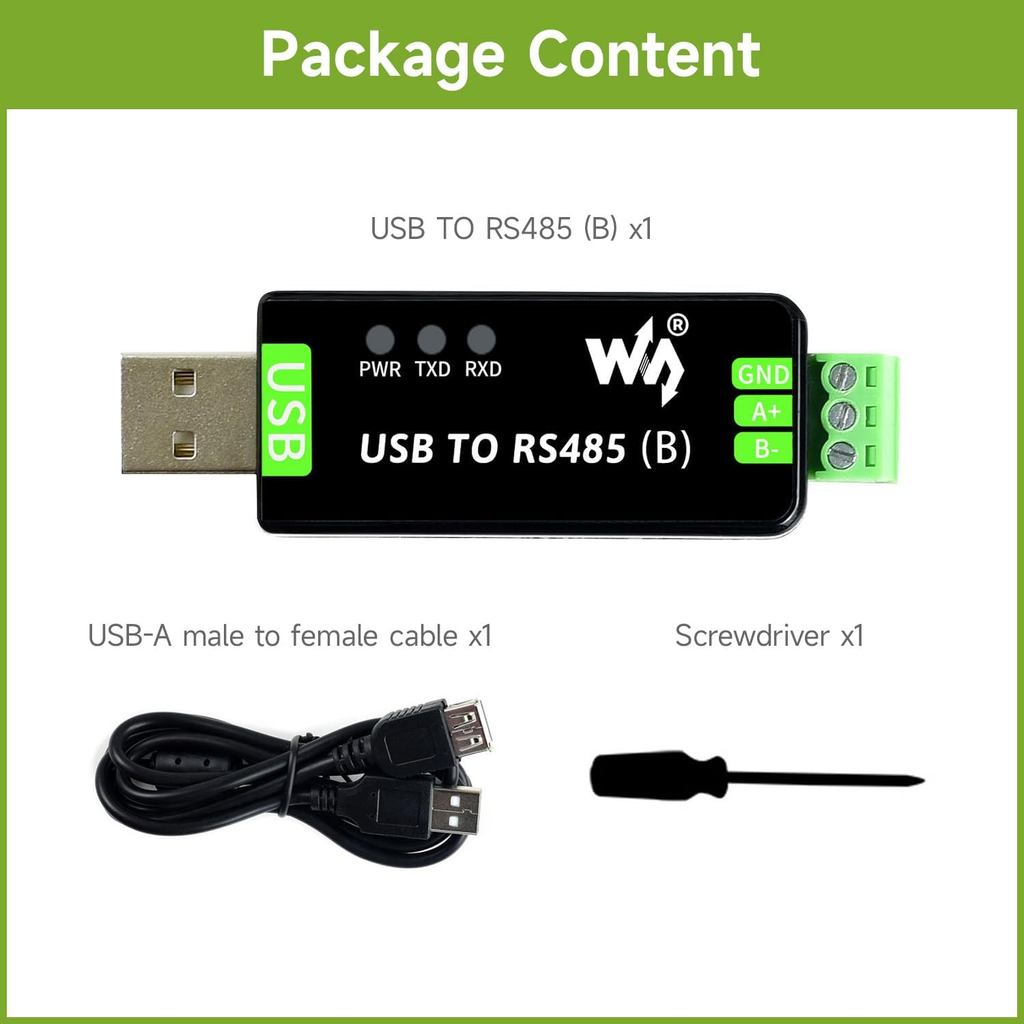

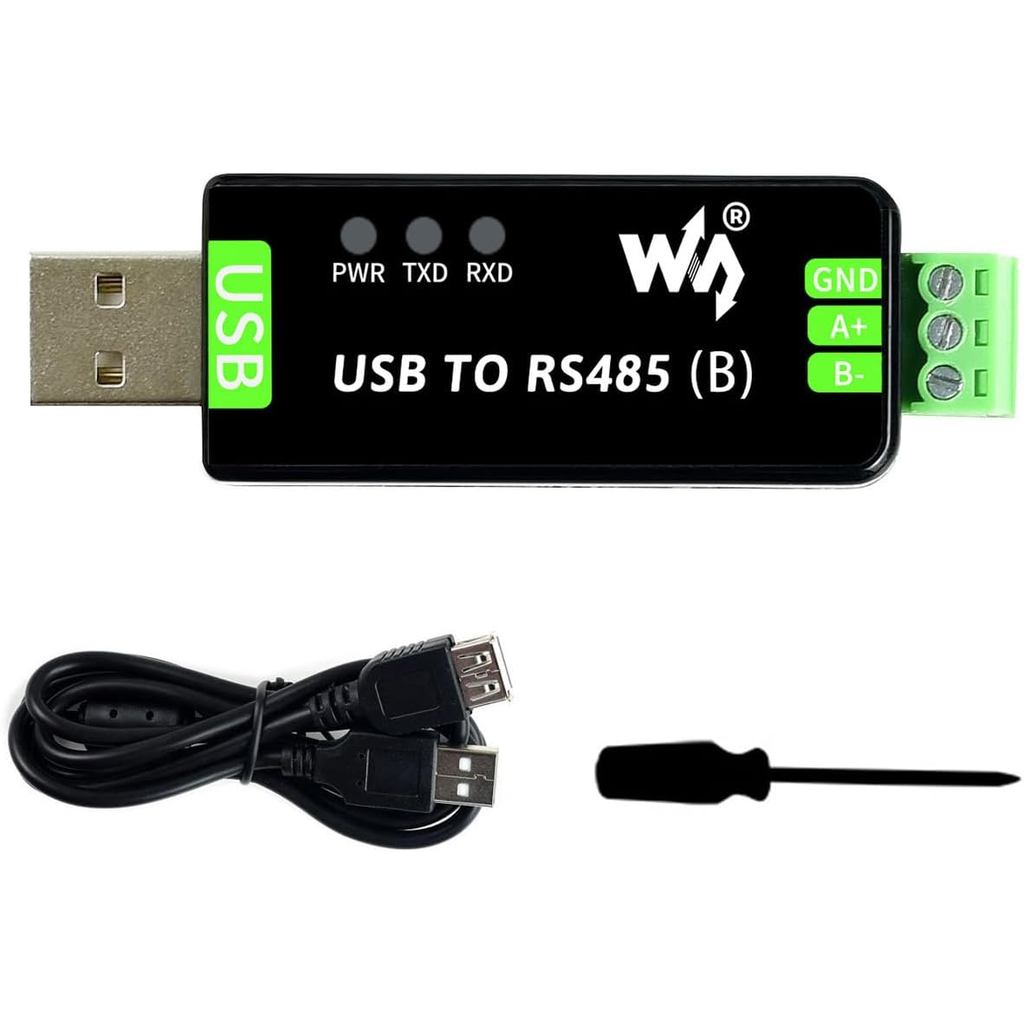

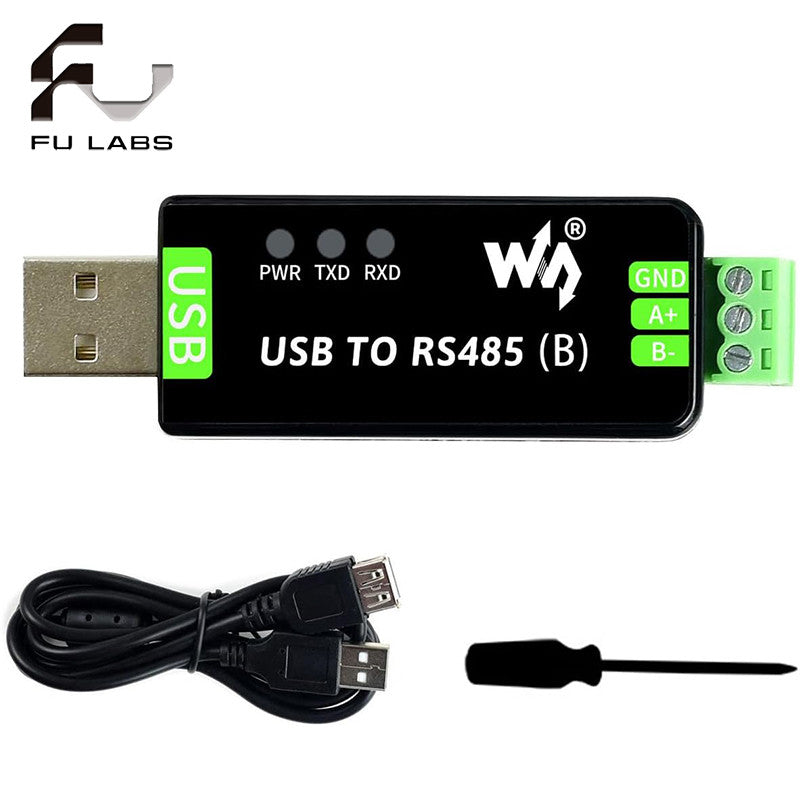

  Package Contents:

  1 * USB TO RS485

  1 * USB-A male to female cable

  1 * Screwdriver

  Only the above package content, other products are not included.
