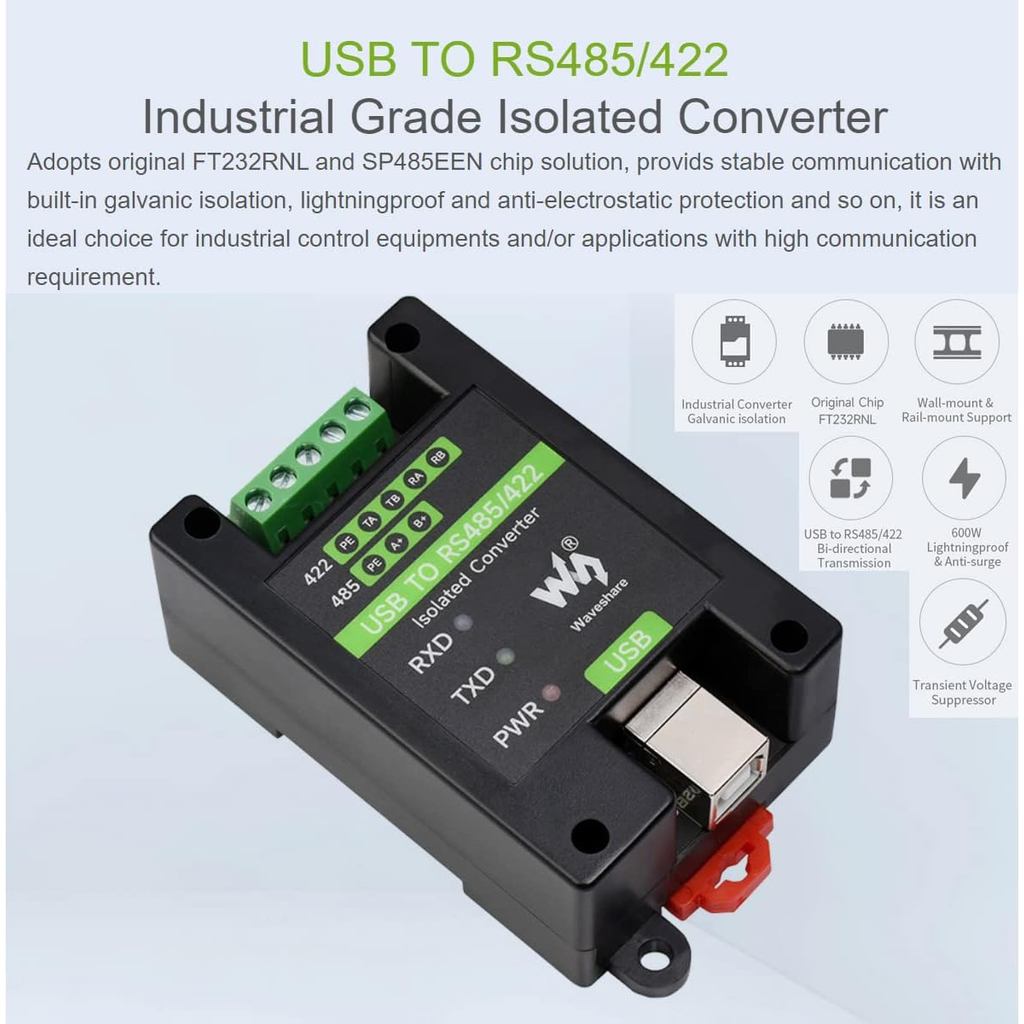

Waveshare USB to RS485/422 Converter Onboard FT232RL and SP485EEN Chip, Galvanic Isolated Converter with Multiple Protection, Support Win11/10/8.1/8/7/XP, Mac, Linux, Android

1. Adopting the imported FT232RNL+SP485EEN chip scheme, high-speed communication is stable, reliable and compatible

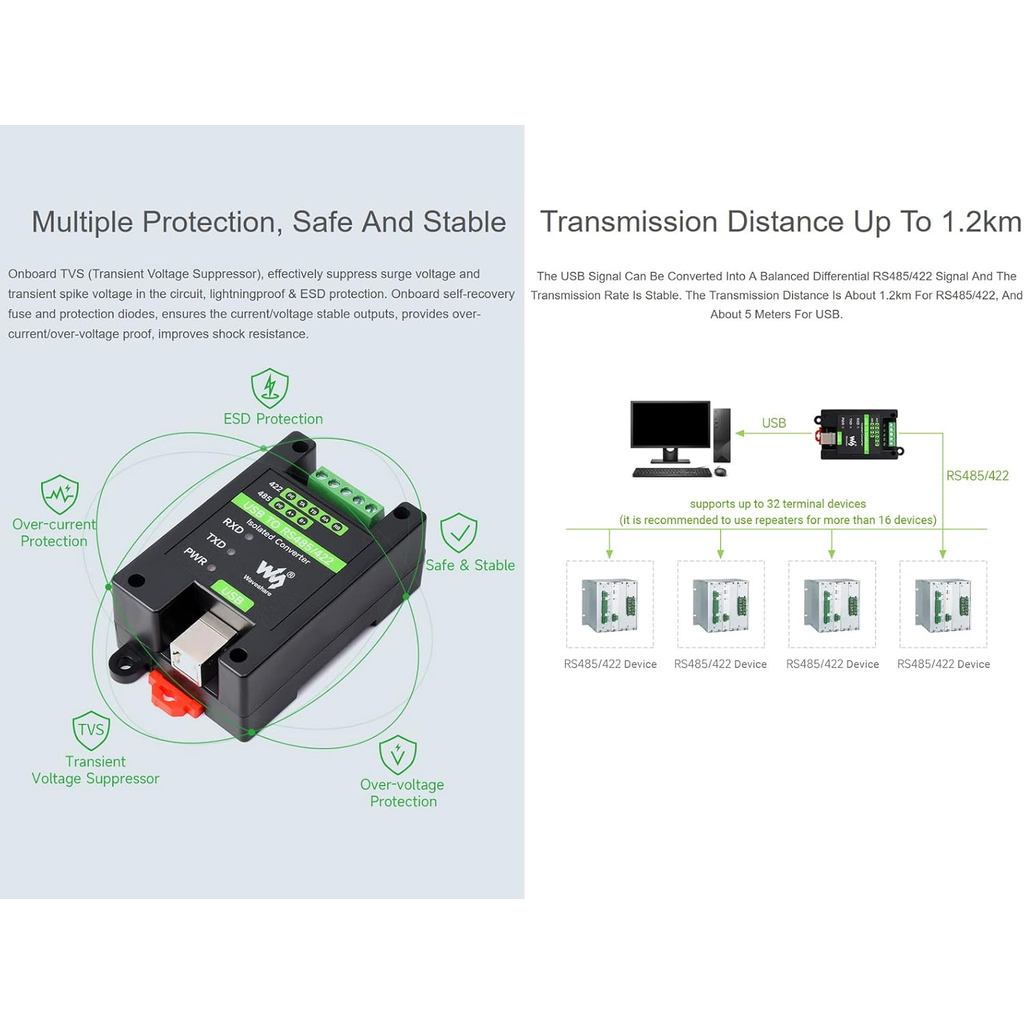

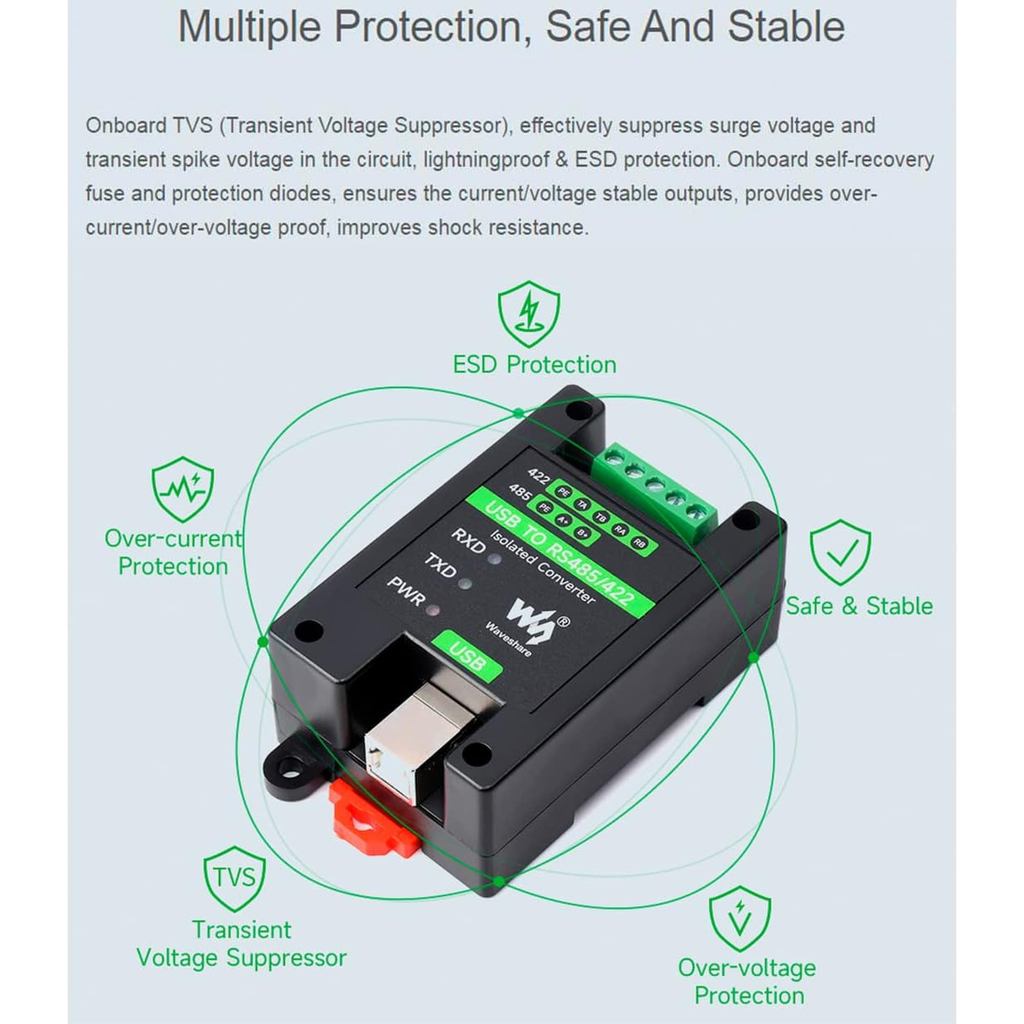

  2. On-board TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, and prevent-lightning and static electricity

  3. The on-board self-recovery fuse and protection diode can ensure the stable output of current and voltage, prevent over-current and over-voltage, and improve the impact resistance

  4. Onboard 15KV ESD isolation protection and 600W lightning-surge protection. 120R terminal resistance of on-board RS485/RS422 interface, enabled by default, can be modified through jumper cap setting

  Product type: industrial isolated USB to RS485/422 converter; Communication rate: FT232RNL 300bps~3Mbps; Host interface: USB; Equipment interface: RS485/422

USB interface:

  Working level: 5V

  Interface type: USB-B interface

  Interface protection: 200mA self-recovery fuse, ESD static protection

  Transmission distance: about 5 meters

  RS485/422 interface:

  Interface type: terminal block

  Interface pins: A+, B -, PE

  Direction control: the hardware automatically determines and controls the data transmission direction

  Interface protection: provide 600W lightning-protection, surge and 15KV static electricity protection (onboard 120R balance resistance)

  Transmission distance: about 1200 meters (at low speed)

  Transmission mode: point-to-many, (up to 32 nodes, and repeaters are recommended for more than 16 nodes)

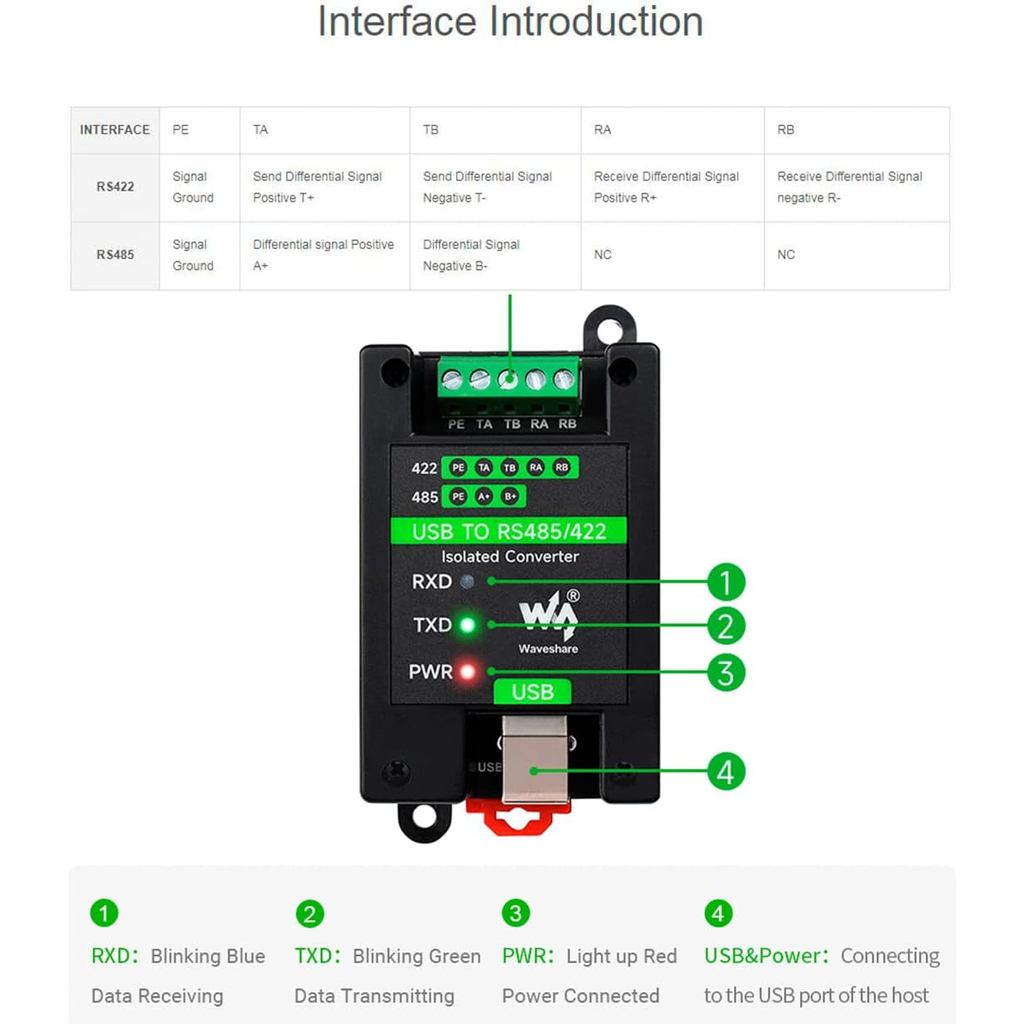

  indicator light:

  PWR: power indicator, connected to USB, red light when voltage is detected

  TXD: send indicator light, green light when data is sent from USB port

  RXD: receiving indicator light, blue light when data is sent back from the device interface

  Use environment:

  Temperature range: -15 ℃~70 ℃

  Humidity range: 5% RH~95% RH

  Operating system: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP

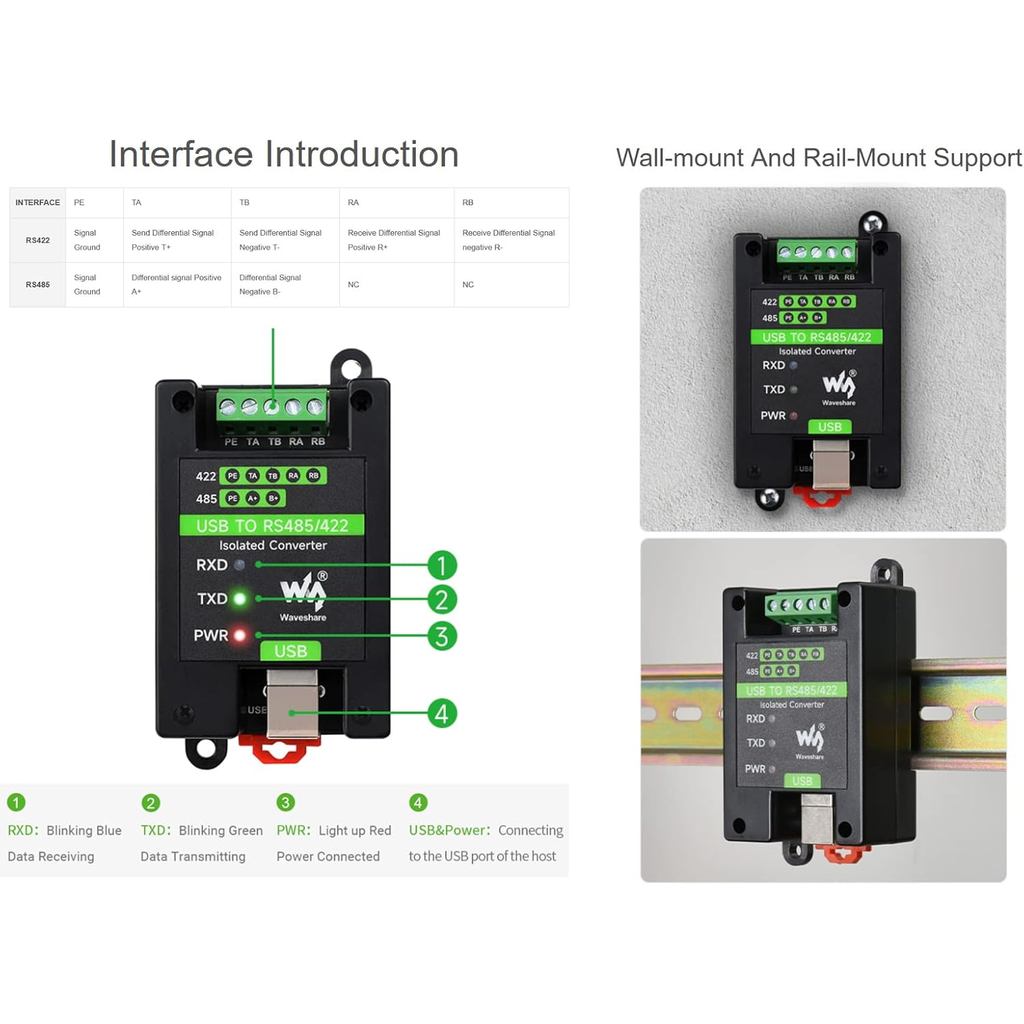

  Housing: guide-type ABS environment-friendly housing, suitable for 35mm DIN rail

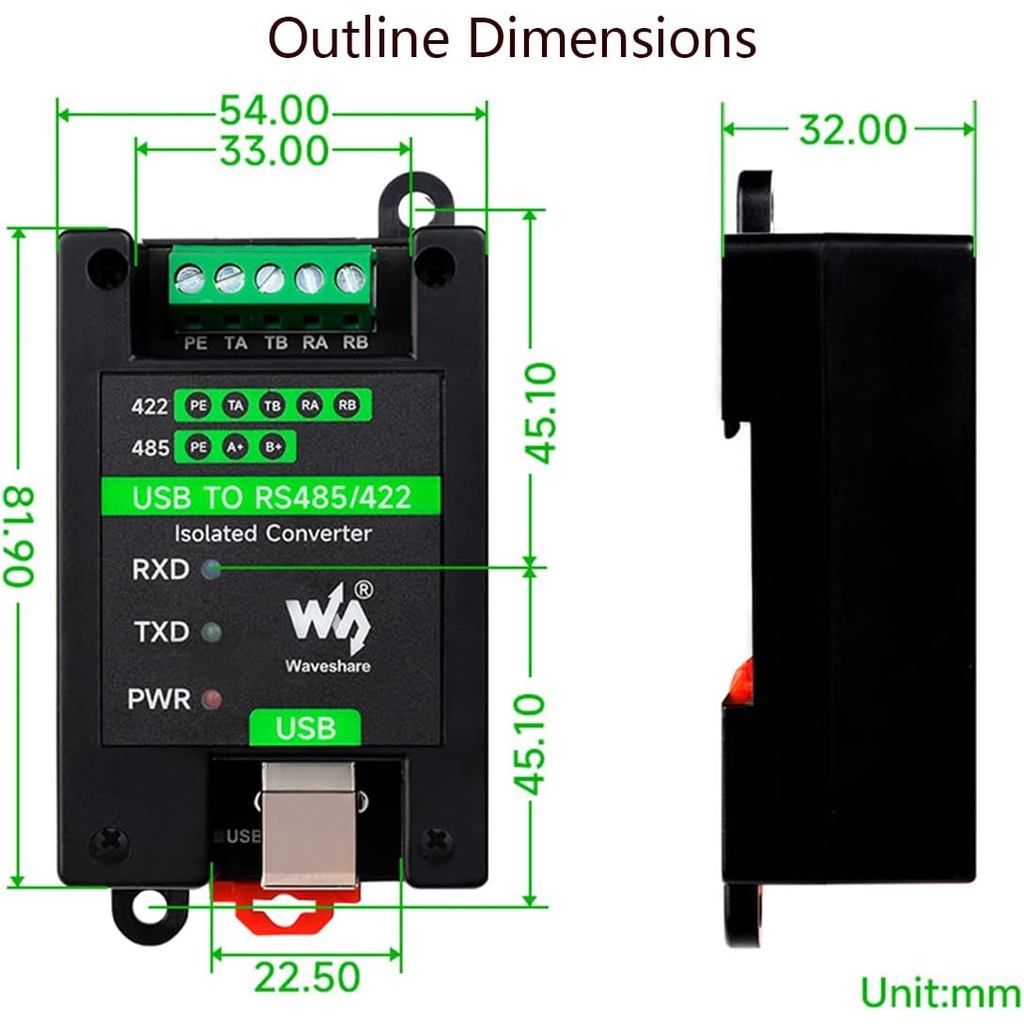

  Size: 81.9 x 54 x 32mm

  color:Black

  Material:ABS+metal

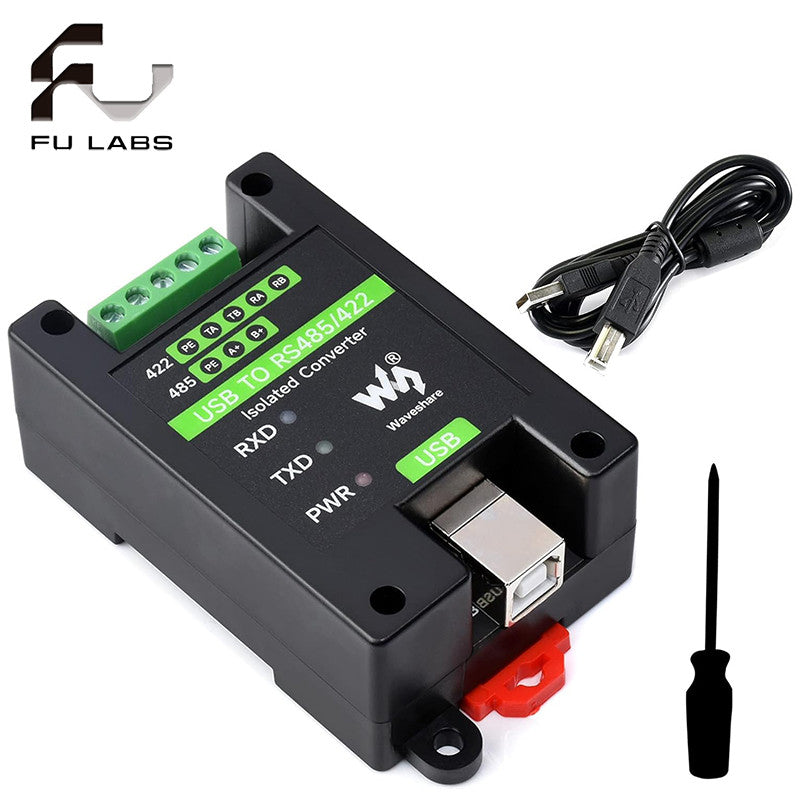

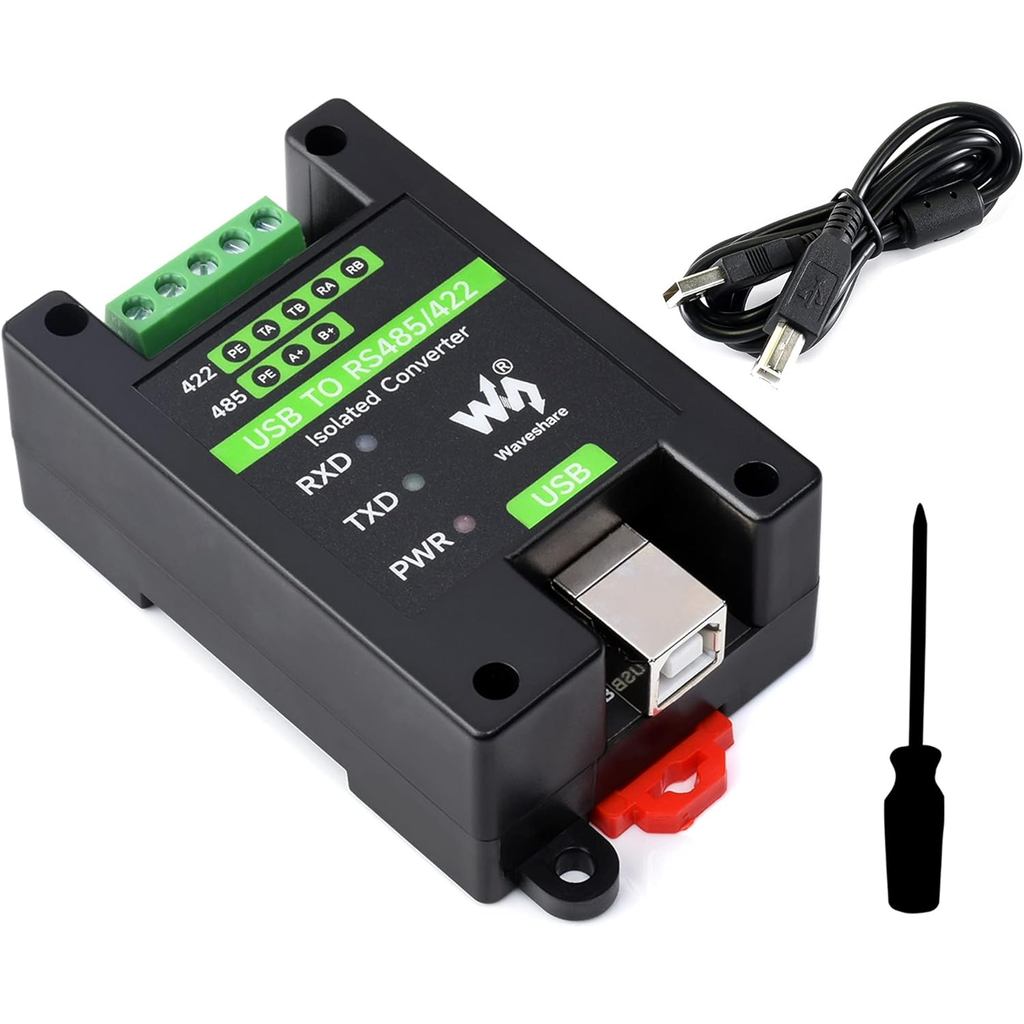

Package Contents:

  1 x USB TO RS485/422 converter

  1 x USB cable type A male to type B male, about 1.2m

  1 x screwdriver
