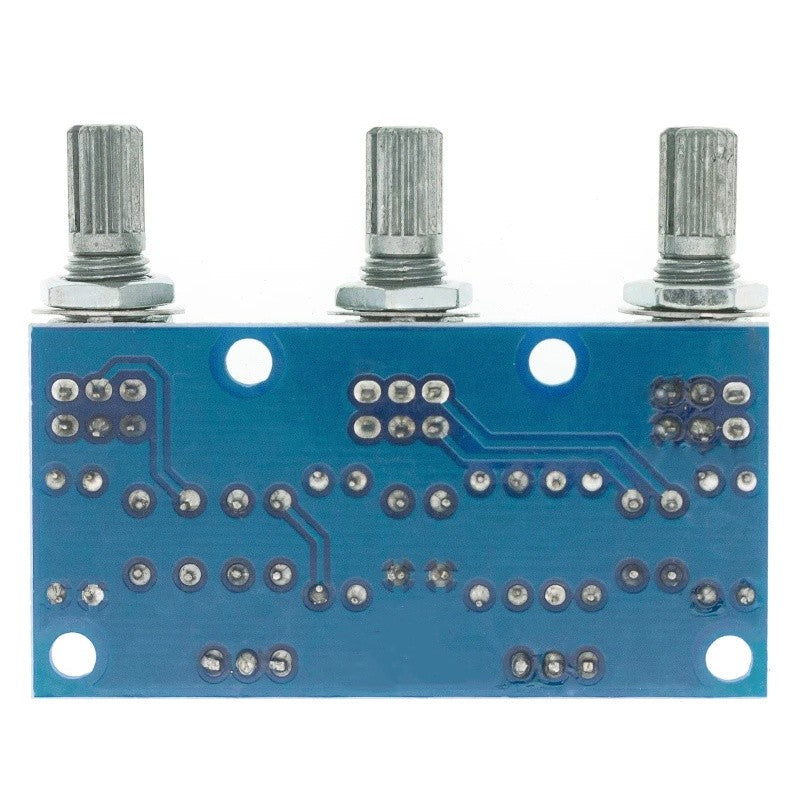

XH-M802 Amplifier Board High and Low Voltage Mixer Tone Board Volume Control Subwoofer PCB Adjustment Amplificador

  XH-M802 Amplifier Board High and Low Voltage Mixer Tone Board Volume Control Subwoofer PCB Adjustment Amplificador

This tuning version of passive tuning board, the main function of the input audio signal for high and low frequency adjustment, and then sent to the amplifier board to enlarge.

The principle of the product is that the audio signal is directly filtered through the RC filter to get the desired high and low sound through the RC capacitor. The tone board does not need power supply, but the volume after processing will be much smaller.

Parameters

Product Name: Passive tone board

Adjustable items: total volume treble bass

Number of channels: 2-channel

Knob spacing: 22.5mm

Socket type: XH2.54 - 3P

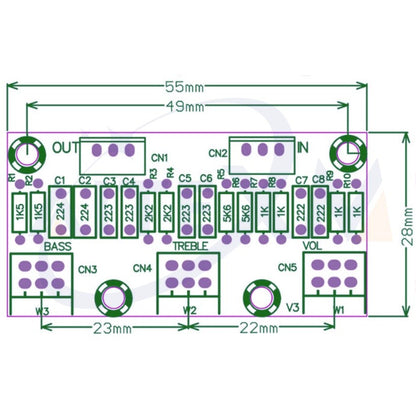

Appearance size: 56*28mm

Weight：24.5g
