  Product Characteristics：

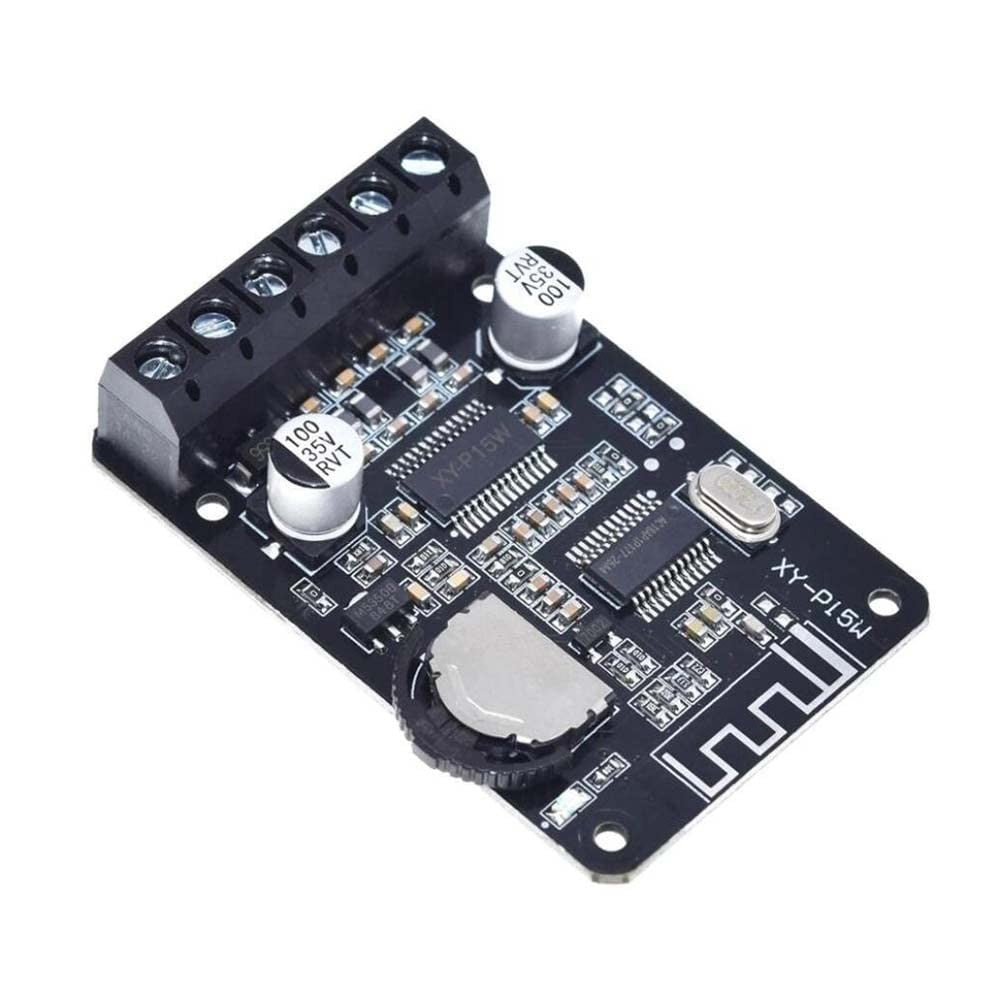

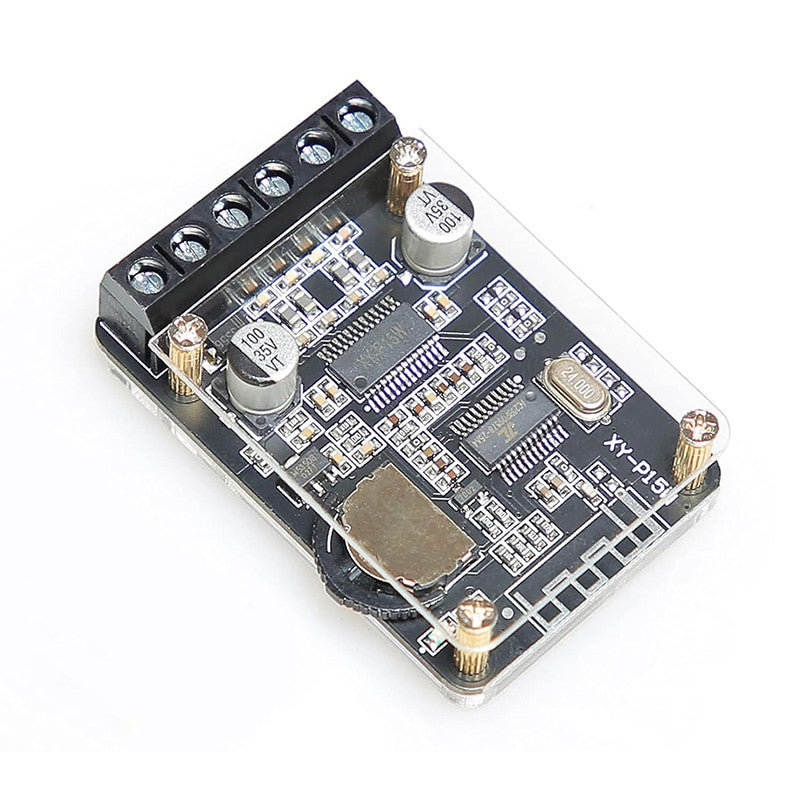

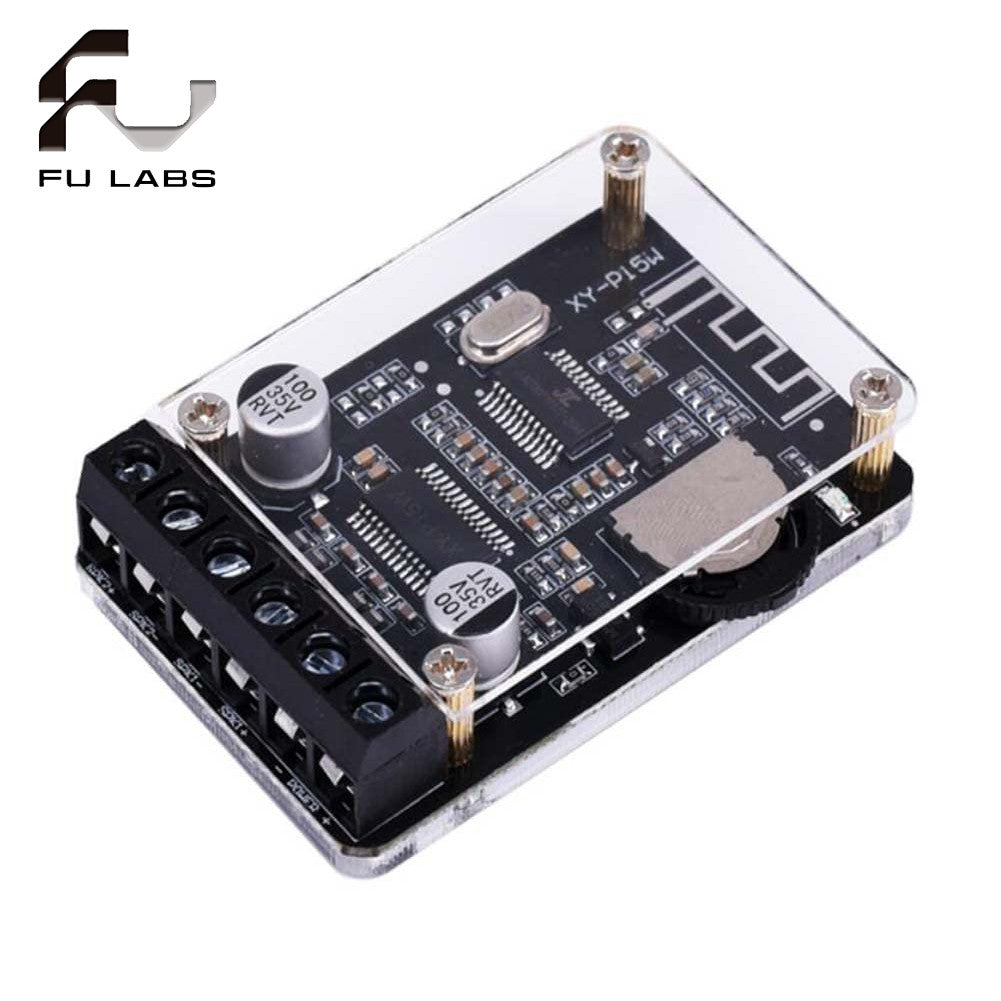

  ● Product Name：Bluetooth stereo audio power amplifier board

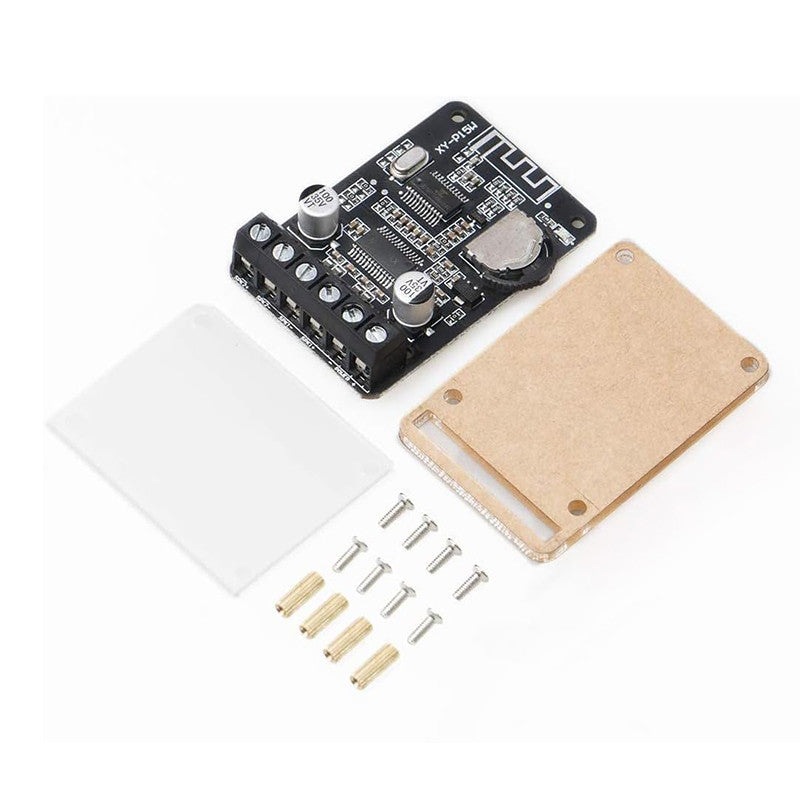

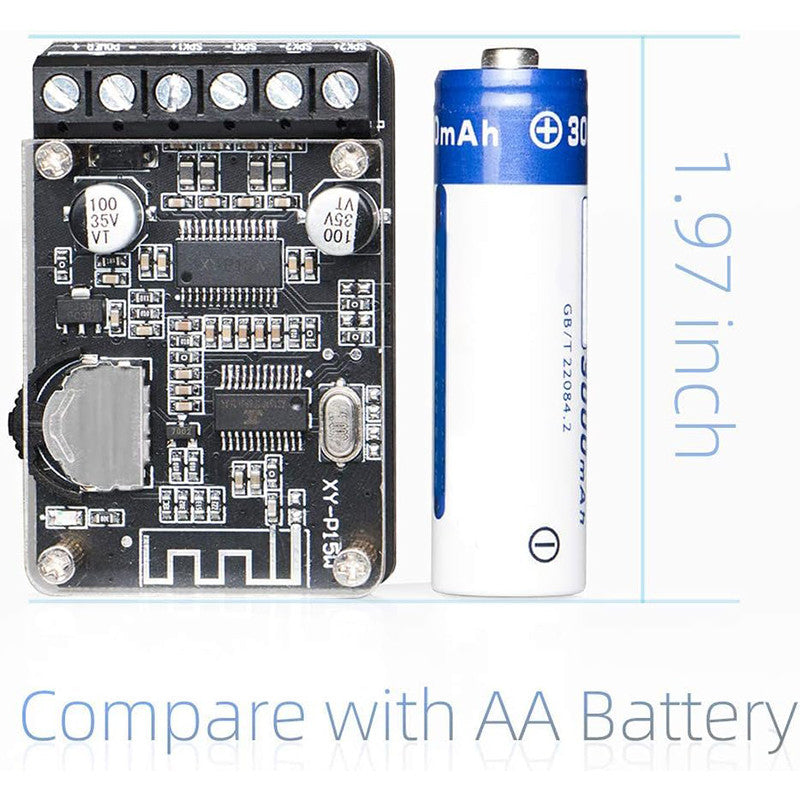

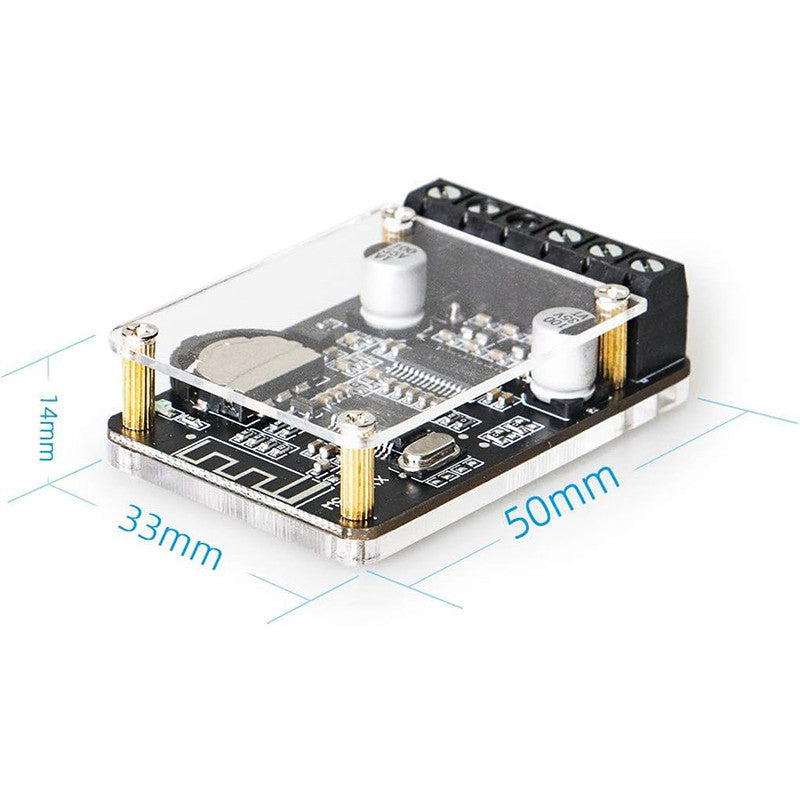

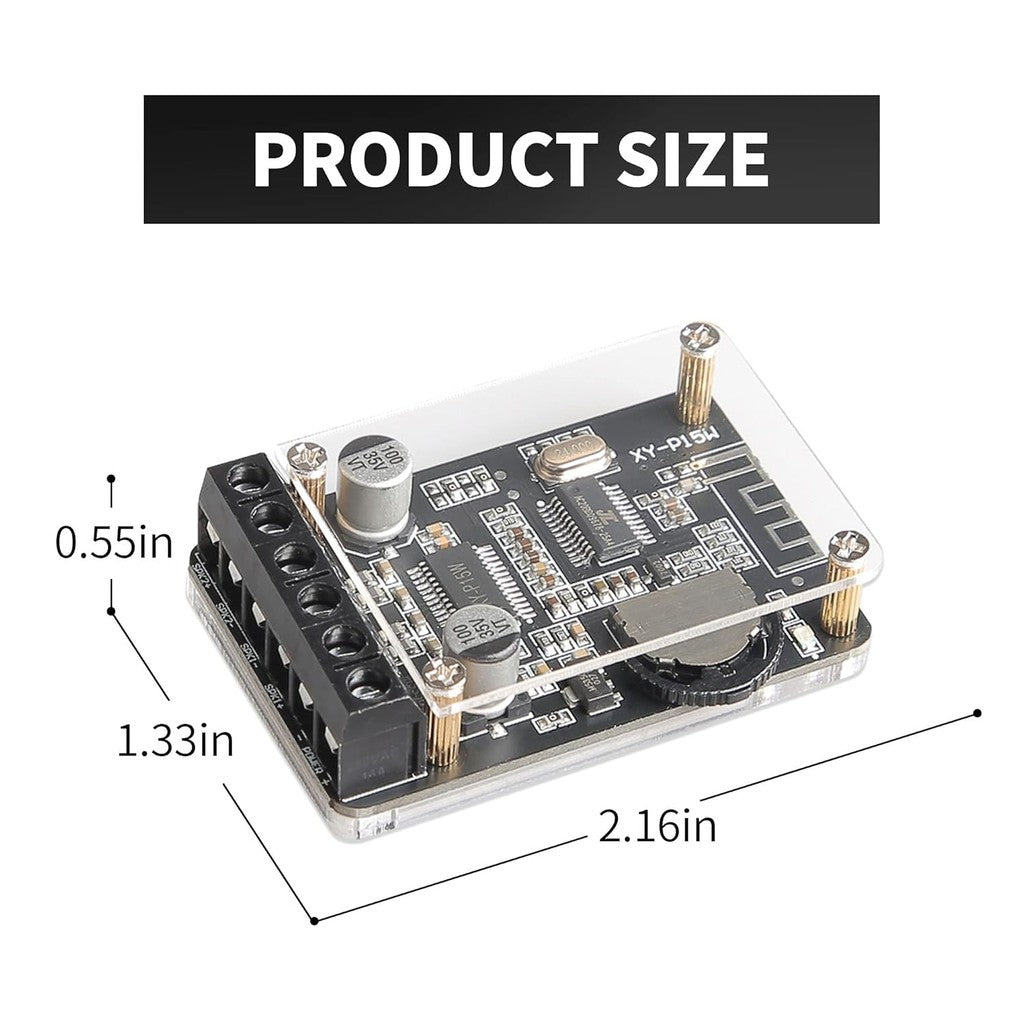

  ● Product Model：XY-P15W

  ● Supply voltage：DC: 8~24V

  ● Bluetooth version：5.0

  ● Connect distance：15 meters(visible)

  ● Output mode：stereo

  ● Output power(@1KHz)：16W*2 @12V 4Ω 、 10W*2 @12V 8Ω、15W*2 @16V 8Ω、 20W*2 @20V 8Ω、 30W*2 @24V 8Ω(cooling fin)

  Speaker selected(30W~150W)：4Ω(8~12V supply)、 8Ω(8~24V supply)、16Ω(8~24V supply)

  ● protection：Power reverse protection、Short circuit protection、Thermal protection

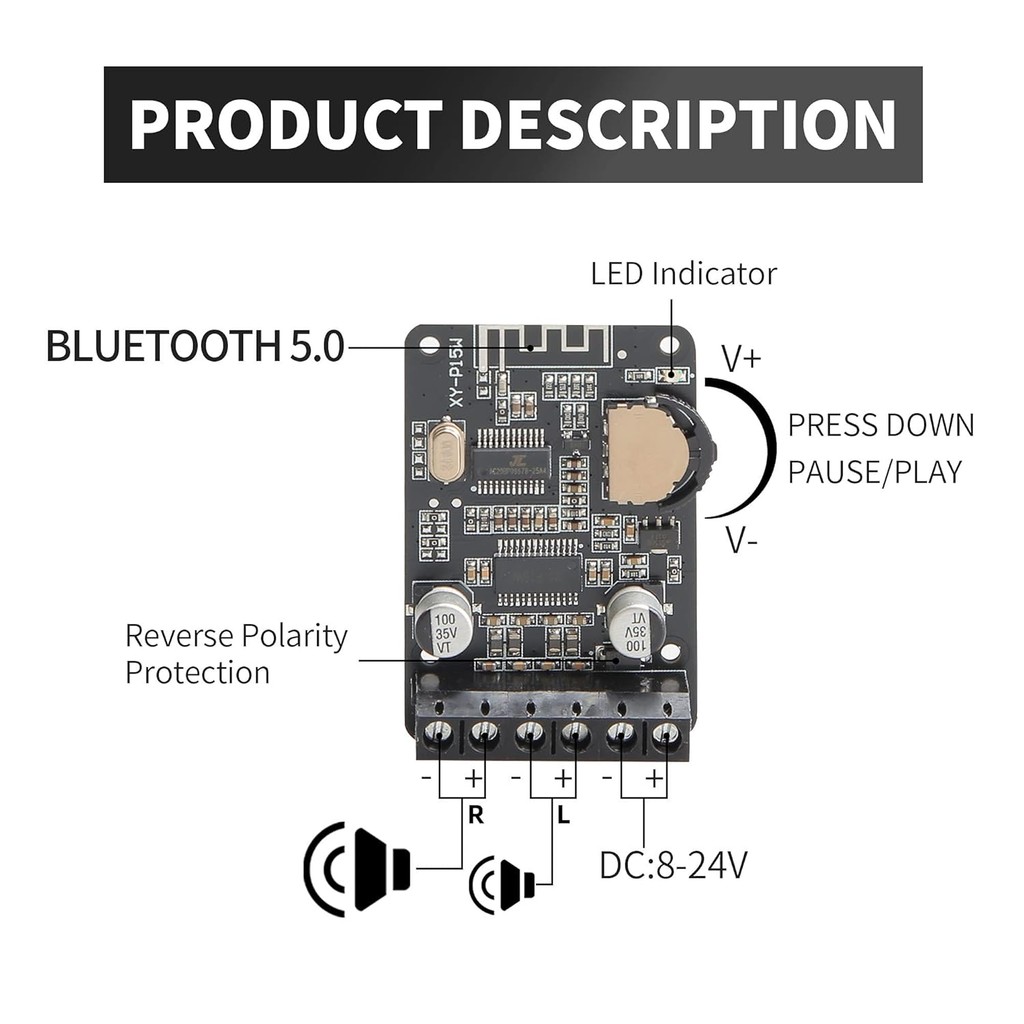

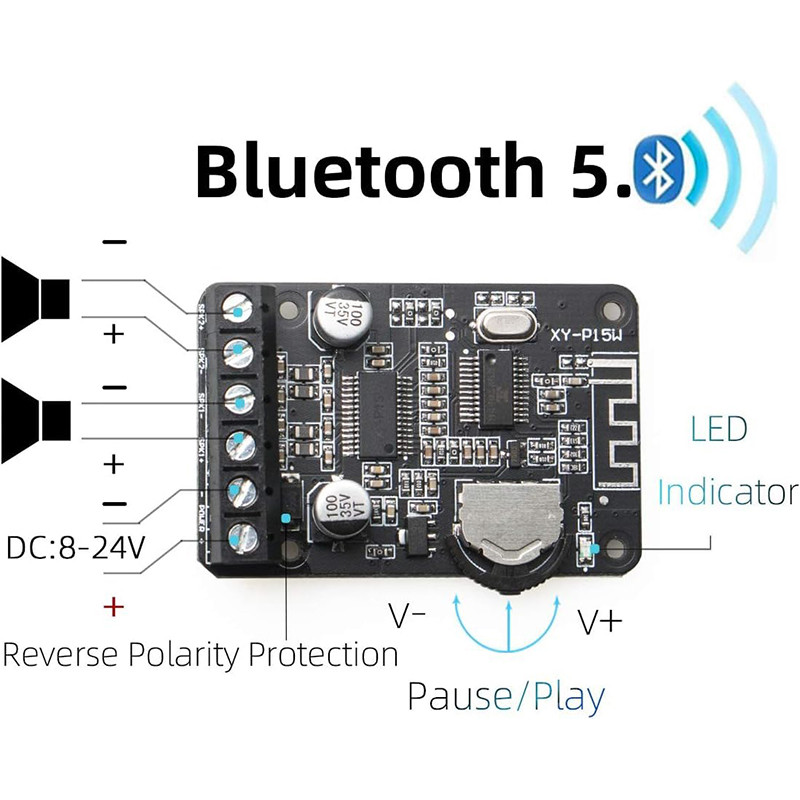

  Operation specification:

  1. Supply the module, the blue LED is on, and it goes into Bluetooth mode;Waiting for pairing after playing the audio tone; Turn on phone Bluetooth,“XY-P15W”will be searched and display; Click the

  2.  “XY-P15W”,it will connect to the board. It connects successfully with an audio tone; After this you can play the music. The power amplifier board will prepare for the next pairing with an audio tone, When the Bluetooth is disconnected.

  NOTE:

  1. Keep 2 meters away from router to avoid WIFI interference

  2. 8~24VDC is recommended; upper than 26V, it will be damaged.

  3. Driving 4Ω load, power supply must be under 12V; and driving 8Ω load, supply must be under 24V.

  4. The supply current must be 2A at least.

  5. If the module works upper 20W x 2, a cooling fin will be needed.

  6. The line connecting speaker with module should be within one meter.

  7. ESD protection, please release ESD on your hands before you contact the module.

  8. 30W and upper power speakers is recommended.
