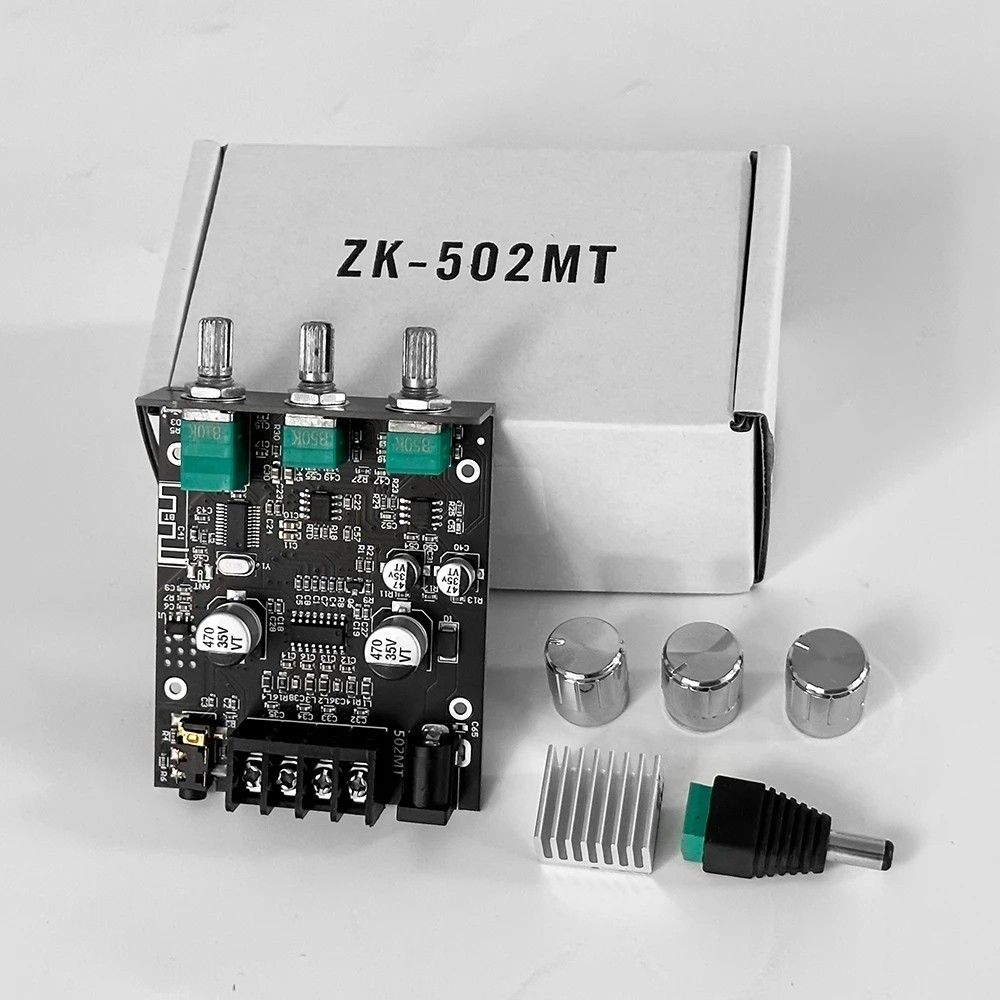

ZK-502MT Bluetooth Amplifier Board 50W+50W 2.0 Channel Amp Board with Treble and Bass Control DC 9-24V Bluetooth and AUX Inputs Audio Amp Board for Home DIY Wireless Speakers

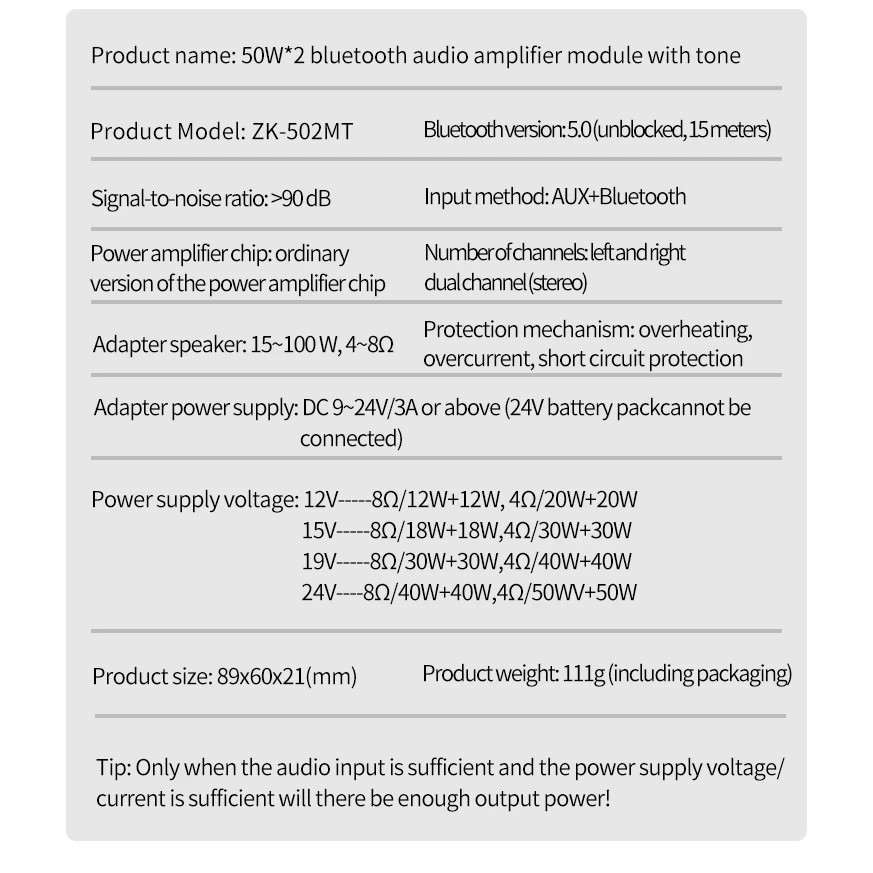

  Features:

  ● Product name: 50W Bluetooth audio power amplifier module with tone

  ● Product model: 502MT

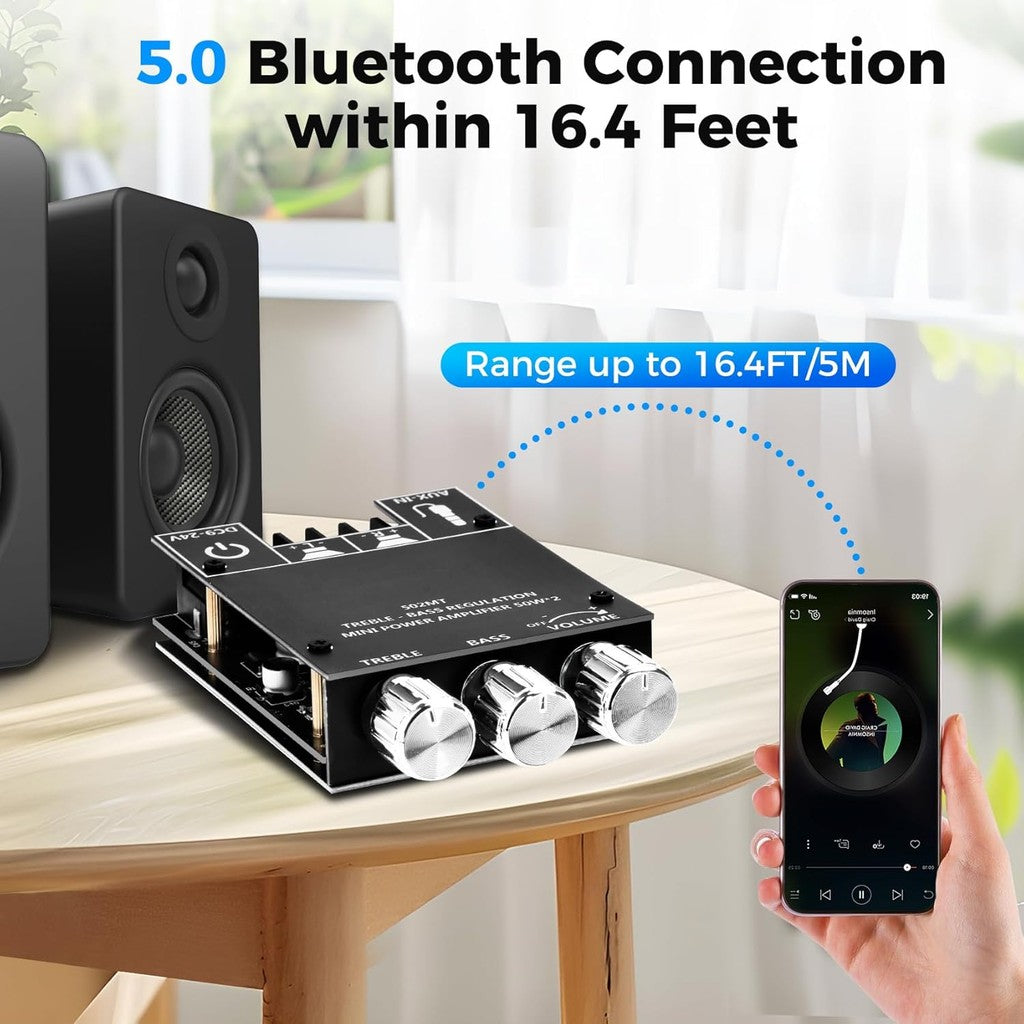

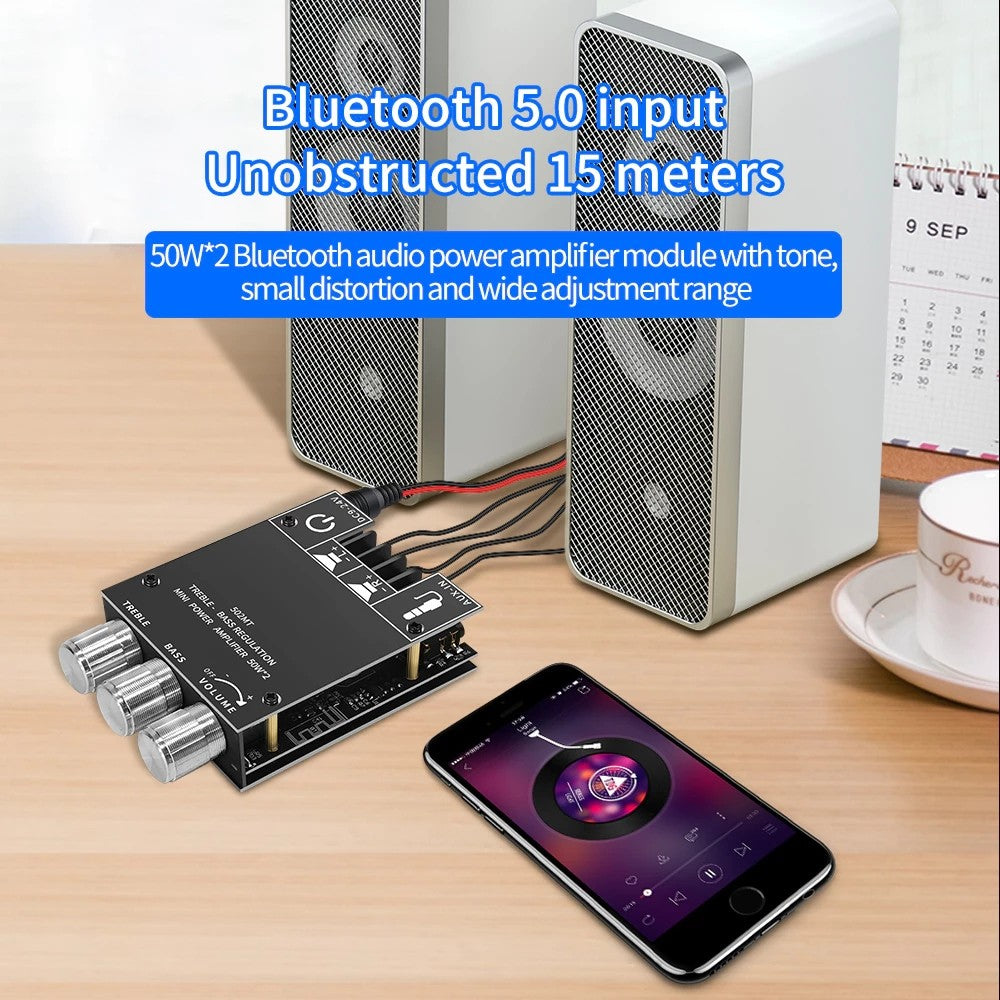

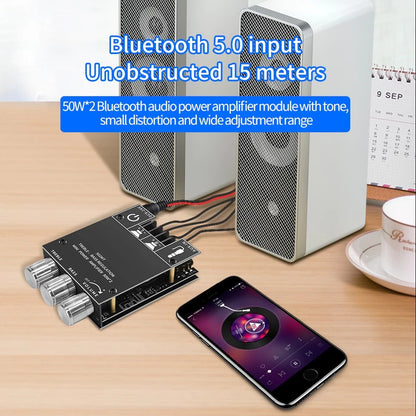

  ● Bluetooth version: 5.0 (unobstructed, 10 meters)

● Signal to noise ratio: > 90dB

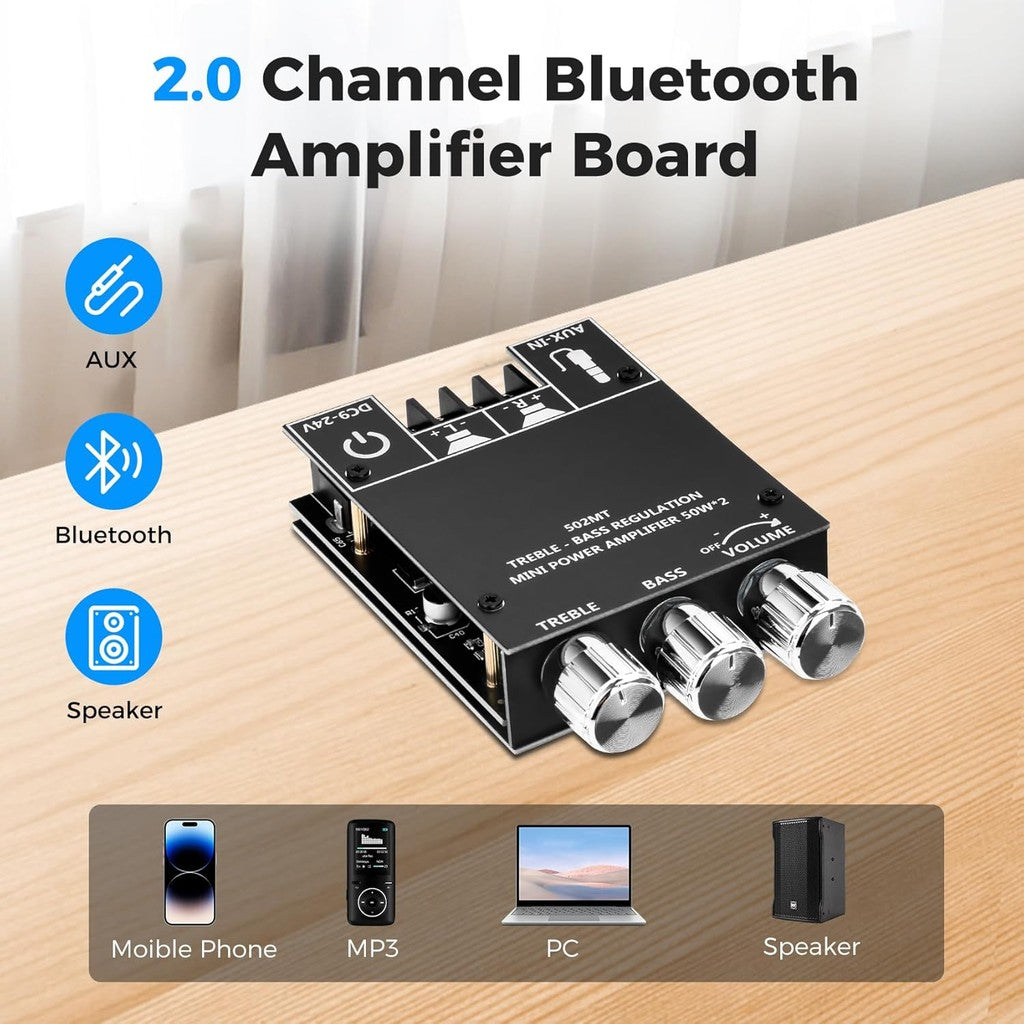

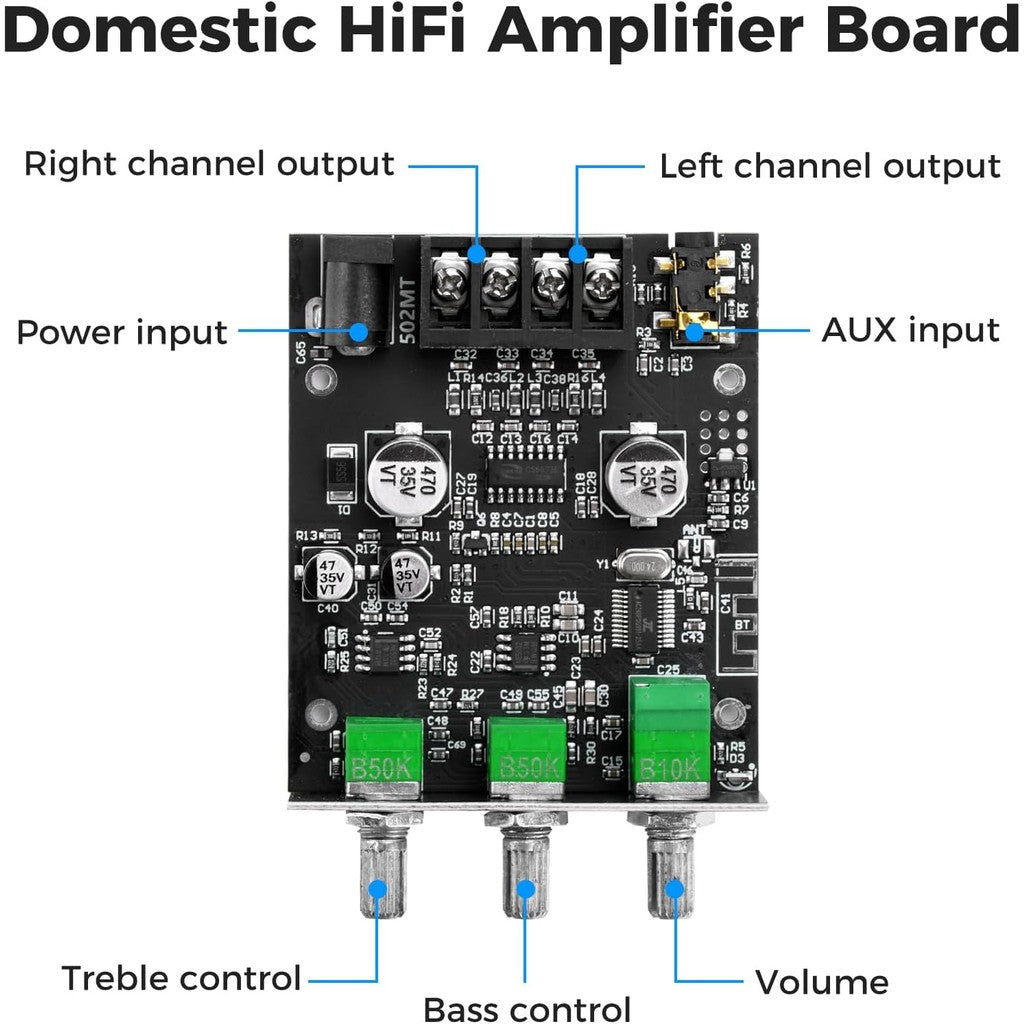

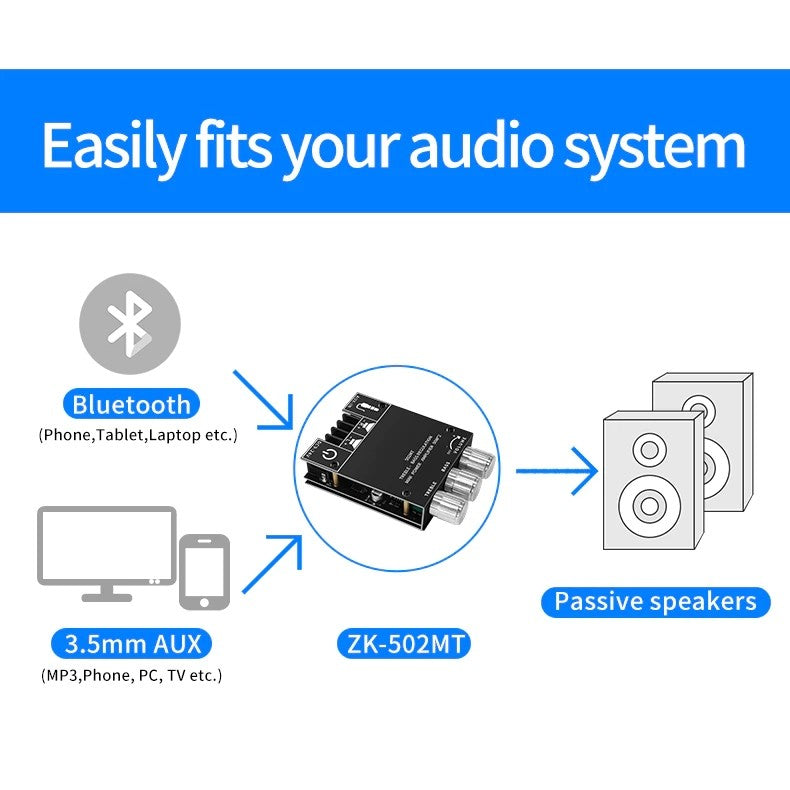

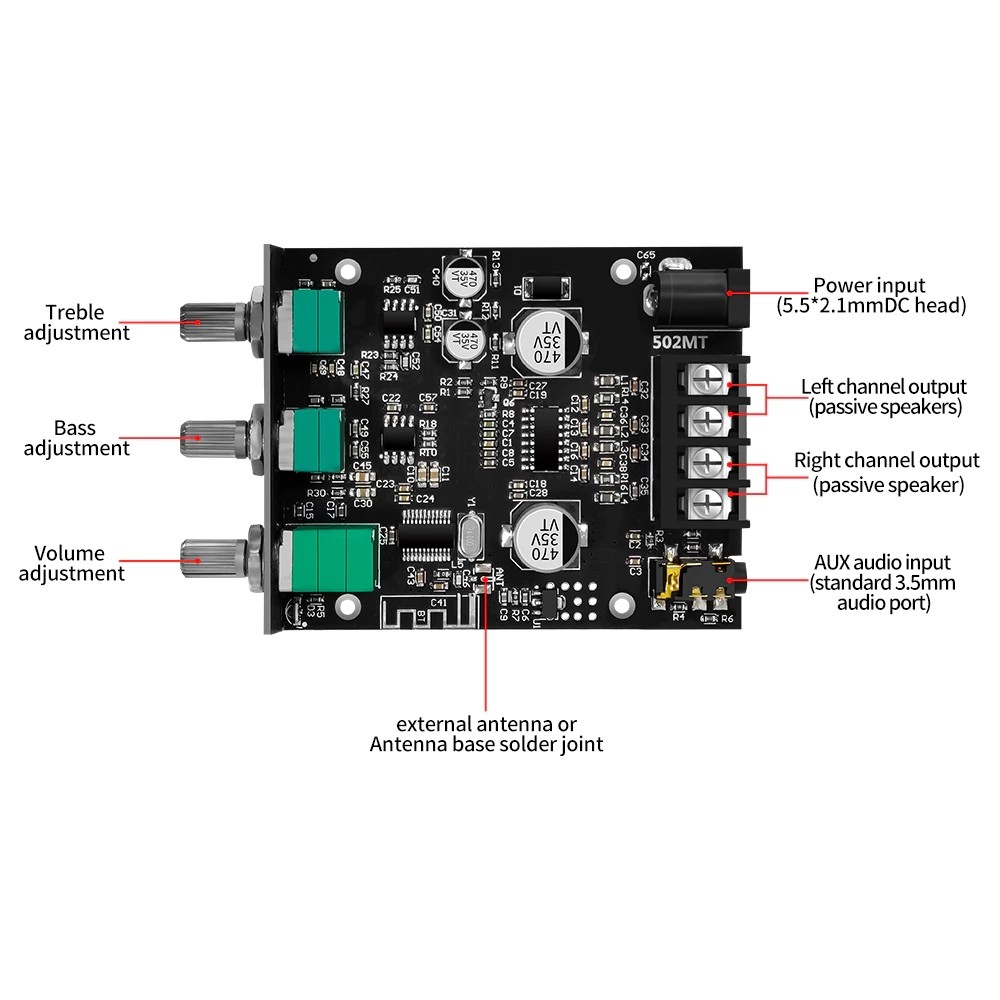

  ●  Input method: AUX + Bluetooth

  ● Channel: Left and right dual channels (stereo)

  ● Amplifier chip: Domestic power amplifier chip

  ● Adaptable power supply: DC9 ~ 24V / 3A or more (Do not connect to 24V battery pack)

  ● Adaptable speakers: 10 ~ 100W, 4 ~ 8Ω

  ● Output power: 15W * 2 @ 12V, 8Ω / 30W * 2 @ 24V, 8Ω / 20W * 2 @ 19V, 8Ω / 30W * 2 @ 12V, 4Ω / 40W * 2 @ 19V, 4Ω / 50W * 2 @ 24V, 4Ω

  ● Protection mechanism: overvoltage,overcurrent, short circuit protection

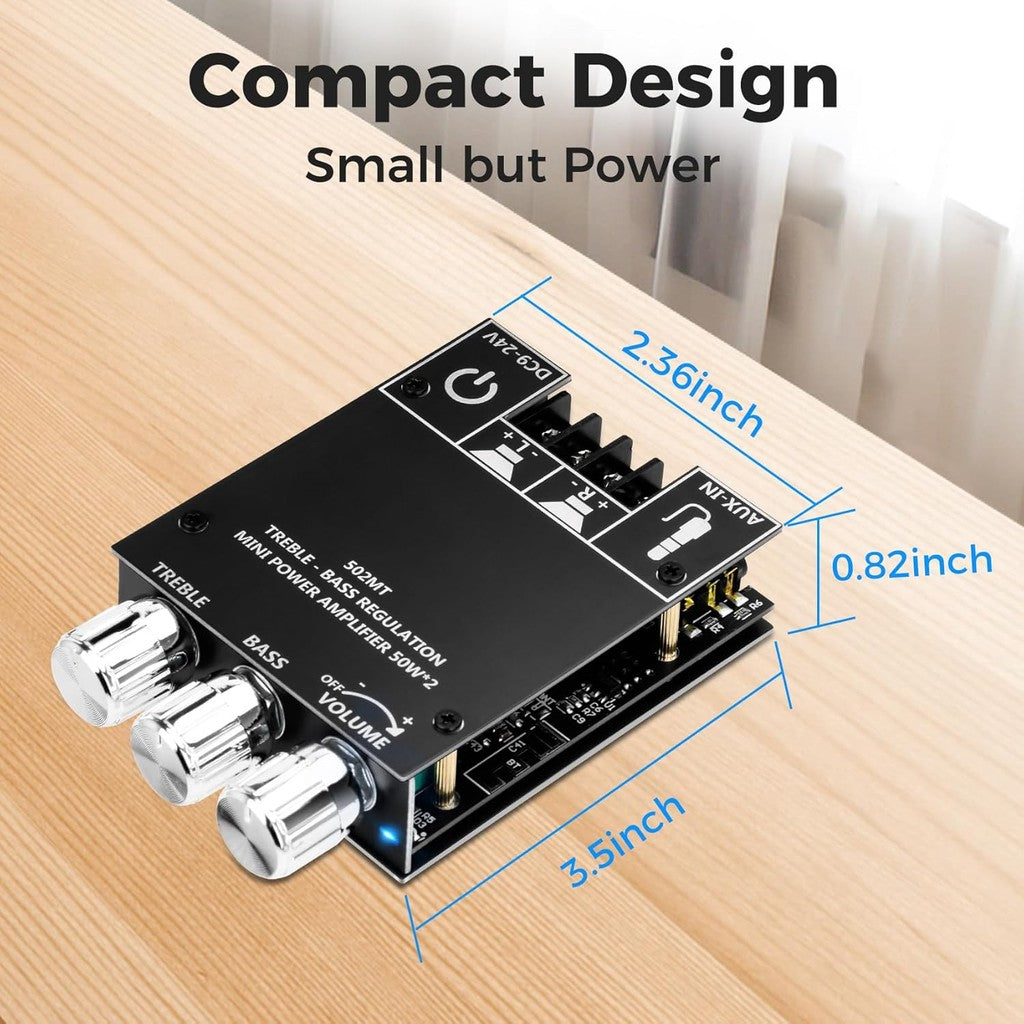

  ● Product size:89mm * 60mm * 21mm

  ● Product weight: 111g (including packaging)

  Prompt:

  Only when the audio input is sufficient and the power supply voltage / current is sufficient, will there be enough output power!

  The higher the power supply voltage, the greater the output power, the smaller the speaker impedance, the greater the output power!

  Please make sure that the power of the adapted power supply is greater than the actual working power of the amplifier!

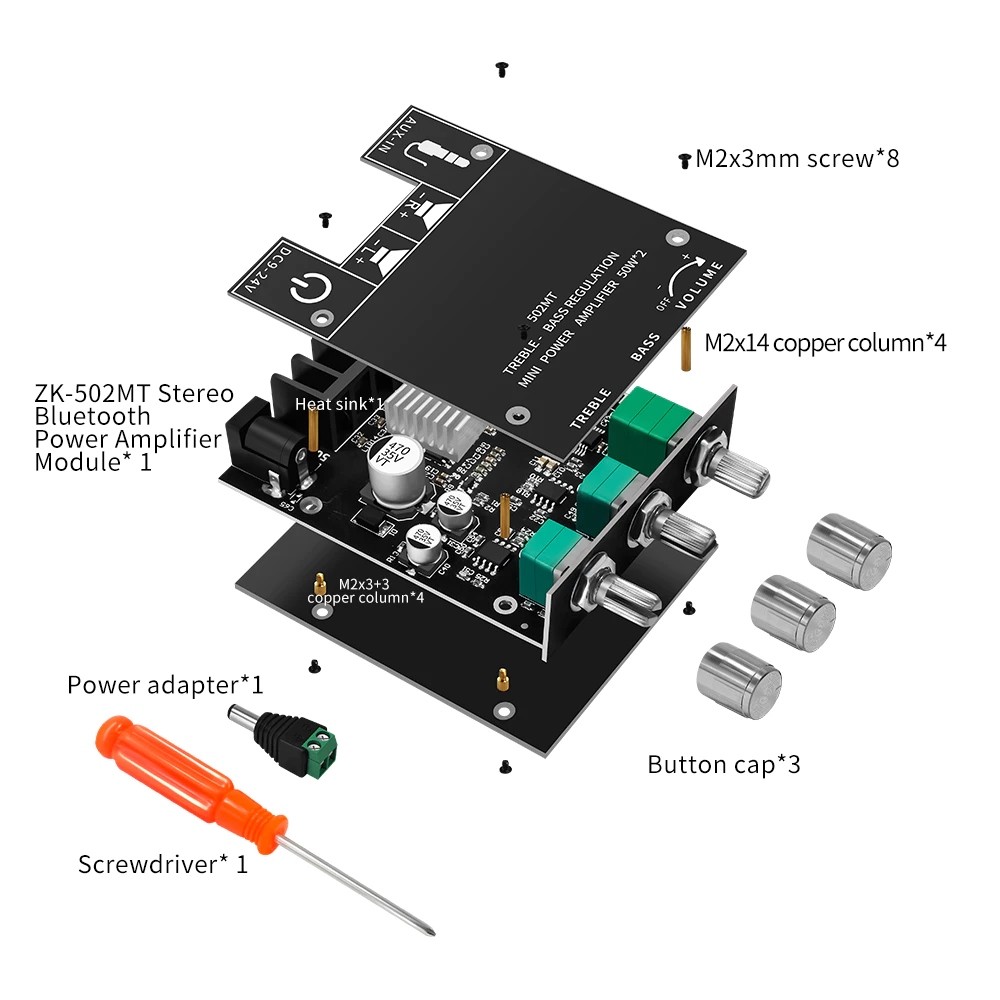

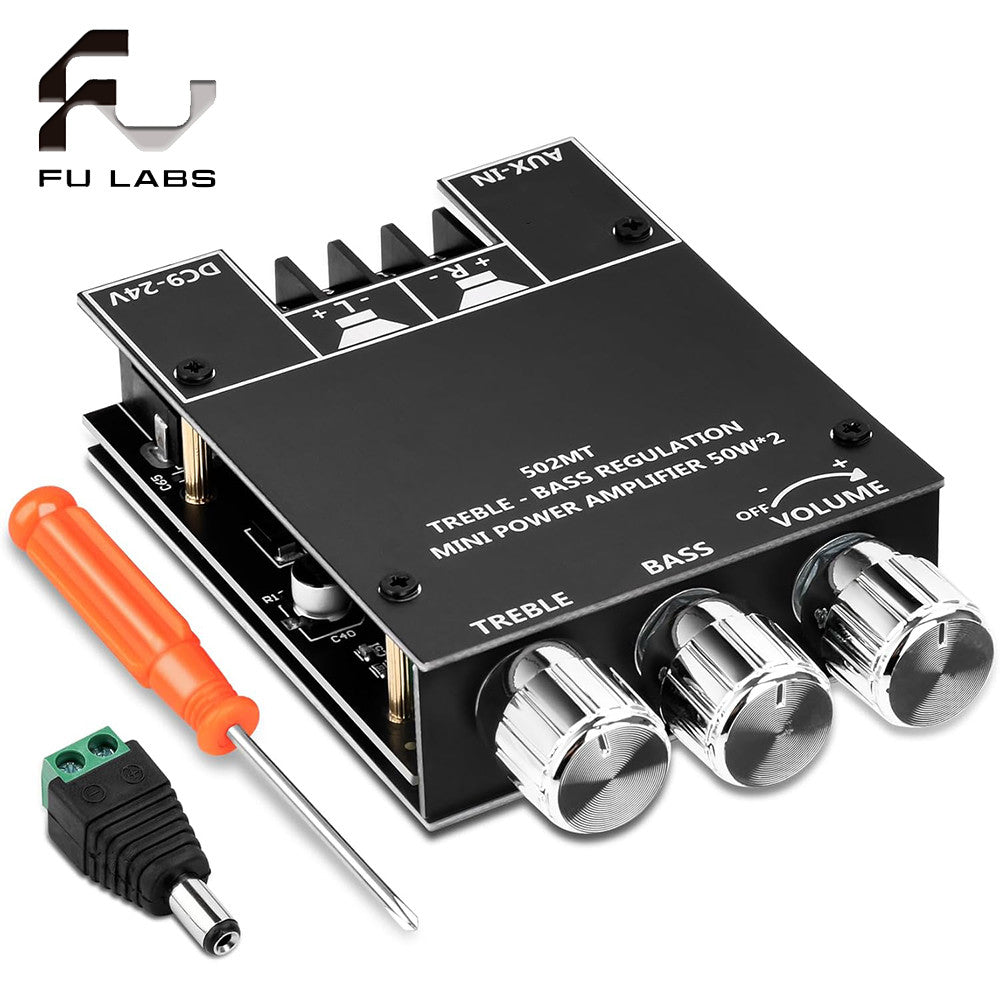

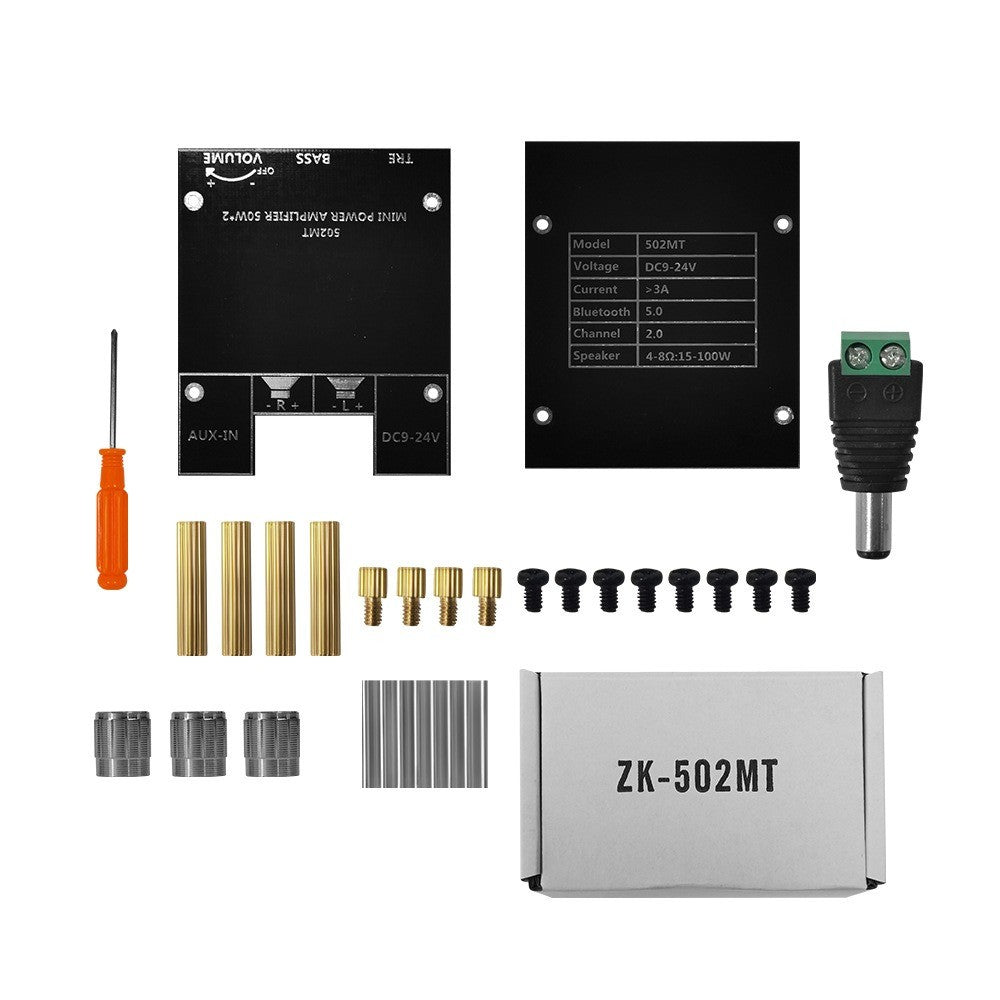

  Package includes:

  1 x Audio Power Amplifier Board kit
